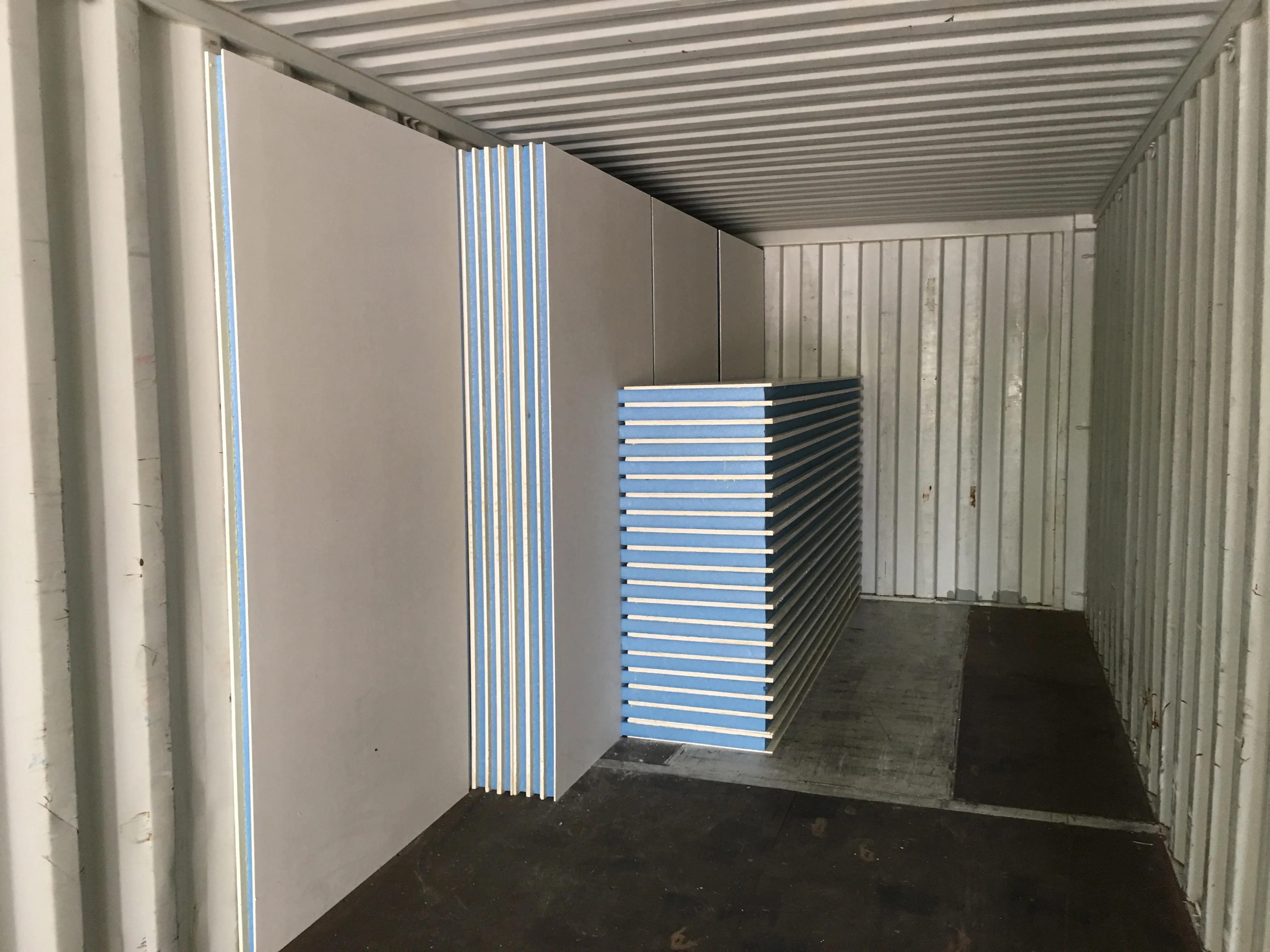

SWISSIWS Lightweight FPB Load Bearing Cement Sandwich Wall Panels

Product Overview

Description

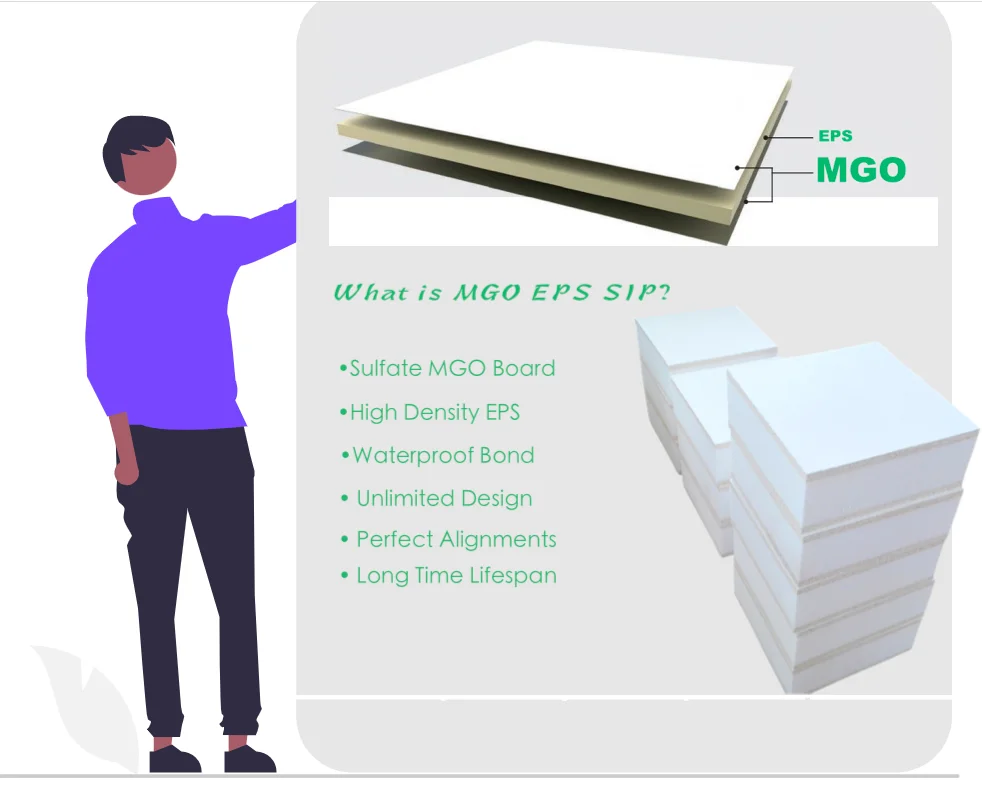

SWISSIWS MGO ‘EPS’ SIP

Structural insulated panels (SIPs) are high performance building panels used in floors, walls, and roofs for both residential and

light commercial buildings. It is made up of rigid foam insulation placed between two skins of MGO board. These exterior skins

are attached to a foam core with high-strength adhesive.



MGO EPS SIPs are very efficient compared to the typical stick-frame house and commercial buildings.

The thermal tightness and resistance to heat flow work with the insulation value to achieve exceptional comfort and energy

efficiency. Hence, these SIPs are widely used as construction materials. Moreover, in places that are prone to tornadoes or

hurricane-force winds, these products are highly useful.



Apart from traditional advantages of SIPs listed above, MGO EPS SIP is accepted to be the most suitable material for

reaching fireproof purpose with reasonable budget.



The chart below states general ‘technical parameter’ of SWISSIWS MGO EPS SIP

Sizes (mm)	1220*2440, 1100*2400, 1100*2700, 1100*2950, 1100*3000 etc.
Thickness of SIPs	10/90/10, 10/100/10, 10/120/10 etc.
Thickness of EPS	50mm to 300mm
Density of EPS	18kgs/m3 to 30kgs/m3
Color of EPS	White, dark grey
Fireproof level	B1
Edge treatment	T& G, four sides recessed, customized etc.
Top Layer	MGO board
Middle Core	EPS board
Bottom Layer	MGO board
