Free sample small size oled spi pcb nrf24l01 pa lna with antenna rf 2.4 ghz transceiver module
- Category: >>>
- Supplier: Chengdu Ashining Technology Co. Ltd.
Share on (1600530727201):
Product Overview
Description
Product Description
Free sample small size oled spi pcb nrf24l01 pa lna with antenna rf 2.4 ghz transceiver module

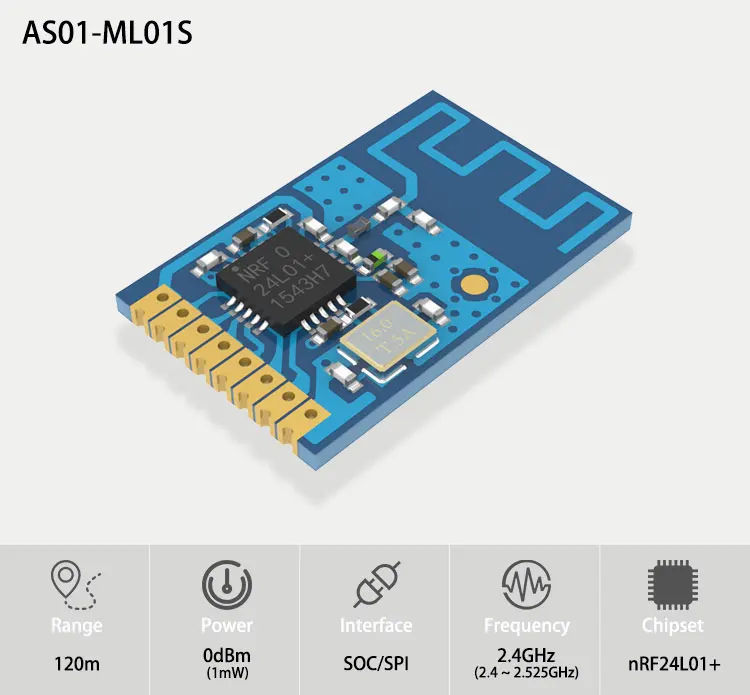

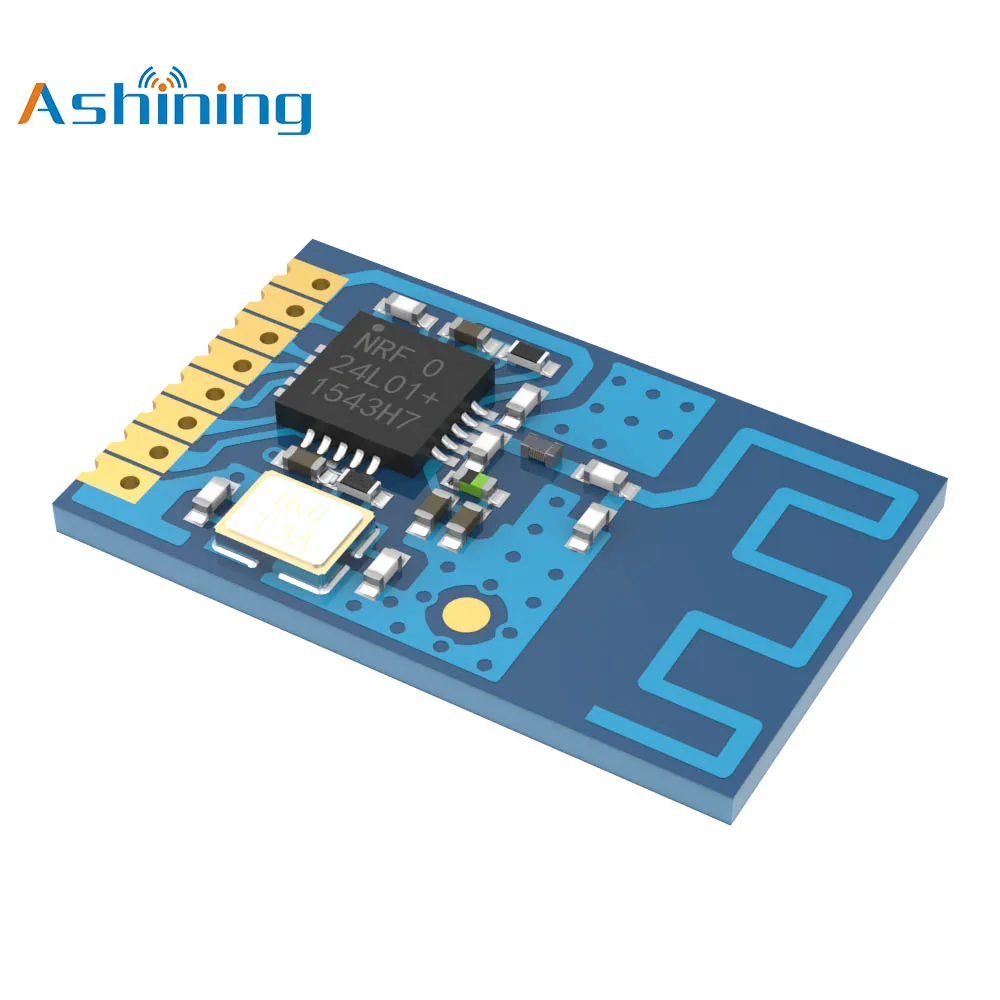

√ AS01-ML01S is a 2.4GHz, 1mW, high-speed, high-stability, industrial-grade data transmission module that integrates wireless transceivers.

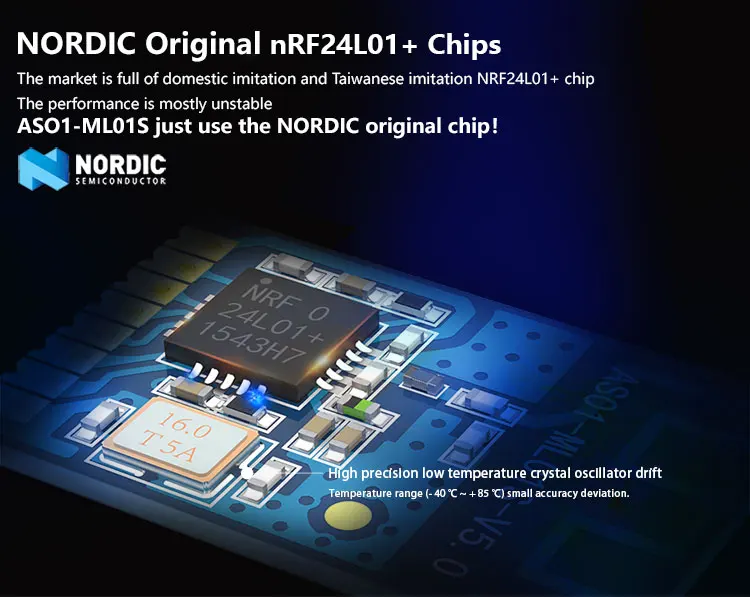

√ The module owns with a high-performance PCB antenna, precise impedance matching, and adopts NORDIC original nRF24L01P radio frequency chip.
√ The module has sufficient transmit power, good spectral characteristics, small harmonics, small channel crosstalk, and ultra-small size. Some devices have reached military-grade standards.
√ The module owns with a high-performance PCB antenna, precise impedance matching, and adopts NORDIC original nRF24L01P radio frequency chip.
√ The module has sufficient transmit power, good spectral characteristics, small harmonics, small channel crosstalk, and ultra-small size. Some devices have reached military-grade standards.
Electronical Parameters
NO. | Item | Value | Description |

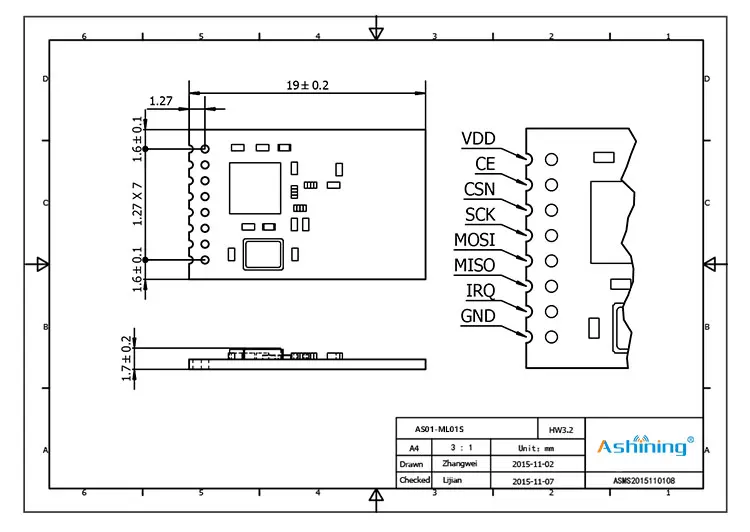

1 | Product Size | 12*19mm | Without antenna |
2 | Product Weight | 3g | Without antenna |
3 | Package Form | SMD | Standard |
4 | Transmit Power | 0dBm | 1mW |
5 | Working Frequency | 2.4-2.525GHz | 2.4G as factory default |
6 | Transmitting Range | 120m | Receive sensitivity up to -94dBm |
7 | Air Speed | 250Kbps、1Mbps、 2Mbps | 3 level options |
8 | Supply voltage range | 1.8V~3.6VDC | Standard |
9 | Working Temperature | -40℃~+85℃ | Meet the needs of industrial use |
10 | Antenna Type | PCB | Standard 50Ω |
11 | Working mode | 4 | Standard |
Products Features
Functions
1. High level CE is valid. When the module writes the register, it must first be set to power-down mode. It is recommended to connect CE to the IO port of the micro-controller.
2. IRQ is recommended to connect the external interrupt of the micro-controller. Alternatively, the SPI query mode can be used to obtain the interrupt status.
3. The nRF24L01P technical manual requires that the high-level time of the CE pin is greater than 10us to start data transmission.
Application
AS01-ML01S can be widely used in the following scenarios:
●Gas Data Collection ●Data LED Display ●Smart Parking ●LED Screen Control ●Equipment Monitoring System ●Smart Medical Machinery
