CuBe2 / BeCu25 Alloy 25 UNS C17200 Beryllium Copper strip tape in coils
- Category: >>>
- Supplier: Changzhou Dlx Alloy Co. Ltd.
Share on (1600530730496):
Product Overview
Description
Products Description

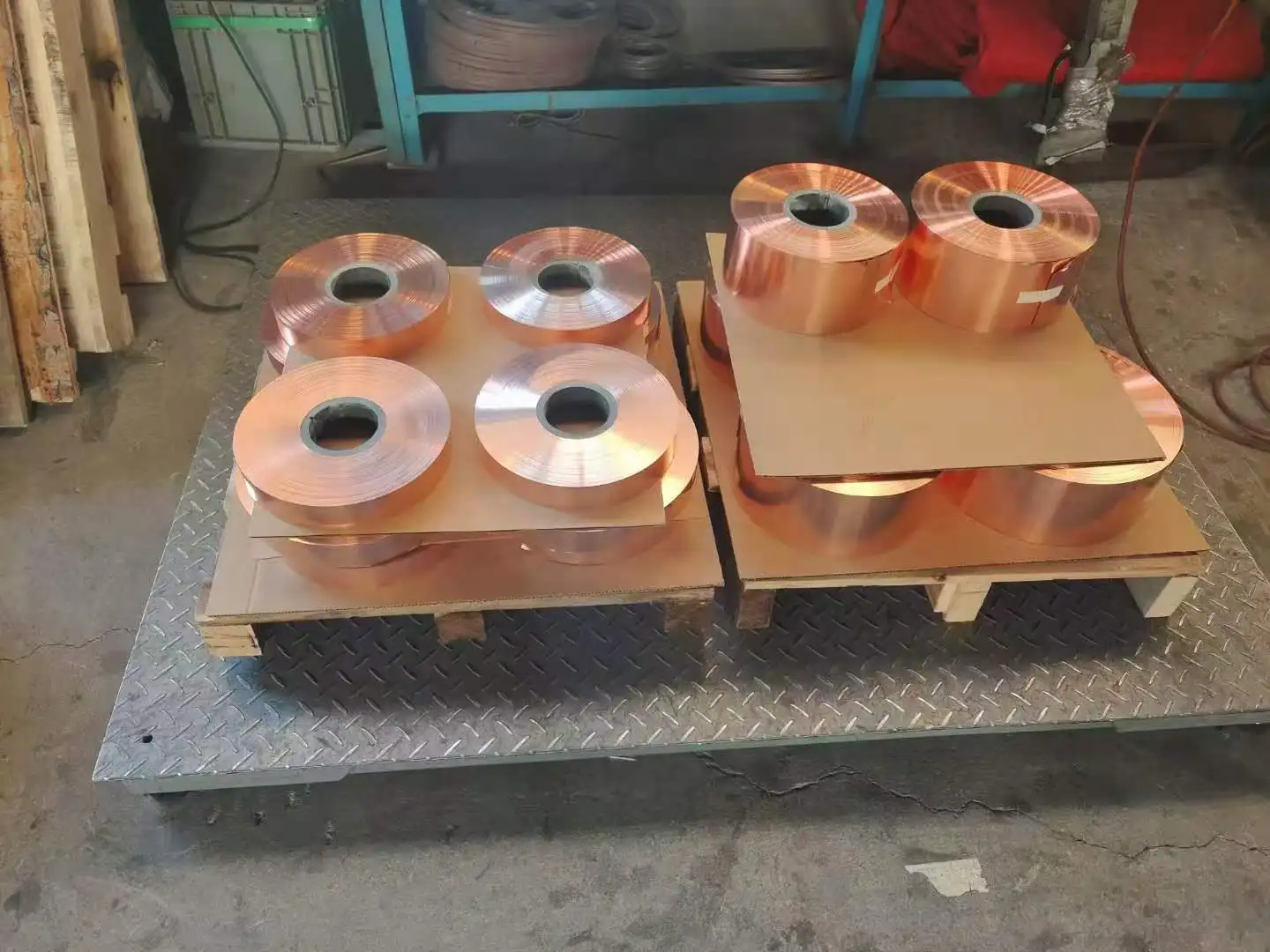

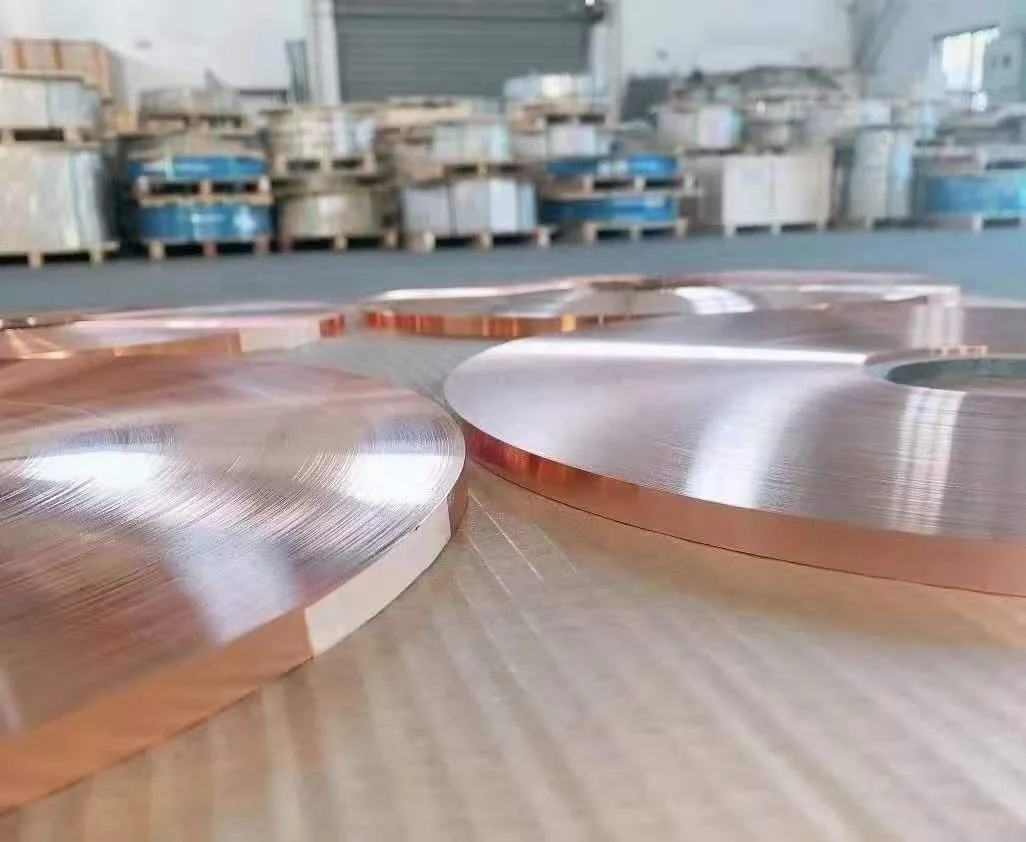

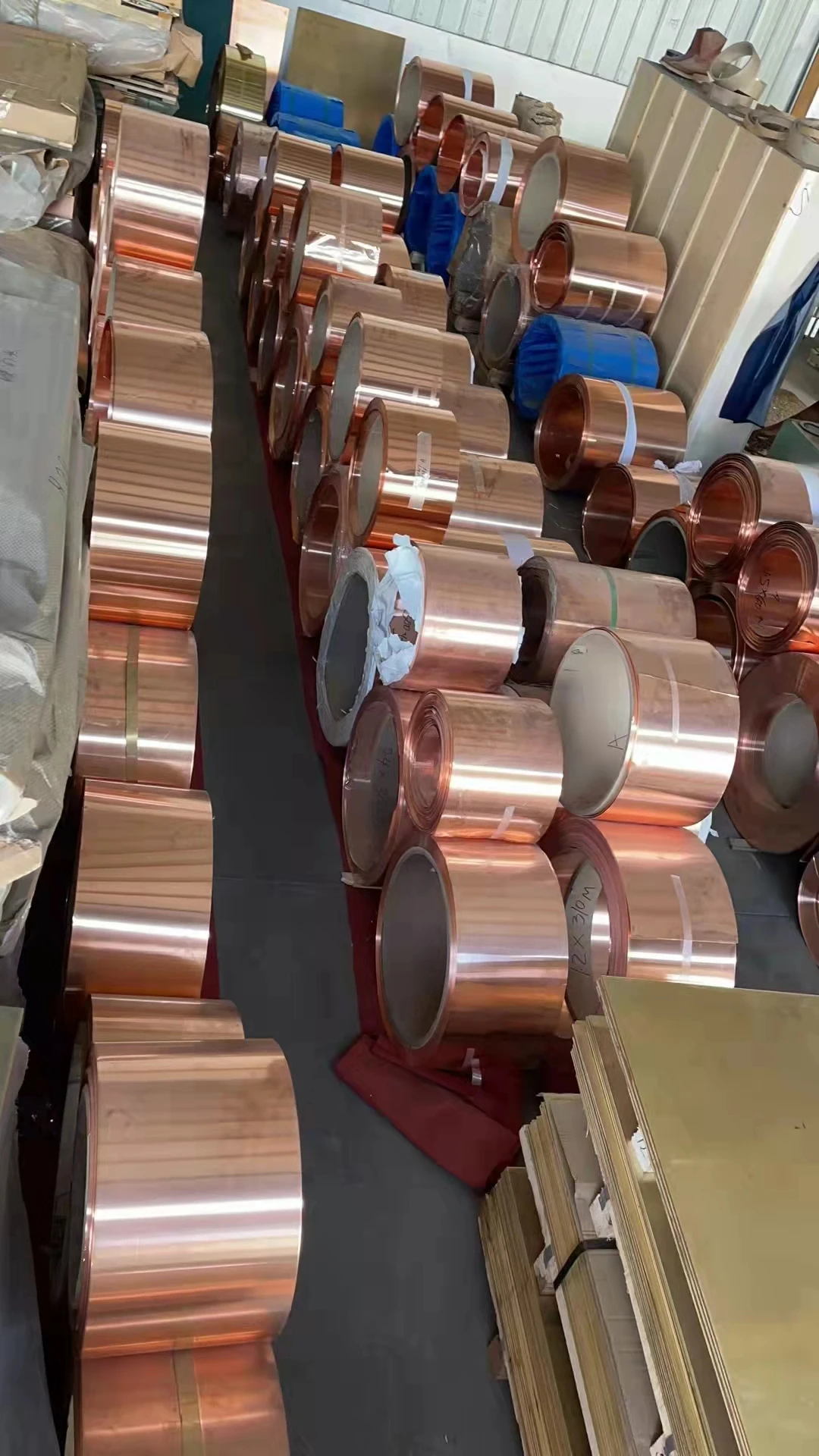

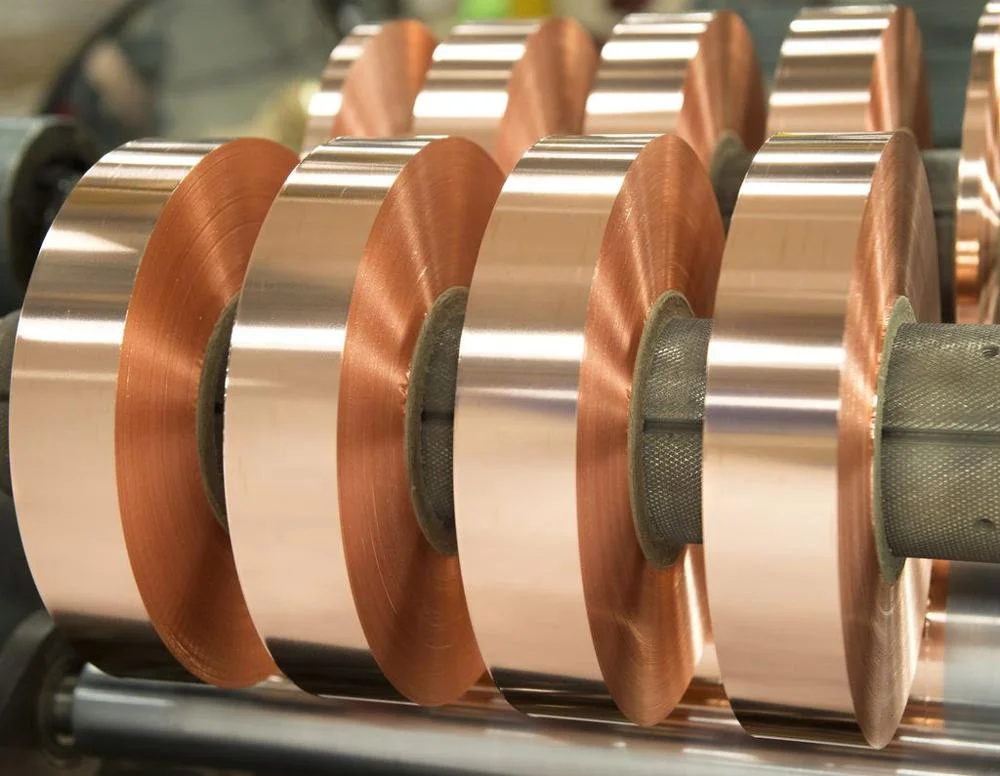

C17200 / QBe2 / Beryllium Copper Alloy Foil Strip / tape in Coils
Physical Properties
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.
Applications:
1). Electrical Industry: Electrical Switch and Relay Blades
2). Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors
3). Contact Bridges, Belleville Washers, Navigational Instruments
4). Clips Fasteners: Washers, Fasteners, Lock Washers
5). Retaining Rings, Roll Pins, Screws, Bolts Industrial: Pumps, Springs,
6). Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose,
7). Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems,
8). Diaphragms, Springs, Welding Equipment, Rolling Mill Parts,
9). Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment.
2). Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors
3). Contact Bridges, Belleville Washers, Navigational Instruments
4). Clips Fasteners: Washers, Fasteners, Lock Washers
5). Retaining Rings, Roll Pins, Screws, Bolts Industrial: Pumps, Springs,
6). Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose,
7). Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems,
8). Diaphragms, Springs, Welding Equipment, Rolling Mill Parts,
9). Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment.
More Products:
More range of copper and copper alloys, in full series of shapes: Sheet, Rod, Pipe, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
CuCoNiBe (CuCo1Ni1Be, 2.1285, CW103C)
C15000,/150, C18000/180, C18150/181, C18200/182
CuZr, CuNi2CrSi, CuCr1Zr, CuCr
Specification
Product Name | 0.08-2mm Thickness Alloy 25 Beryllium Copper strips |
Material | Beryllium Copper Alloys |
Composition | Be 1.86% Co+Ni 0.265% Fe 0.06% Co+Ni+Fe 0.325% Cu Balance |
Shape | Roll//Strips/coils |
UNS/CDA | UNS: C17200, CDA: 172 |
ASTM | B194 |
AMS | 4530, 4532 |
RWMA | Class 4 |
Temper | A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04) |
