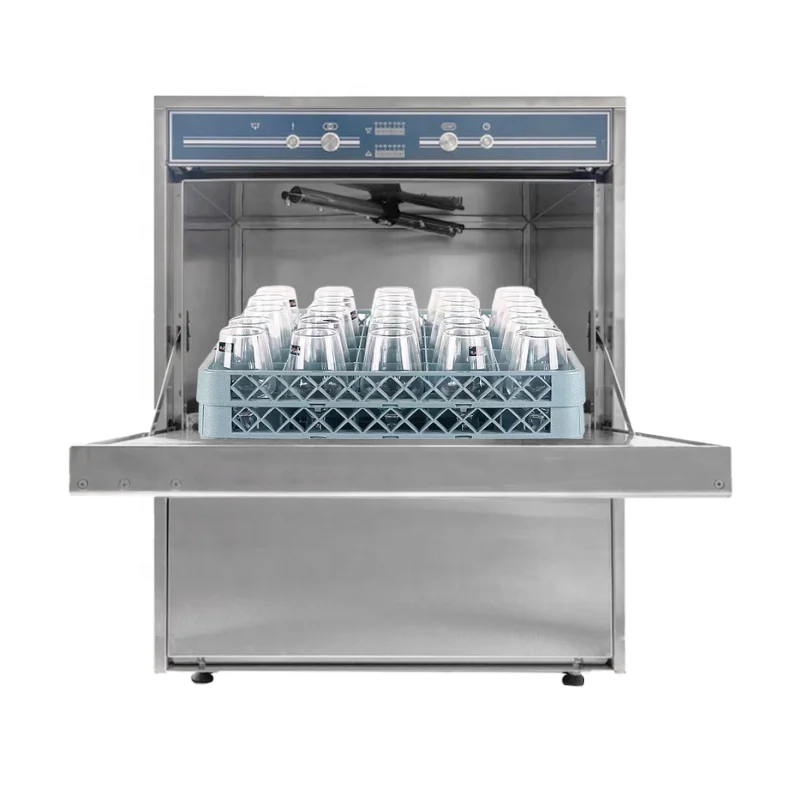

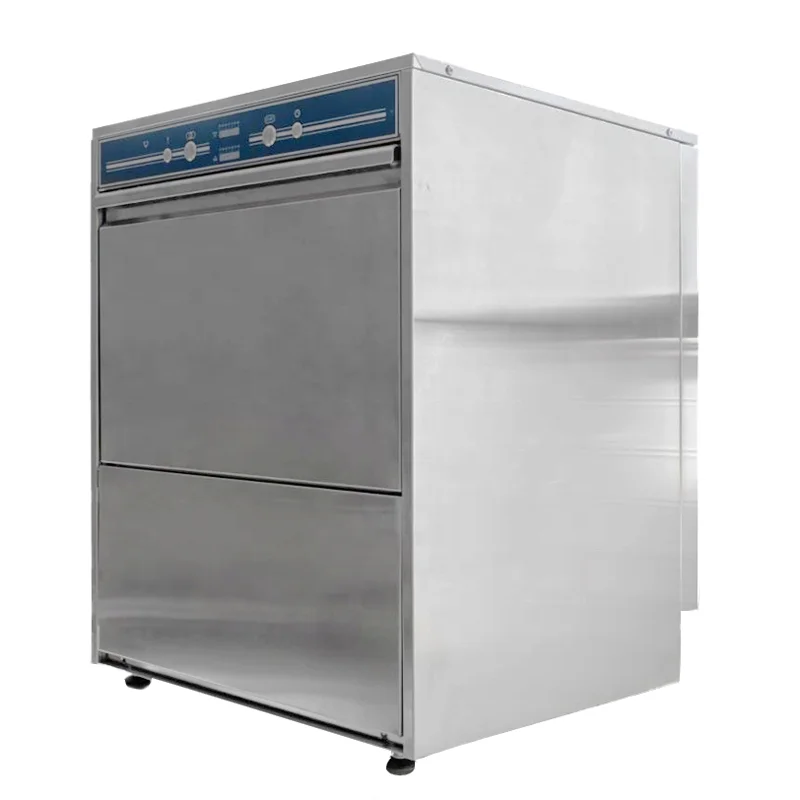

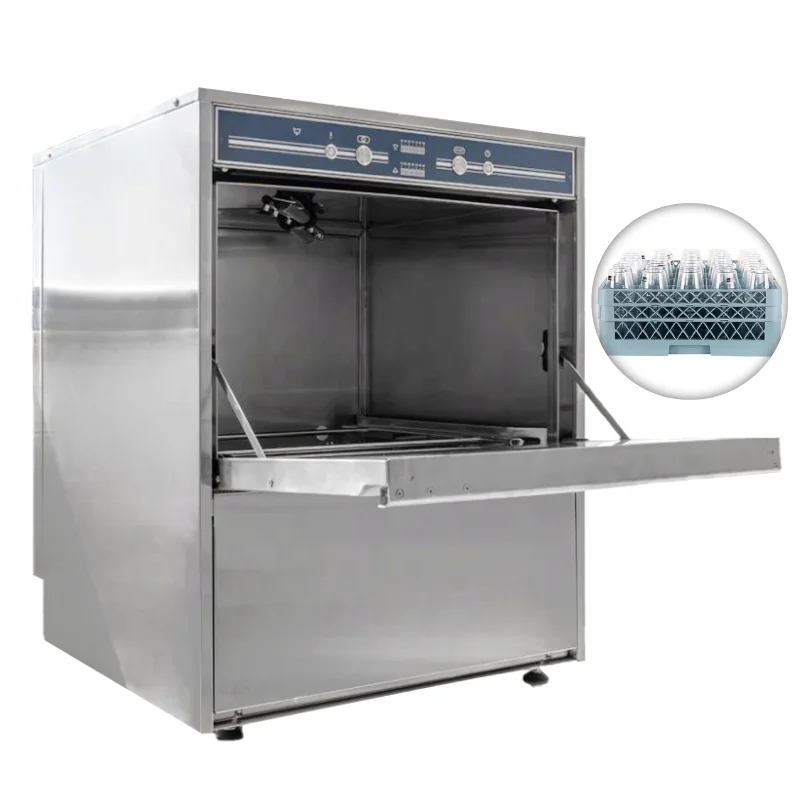

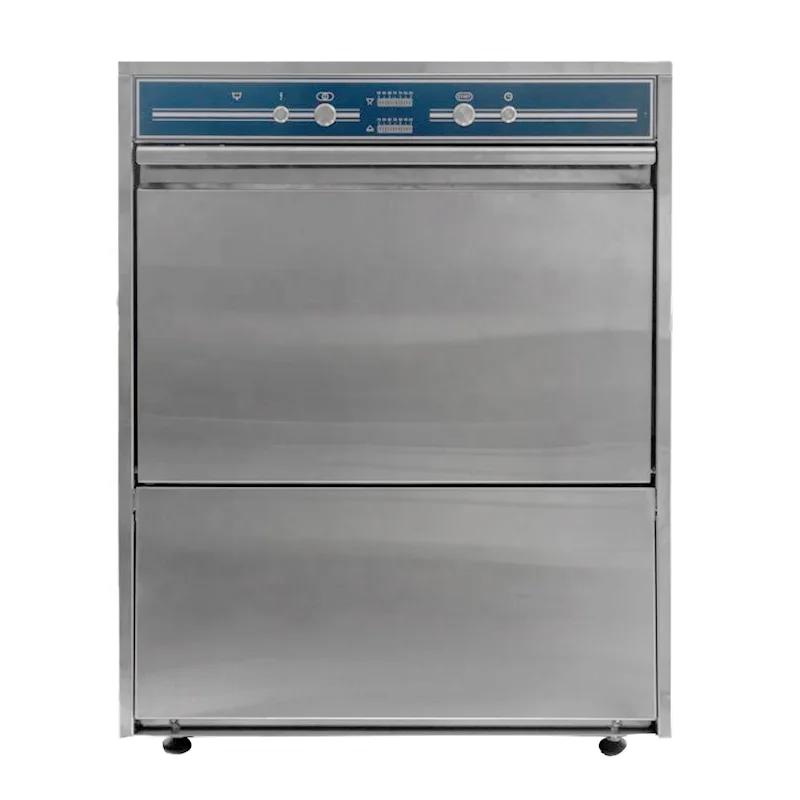

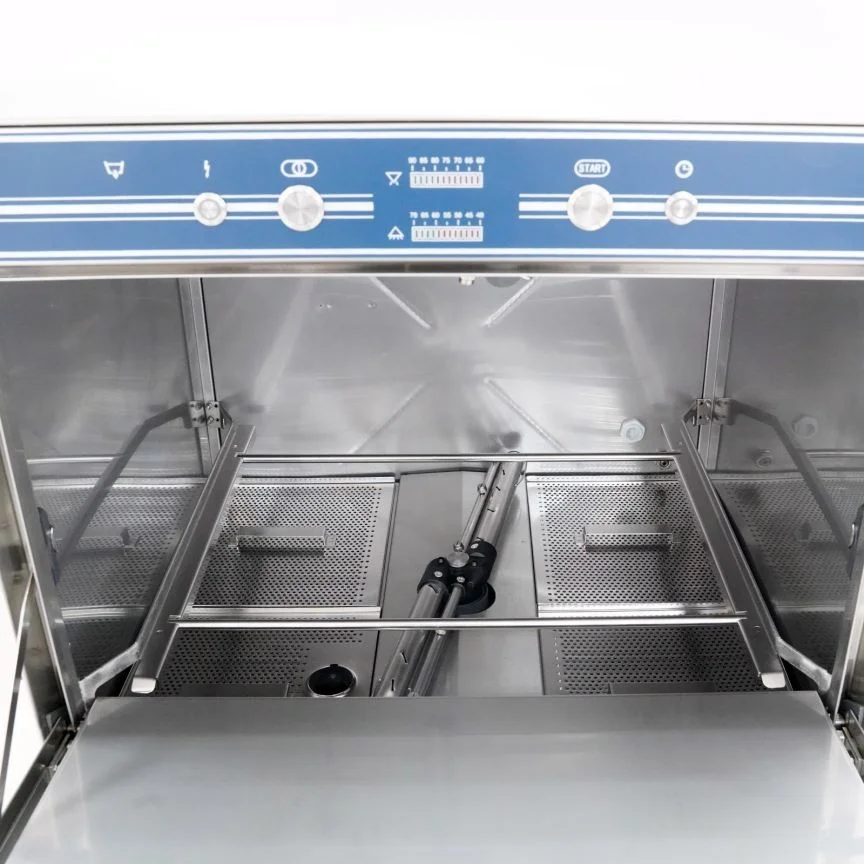

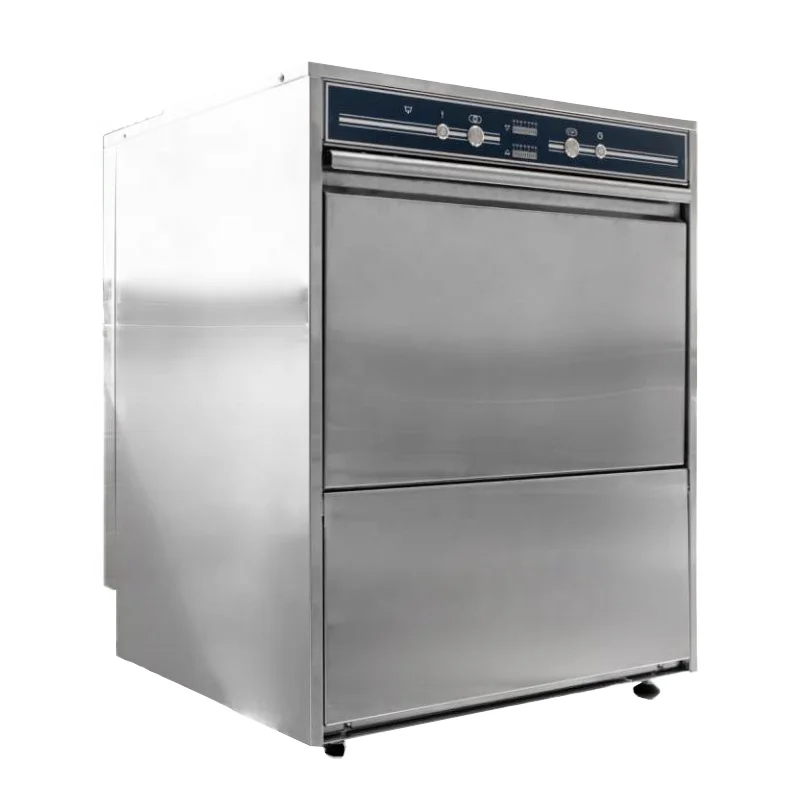

Factory Prices Built in Dishwasher Undercounter Type Fully Automatic Commercial Utensil Washer For Kitchen Use
- Category: >>>
- Supplier: Shanghai Changjian Hotel Equipment Co. Ltd.
Share on (1600530793153):
Product Overview
Description
Product Images
Product Details
Name/Model | AS-50 |
Requirements | 220V 50Hz 1N/380V 50Hz 3N |
Incoming water temperature(℃） | 10 |
Tank heater(KW) | 3 |
Booster heater(KW) | 4.5 |
Wash pump(KW) | 0.6 |
Total connected load(KW) | 8.1 |
Total amps required(A) | 21.3 |
Cross section of cable(mm²） | 4 |
Rated current of circult breaker(A) | 16 |
Heating | Electric |

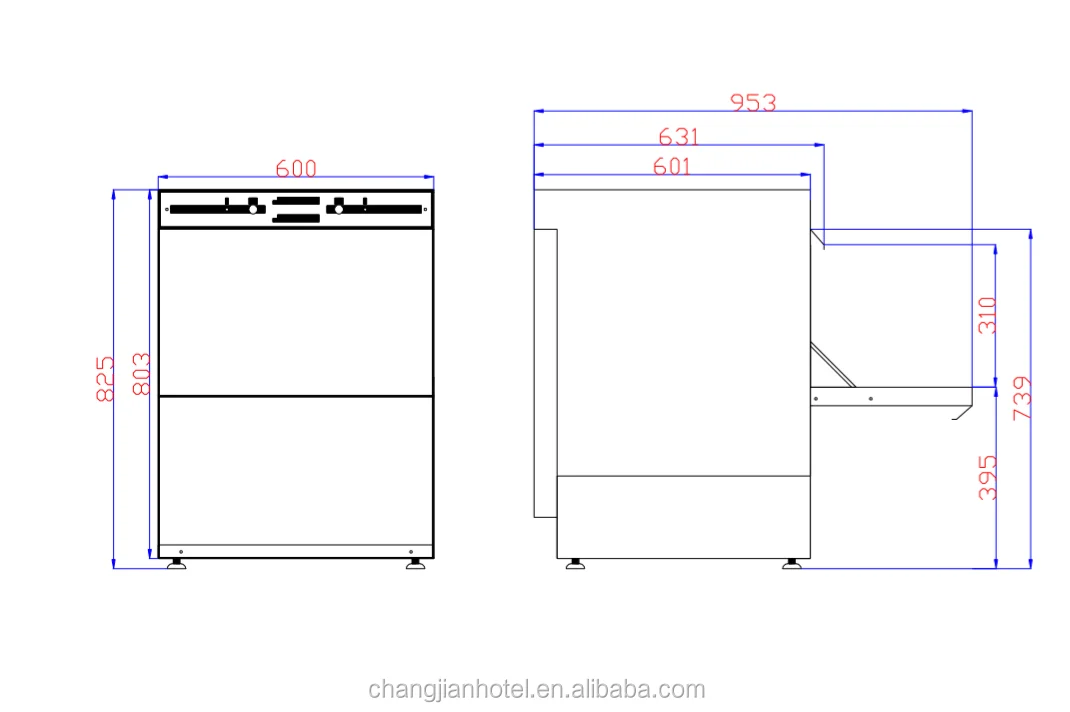

External dimension(mm) | 600*601*825 |
Clearance height(mm) | 310 |
Max capacity(rack/hour) | 60 |
Water consumption(liter/rack) | 2.5 |
Wash tank capacity(l) | 35 |
Booster capacity(l) | 5.5 |
Wash temperature(℃） | 60-65 |
Rinse temperature(℃） | 82-90 |
Diameter of water inlet hose(in) | 3/4 |
Diameter of drain pipi(in) | DN25 |
Incoming water pressure(Kg/cm²） | 1.5KG |
Incoming water hardness(g/l) | 0.034-0.103 |
Inatallation and Connerction Requirements
a)Separate power supply all - pole disconnection and water source switch manual valves must be installed.For cutting off the power and water supply of the machine respectively
b)The power supply, inlet pipeline, drainage pipeline, steam pipeline and ventilation pipeline connected with the machine must meet the relevant national standards
b)The power supply, inlet pipeline, drainage pipeline, steam pipeline and ventilation pipeline connected with the machine must meet the relevant national standards
c)External piping connected to the machine is installed on site
