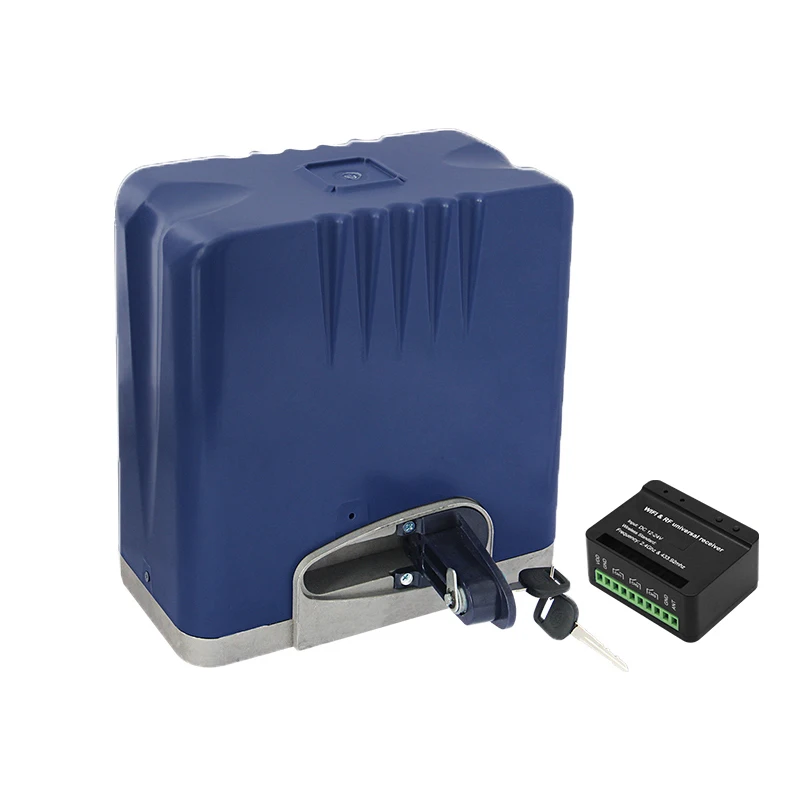

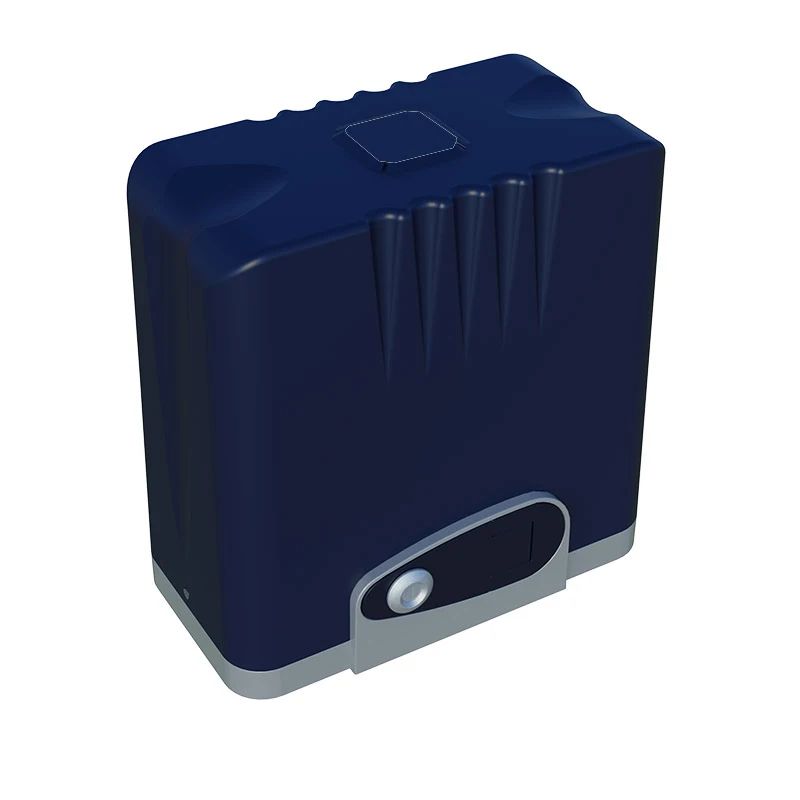

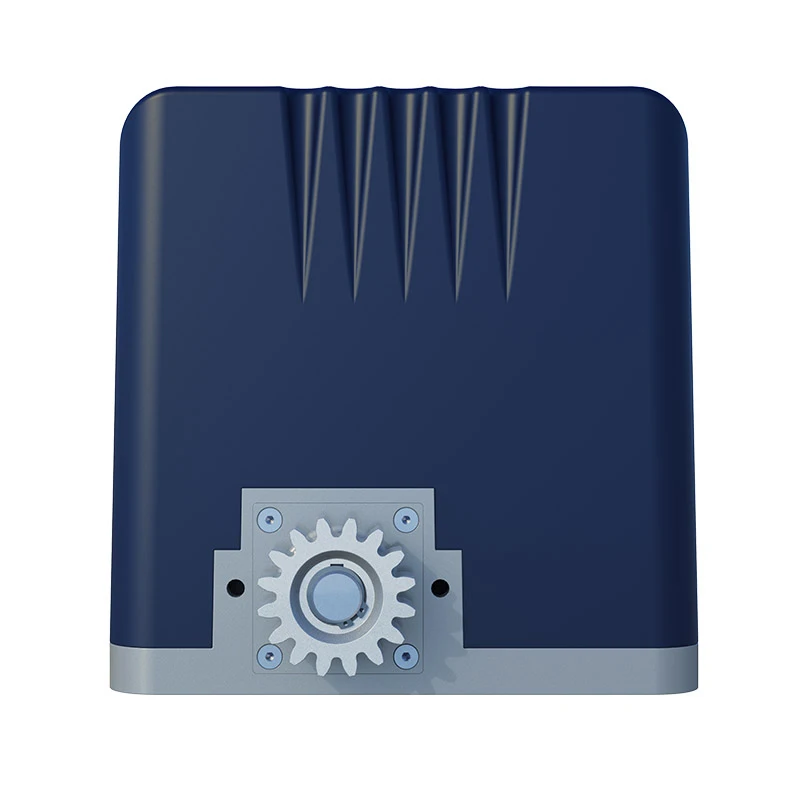

Prices Garage Gte Opener Sliding Door Operator Sliding Gate Motor

Product Overview

Description

Prices Garage Gte Opener Sliding Door Operator Sliding Gate Motor



What specification of sliding gate opener?

	PYM B2201	PYM B2202	PYM B2401
Rated Voltage	220V±10%/110V±10% 50HZ/60HZ	220V±10%/110V±10% 50HZ/60HZ	220V±10%/110V±10% 50HZ/60HZ
Electric motor	220VAC /110VAC	220VAC /110VAC	220VAC /110VAC
Rated Motor Power	250W	350W	200W
Gear Modulus	M=4	M=4	M=4
Max Loading Weight	800KG	1300KG	500KG
Open/Close Speed	16m/min	16m/min	16m/min
Output Speed	50r/min±10%	50r/min±10%	50r/min±10%
Output Torque(N.m)	16.8-32.0N.m	16.8-32.0N.m	16.8-32.0N.m
Limit Switch Type	inter machanical limit	inter machanical limit	inter machanical limit
Max.Pull Force	1100N	1100N	1100N
Noise	≤55dBa	≤55dBa	≤55dBa
Working Temperature	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C



What the functions of sliding gate motors?

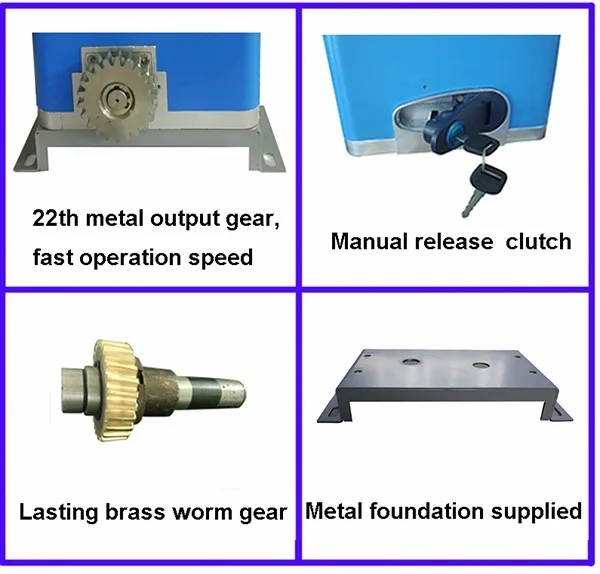

1.Inter mechanical limit switch , dont need install the limit block or magnets

2.Stylish appearance design and built in control panel makes the system install easily .Don't need  external receiver or controller needed.
2.Built in manual override with 2 supplied unique override keys in case of emergency or power failure.

3.The motor is contructed of all metal gears making it durable and long lasting
4.Soft start and soft stop

5.Resistance sensitivity and auto-closing delay time adjustable

6. Metal base , metal foudation suppied , easy installation
7.Sliding gate opener can connect flashing light, photocell,keypad.electric lock.

8.DC system can built  battery and transformer in side , no external box

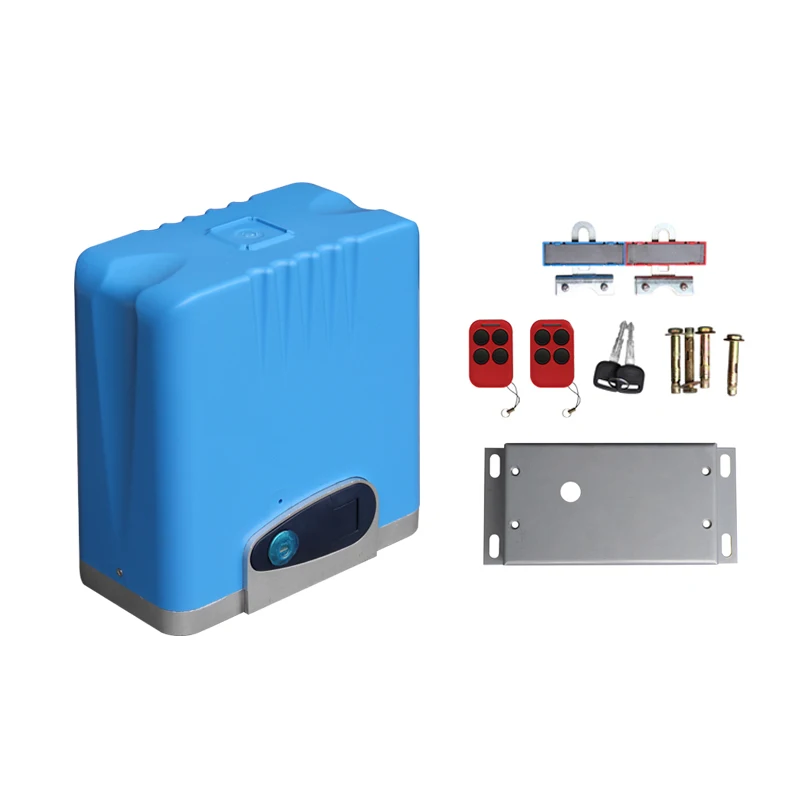

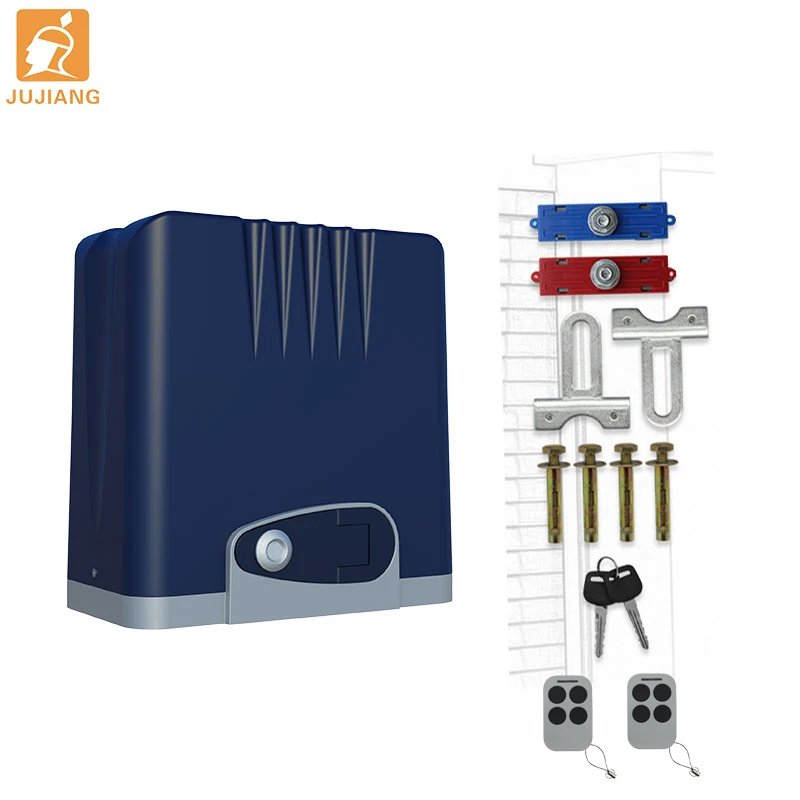

What the components of automatic sliding gate opener?

1 x Motor with built in control panel
2 x Remote Controls
1 x metal foudation
2 x Manual Override Keys

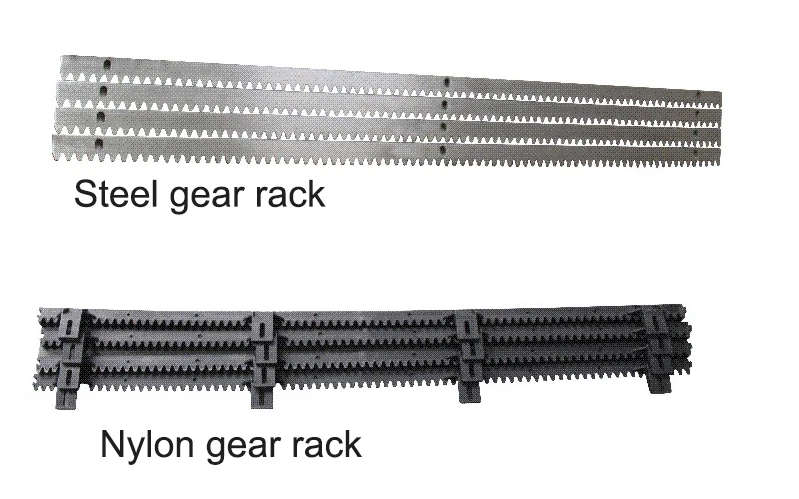

What the Info of gear rack?



1 meter steel gear rack / 1 meter nylon racks
1 pcs gross weight about 2.0kg
4 pcs is in a carton package
gross weight about 8kg

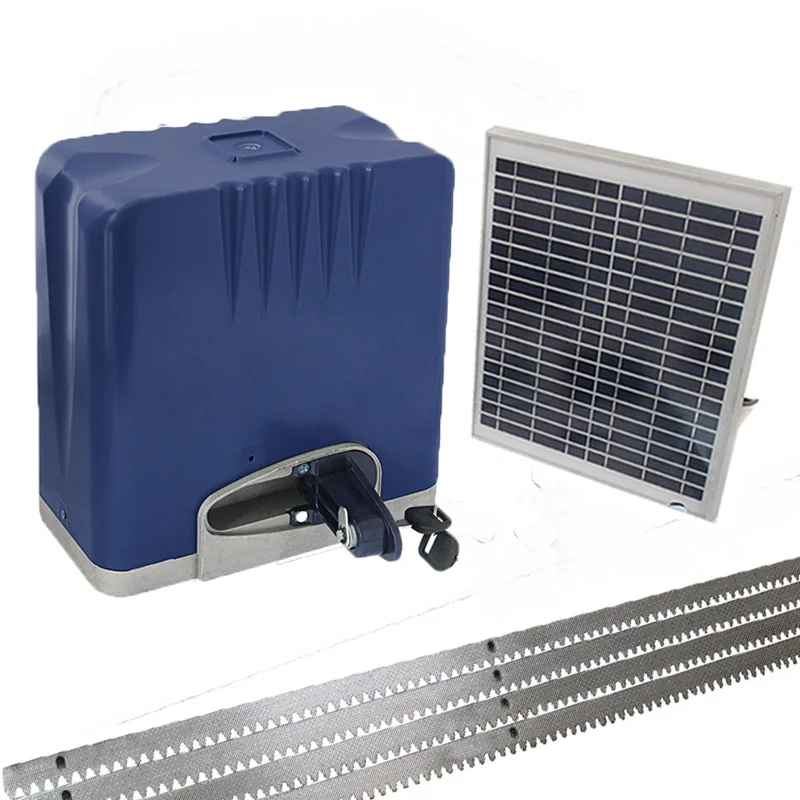

Product picture shows
