Product Overview
Description
Product Description
The CCM (Contact current Meter) measures the contact current flowint trhiugh the human body, as the latter makes contact with a conductive object charged by an electromangetic field.
This instrument can verify the compliance whit the limits for the exposition to contact current for workers and general public, show in the ICNIRP guidelines and compliant with the European parliament directive 2013/35/EU

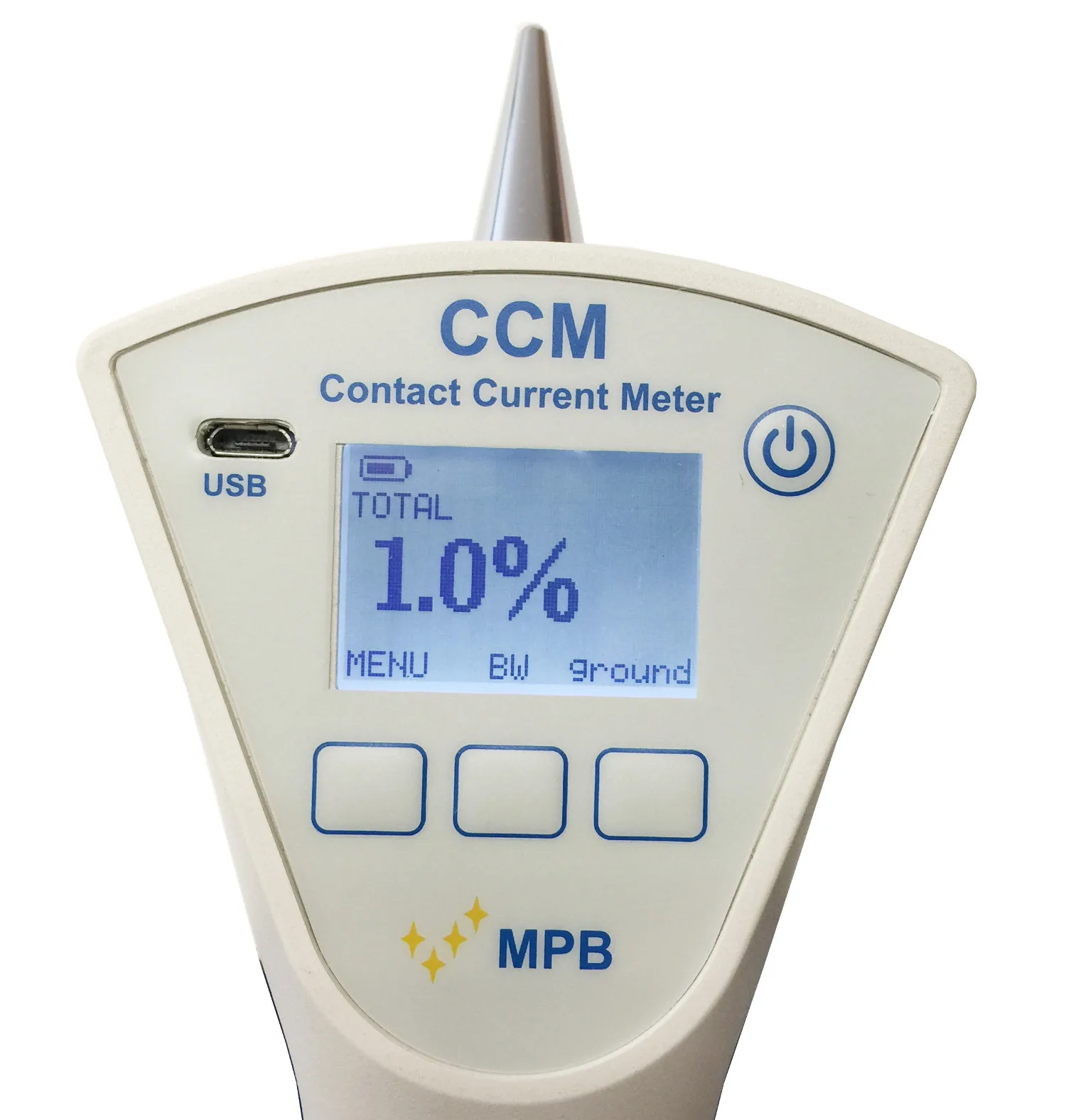

The display indication provides the value of the current in mA and the percentage value in relation to the standard
Application field
Measurement
Contact current measurement: HAND mode
The CCM measures the current flowing through the operator (human body impedance)
Contact current measurement: GROUND PLANE mode
The CCM measures the current flowing through the ground plane (human body simulation impedance)
Calibration
Standard configuration and Options
Riigid case | ||||||||
CCM | ||||||||
1.5 V batteries (2pcs) | ||||||||
RG316 cable (length 3m) sma(M) sma(M) | ||||||||
Body simulation impedance (Z-2251) | ||||||||
Ground plane plate (dimensions 360mm X 239mm) | ||||||||
Ground plane cover | ||||||||
USB cable for PC connection | ||||||||
USB key with User manual and datasheet | ||||||||
Calibration certificate | ||||||||

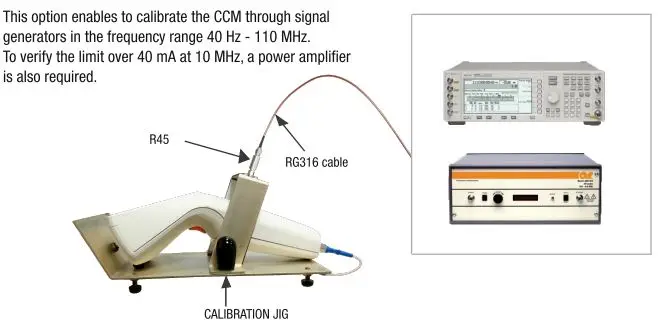

OPTION CCM-JIG kit with calibration JIG, Standards resistance R45 and cable 1m N(M)-sma(M) | ||||||||
OPTION IEC-60990 (50mA) body simulation impedance | ||||||||
OPTION IEC-60990 (120mA) body simulation impedance | ||||||||
OPTION CCM-TIC hand grab simulation | ||||||||

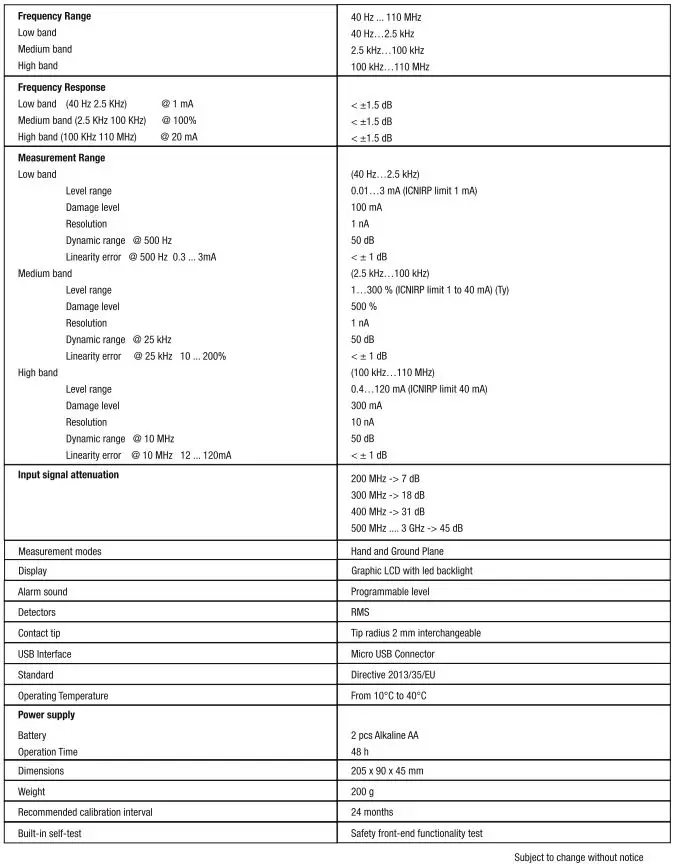

Tecnichal Specification
Packing&Shipping

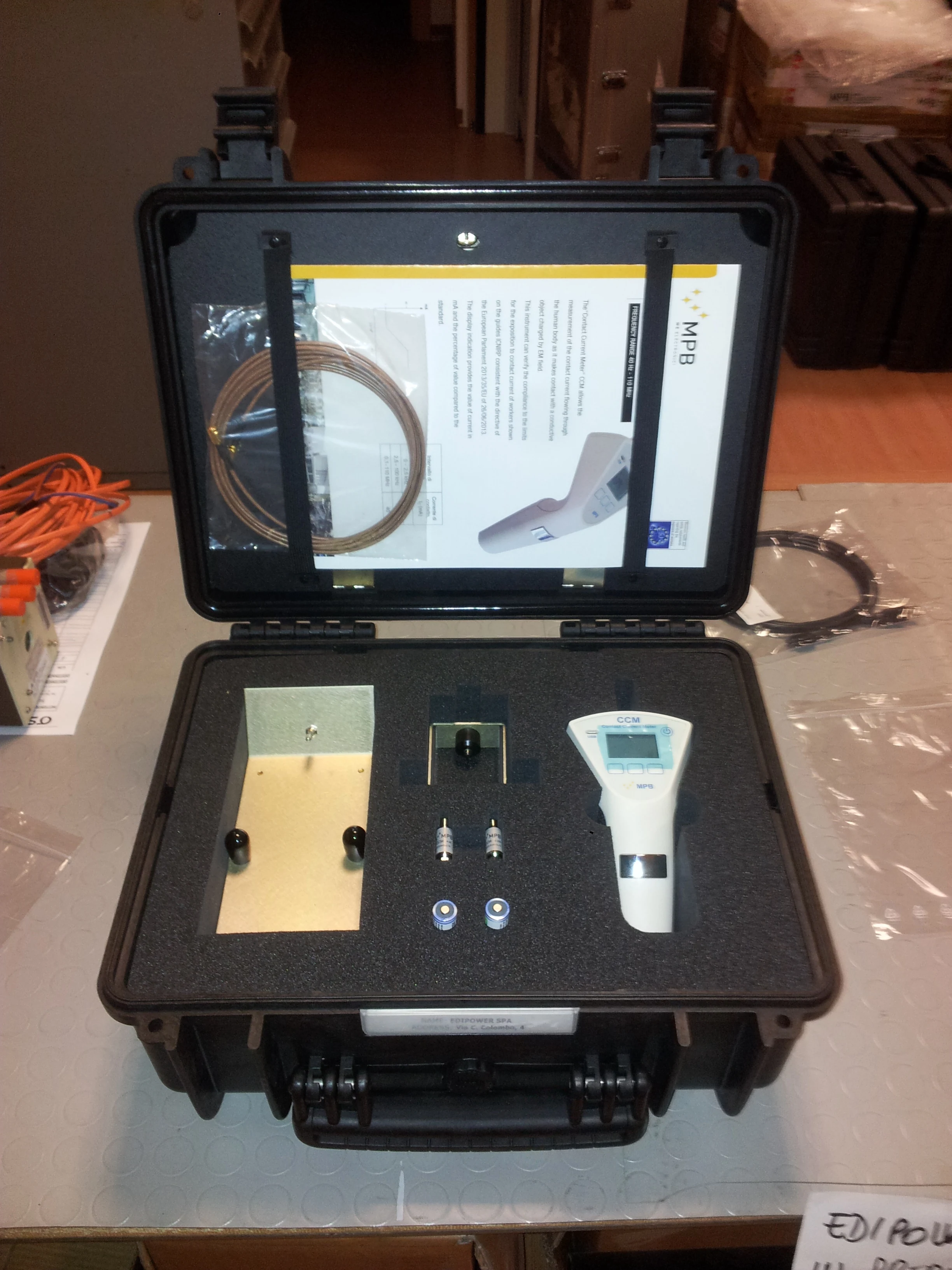

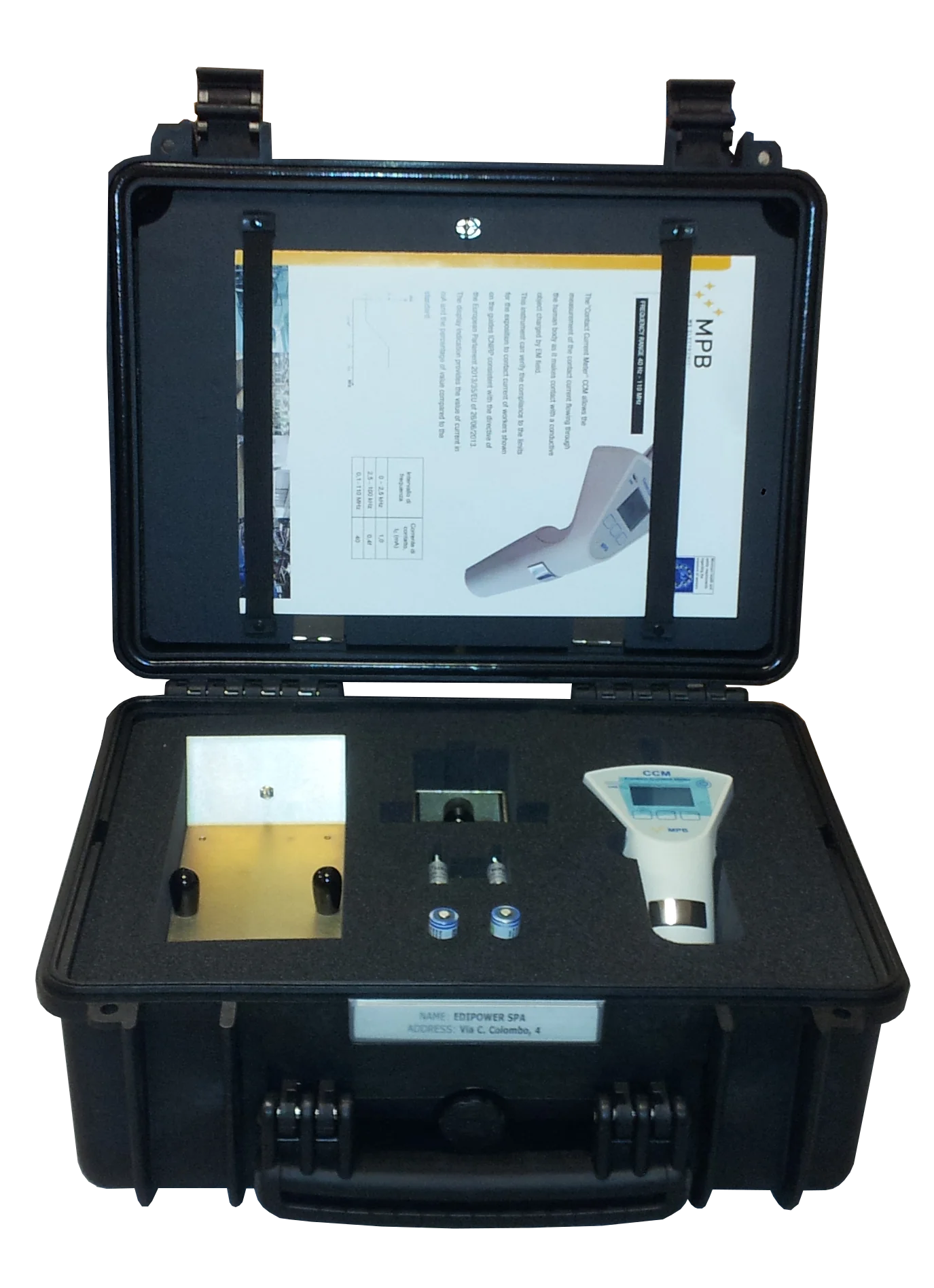

The CCM with all its accessories is placed in a rigid suitcase and then packed for transport
