Faygo Union conical double screw extruder plastic drainage UPVC pipe production machine
- Category: >>>
- Supplier: Jiangsu Faygo Union Machinery Co. Ltd.
Share on (1600531019922):
Product Overview
Description
Product Description
Product description

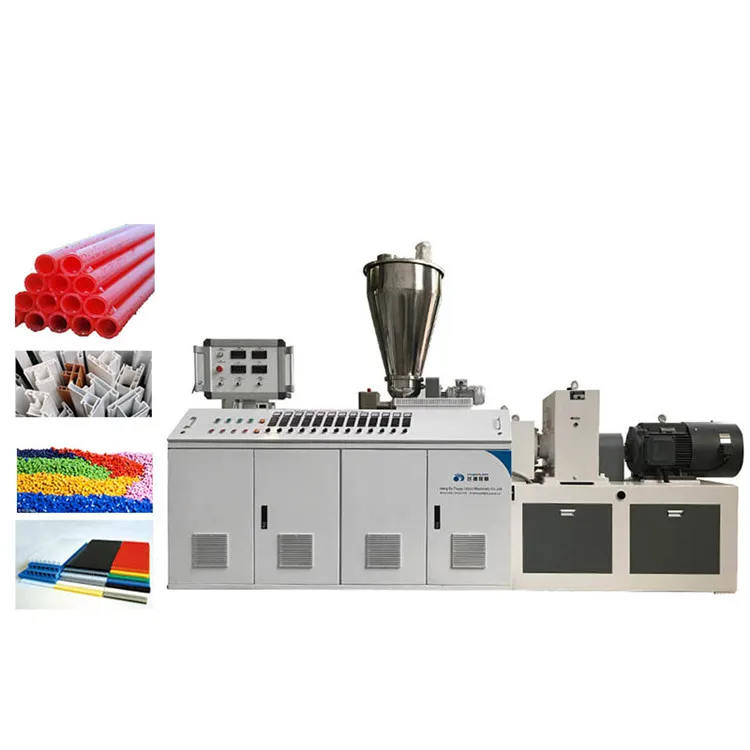

SJSZ series conic twin screw extruder is a kind of high efficiency equipment for plastic extrusion.It is suitable for produce PVC products from mixed powder.With different mold and other auxiliary equipments.It can produce plastic pipe,profile,board,sheet,granules and so on.
Product Features
1.even mixing
2.better plasticization
3.stable working
4.high capacity
Product Components
1.force feeder
2.soft plasticization screw and barrel
3.high precision gearbox,exhaust system.
Why Choose Us
(1)The machine is characterized by the compact structure, small volume, light weight, high efficiency and stable hardened face gear box.
(2)The machine adopts cast aluminum heater with high efficient, less temperature fluctuation, short heating time and power saving, etc.
(3)The machine adopts PID intelligent temperature controller with the self-adjusting function, making the process temperature error ±1℃.
(4)The machine adopts the jacket wind cooling; under the over-temperature, the wind cooling will be automatically opened with good cooling effect.
(5)The machine is equipped with the tachometer, directly reflecting the screw speed.
(2)The machine adopts cast aluminum heater with high efficient, less temperature fluctuation, short heating time and power saving, etc.
(3)The machine adopts PID intelligent temperature controller with the self-adjusting function, making the process temperature error ±1℃.
(4)The machine adopts the jacket wind cooling; under the over-temperature, the wind cooling will be automatically opened with good cooling effect.
(5)The machine is equipped with the tachometer, directly reflecting the screw speed.
Technical Parameter
Model | SJSZ-51 | SJSZ-55 | SZSJ-65 | SJSZ-80 | SZSJ-92 |
Screw Dia(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/88 |
Max.Speed(rpm) | 40 | 38 | 38 | 37 | 30 |
Main Motor (KW) | 18.5 | 22 | 37 | 55 | 90 |
Output (kg/h) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
Centre height(mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
Net Weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
L*W*H(M) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 5.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
Other Products
Packing & Delivery
The goods will be packaged into wooden cases with plastic films or we can customize the package according to the customers' demands.
Company Profile
Our Clients
Our Configuration Brand
Letters patterns
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a manufacturing and exporting factory.
A:We are a manufacturing and exporting factory.
Q: Where is your company?
A:Our company is located at Zhangjiagang City, which is one hour away from Shanghai .
