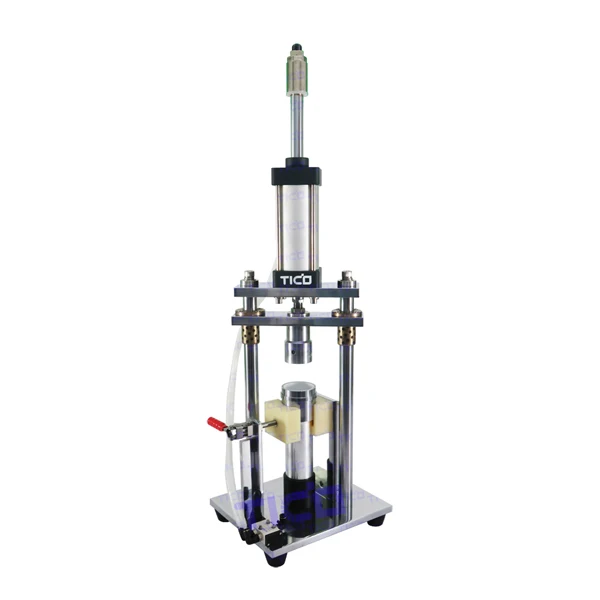

Supercapacitor Battery core to Case Insert Machine for Cylindrical cell
- Category: >>>
- Supplier: Shenzhen Tico Technology Co. Ltd.
Share on (1600531156549):
Product Overview
Description
Technical Parameter
Brand name | TICO | ||||||
Suitable product | Φ60mm supercapacitor | ||||||
Pressing to case speed | 30mm/s adjustable | ||||||
The depth to can | Adjustable | ||||||
Air source | 0.5MPa~0.8MPa | ||||||
Dimension | L400 * W400 * H700mm | ||||||
Weight | 100kg | ||||||
Products Description
Supercapacitor battery core to case insert lab equipment:
It is used to press supercapacitors (after the welded cell is assembled with the O-ring of the upper cover) into the case and fasten the O-ring to the inner seal.
Features :
• The high-precision guide post and sleeve are used to ensure the stable dimensions in the case. Features :
• The cylinder speed is adjustable.
• The depth to can is adjustable.
• Compact design, ideal for supercapacitor research
Application :
Application :
*Battery lab
*Battery research
*Lithium ion battery lab
*Material research
*Trial-production
Recommend Products
Company Profile
Certifications
Exhibition
Contact Us
FAQ
1.Are you a manufacturer ?
A: Yes, our factory located in Shenzhen China,We have more than 9 years experience for producing battery equipment.We have our own designing and production department.
2.What certificate of your product have ?
A : Our products reaches CE certification.
3.Do you accept customized product ?
A : Yes.
A: Yes, our factory located in Shenzhen China,We have more than 9 years experience for producing battery equipment.We have our own designing and production department.
2.What certificate of your product have ?
A : Our products reaches CE certification.
3.Do you accept customized product ?
A : Yes.
4.Do you offer training service for users ?
A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ?
A : Yes, we can.
A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ?
A : Yes, we can.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Technical Parameter
Products Description
This equipment is mainly used for vacuum hot sealing after electrolyte diffusion of pouch cell Li-ion batteries(medium,small size). This equipment accurate controls the main vacuum pumping box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of laminated- aluminum battery case.
Features :
1. The sealing head is made of copper material so that the heat transfer effect is good to save power consumption and improve work efficiency and more energy-saving than other similar products.
Features :
1. The sealing head is made of copper material so that the heat transfer effect is good to save power consumption and improve work efficiency and more energy-saving than other similar products.
2. Pressure of upper and lower sealing heads can be regulated by pressure regulating valve to meet different technological parameter demands.
3. The lower and upper sealing heads are driven by cylinder through two linear-guide bushes that makes them move up and down flexibly and ensures the parallelism demand after sealed by right guidance.
4. Through perspective window to observe the changes inside the chamber during work.
5. The cover chamber is driven by cylinder, guided by rotating guide bush to move up and down flexibly, accurate guide can ensure the sealing demand.
6.This equipment is applicable for different sizes of batteries and easy to regulate.
7. Split design of main machine and control box makes the equipment can work either in the glove box or the production line.
Application :
Application :
*Battery lab
*Battery research
*Lithium ion battery lab
*Material research
*Trial-production
