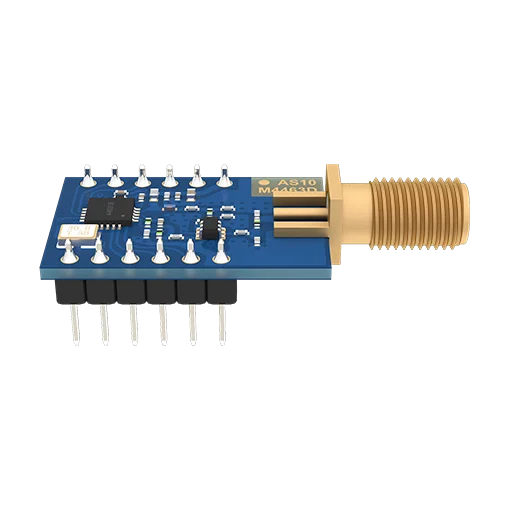

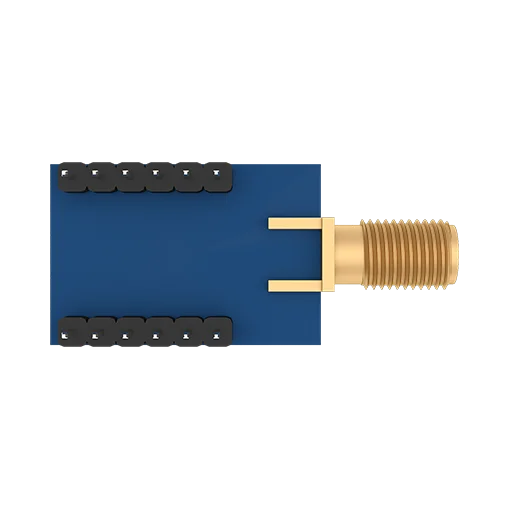

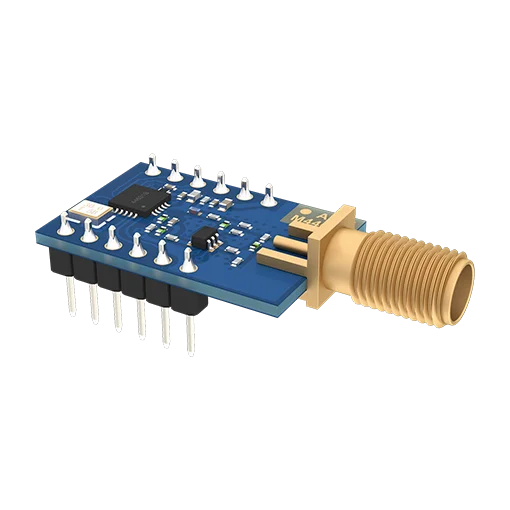

AS10-M4463D 2km receiver wireless lcd spi si4463 rf transmitter and receiver module
√ AS10-M4463D-SMA is a 433MHz, 100mW, high stability, strong diffraction performance, excellent wall penetration ability, industrial-grade data transmission module integrating wireless transceiver.
√ It is designed and developed using the SI4463 radio frequency chip imported from Silicon Labs, which has the characteristics of high receiving sensitivity and strong anti-interference ability.
√ The SMA interface is convenient for matching high-performance antennas, so that the module has sufficient transmit power, good spectral characteristics, small harmonics, small channel crosstalk, and small size.
√ It is designed and developed using the SI4463 radio frequency chip imported from Silicon Labs, which has the characteristics of high receiving sensitivity and strong anti-interference ability.
√ The SMA interface is convenient for matching high-performance antennas, so that the module has sufficient transmit power, good spectral characteristics, small harmonics, small channel crosstalk, and small size.
Electronical Parameters
NO. | Item | Value | Description |
1 | Product Size | 24*16mm | Without antenna |
2 | Product Weight | 3g | Without antenna |
3 | Package Form | DIP | Standard |
4 | Transmit Power | 20dBm | 100mW |
5 | Working Frequency | 425-525MHz | 433MHz as factory default |
6 | Transmitting Range | 2km | Receive sensitivity up to -94dBm |
7 | Air Speed | ≤500k | Standard |
8 | Supply voltage range | 1.8V~3.6VDC | Standard |
9 | Working Temperature | -40℃~+85℃ | Meet the needs of industrial use |
10 | Antenna Type | SMA | Standard 50Ω |
Products Features
Functions

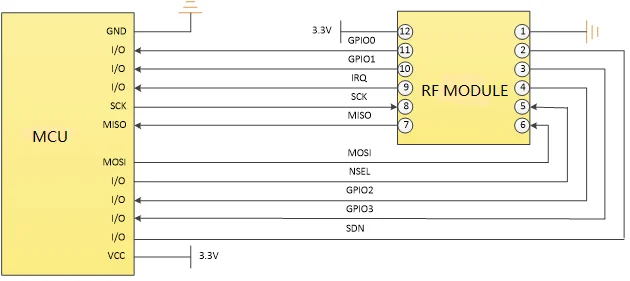

1.GPIO0/GPIO1/GPIO2/GPIO3 is a general-purpose IO, can be configured into a variety of functions, as detailed in the SI4463 data manual, if not used, can be suspended.
2.It is recommended to use an external interrupt from the microcontroller. Alternatively, the SPI query mode can be used to obtain the interrupt status.
3.SPI communication rate should not be set too high, usually around 1M.
4.For the mode transition of SI4463, please refer to the "Operating Modes and Timing" section of the data manual. The mode transition between TX and RX must pass Ready and cannot be switched directly
5.Reinitializes register configuration when the chip is idle for greater stability.
2.It is recommended to use an external interrupt from the microcontroller. Alternatively, the SPI query mode can be used to obtain the interrupt status.
3.SPI communication rate should not be set too high, usually around 1M.
4.For the mode transition of SI4463, please refer to the "Operating Modes and Timing" section of the data manual. The mode transition between TX and RX must pass Ready and cannot be switched directly
5.Reinitializes register configuration when the chip is idle for greater stability.
Application
AS10-M4463D-SMA can be widely used in the following scenarios:
●Smart Massage Instrument ●Data LED Display ●Smart Parking ●LED Screen Control ●Equipment Monitoring System ●Smart Medical Machinery
Customer Review

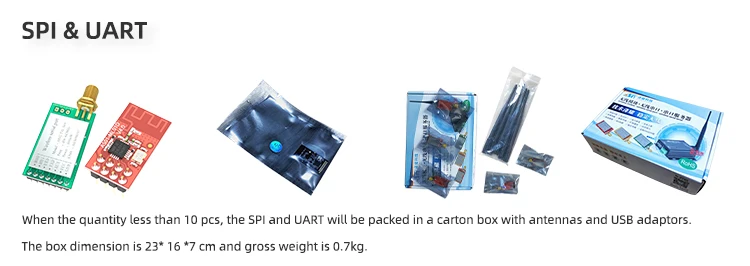

Packing & Delivery
