Lever Handle Soldering 40mm X 40mm Brass Gas Ball Valve

Share on (1600531197160):


Price:$1.08

Quantity:


Product Overview

Description



Product Description




Details Images

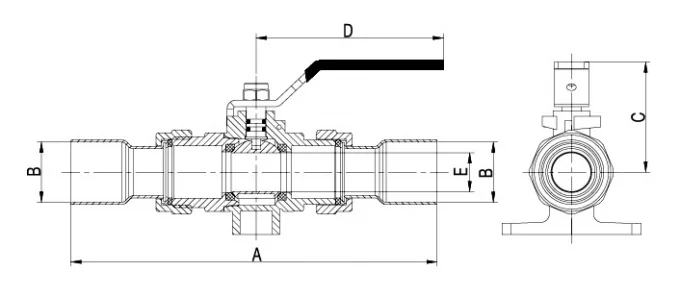

Dimension mm
22 x 22
28 x 28
40 x 40
A
144
170
192
B
22
28
40
C
51
51
73
D
88
88
131
E
19
19
30.2
PN
5
5
5


No.
Part
Materials
1
Body
Brass
2
Bonnet
Brass
3
Ball
Brass
3
Stem
Brass
4
Seal
PTFE
5
O ring
NBR
6
O ring
Fluorubber
7
Handle
Iron or Steel
8
Nut
Stainless Steel


Specification


item
value
Warranty
3 years
Type
BALL VALVES
Customized support
ODM, OBM
Place of Origin
China
Zhejiang
Brand Name
Double-Lin
Model Number
LL1047
Application
General
Temperature of Media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Power
Manual
Structure
BALL
ITEM
Gas Ball Valve
SIZE
22mm X 22mm, 28mm X 28mm, 40mm X 40mm
CONNECTION TYPE
Soldering
BRASS MATERIAL
Hpb 57-3
HANDLE TYPE
Lever
STEM TYPE
Double O-ring
WORKING PRESSURE
5 Bar (72.5 Psi)
WORKING TEMPERATURE
-10 ℃-80 ℃ (14℉-176℉)
OPENING/CLOSING TEST:
10,000 Times
THREAD
ISO228(equivalent To DIN259 And BS2779)
