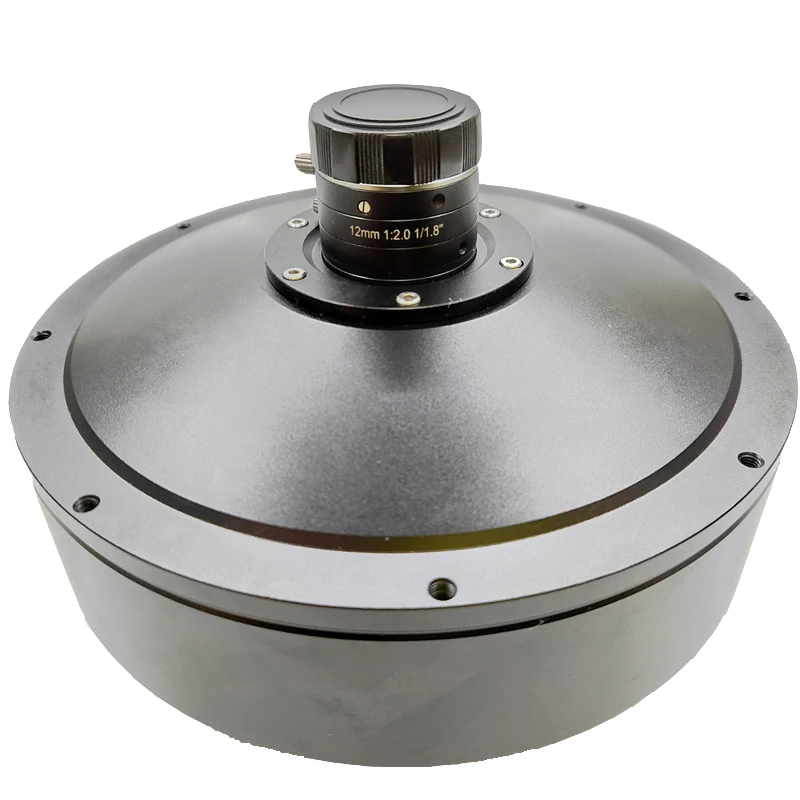

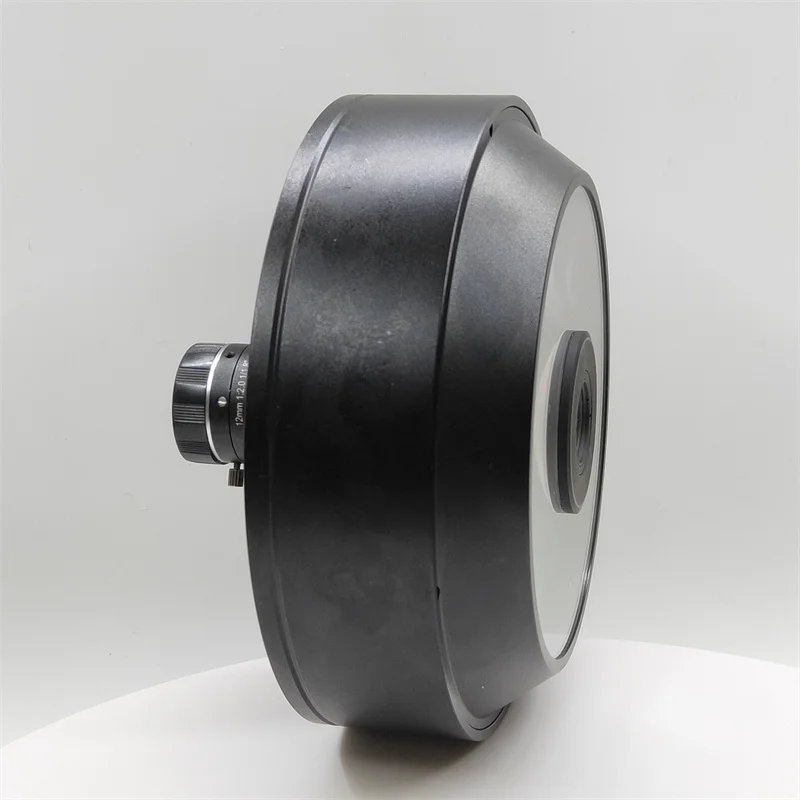

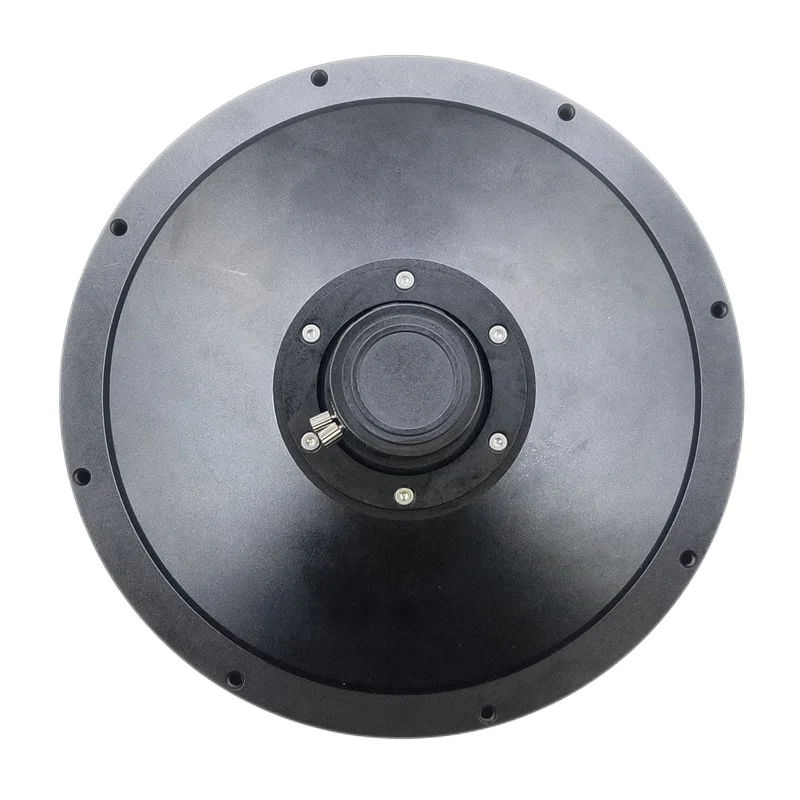

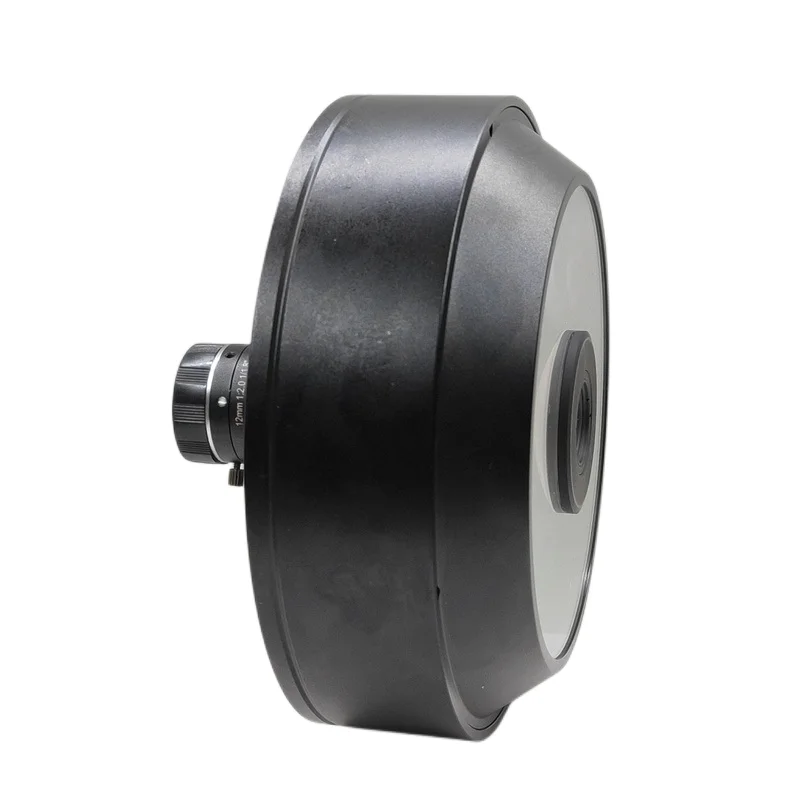

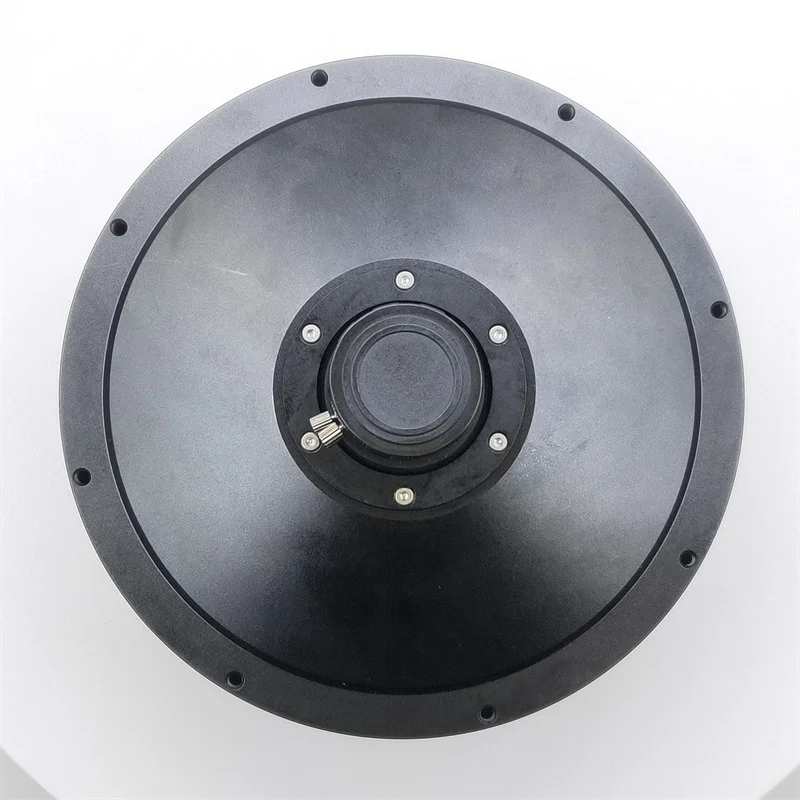

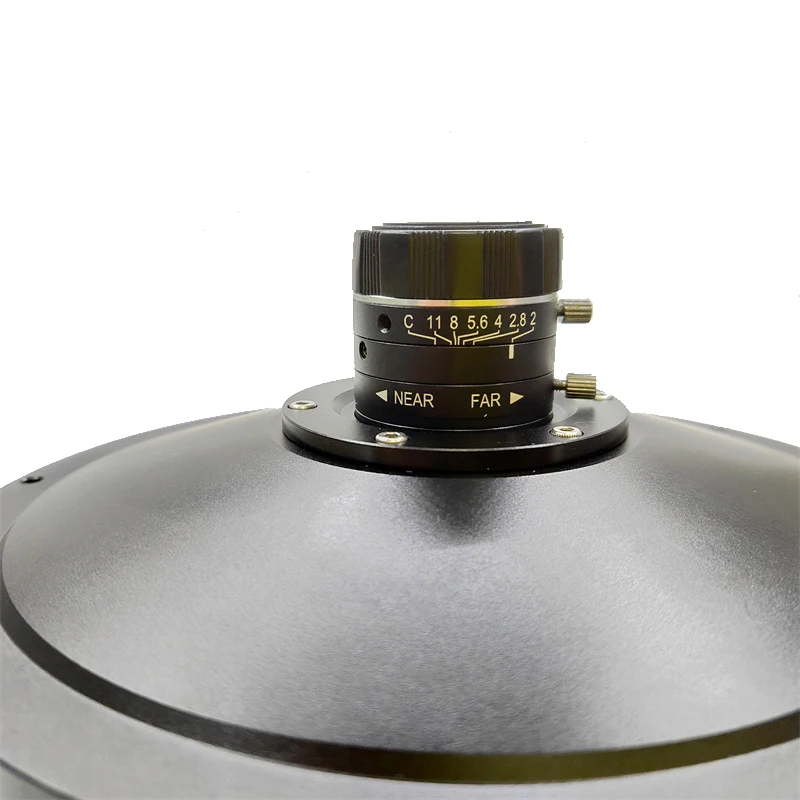

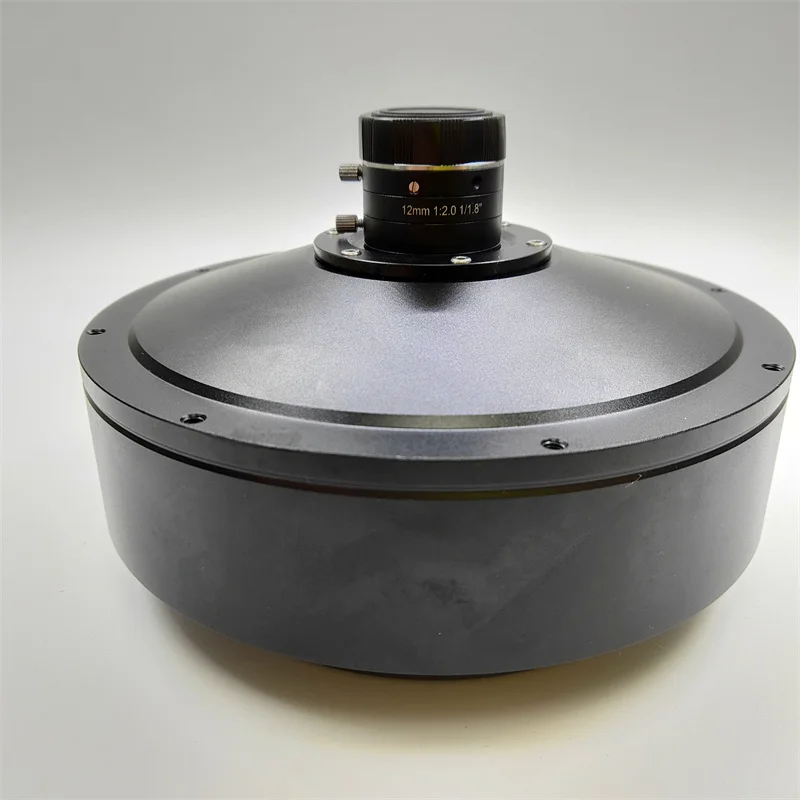

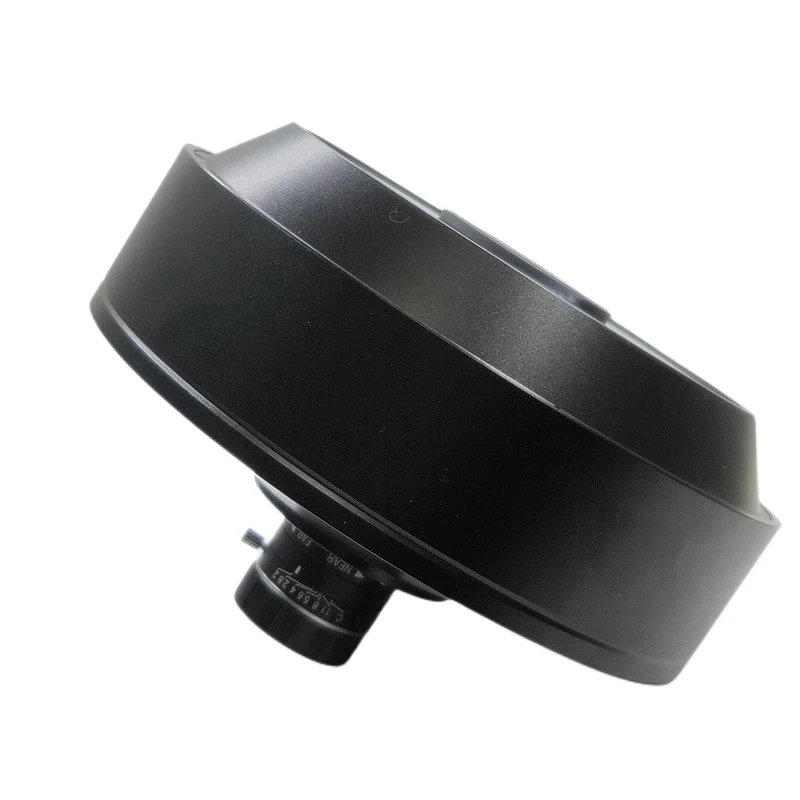

Machine vision 360 imaging lens outer wall detection industrial lens
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600531225054):
Product Overview
Description
Product Features
Highstandard design and stable quality：Using high standard optical performance technology to achieve high product quality
High resolution：High-resolution optical design, compatible with mainstream 5MP industrial cameras, suitable for 5-megapixel
cameras with 1/1.8" chip. The resolution of the full field of view can reach 140lp/mm, ensuring the clarity of the image
High uniformity：By controlling the weakening of the edge light, using a wide-angle lens, it is also possible to achieve an
overall, bright and fresh image
Low distortion：The overall distortion rate is less than 0.5%, and the minimum distortion can reach 0.03%
Broad spectrum：Broad spectrum, high pass rate, 400-1000nm, compatible with VIS and NIR bands
High resolution：High-resolution optical design, compatible with mainstream 5MP industrial cameras, suitable for 5-megapixel
cameras with 1/1.8" chip. The resolution of the full field of view can reach 140lp/mm, ensuring the clarity of the image
High uniformity：By controlling the weakening of the edge light, using a wide-angle lens, it is also possible to achieve an
overall, bright and fresh image
Low distortion：The overall distortion rate is less than 0.5%, and the minimum distortion can reach 0.03%
Broad spectrum：Broad spectrum, high pass rate, 400-1000nm, compatible with VIS and NIR bands
Products Description

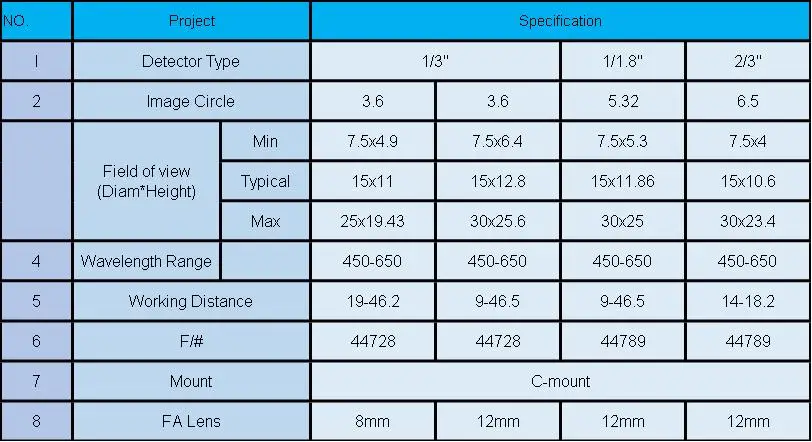

Specifications
