Shacman f3000 right hand drive 20cbm 25cbm drinking water tank bowser sprinkling truck for sale
- Category: Watering Cart >>>
- Supplier: Chengli,Special,Automobile,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

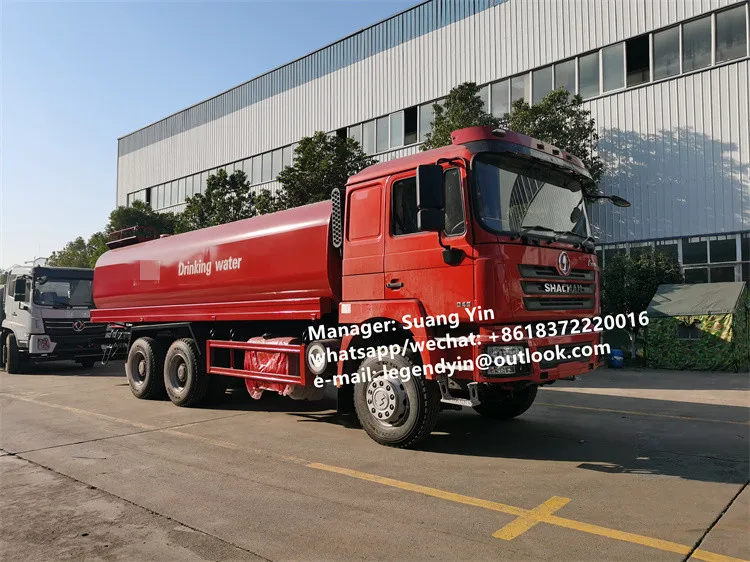

Chengli High End Water Sprinkler Truck
Water delivery truck, also called water bowser, water tanker, water truck, water tank lorry, which is a kind of tanker vehicles, consists of truck chassis, tank body, manhole, pump, pipeline, vavles, ladder, etc, mainly used for the transportation of water. Potable water truck, also called potable water lorry, drinking water truck, etc, is a kind of water lorry to transport clean drinking water, and also can be used to transport milk, juice, potable oil, alcohol, and other food or edibel liquid.
Main Structures:

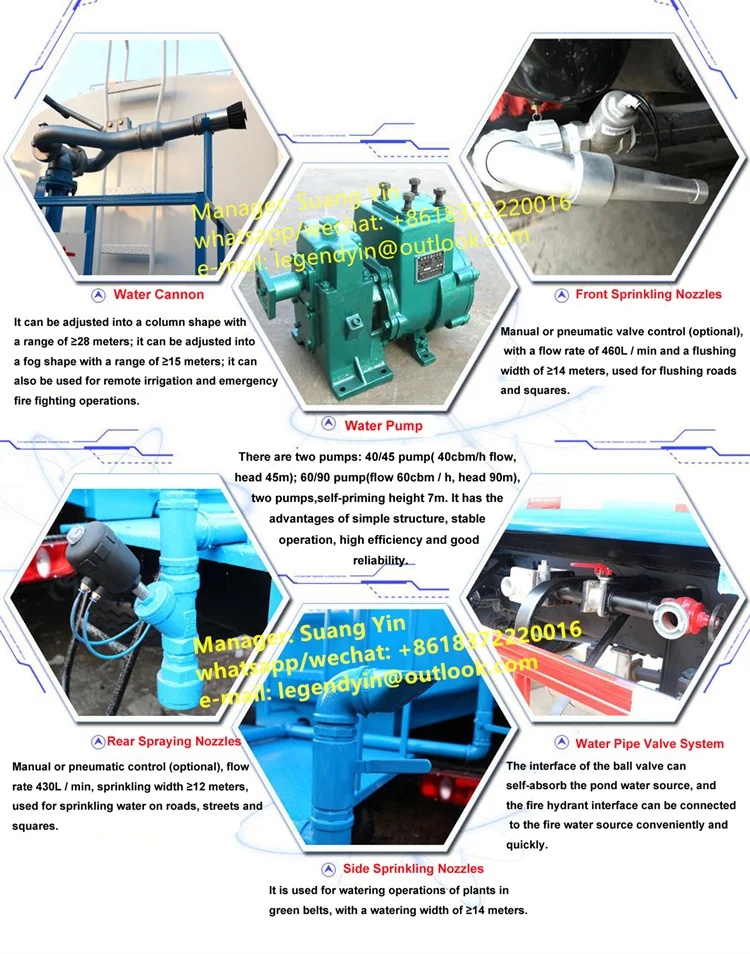

Our company's water tank lorry truck comes standard with front flushing and rear spraying, side spraying, rear-mounted working platform, and a high-pressure water cannon on the platform (it can be rotated 360°, and can be adjusted to a column with a maximum range of 35 meters, and can also be adjusted to a fog-shaped maximum range of 15 meters. , can be adjusted into: straight-through, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump, power take-off, debris filter, national standard universal 65-type fire interface (water can be added through fire hydrant), 1 set of self-flowing ball valve system (can be self-priming and self-draining, can pump water from the river or pond to the tank, the maximum suction lift is 7 meters), 2 water diversion steel wire hoses. water spraying truck water tank Water pumps, power take-offs, ball valves, and filters are all national standard products. The main pipeline of water spraying truck is thickened, the flange gasket and flange plate are thickened, and the universal forward punching, large-diameter ball valve has excellent performance, reliable work, high efficiency, It has the characteristics of large flow and convenient maintenance.
Our company's water tank lorry truck comes standard with front flushing and rear spraying, side spraying, rear-mounted working platform, and a high-pressure water cannon on the platform (it can be rotated 360°, and can be adjusted to a column with a maximum range of 35 meters, and can also be adjusted to a fog-shaped maximum range of 15 meters. , can be adjusted into: straight-through, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump, power take-off, debris filter, national standard universal 65-type fire interface (water can be added through fire hydrant), 1 set of self-flowing ball valve system (can be self-priming and self-draining, can pump water from the river or pond to the tank, the maximum suction lift is 7 meters), 2 water diversion steel wire hoses. water spraying truck water tank Water pumps, power take-offs, ball valves, and filters are all national standard products. The main pipeline of water spraying truck is thickened, the flange gasket and flange plate are thickened, and the universal forward punching, large-diameter ball valve has excellent performance, reliable work, high efficiency, It has the characteristics of large flow and convenient maintenance.
FEATURES AT A GLANCE
SHACMAN 20m3 Water Truck
WEICHAI 340HP Euro2 diesel engine
7.5T/16T axle Load
12.00R20 tires
20000 liter volume Tank Body
Discharge valve: 2 pcs DN80 valve
60m3/h water pump, pump in and pump out
Suction depth 6 meters
Front/rear/side spraying nozzles
12-16 meter spray range
28-35 meters water cannon range
SHACMAN F3000 chassis
25000 liter potable water tanker
WEICHAI 340HP Engine
PRODUCT SPECIFICATIONS
Medium of Water Tanker | Water | |||
Model of Water Lorry | CLW5330GYSSSX2 | |||
Volume of Tank | 20,000 liter | |||
Material of Tank | Carbon steel Q235 | |||
Overall Dimension | 9820x2500x3400 mm | |||
Gross Weight | 33000 kg | |||
Tare Weight | 12500 kg | |||
Brand | SHACMAN | |||
Wheelbase | 6x4, RHD | |||
Engine | Weichai 340HP Euro2 Diesel Engine | |||
Wheelbase | 4350+1350mm | |||
Cab Seat | F3000 luxury cab, hydraulic main seat, with a sleeper, air conditioner, electric window shaker, manual flip, AM/FM Radio MP3 USB, road bumper, fixed boarding pedal. | |||
Tire | 10+1 pcs 12.00R20 16PR radial tires | |||
Type | Mechanical type PTO | |||
Switch | In driving cab | |||
Super Structure Specification | Volume of Tank | 20,000 liters (= 20 cubic meter) | ||
Material of Water Tank | Carbon steel Q235, inside with anti-corrosive treatment | |||
Manhole of Water Tank | 1 pcs, DN460mm at top of tank, stainless steel manhole cover with breathing hole | |||
Pipeline | Standard | |||
Discharge Valve | 2 pcs, DN80mm aluminum alloy ball valve | |||
Front/rear/side spraying system | 12~16 meter spraying nozzles | |||
Water cannon | 28~ 35 meter | |||
Ladder | One pcs | |||
Optional Devices | 2. Tank thermal insulation; 3. Tank with multi division compartment for different mediums; 4. Tool box; 5. Reverse camera. 6. Arrow light. | |||
For more details or special requirements, please directly contact whatsapp/wechat +86 18372220016 or email legendyin @ outlook.com. Direct factory will give you professional and high efficient suggestions. | ||||
Related Products
Our Factory Information
Chengli Special Automobile Co.,Ltd
Establized in 2004, parent company, developed to now ChengLi Group, which is the Biggest Special Truck Factory in China, located in the Southern Suburb of Zengdu District, Suizhou City, is a diversified group company integrating automobile technology research and development, automobile manufacturing, automobile modification, auto parts, finance, education and home investment.
Chengli "CHENGLIWEI" brand special trucks are the best sells in 29 provinces and autonomous regions of whole nation, and exported to South America, the Middle East, Central Asia, Southeast Asia, Africa, more than 30 countries and regions. At present, our Group, in comparison with the same industry, has the most complete production qualification, the largest variety of products, among which the sales of sanitation trucks, fuel tanker truck and light special trucks continually ranked first in whole country for many years.
CLW Group "CHENGLIWEI" brand products occupy an important share in the domestic and international market. The leading products include: all kinds of water trucks, garbage trucks, suction sewage trucks, road sweeper trucks, fuel tank trucks, chemical trucks, wrecker trucks, aerial work trucks, fire trucks, truck mounted crane, refrigerated trucks, van trucks,LPG(pressure vessel), highway maintenance trucks, flatbed transport trucks, bulk grain trucks, dry mix mortar trucks, mobile beekeeping trucks, stage trucks, LED advertising trucks, mobile sales truck, heavy duty truck mounted crane, concrete pump trucks, drug transport trucks, food transport trucks, new energy trucks, and other series of more than 800 varieties. Compared with same industry in domestic, ChengLi is a special trucks company with the largest variety of products, the most complete production qualification, first-class production equipment and the most complete detection means.
Chengli "CHENGLIWEI" brand special trucks are the best sells in 29 provinces and autonomous regions of whole nation, and exported to South America, the Middle East, Central Asia, Southeast Asia, Africa, more than 30 countries and regions. At present, our Group, in comparison with the same industry, has the most complete production qualification, the largest variety of products, among which the sales of sanitation trucks, fuel tanker truck and light special trucks continually ranked first in whole country for many years.
CLW Group "CHENGLIWEI" brand products occupy an important share in the domestic and international market. The leading products include: all kinds of water trucks, garbage trucks, suction sewage trucks, road sweeper trucks, fuel tank trucks, chemical trucks, wrecker trucks, aerial work trucks, fire trucks, truck mounted crane, refrigerated trucks, van trucks,LPG(pressure vessel), highway maintenance trucks, flatbed transport trucks, bulk grain trucks, dry mix mortar trucks, mobile beekeeping trucks, stage trucks, LED advertising trucks, mobile sales truck, heavy duty truck mounted crane, concrete pump trucks, drug transport trucks, food transport trucks, new energy trucks, and other series of more than 800 varieties. Compared with same industry in domestic, ChengLi is a special trucks company with the largest variety of products, the most complete production qualification, first-class production equipment and the most complete detection means.
North gate of our company
The fountain in our company

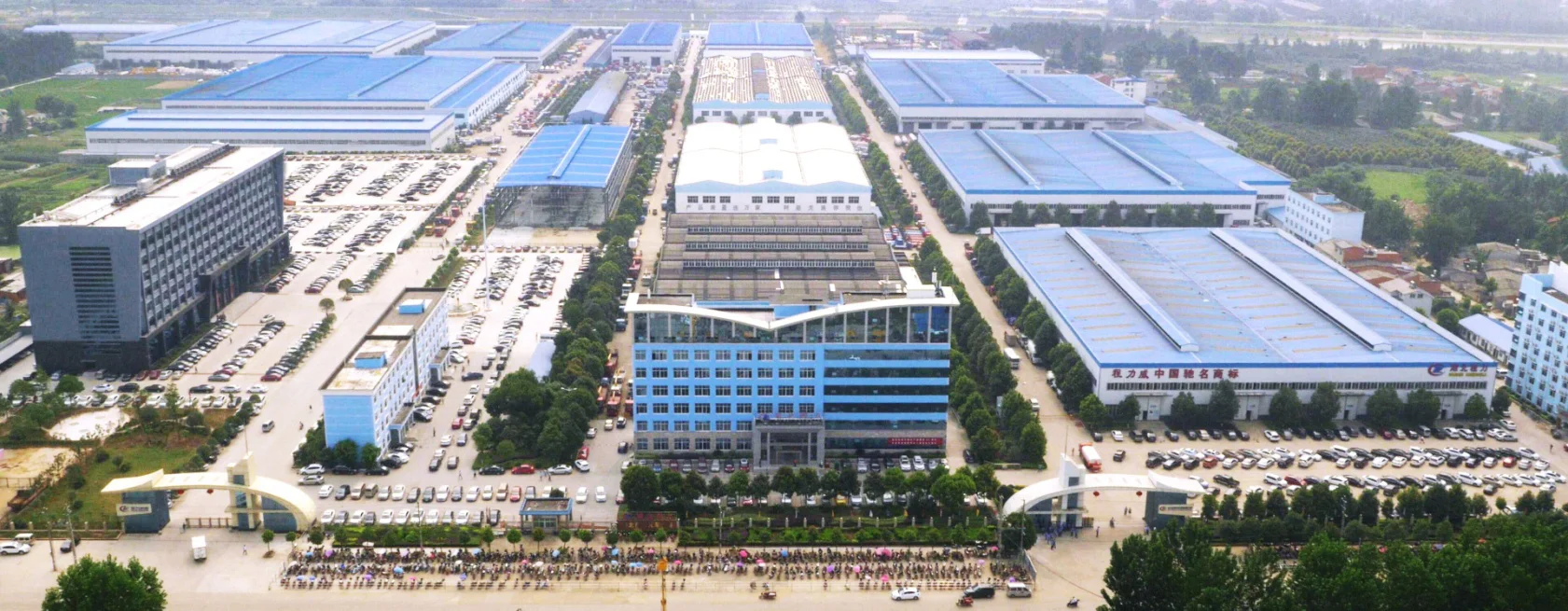

Top view of our factory
