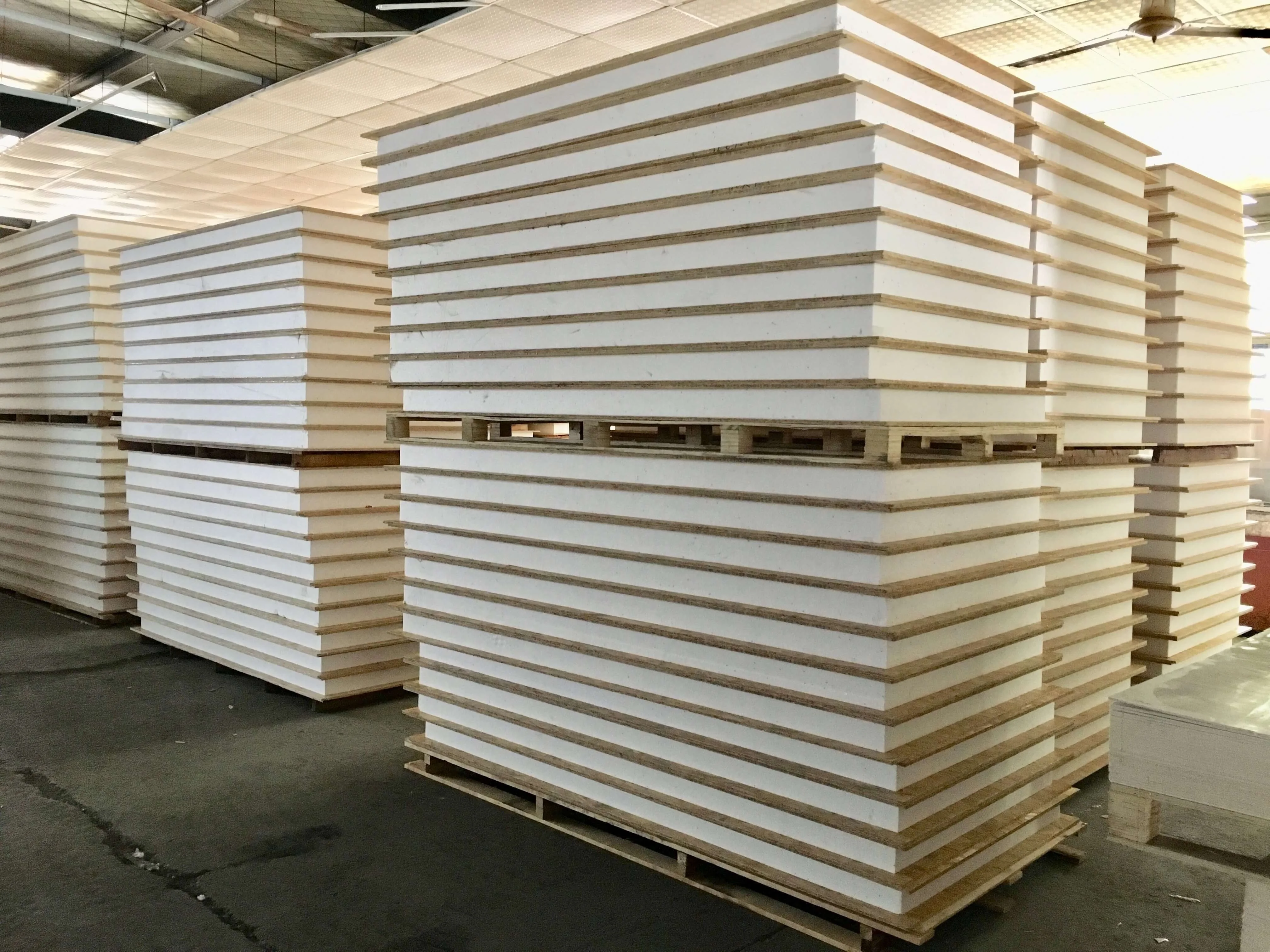

Decorative OSB SIP Sandwich Panel Structural Insulated Panels For Prefab House

Product Overview

Description

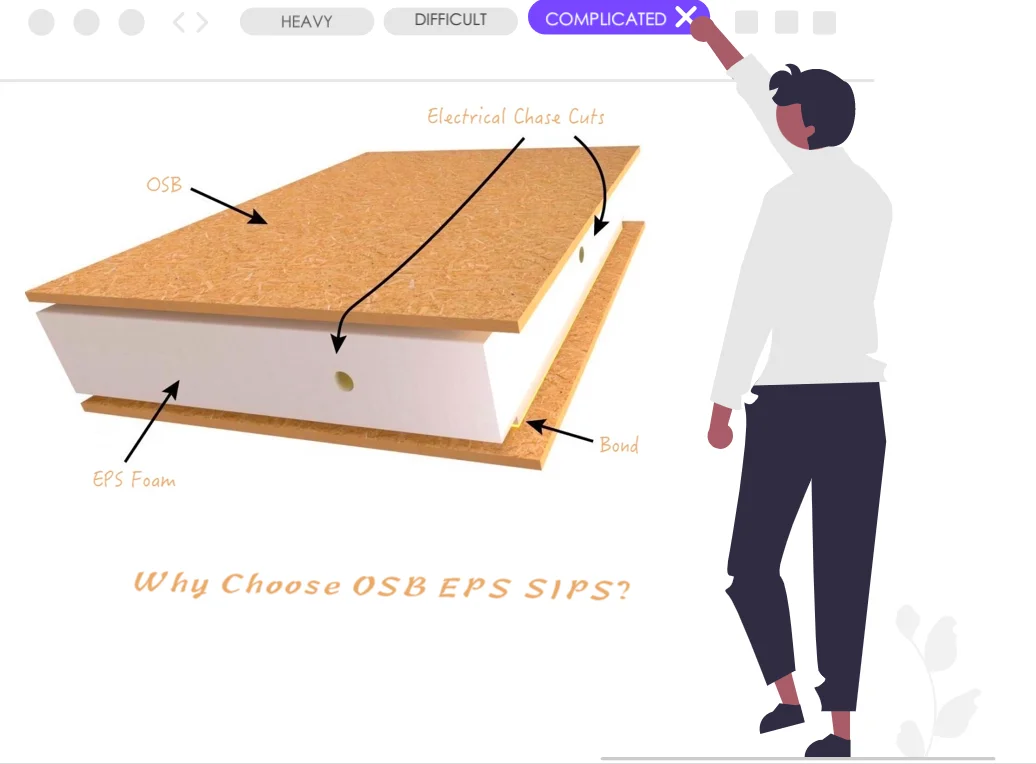

SWISSIWS OSB ‘EPS’ SIP

OSB EPS SIPs are being applied in traditional construction method nearly 75 years ago. The first foam core SIPs were created in

1952. Frank Lloyd Wright was exceptionally innovative and explored the idea of SIPs to incorporate beauty and simplicity into

cost-effective homes. Alden B. Dow, an architecture student of Frank Lloyd Wright, experimented further with the concept of

structural panels. He had concerns about energy efficiency and was fearful over depleting natural recourses. Thus he sought

to create a structural panel with an insulated core and is generally credited with creating the first structural insulated panel.



‘Advantages’ of SWISSIWS OSB EPS SIP

-Faster to build than most building methods.

-Factory prebuilt, resulting in cost reduction and speed of building.

-Superior insulation values compared to wood framing with fiberglass insulation.

-Superior weather performance.

-Superior structural performance compared to wood framing.

-Superior environmental performance less waste generated by SIPs building and less HVAC needs from superior insulation.

-Proven performance in extreme conditions, documented observations show that SIP buildings withstood earthquakes in Japan,

and storms/tornadoes in the US better than framed buildings.

-Reduction of need for skilled laborers.

-Reduction in the need of high-quality raw materials. Engineered wood production does not need high quality lumber.

-Tighter tolerances in building due to it being an engineered product.

-Tight control of material usage.



The chart below states general ‘technical parameter’ of SWISSIWS OSB EPS SIP

OSB Board	Monterey Pine
OSB Grade	OSB-3
OSB Glue	Methylenediphenyl Diisocyanate (MDI)
OSB Quality	E0
OSB Board Density	0.65kg/m3
Thickness of OSB board	9, 12, 15, 18
Thickness of EPS	50mm to 300mm
Density of EPS	18kgs/m3 to 30kgs/m3
Color of EPS	White, dark grey
Fireproof level of EPS	B1
Size of SIPs (mm)	2440*1220, 2745*1220
Thickness of SIPs	12/90/12, 12/100/12, 12/120/12 etc.
Edge treatment	T& G, four sides recessed, customized etc.
