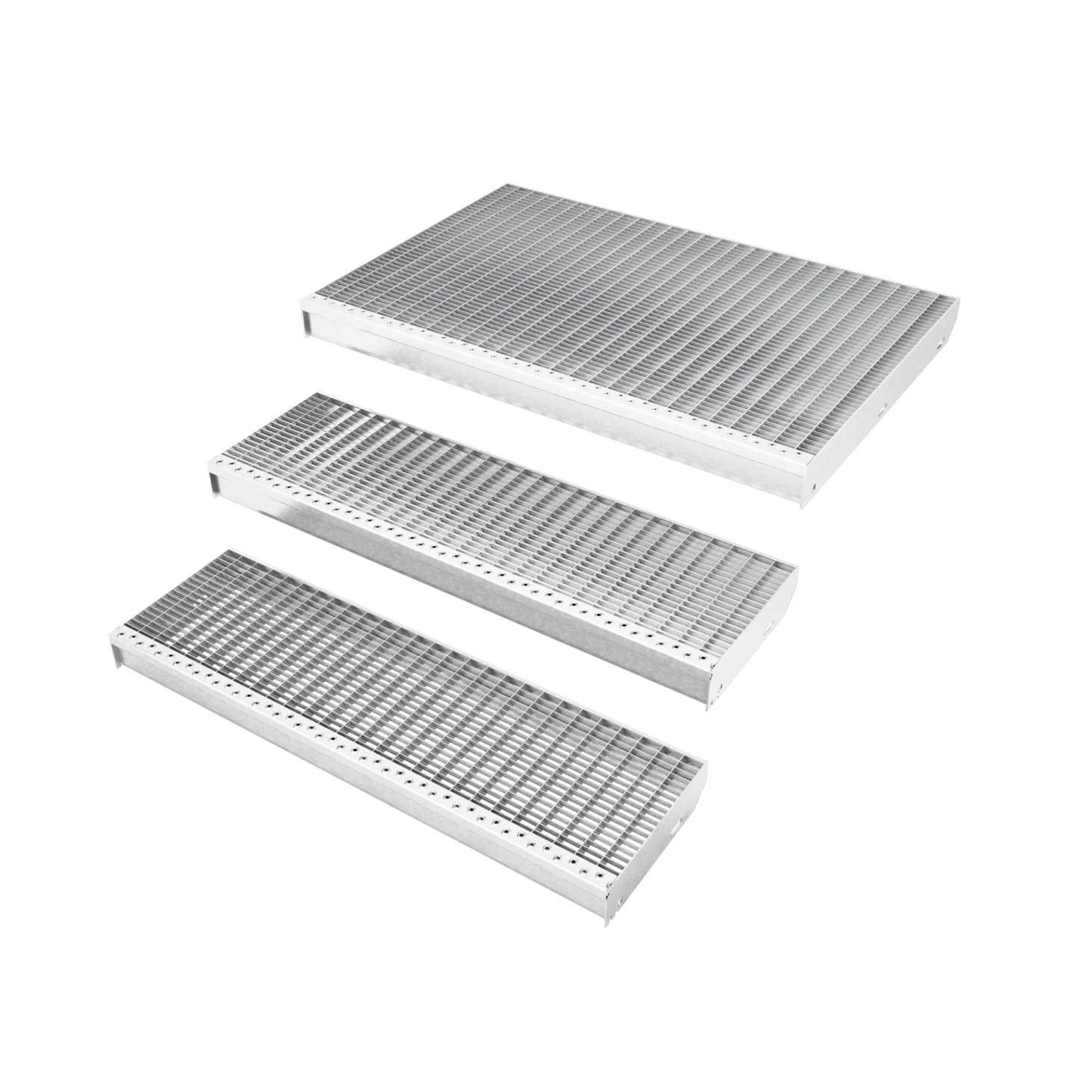

sewer gutter cover kitchen gutter water grating steel grille gutter cover plate hot sale
- Category: >>>
- Supplier: Rizhao Port Machine Engineering Co. Ltd
Share on (1600531506983):
Product Overview
Description
Product Introduction

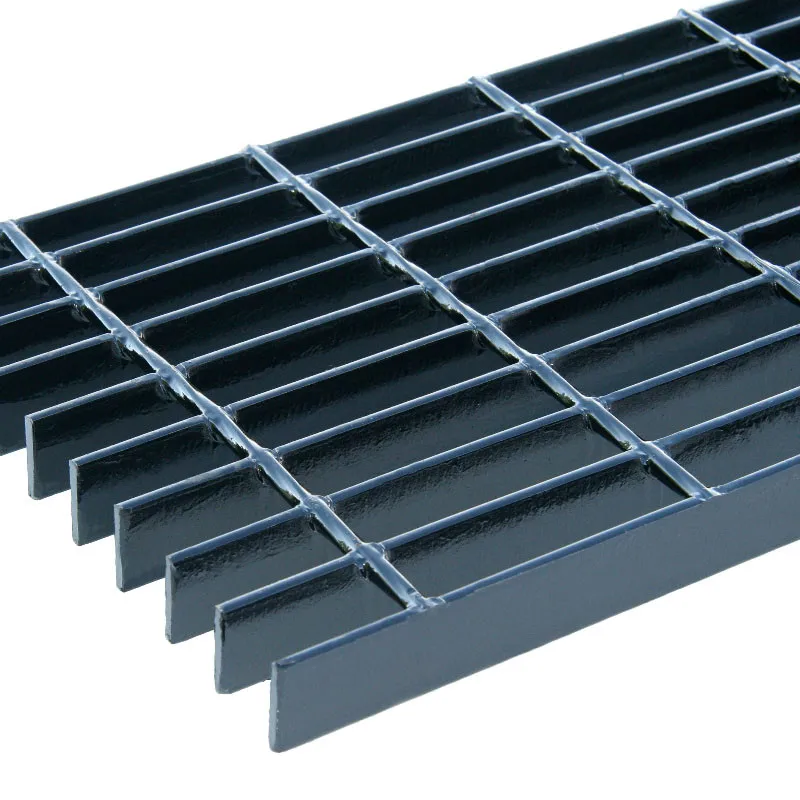

Steel grating

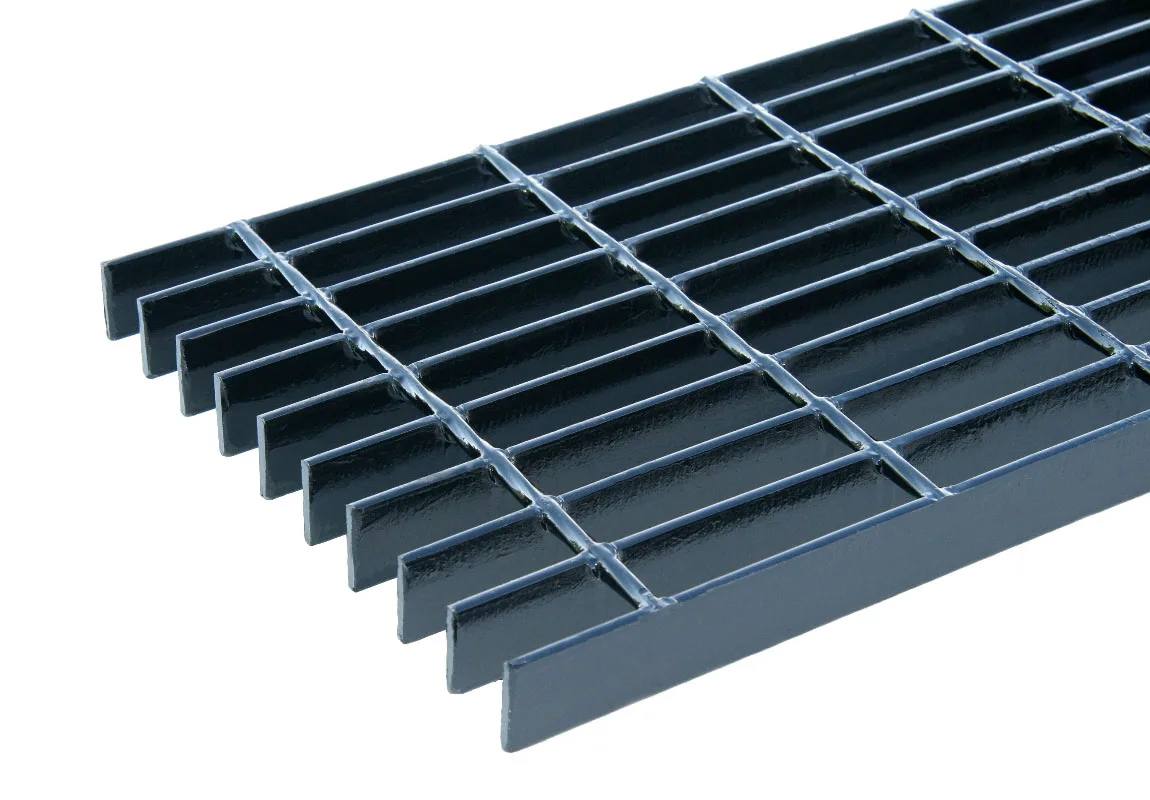

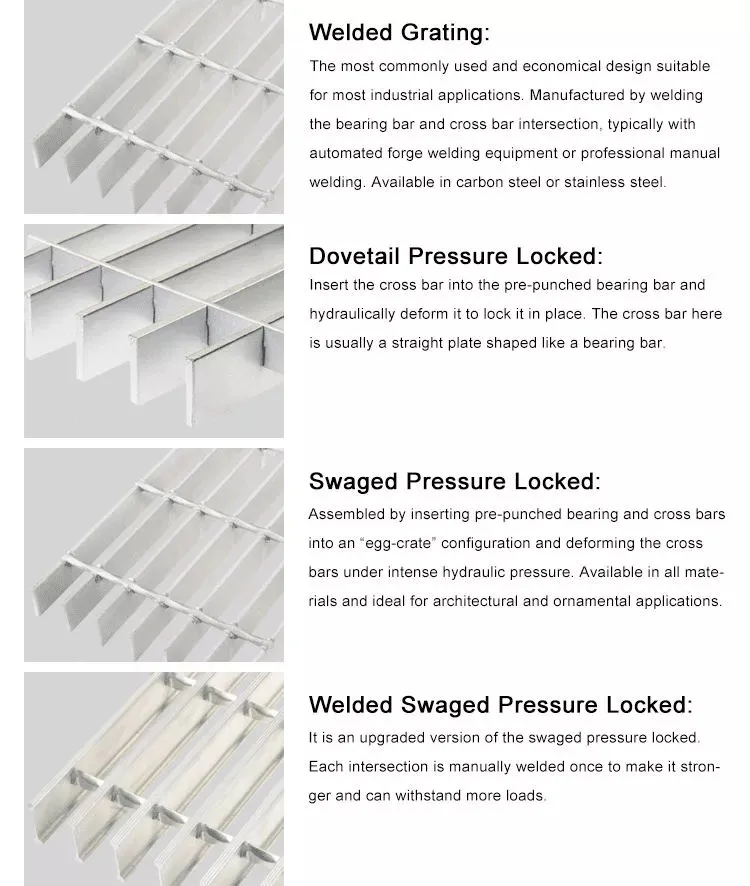

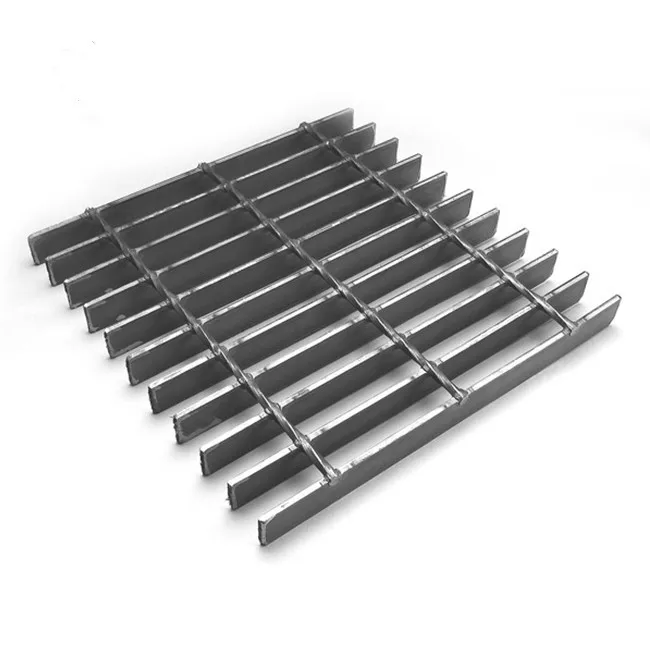

Steel grating is a great choice when your project requires a strong material that won’t be exposed to an expressly corrosive environment.bar grating is ideal for industrial steel grating flooring and metal grates. We can offer plain or serrated bar grating surfaces in galvanized,bare steel,or painted finises.Welded bar grating is the most common type of bar grating.welded steel grating is joined at the intersection of the bearing bars and cross bars. When heavy loads are present,the heavy duty metal grating is the best option. The heavy duty steel grating can be appropriate for highways,airport runways,bridge floors and wheel traffic applications.

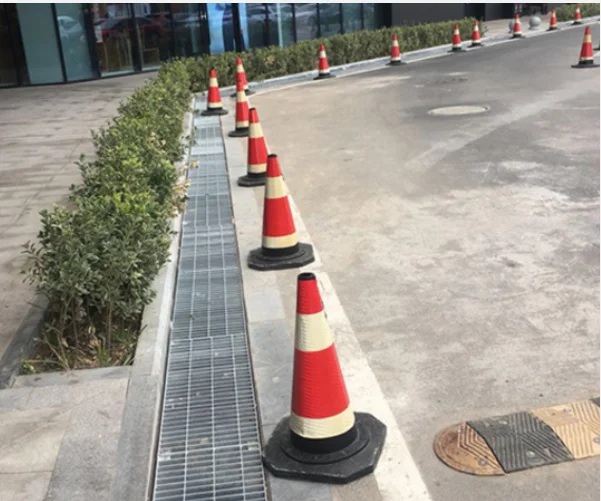

Another bar grating application includes drainage grates, which are an integral part of the interior of industrial plants, and the exterior landscape all around us. Also known as bar grating trench grating, these grates permit the passage of light, heat, and liquid, and therefore are useful in screening out unwanted elements and debris in various settings. Bar grating can be fabricated to fit the following applications: Driveway drains/ Storm water drains/Trench drains/Floor drains

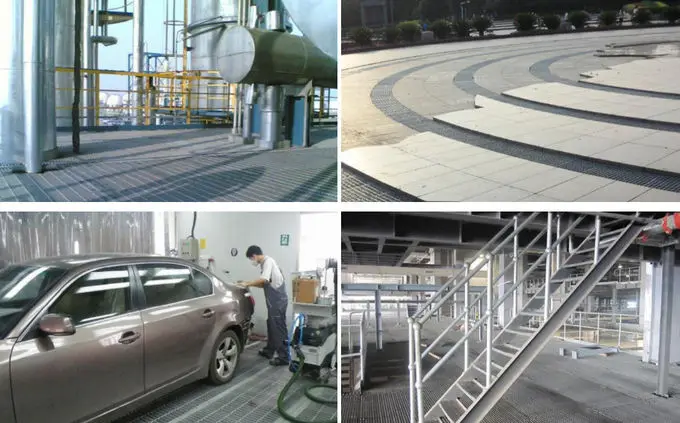

Steel grates are also functional for industrial decks and flooring in chemical plants, food processing facilities, and oil and gas refineries. Metal grates are ideal for these applications, since they allow liquid to pass through the material, which helps to prevent slippery and hazardous work conditions. In addition, pedestrians rely on metal grates in public walkways, and near fountains and trees.
222
333

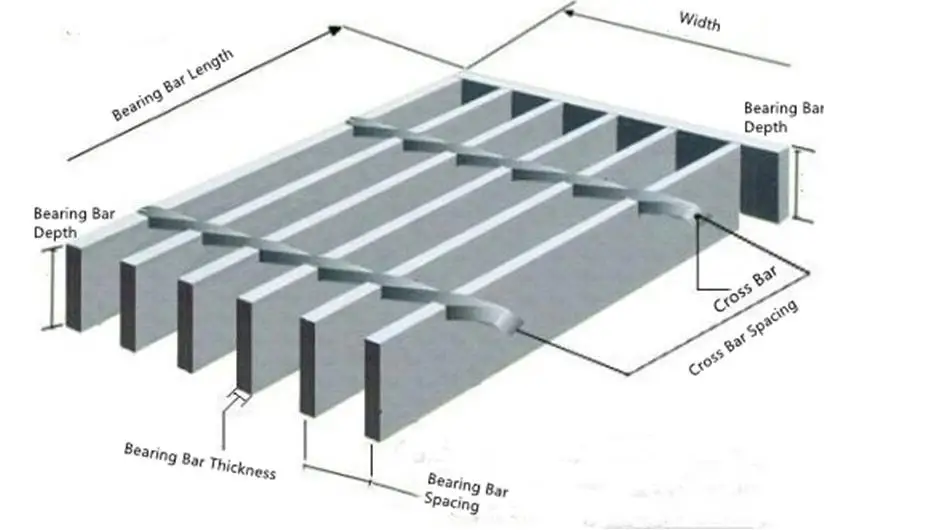

Item | Description | ||||||
Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5 I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard:1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc | ||||||
Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2,15-w-2 etc. | ||||||
Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc | ||||||
Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc | ||||||
Surface Treatment | Black, self color, hot dip galvanized, painted, spray coating | ||||||

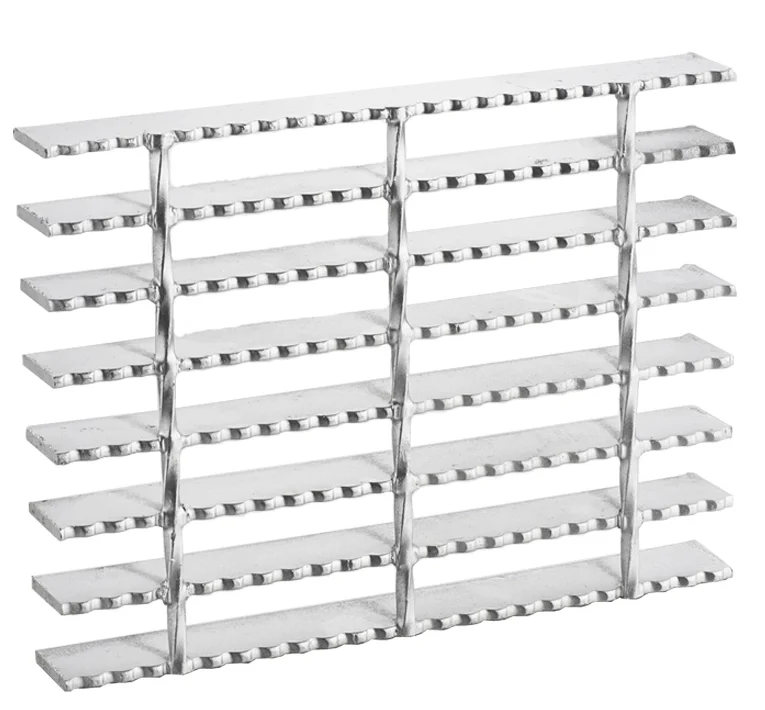

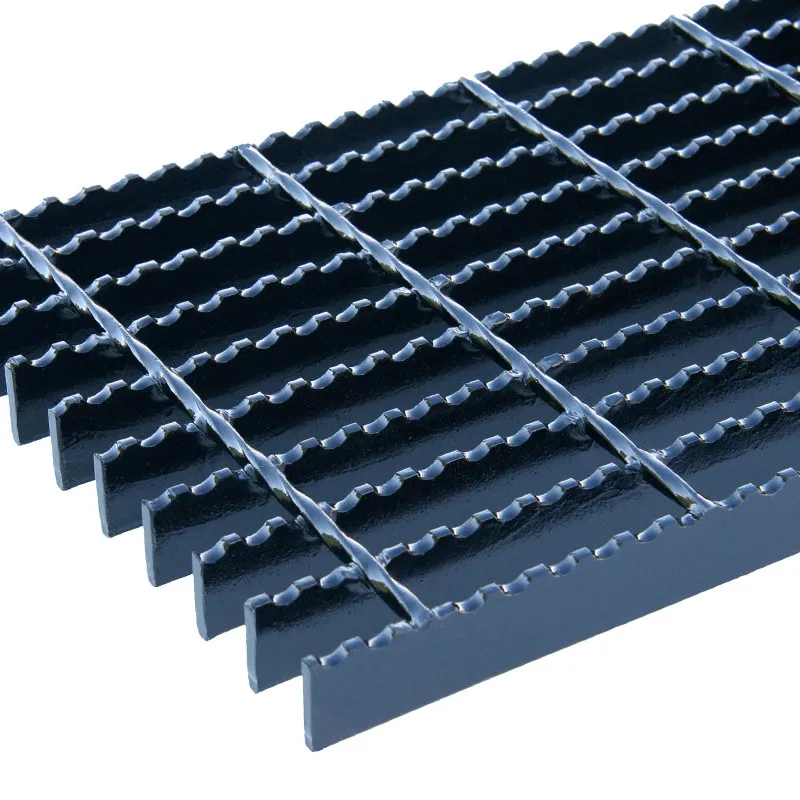

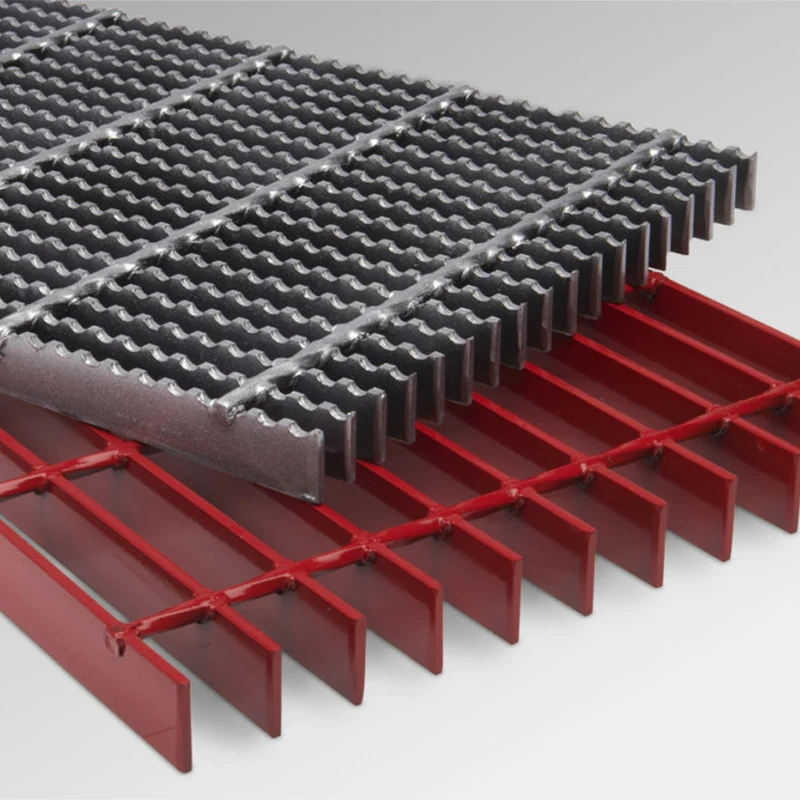

Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar | ||||||

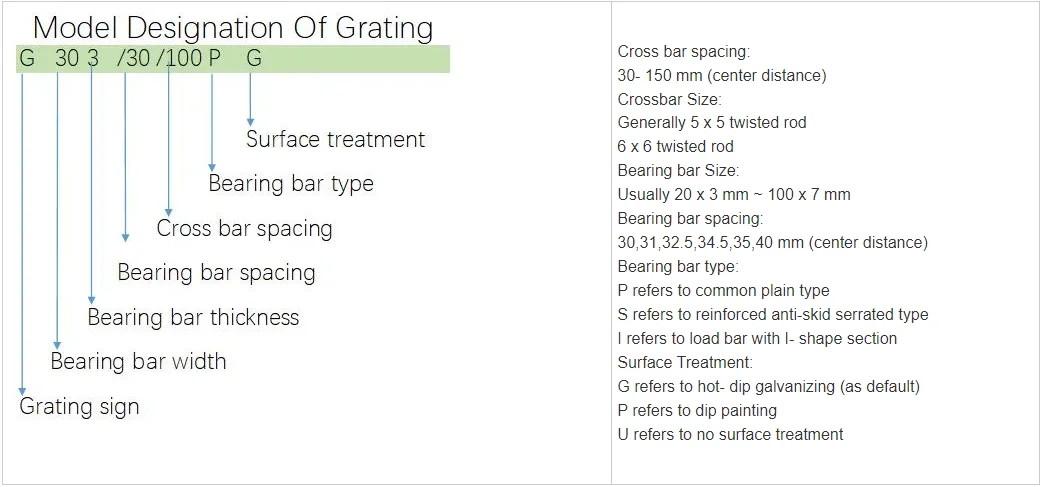

Product Paramenters

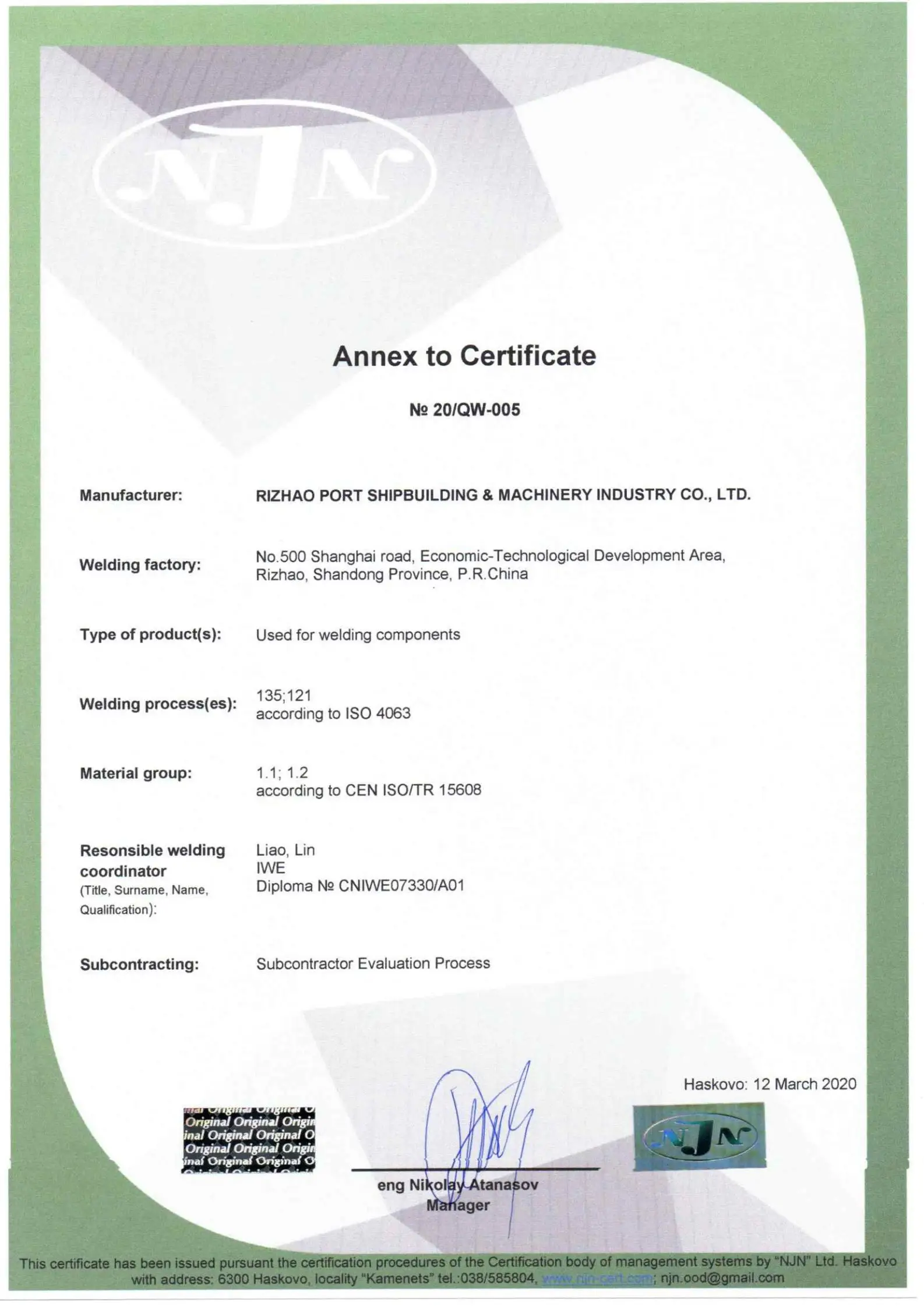

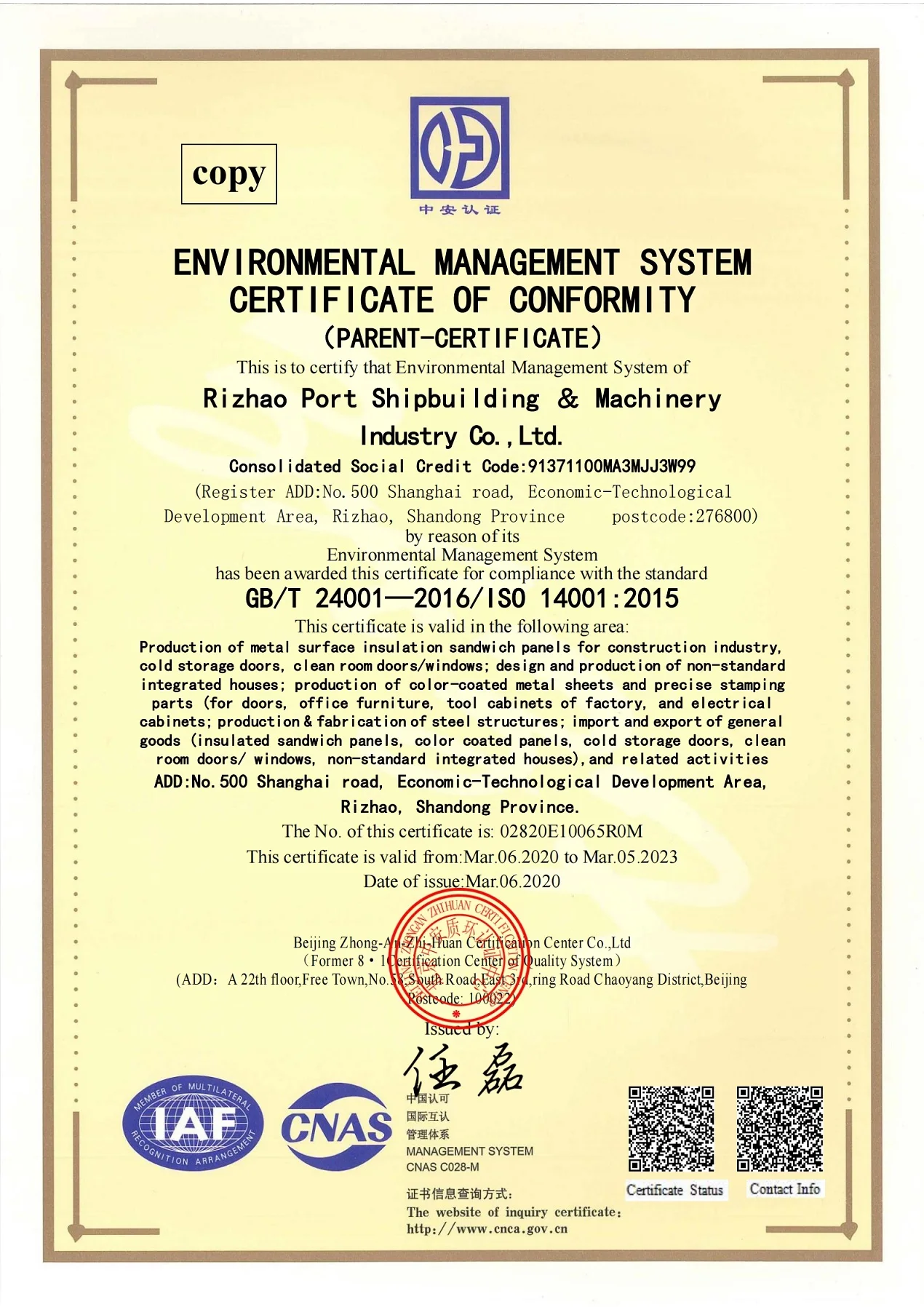

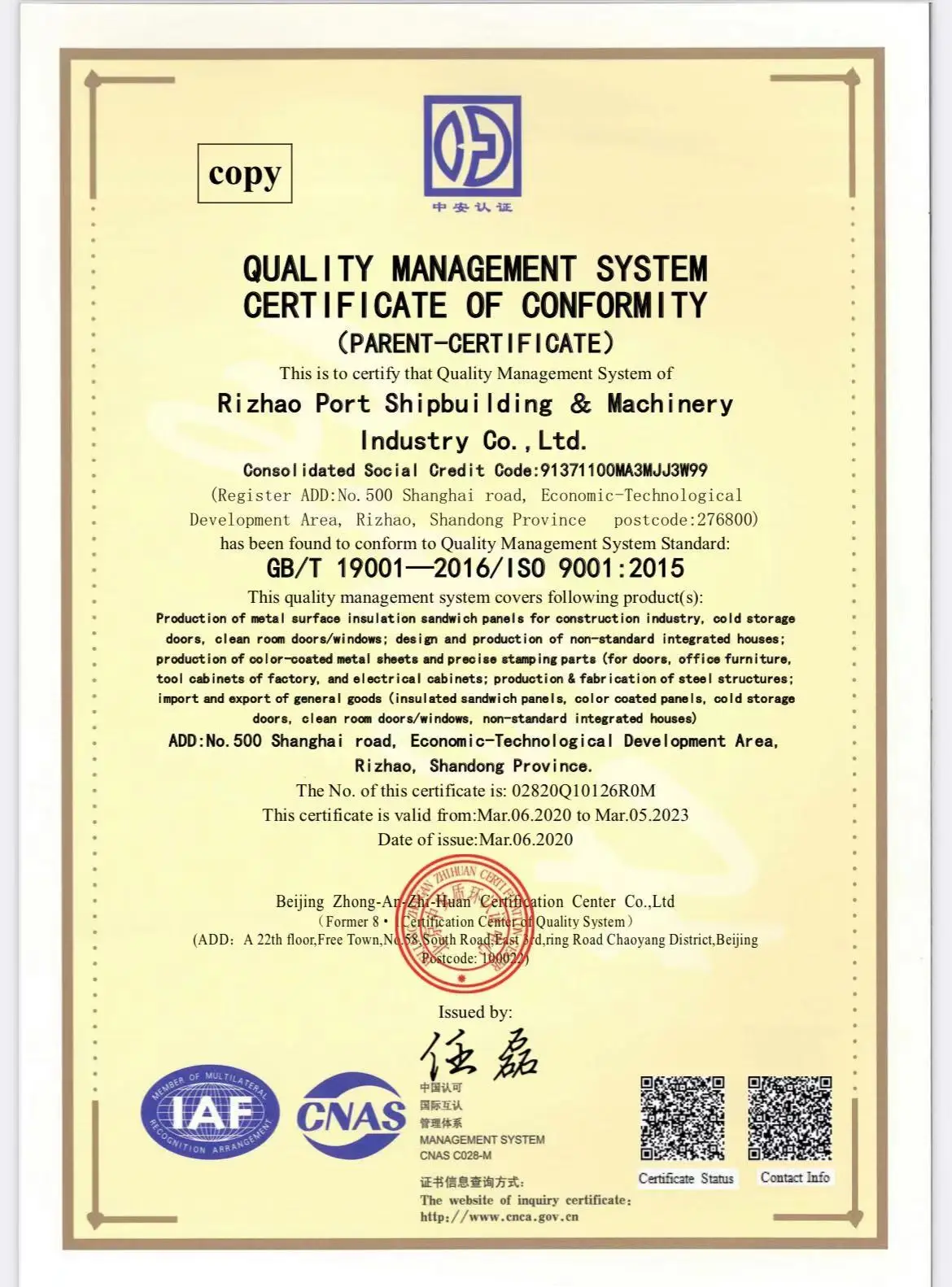

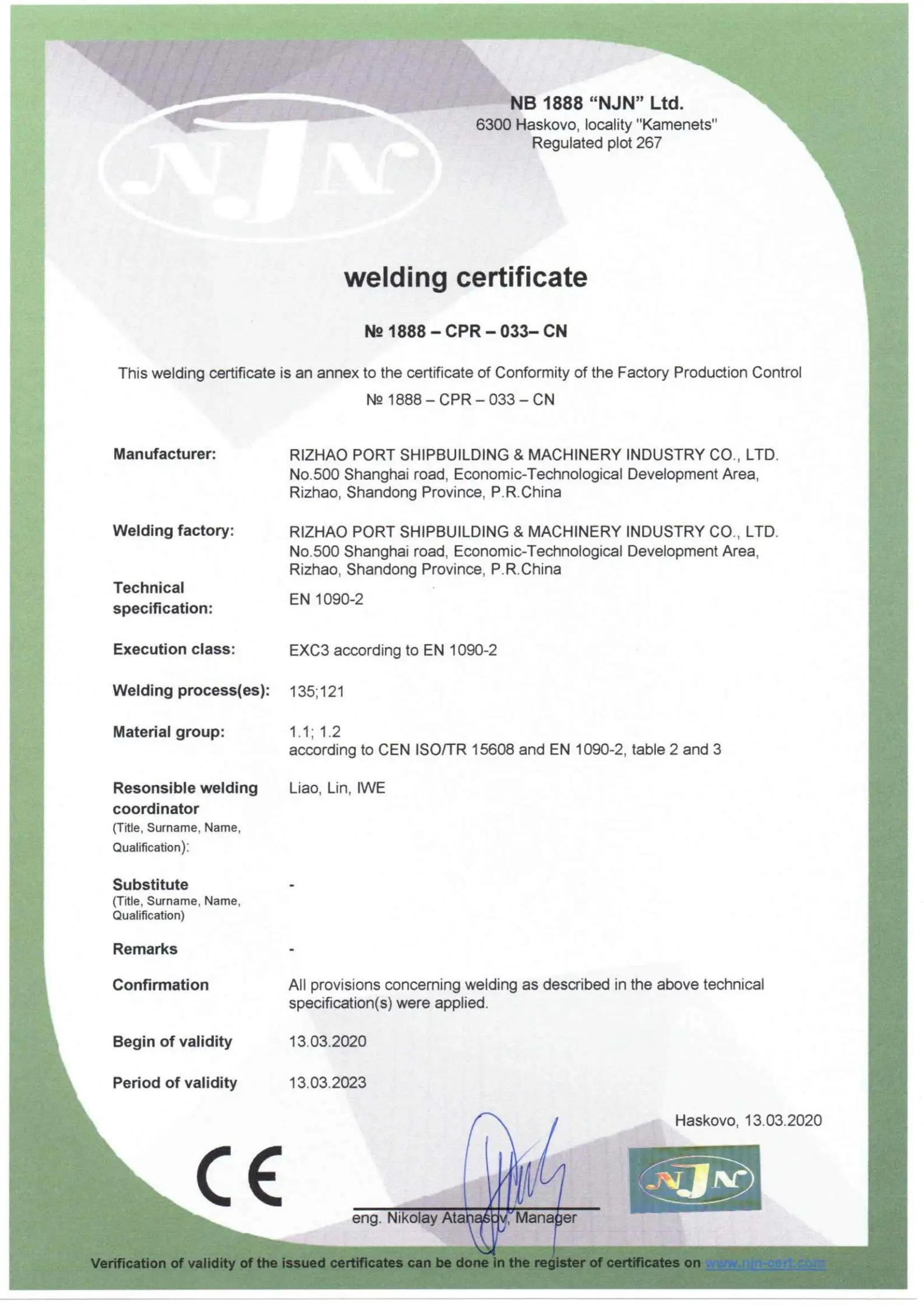

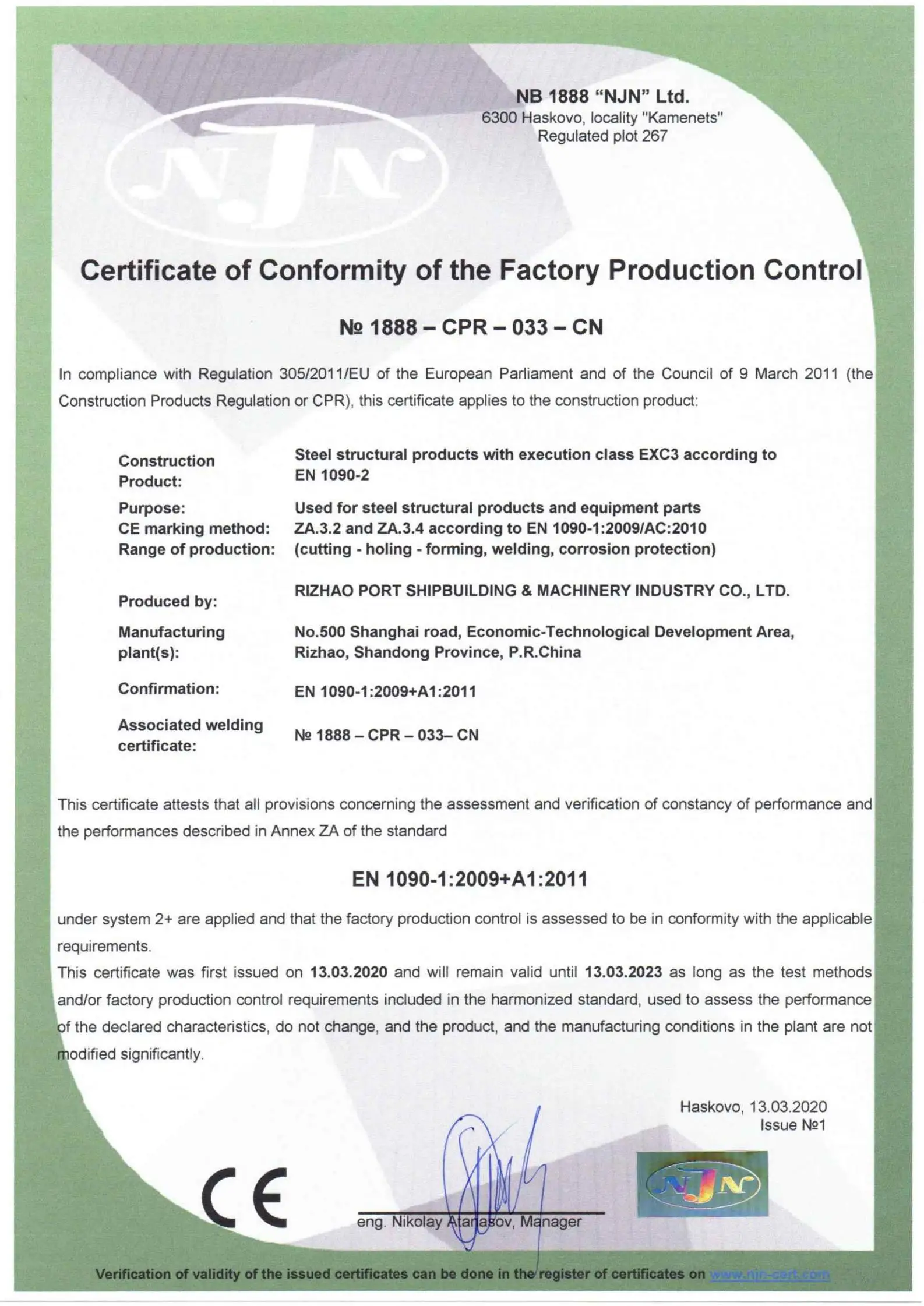

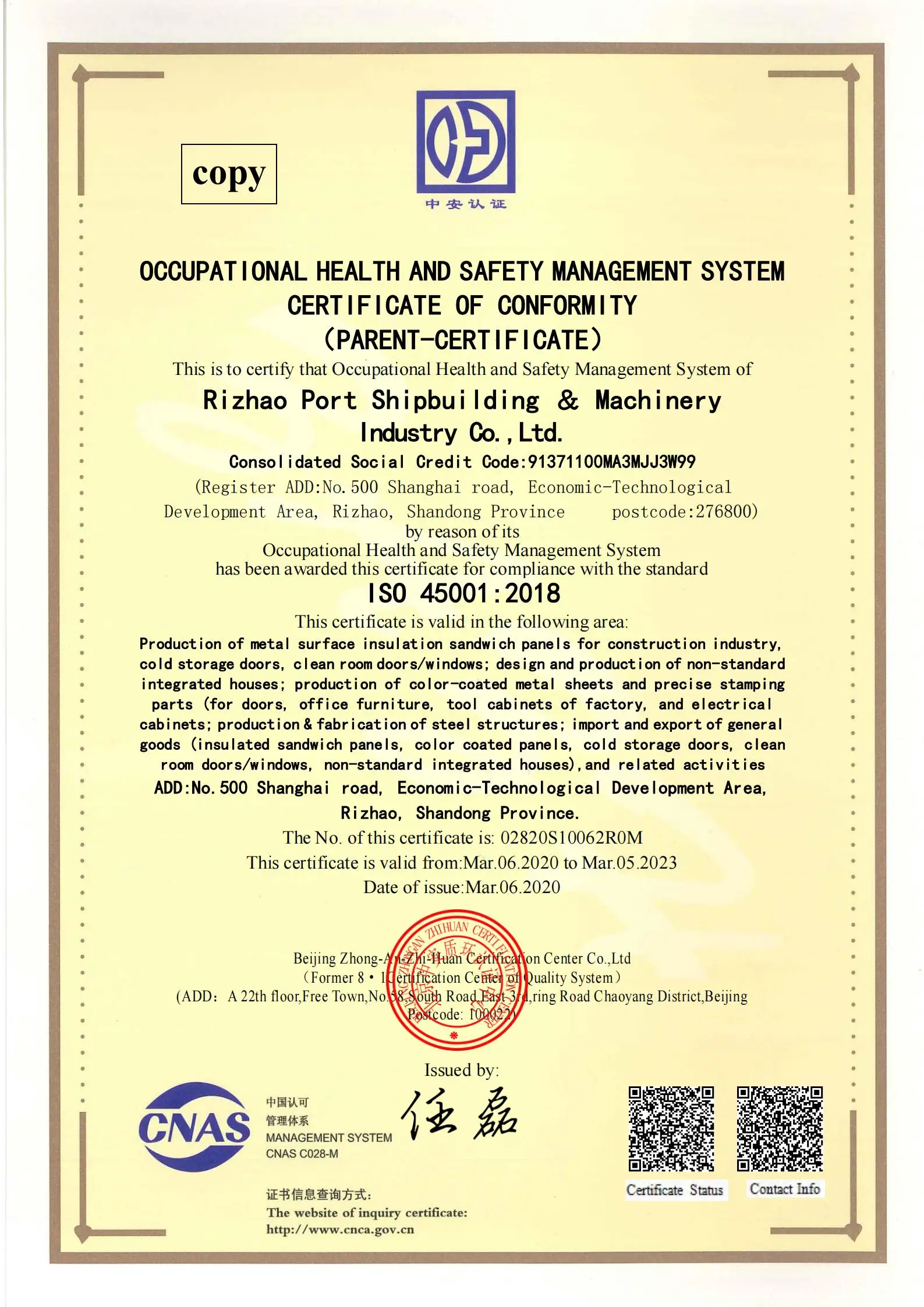

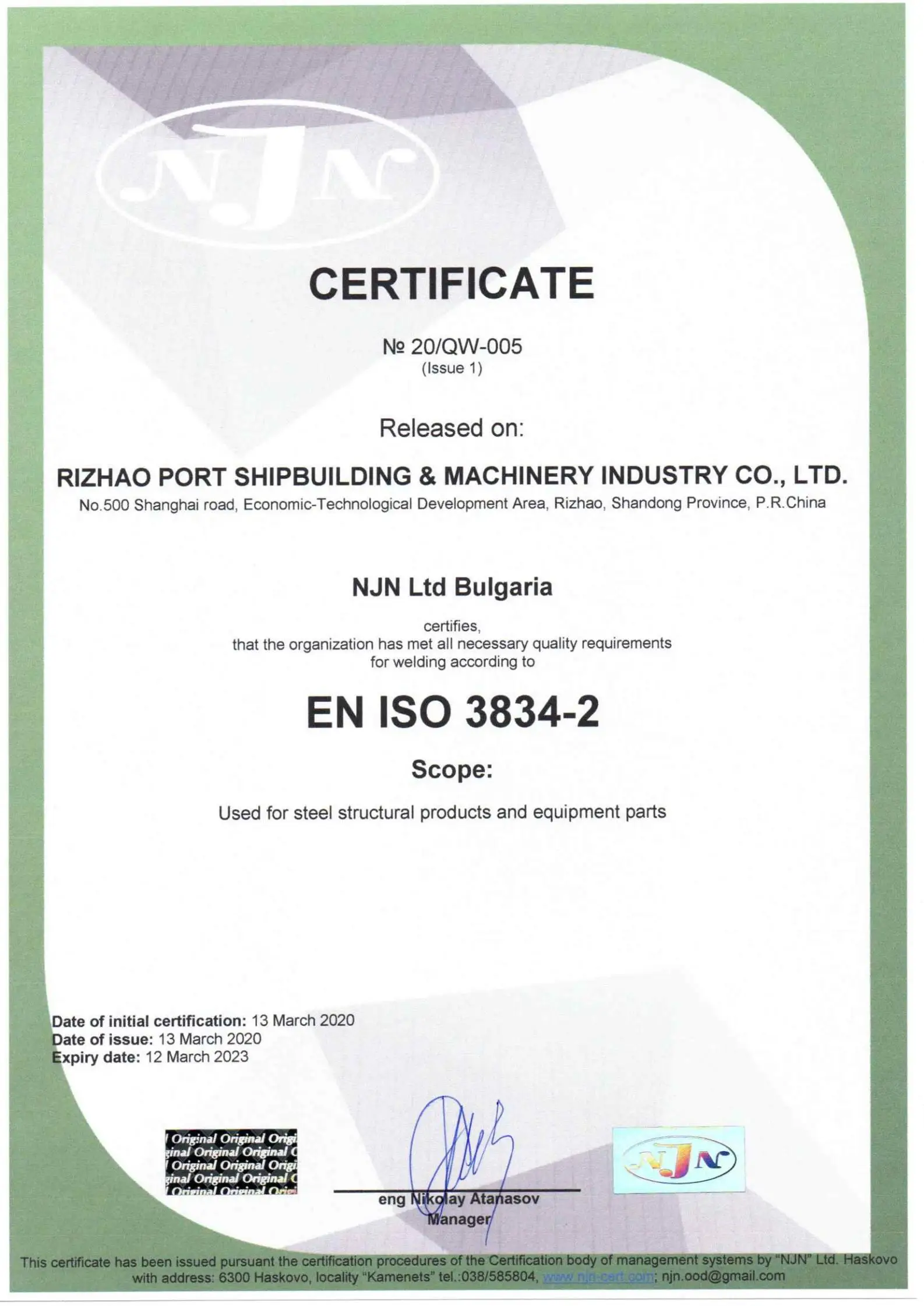

Certifications
Recommend Products

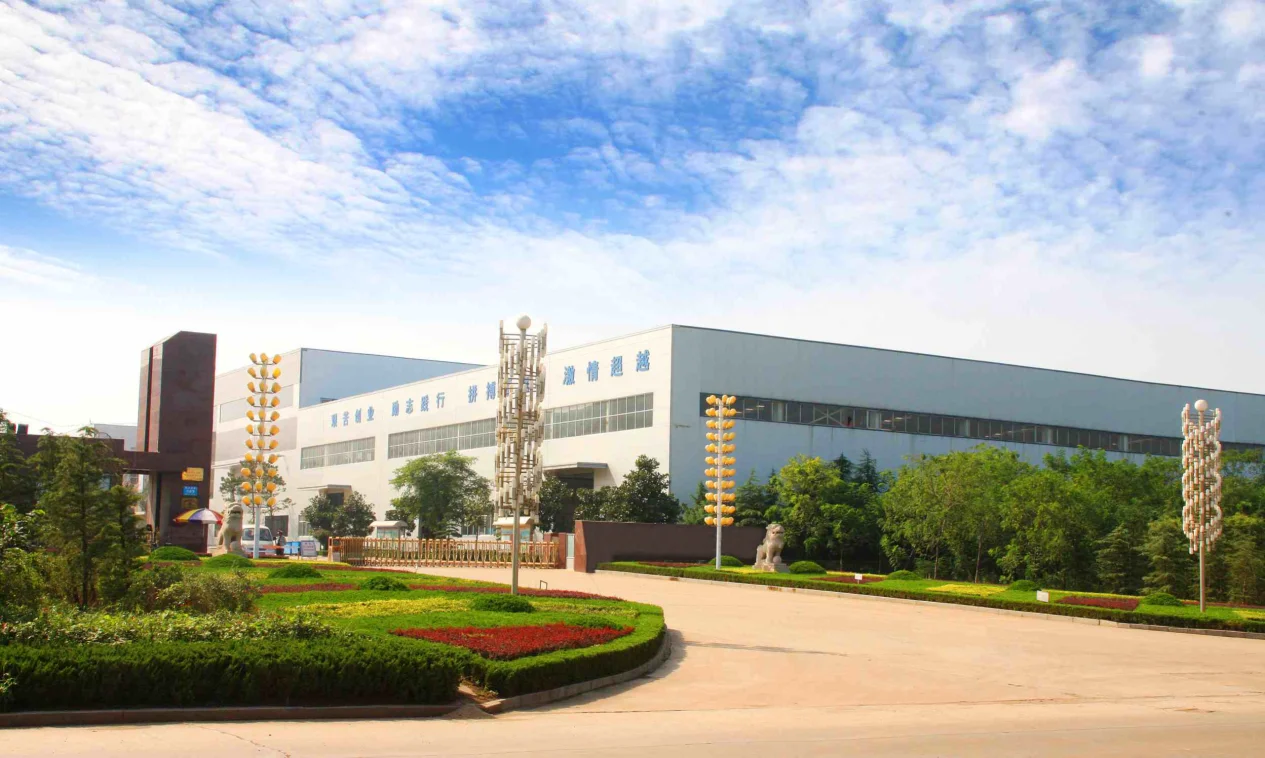

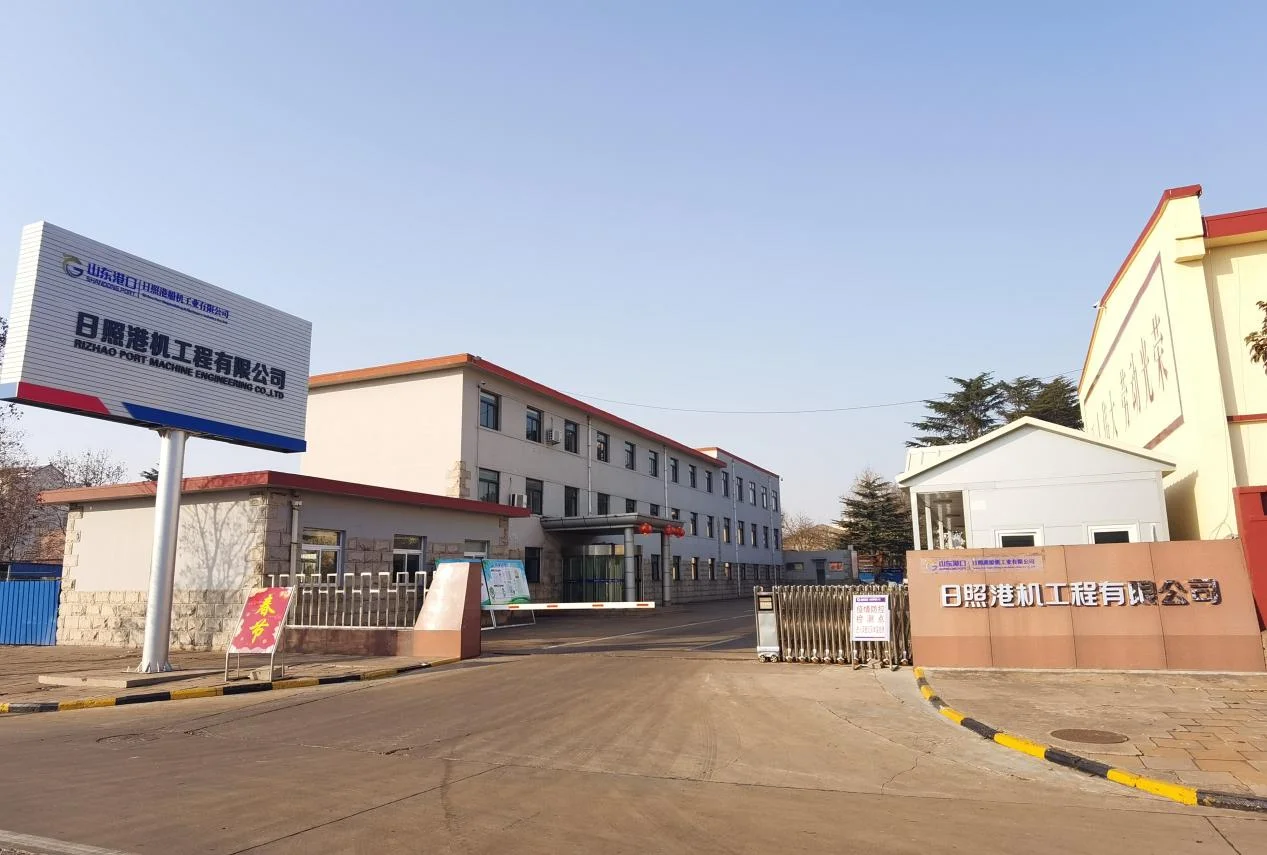

company introduction
Rizhao Port Shipbuilding & Machinery Industry Co.,ltd, a wholly owned subsidiary of Shandong Port Equipment Group ,is a large comprehensive state-owned company combining industrial products research and manufacture, steel structure and equipment producing, general contracting service for industrial system integration and ships & equipment building and maintenance.
As a member of the Standardization Administration of China/Technical Committee (SAC/TC331) , the company owns the production qualification for transport machinery, Grade-I Class III Production Qualification of steel general ships, Grade-I Production Qualification of steel fishing vessels; Grade-I Professional Contracting Qualification of steel structure, and kinds of Professional contracting qualifications for electrical and mechanical equipment installation, corrosion protection and insulation engineering, foundation, etc. The company also occupies Class B Design Qualification of steel fishery vessels and the Design & Construction Qualification of marine fishery platforms registered with the Ministry of Agriculture. The main business scope of RPIC covers ports, marine equipment, mining, electric power; cement, metallurgy; paper making and other various industries.
As a member of the Standardization Administration of China/Technical Committee (SAC/TC331) , the company owns the production qualification for transport machinery, Grade-I Class III Production Qualification of steel general ships, Grade-I Production Qualification of steel fishing vessels; Grade-I Professional Contracting Qualification of steel structure, and kinds of Professional contracting qualifications for electrical and mechanical equipment installation, corrosion protection and insulation engineering, foundation, etc. The company also occupies Class B Design Qualification of steel fishery vessels and the Design & Construction Qualification of marine fishery platforms registered with the Ministry of Agriculture. The main business scope of RPIC covers ports, marine equipment, mining, electric power; cement, metallurgy; paper making and other various industries.
Successful Cases
Packing&Delivery&Payment
FAQ
Q1. When I don't know the specifications of the products I need, how to order them?
You can tell us the application scenario, the maximum bearing weight of the steel grid you need And QTY or total weight. We can recommend products to you.
Q2.How to visit our factory?
You can fly to Rizhao airport directly,tell us the number of your flight and the arrival time,we will meet you at the airport.
Q3.The quantity of our purchase is very large, may I have a discount?
The price we quote is base on factory price, which is very competitive; But if your quantity is very large, We will apply for the very lowest price for you.
Q4.What 's your delivery time?
For one container products, normally 15-25days after your payment, we can finish the production. For large amount, we will discuss the time.
Q5.How can we guarantee quality?
a pre-production sample before mass production,final inspection before shipment.
Q6. What can you buy from us?

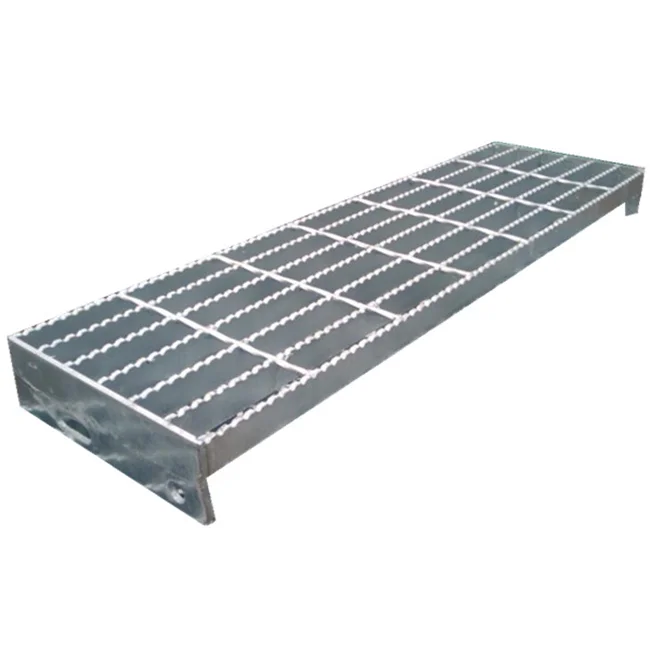

steel grating,drainage cover,steel stair,steel ball stanchion etc.
Q7.Does RPIC do OEM.
OEM service offered,buyer label offered.
You can tell us the application scenario, the maximum bearing weight of the steel grid you need And QTY or total weight. We can recommend products to you.
Q2.How to visit our factory?
You can fly to Rizhao airport directly,tell us the number of your flight and the arrival time,we will meet you at the airport.
Q3.The quantity of our purchase is very large, may I have a discount?
The price we quote is base on factory price, which is very competitive; But if your quantity is very large, We will apply for the very lowest price for you.
Q4.What 's your delivery time?
For one container products, normally 15-25days after your payment, we can finish the production. For large amount, we will discuss the time.
Q5.How can we guarantee quality?
a pre-production sample before mass production,final inspection before shipment.
Q6. What can you buy from us?
steel grating,drainage cover,steel stair,steel ball stanchion etc.
Q7.Does RPIC do OEM.
OEM service offered,buyer label offered.
