Product Overview
Description
VICTOR new VC97 Digital Multimeter NCVAuto Range True RMS 3999 counts New Product Test AC/DC voltage current meter
Products Description
This professional multi-functional multimeter with stable performance and high precision can measure DC/AC voltage, AC/DC current,resistance, capacitance, frequency, duty ratio. Dual-slop integrating A/D converter system
Advantages: Metal shielding plate for good anti-magnetic and anti-jamming ability. Full protection function, design of high -voltage fire-proof circuit.
The Digital Multimeter can display 3999 counts and test AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature, continuity and hFE test with 10 auto-ranging. Precision Circuit Board & Overload Protection: Use the ceramics protection circuit for resistance, frequency measurement, shielding interference and continuity test can be 70Ohm.
Advantages: Metal shielding plate for good anti-magnetic and anti-jamming ability. Full protection function, design of high -voltage fire-proof circuit.
The Digital Multimeter can display 3999 counts and test AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature, continuity and hFE test with 10 auto-ranging. Precision Circuit Board & Overload Protection: Use the ceramics protection circuit for resistance, frequency measurement, shielding interference and continuity test can be 70Ohm.

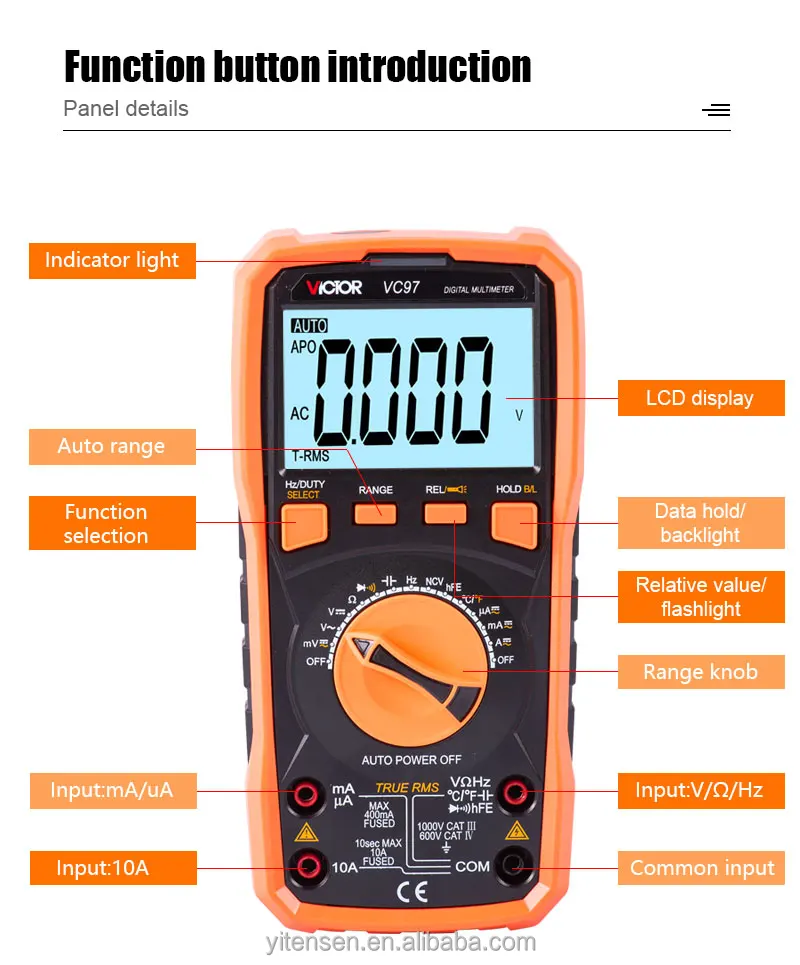

Easy to Use & Clear to Read: Large LCD display with backlight, convenient to use. With a test socket for transfering test of resistance, capacitance, triode and diode. Range Control: Auto Range & Manual Range
new VC97 3 3/4 Auto Range Digital Multimeter
·New type holster, streamline design.
·Large LCD makes the reading clearly. Backlight.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·Full function protection, anti-high voltage circuit design.
.CAT-IV 600V
.True RMS
·New type holster, streamline design.
·Large LCD makes the reading clearly. Backlight.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·Full function protection, anti-high voltage circuit design.
.CAT-IV 600V
.True RMS
NCV
Flashlight
Specification
Basic Function | Range | Accuracy |
DC Voltage | 400mV/4V/40V/400V/1000V | ±(0.5%+4) |
AC Voltage | 400mV/4V/40V/400V/750V | ±(0.8%+10) |
DC Current | 400uA/4000uA/40mA/400mA/10A | ±(1%+10) |
AC Current | 400uA/4000uA/40mA/400mA/10A | ±(1.5%+10) |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+4) |
Capacitance | 10nF | ±(5%+20) |
100nF/1uF/10uF/100uF | ±(3.5%+8) | |
1mF/10mF/100mF | ±(5.0%+10) | |
Frequency | 100/1000/10k/100k/1M/30MHz | ±(0.5%+10) |
Celsius | (-20~1000)℃ (-4-1832)℉ | ±(1.0%+5) |
Special Function | ||
Diode | √ | |
Transistor | √ | |
Continuity buzzer | √ | |
Low battery indication | √ | |
Data Hold | √ | |
Auto power off | √ | |
Analog bar graph | √ | |
Shockproof protection | √ | |
Function protection | 1%~99.% | |
Input impedance | 10MΩ | |
Sampling rate | 3 times/s | |
AC Frequency response | 40~1000Hz | |
Operation way | Auto range | |
Max. Display | 3999 | |
LCD size | 65×35mm | |
Battery | 1.5V AAA LR03 Battery | |
Product Color | Case: black ; Holster color:orange |
Product Net Weight | Approx:420g |
Product Dimension | 190×93.5×37mm |
Standard Accessories | Test leads,battery,instruction manual,TP01 temperature probe(with temperature function) |
Standard inner packing | Color box |
Standard Quantity Per Carton | 30Pcs |
Carton size | 465×317×506mm |
Standard Gross Weight | Approx:22kg |
