CAD/CAM стоматологический металлический фрезерный станок для титана cocr emax
- Category: >>>
- Supplier: Shenzhen Camdent Medical Technology Co. Limited
Share on (1600532113344):
Product Overview
Description

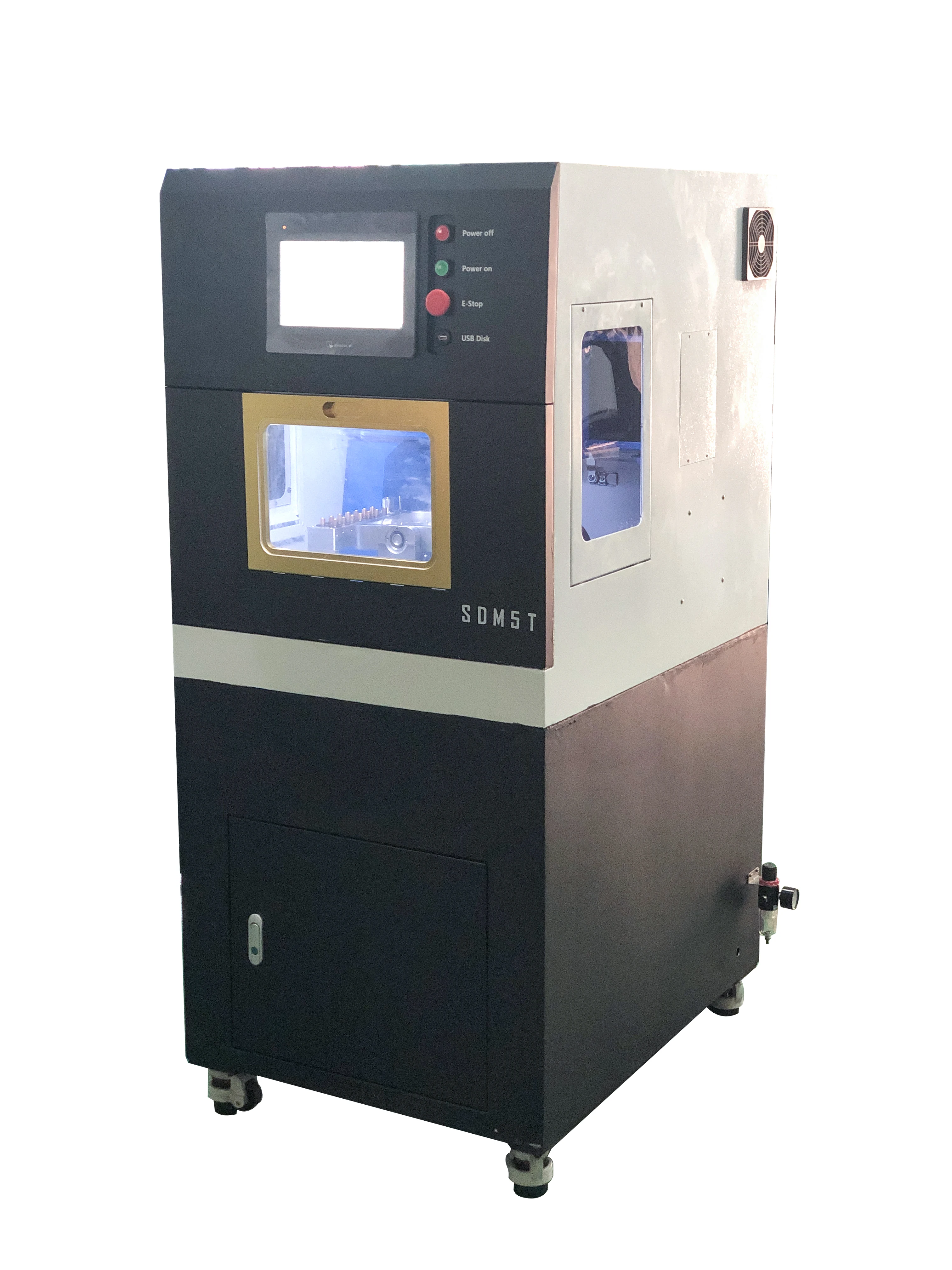

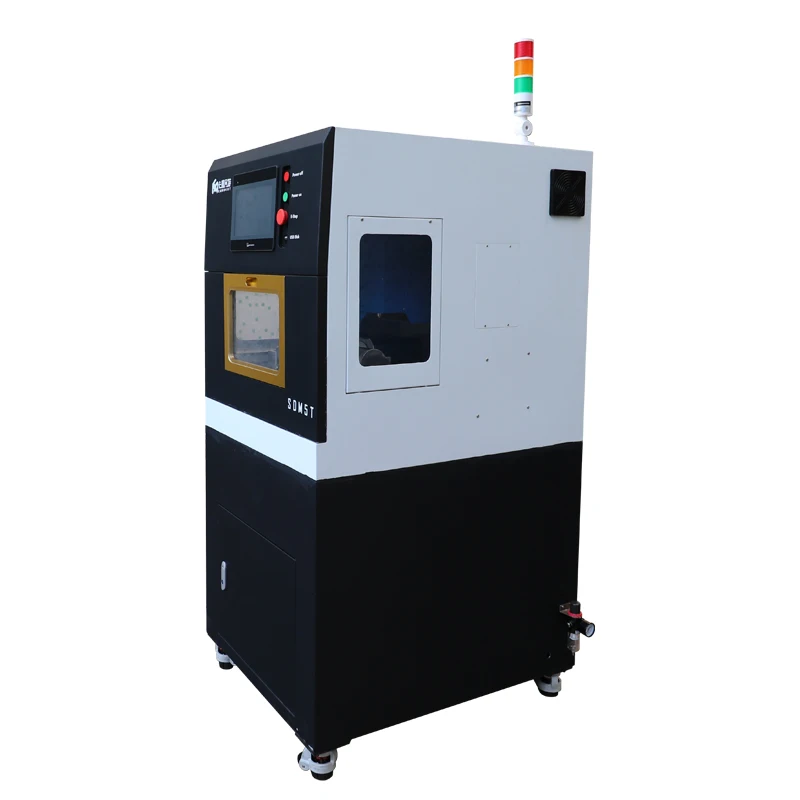

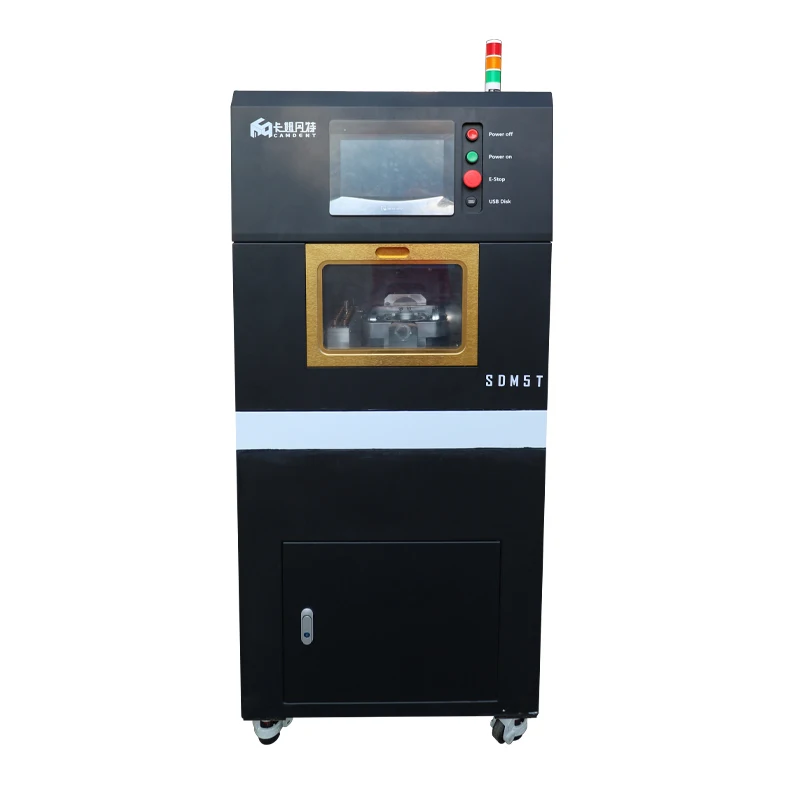

Sdm5t
SDM5T is a 5-Axis dry-milling and wet-milling machine for dental CAD/CAM system with wide range of materials, featuring high accuracy, durable stability and excellent compatibil-ity. It is an ideal choice for high-precision restorations including bridges, frames, splint, abutment, base and complicated operations like zirconia perforation. Equipped with pre-mium spindle, imported core parts, smart CAM nesting system and intelligent touch screen, SDM5T offers better disc handling, wider material capabilities, automatic tool change to deliver a higher efficiency.
· PRODUCTS DESCRIPTION
Sdm5t-a
Sdm5t-b
Sdm5t-c
Key features
Open controller system
-- This system supports international ISO standard G code, compatible with popular CAM software, such as HyperDent，SUM3D Dental,GO2den-tal,WorkNC dental ,Delcam Dental etc.
Intelligent processing
-- Excellent and simple man-machine interface, touch screen control, simple operation, unique CAD/CAM processing strategy, no need for professional CNC programmers, one-button operation, stable operation.
High Accuracy
-- The body structure adopts the industrial standard cast iron and cast alumi- num structure, high rigidity, no deformation,
stable precision, long service life.The mechanical transmission part adopts Taiwan/Germany C3 grade high precision ball screw and P grade linear guide rail.
-- The body structure adopts the industrial standard cast iron and cast alumi- num structure, high rigidity, no deformation,
stable precision, long service life.The mechanical transmission part adopts Taiwan/Germany C3 grade high precision ball screw and P grade linear guide rail.
High Efficiency
-- It adopts high power frequency conversion and high speed tool changing spindle with large torque, high precision, and it can process various materi- als with high efficiency.
-- It adopts high power frequency conversion and high speed tool changing spindle with large torque, high precision, and it can process various materi- als with high efficiency.
OEM customize
-- This machine is completely developed and designed by us, so we can provide customers with OEM service
-- This machine is completely developed and designed by us, so we can provide customers with OEM service
· PRODUCTS SPECIFICATIONS
CNC controller | KY-100 5 axis dental system with touch screen | ||
Model | SDM5T | ||
Milling mode | Dry/Wet | ||
Millable material | Titanium,Zirconia,Wax,PMMA | ||
Product type | Crown/coping, Bridge, Inlay/onlay | ||
Spindle power | 2500W or 4000W | ||
Speed of spindel | 3000-60000rpm/min | ||
Spindle cooling | Water-cooled | ||
A/B axis motor | 100W with High precision slope gear reducer | ||
X/Y/Z axis motor | 400W servo motor | ||
Rotation range | A axis | ±360° | |
B axis | ±25° | ||
Attachable bur(tool) | shank diameter | 6mm | |
Length | 45mm | ||

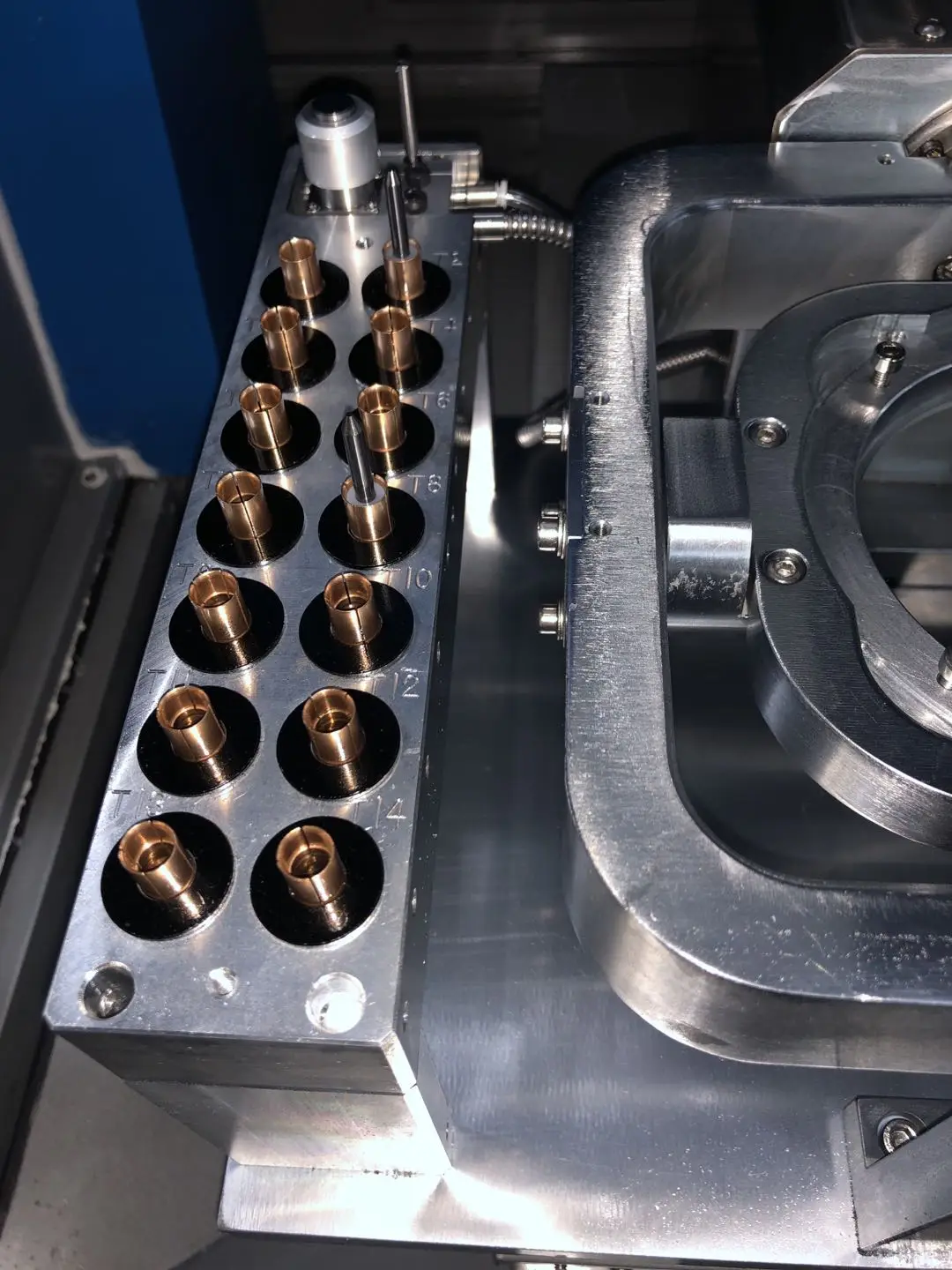

Number of burs(Tools) housed | 30 pcs | ||
Tool change and check | Fully automatic | ||
Compatible compressed air | 0.6MPa | ||
Loadable workpiece shape | External Diameter | 98mm | |
Max Height | 25mm | ||
Min. Height | 10mm | ||
External dimensions | Length | 890mm | |
Weight(Depth) | 700mm | ||
Height | 1590mm | ||
Packing dimension | 1100*900*1800mm | ||
Weight | 400kg | ||
G.weight | 450kg | ||
Input Voltage | Single-phase 220V 50Hz/60Hz | ||
Control command set | NC code | ||
Positioning accuracy | ±0.02mm | ||
Average milling time(dental crown) | Zirconia | 8-15 min | |
Wax | 3-6 min | ||
PMMA | 8-10 min | ||
Titanium | 10-15 min | ||

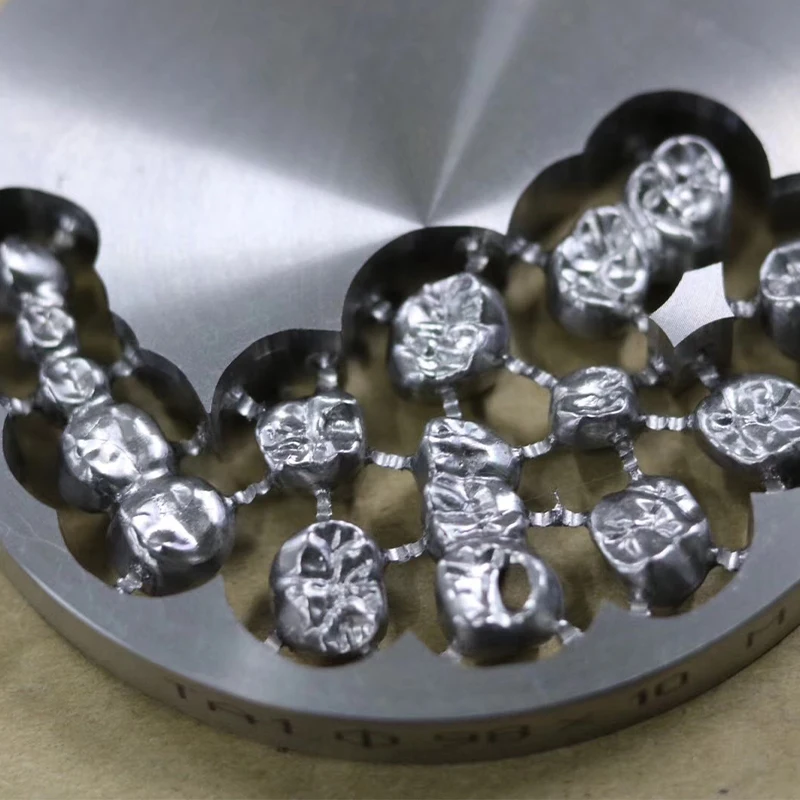

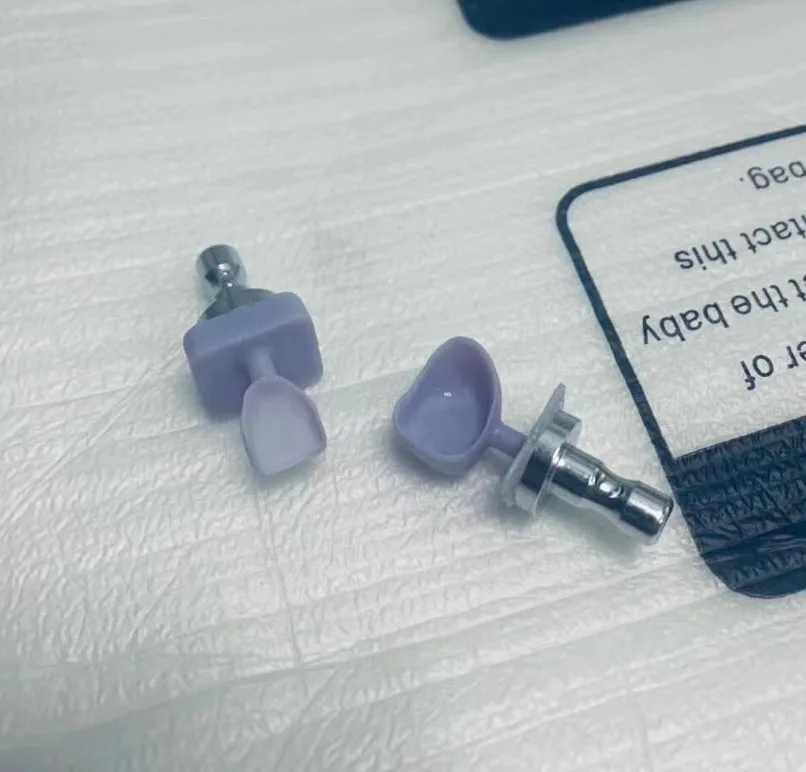

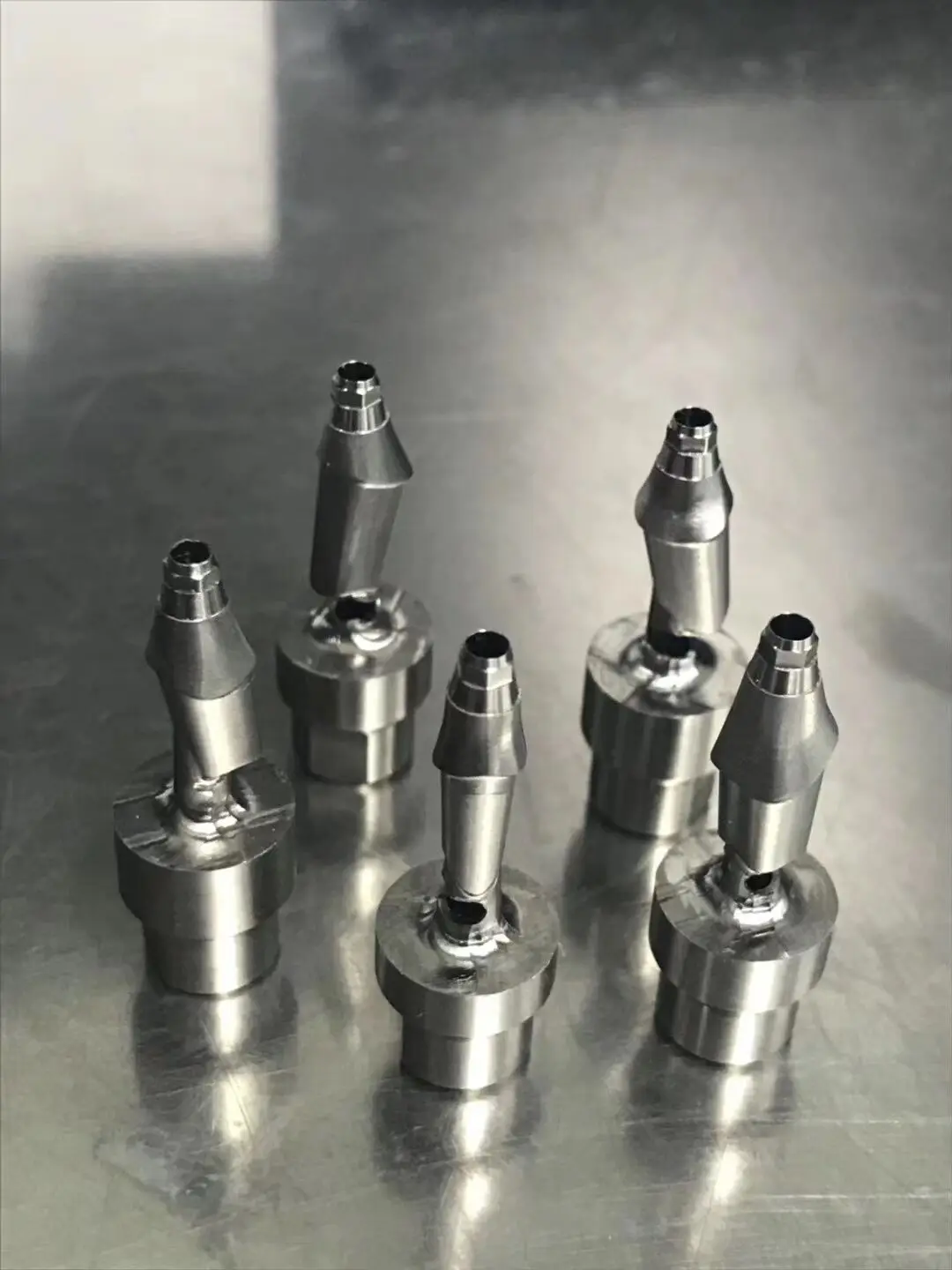

· CASE
· CERTIFICATE OBTAINED
· RECOMMEND PRODUCTS
· TYPE OF SHIPPING
· ABOUT US
SHENZHEN CAMDENT MEDICAL TECHNOLOGY CO.,LTD
Shenzhen Camdent Medical Technology Co., Ltd. is a national high-tech enterprise inte-grating dental materials, digital dentalequip-ment and AR intelligent service plat-form resear-ch and development, production, sales and service.
Since its establishment, the company has always adhered to the business philosophy of
"quality first, digital guidance", and has been taking "professional, attentive and dedicated" as the core development path.
Through unremitting efforts, it has built a professional team with vitality and enterprising spirit. At present, the company has obtained 2 national scientific and technological achievements registration, 2 scientific and technological achievements registration in Guangdong Province, 13 domestic patent authorizations (including 3 invention patents), 5 registered trademarks, and 3 soft works. It has passed many authoritative certifications such as national CFDA, ISO quality system and EU CE. Its products are exported to dozens of countries and regions, including Russia, Mexico, South Africa, Chile, Peru, etc Outside 100 + mechanic factory.
In order to adapt to and promote the development trend of digital transformation and upgrading of the industry, camdant makes full use of its technology, products, brand and platform advantages, and has made a re planning and positioning for its future development strategy, By using the way of internal excavation and external extension, the role of the former pure cutting equipment manufacturer to the digital overall solution provider with cutting equipment as the core is being transformed.
The company is committed to become the leader of high-quality denture digital processing system, based on China, facing the world, deeply tapping customer needs, relying on strong R & D strength, quickly responding to the changing needs of customers, and providing advanced, reliable and high-quality denture cutting equipment and solutions for industry customers.
Shenzhen Camdent Medical Technology Co., Ltd. is located in Shenzhen, the most advanced city in science and technology in China. For more than 10 years, we have only focused on the R & D and production of digital dental equipment.
