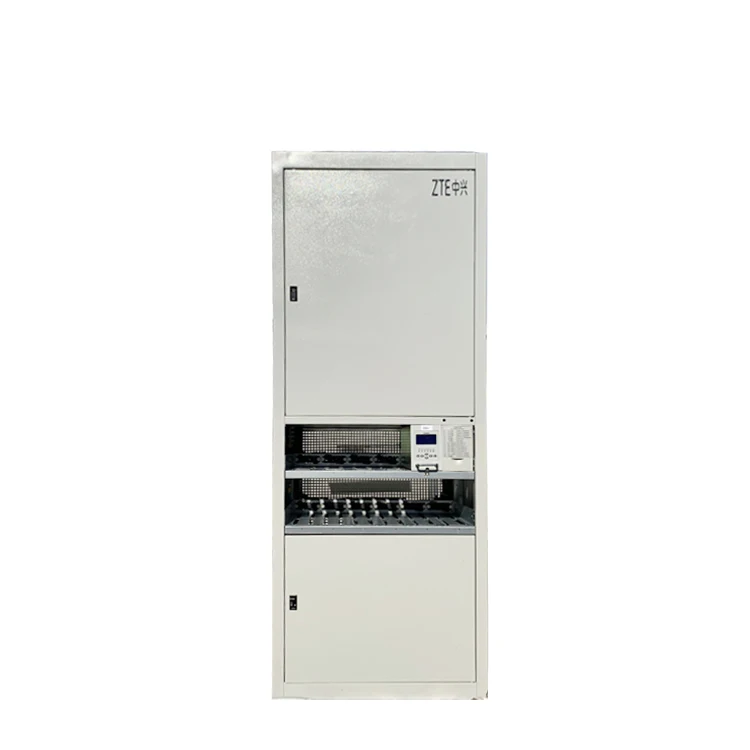

ZTE ZXDU68 ZXDU58 switching power supply cabinet 48v Telecom Power Cabinet dc POWER SYSTEM Communication cabinet
- Category: >>>
- Supplier: Hebei Mufei Communication Engineering Co. Ltd.
Share on (1600532141508):
Product Overview
Description
Specification
Applicable environment:
Working temperature: - 5 ℃ ~ + 45 ℃, optimum + 15 ℃ ~ + 25 ℃
Storage temperature: - 40 ℃ ~ + 70 ℃
Relative humidity: 10% - 90% (non condensing), best 40% - 60%
Atmospheric pressure: 70 kPa ~ 106 kPa
Storage temperature: - 40 ℃ ~ + 70 ℃
Relative humidity: 10% - 90% (non condensing), best 40% - 60%
Atmospheric pressure: 70 kPa ~ 106 kPa
item | value |
Place of Origin | GUA China |
Brand Name | ZXT |
Model Number | ZXDU58/ZXDU68(V4.1) |
Output Power | 36.00KW |
Output Type | Single |
Input Voltage | 220-380V |
Output Voltage | 48V |
Output Frequency | 50/60HZ |
Output Current | 600A |
Size | 1600 mm(H) x 600 mm(W) x 400 mm(D) |
Product Description
application
ZTE ZXDU68 DC power supply system, applied in indoor environment, can provide stable DC power supply for mobile communication base station, indoor coverage station, transmission, microwave, ground satellite station and other communication equipment. Adopt integrated cabinet, which integrates AC power distribution, DC power distribution, rectification and monitoring
Features
丨Indoor DC power system, rated DC output voltage is –53.5V
丨 Fully equipped with 12 ZXD2400 rectifiers, the maximum output power of the system is 34800W
丨Using three-phase AC input, wide input voltage range (phase voltage 80V ~ 300V).
丨The battery is externally placed outside the ZXDU68 T601 system cabinet. The ZXDU68T601 system cabinet integrates AC power distribution, DC power distribution, rectification and monitoring.
丨The rectifier and monitoring unit support hot swap.
丨Have perfect monitoring and management functions
1 Energy-saving management: support automatic energy-saving, temporary non-energy-saving, permanent non-energy-saving.
1Battery management: support temperature compensation, charging current limit, automatic cycle equalization, automatic cycle test.
1 Power-off management: Supports automatic secondary power-off protection and manual power-off control.
1 Information management: support system information query, alarm information query, historical record query.
1 Alarm prompt: Supports sound alarm, optical alarm, dry contact alarm and communication alarm.
丨Support RS232, RS485, dry contact, IP and other monitoring networking methods.
丨 Fully equipped with 12 ZXD2400 rectifiers, the maximum output power of the system is 34800W
丨Using three-phase AC input, wide input voltage range (phase voltage 80V ~ 300V).
丨The battery is externally placed outside the ZXDU68 T601 system cabinet. The ZXDU68T601 system cabinet integrates AC power distribution, DC power distribution, rectification and monitoring.
丨The rectifier and monitoring unit support hot swap.
丨Have perfect monitoring and management functions
1 Energy-saving management: support automatic energy-saving, temporary non-energy-saving, permanent non-energy-saving.
1Battery management: support temperature compensation, charging current limit, automatic cycle equalization, automatic cycle test.
1 Power-off management: Supports automatic secondary power-off protection and manual power-off control.
1 Information management: support system information query, alarm information query, historical record query.
1 Alarm prompt: Supports sound alarm, optical alarm, dry contact alarm and communication alarm.
丨Support RS232, RS485, dry contact, IP and other monitoring networking methods.

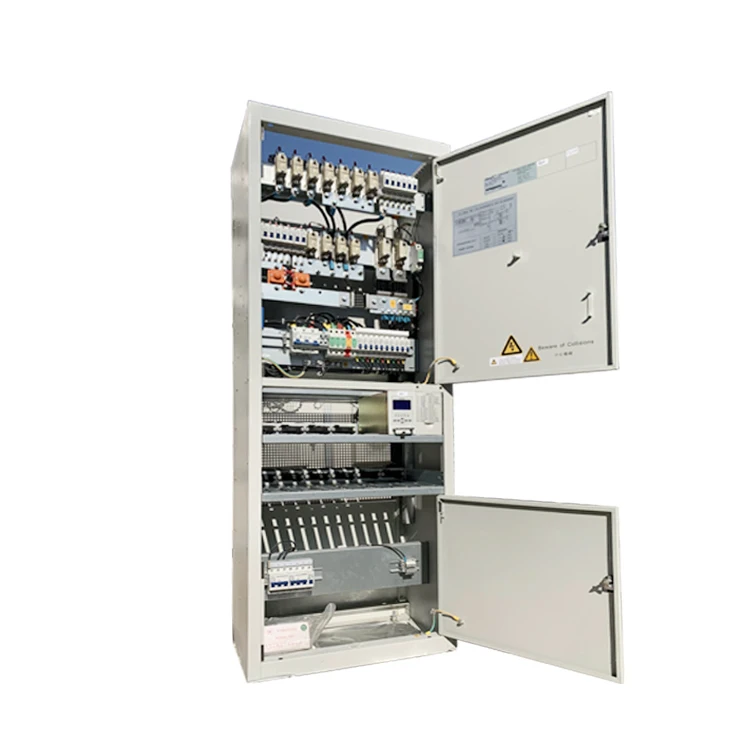

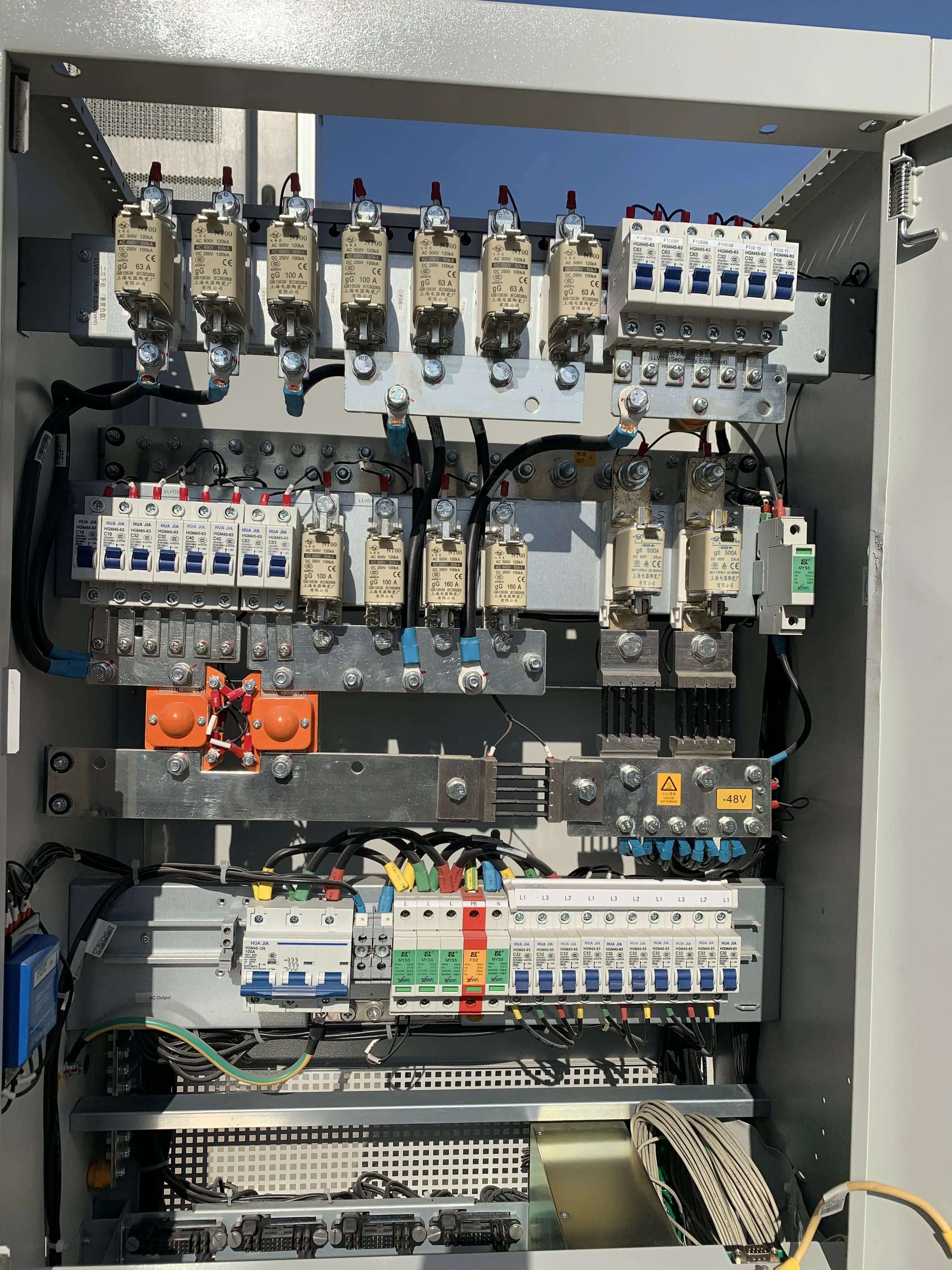

Internal overall structure
丨The component layout in the power distribution unit can be flexibly adjusted according to user needs.
丨A total of 12 ZXD2400 switching rectifiers are configured. The standard rack is configured with two layers of rectifier brackets, providing 10 rectifier slots. Tier 3 rectifier bracket supports field expansion for installation of 11-2 switching rectifiers.
丨 SIB board (SignalInterfaceBoard) and IP communication components. The IP communication component is an optional accessory, which consists of MPB board (ModemPowerBoard) and IP card.
丨A total of 12 ZXD2400 switching rectifiers are configured. The standard rack is configured with two layers of rectifier brackets, providing 10 rectifier slots. Tier 3 rectifier bracket supports field expansion for installation of 11-2 switching rectifiers.
丨 SIB board (SignalInterfaceBoard) and IP communication components. The IP communication component is an optional accessory, which consists of MPB board (ModemPowerBoard) and IP card.
Use environment
Working temperature -5°C+45°C, preferably +15°C to +25°C
AC power distribution
AC input system three-phase five-wire system (L1/L2/L3LN/PE)
Rated AC book voltage Phase voltage: 200v, Line voltage: 380v
AC input frequency range 50/60Hz
Single-phase sole input current 72A
Lightning protection level C-level AC lightning protection, lightning protection discharge current ≤ 40ka
Input power factor ≥0.99
DC power distribution
Rated DC output voltage -53.5v
DC output voltage adjustable range -42V to -58v
Rated current 600A full configuration
High output power 34800w full configuration
Machine efficiency ≥91%
Source effect ≤01.%
Load effect ≤0.5%
Voltage regulation accuracy ≤0.6%
Balanced noise voltage <1mV
Peak-to-peak noise voltage ≤100mV
DC step-down <500mV
Rectifier rated output power 2400W
Rectifier maximum output power 3195W
AC power distribution
AC input system three-phase five-wire system (L1/L2/L3LN/PE)
Rated AC book voltage Phase voltage: 200v, Line voltage: 380v
AC input frequency range 50/60Hz
Single-phase sole input current 72A
Lightning protection level C-level AC lightning protection, lightning protection discharge current ≤ 40ka
Input power factor ≥0.99
DC power distribution
Rated DC output voltage -53.5v
DC output voltage adjustable range -42V to -58v
Rated current 600A full configuration
High output power 34800w full configuration
Machine efficiency ≥91%
Source effect ≤01.%
Load effect ≤0.5%
Voltage regulation accuracy ≤0.6%
Balanced noise voltage <1mV
Peak-to-peak noise voltage ≤100mV
DC step-down <500mV
Rectifier rated output power 2400W
Rectifier maximum output power 3195W
