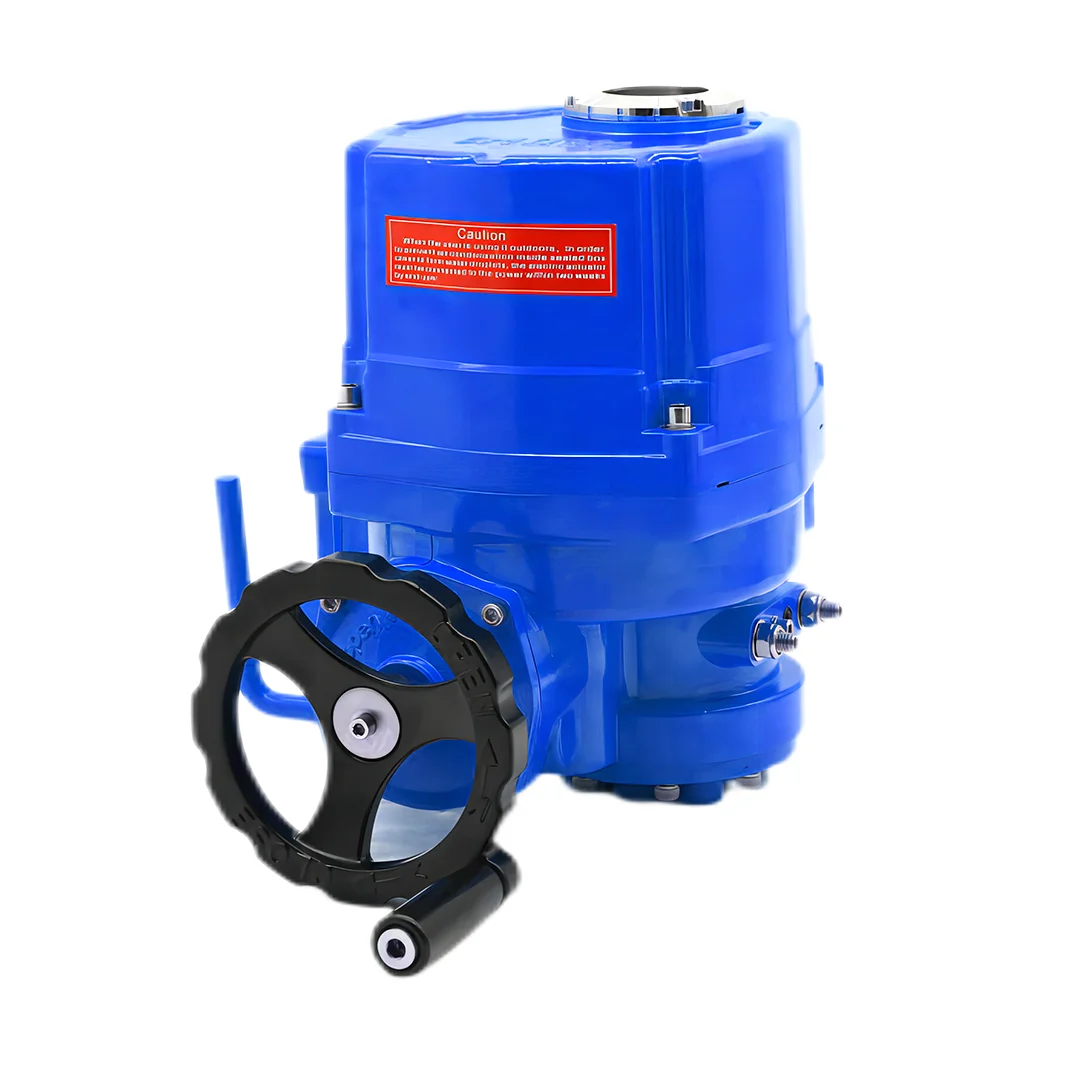

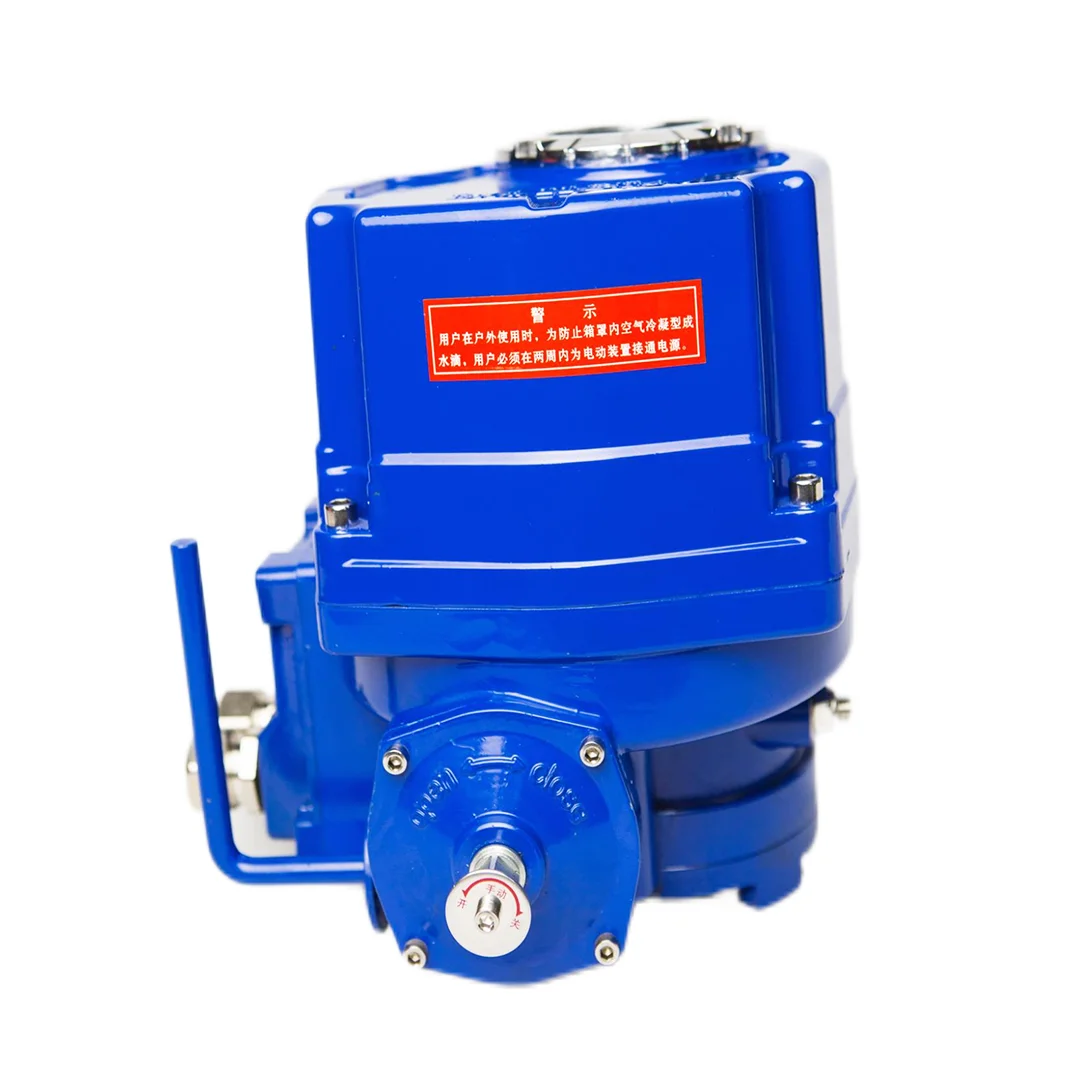

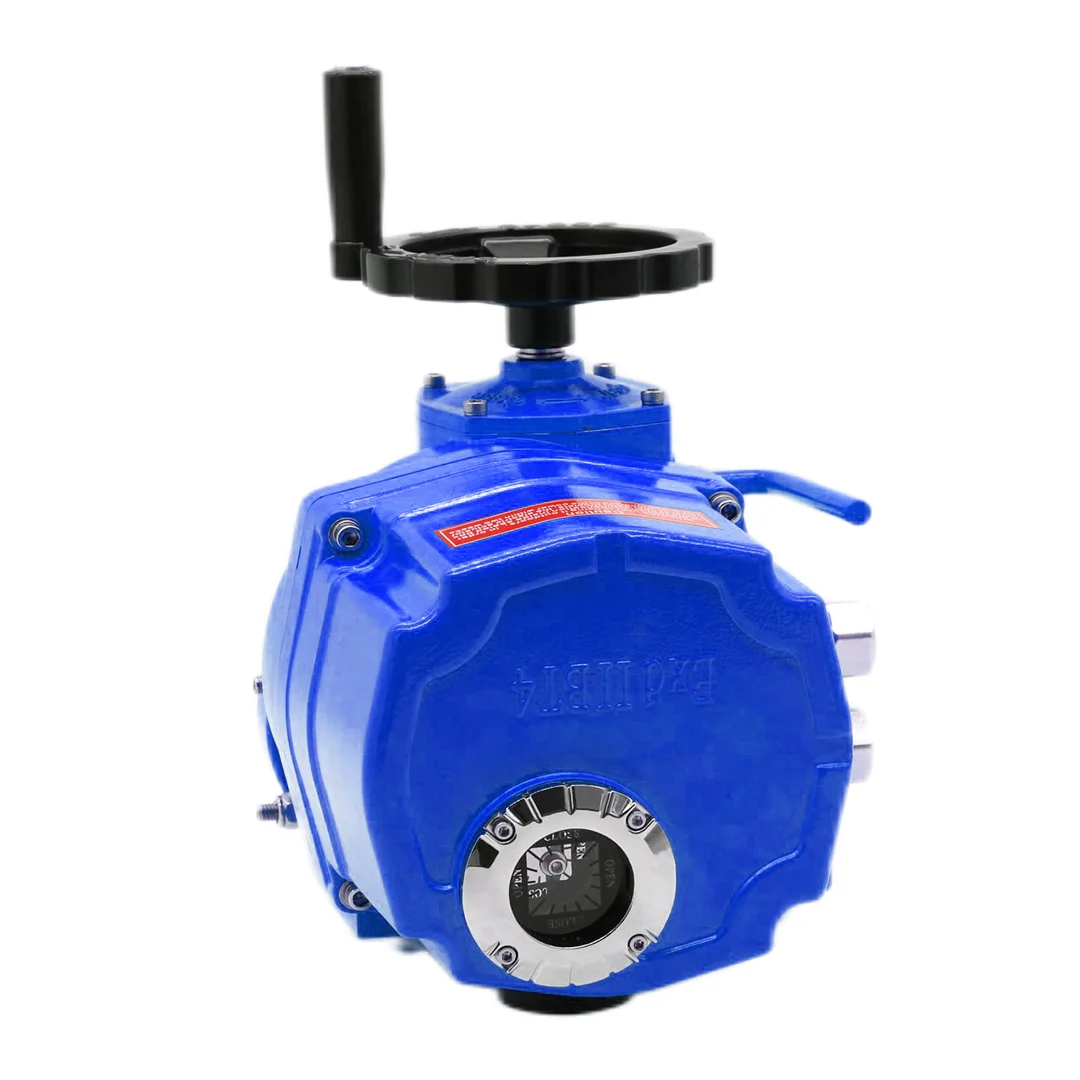

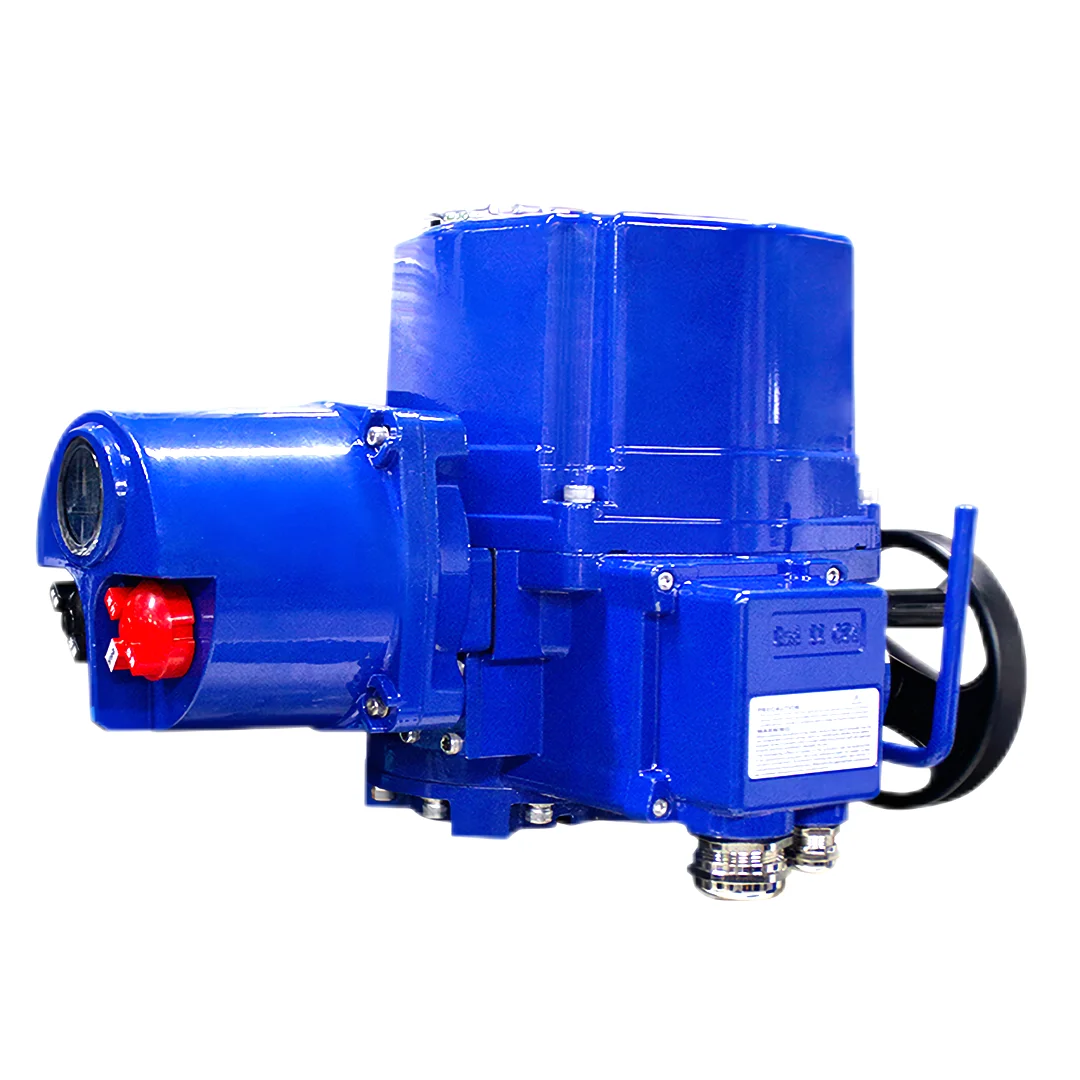

COVNA QT Series Explosion Proof Electric Actuator Intelligent Type Electric Valve Actuator Motorized Actuator
- Category: >>>
- Supplier: COVNA Industry Automation Co. Ltd.
Share on (1600532147303):
Product Overview
Description
Product Description
On OFF Type/ Regulation Type
Explosion Proof Electric Actuator
RS485 Intelligent Type
Explosion Proof Electric Actuator

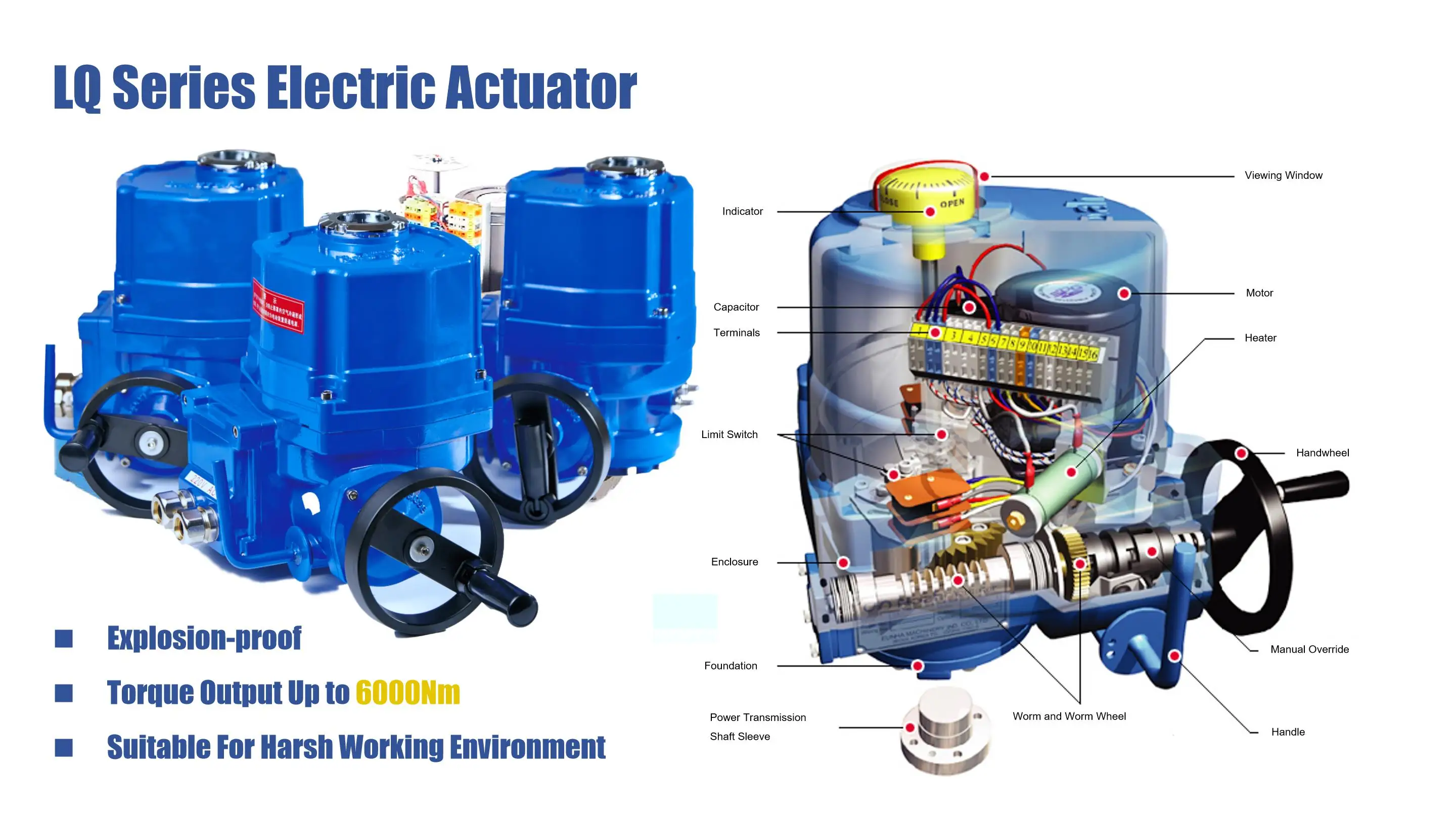

Feature of HK60-Q-F-LQ Series Explosion Proof Electric Actuator:
● High torque up to 4000Nm
● The actuator has a good sealing performance so it has a good explosion-proof performance● Widely used in power plants, oil and gas, chemical, shipyard and other applications which require explosion-proof
● Available in manual control, signal control and AC/DC power plant
● Support multiple communication protocols like RS485
● Fully enclosed squirrel cage click, small size, large torque, built-in overheat protection switch, can prevent the electric
actuator from blocking the motor and damaging the motor when it overheats
actuator from blocking the motor and damaging the motor when it overheats
● The design of the handwheel guarantees safety, reliability, labor saving and small size
● Overloading protection & manual control available
Medium | Oil, gas, fuel, etc | Connection Hole | 2 PCS PF 3/4″ |
Temperature Of Media | -40℃ to 80℃ (-40℉ to 176℉) (PTFE/PPL Sealing) -40℃ to 350℃ (-40℉ to 662℉) (Metal Sealing) | Pressure Rating | PN1.6-PN6.3MPa |
Working Pressure | 10 / 16 / 20 / 64 bar (145 / 232 / 290 / 928 psi) | Ambient humidity | Maximum 90% RH non-condensing |
Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | Aseismic performance | X Y z109, 0.2 -34 Hz, Minutes |
Voltage Tolerance | ±10% | Materials | Steel/aluminum alloy/aluminum bronze/polycarbonate |

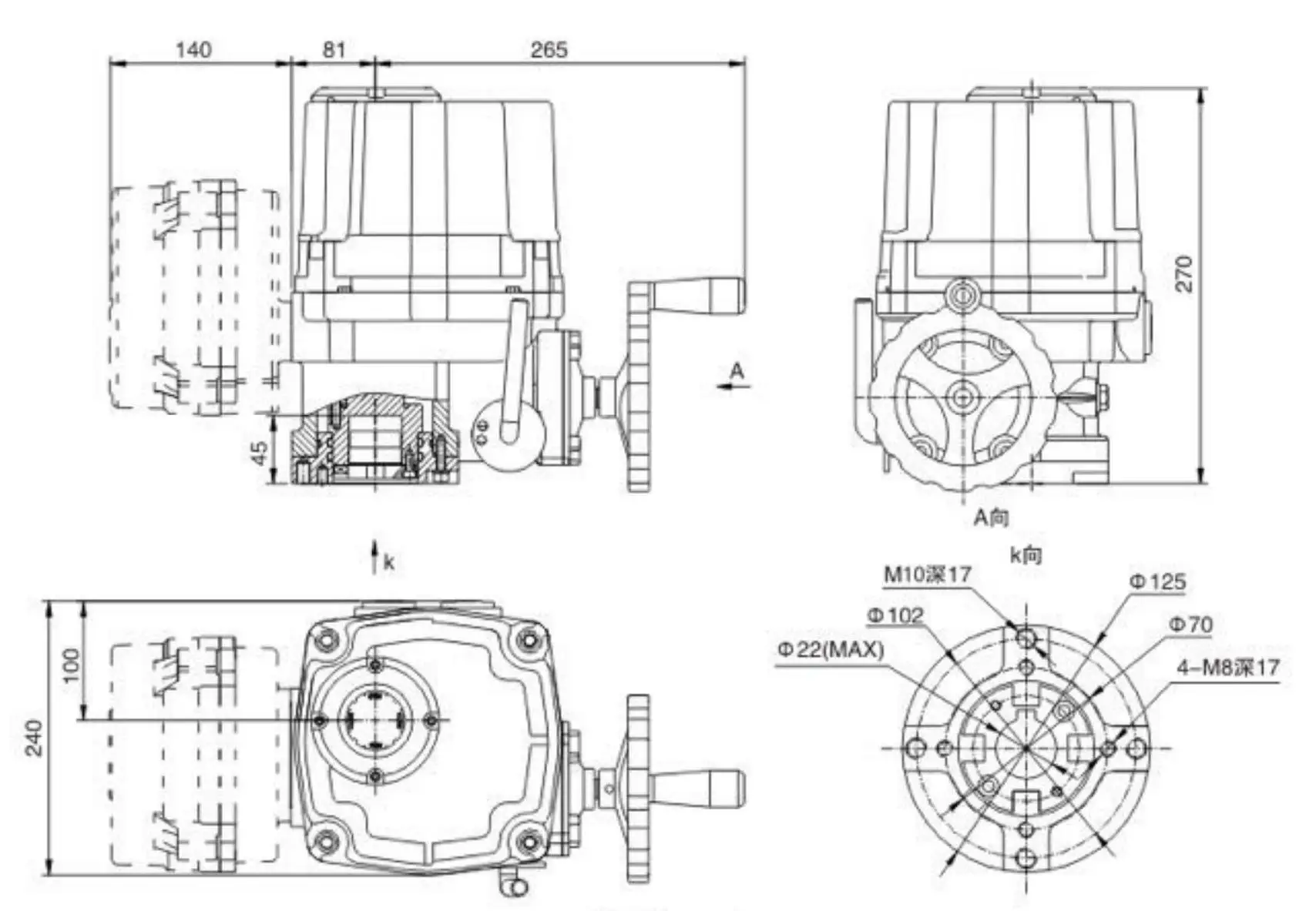

Dimension:
Technical Parameter of Valve Body
Buyer Feedback
Company Profile
VR
Company Strengths:
● COVNA-Specialized Manufacturer of High Quality Actuated Valve for 22＋ Years.
● German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
● Extensive flow control project experience and various product solutions can beoffered.
● OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard.
● Inquiry will be replied within 8 hours.
● Custom complaints handed by one stop professional service.
● ISO 9001certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
● Industrial standard 1 year warranty.

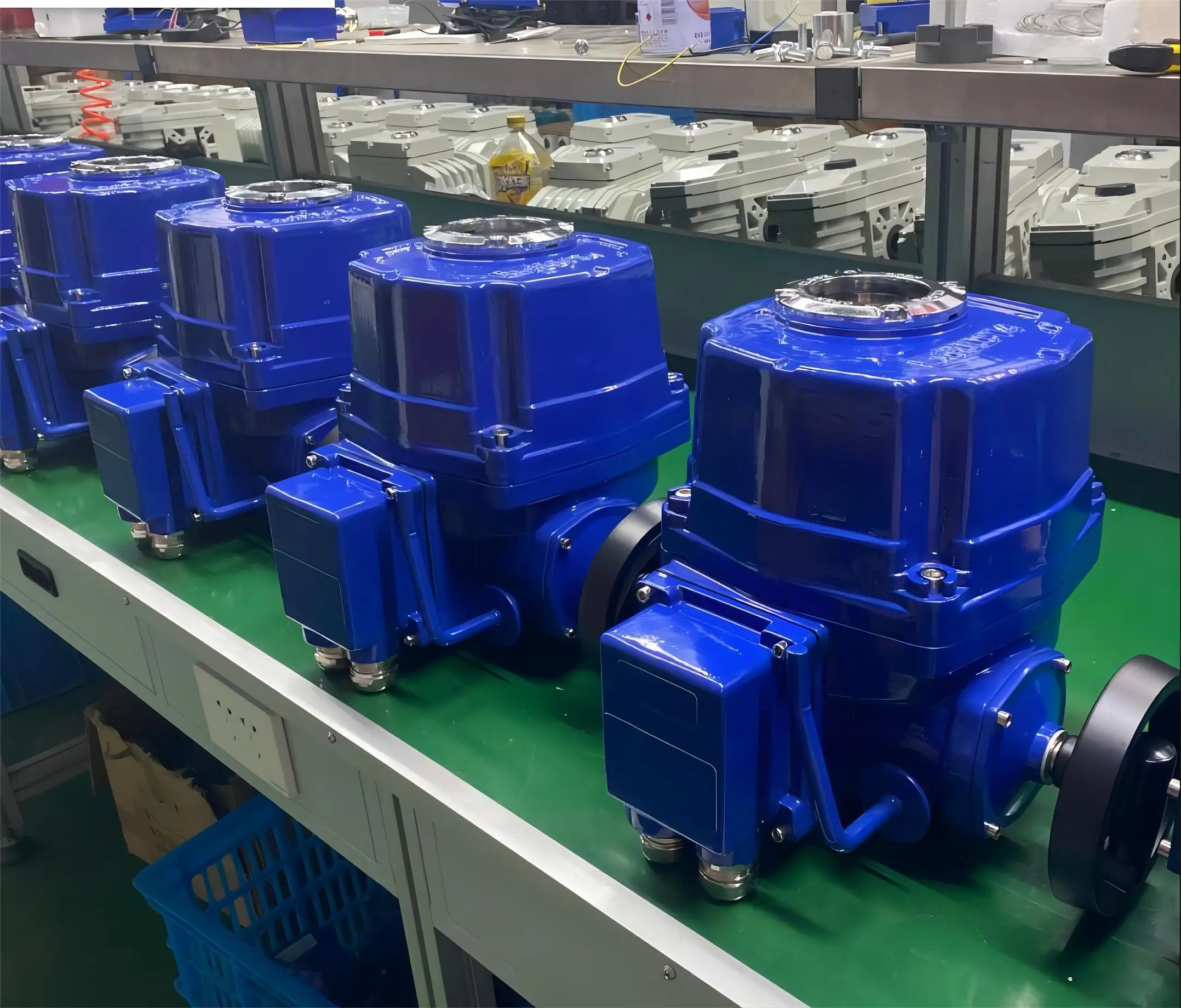

Factory Strength:

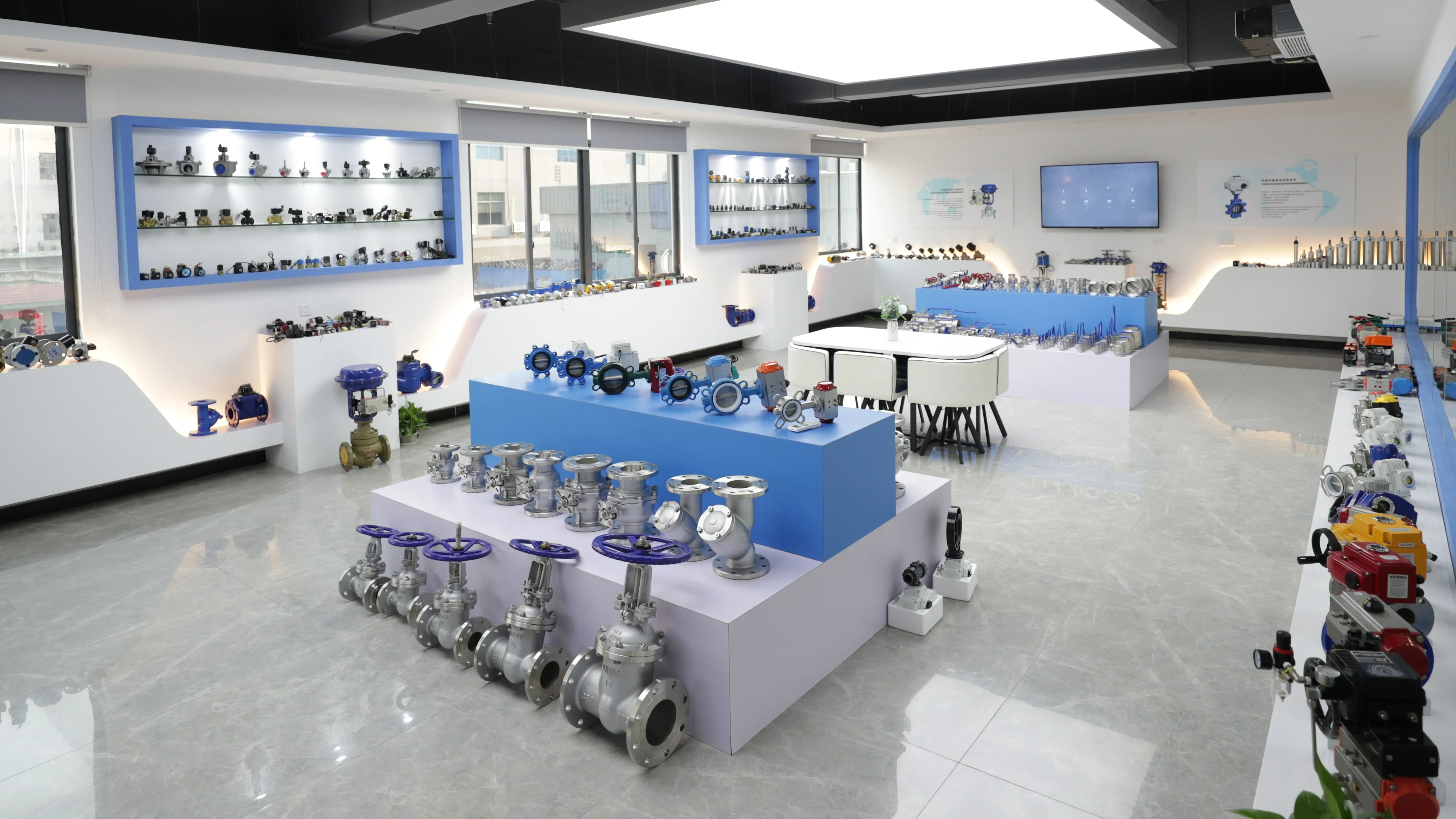

Exhibition&Finished Project
Project of Motorized Valve
Project of Pneumatic Actuated Valve
Project of Solenoid Valve

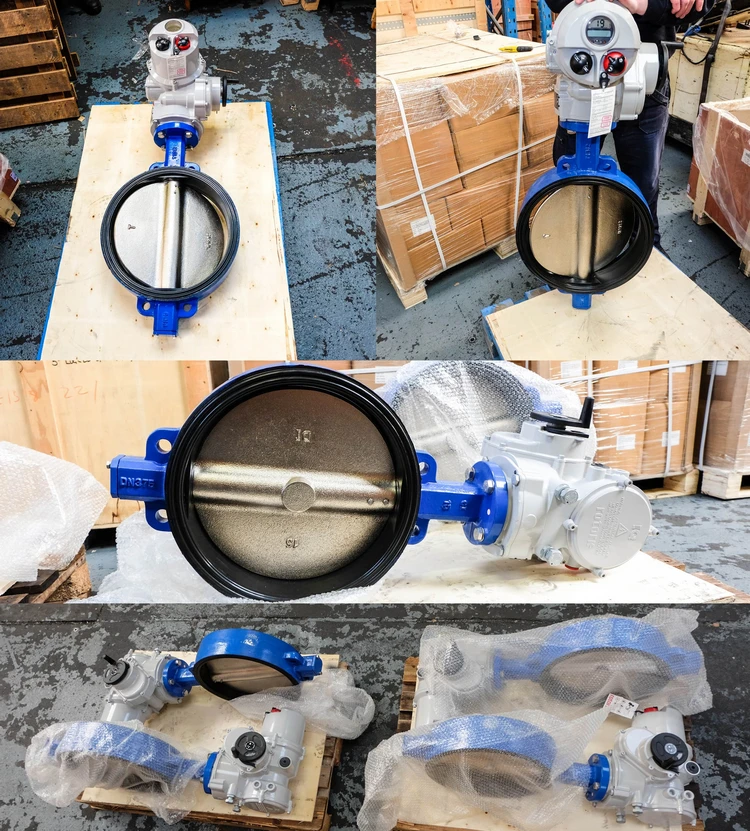

Packaging & Delivery
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
