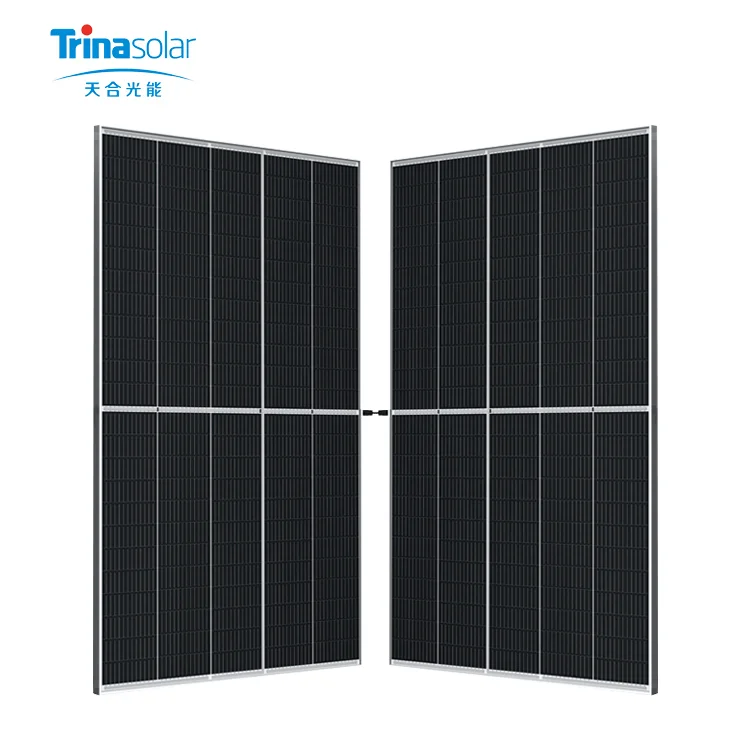

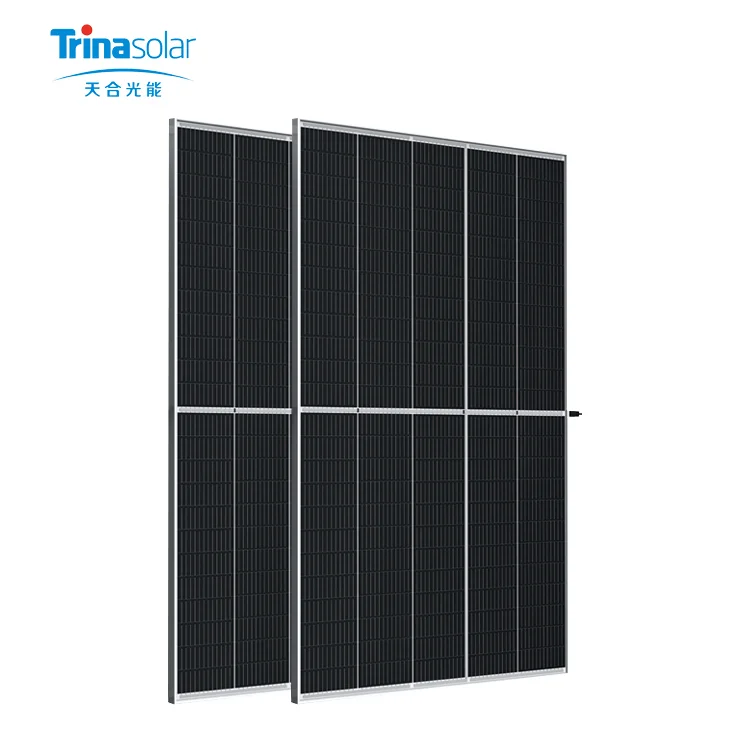

Trina 150Cell 500 Watt Vartex Module Solar Panel 500 Watt 510 Watt 505 Watt Panel Solar 495Watt Solar Panel Prices
- Category: >>>
- Supplier: Jiangsu Gaoyue New Energy Technology Group Co. Ltd.
Share on (1600532151232):
Product Overview
Description
Trina 150Cell 500 Watt Vartex Module Solar Panel 500 Watt 510 Watt 505 Watt Panel Solar 495Watt Solar Panel Prices
Product Description
ELECTRICAL DATA(STC)
Electrical Data (STC) | ||||||||||||
Peak Power Watts-PMax(WP)* | 485 | 490 | 495 | 500 | 505 | 510 | ||||||
Power Tolerance-PMax(W) | 0~+5 | |||||||||||
Maximum Power Voltage -Vmp(V) | 42.2 | 42.4 | 42.6 | 42.8 | 43.0 | 43.2 | ||||||
Maximum Power Current-Imp(A) | 11.49 | 11.56 | 11.63 | 11.69 | 11.75 | 11.81 | ||||||
Open Circuit Voltage- Voc(V) | 51.1 | 51.3 | 51.5 | 51.7 | 51.9 | 52.1 | ||||||
Short Circuit Current- ISC(A) | 12.07 | 12.14 | 12.21 | 12.28 | 12.35 | 12.42 | ||||||
Module Efficienty η m(%) | 20.1 | 20.3 | 20.5 | 20.7 | 21.0 | 21.2 | ||||||
STC:Irradiance 1000W/ ㎡,Cell Temperature 25 ℃,Air Mass AM1.5.*Measuring tolerance: ±3% | ||||||||||||
ELECTRICAL DATA (NOCT) | ||||||||||||
Maximum Power-Pmax(WP) | 365 | 369 | 373 | 377 | 381 | 385 | ||||||
Maximum Power Voltage -Vmmp(V) | 39.9 | 40.0 | 40.2 | 40.4 | 40.6 | 40.5 | ||||||
Maximum Power Current-Immp(A) | 9.17 | 9.22 | 9.28 | 9.33 | 9.38 | 9.50 | ||||||
Open Circuit Voltage-Voc(V) | 48.1 | 48.2 | 48.4 | 48.6 | 48.8 | 49.0 | ||||||
Short Circuit Current-Isc(A) | 9.73 | 9.78 | 9.84 | 9.90 | 9.95 | 10.01 | ||||||
NOCT:Irradiance at 800W/㎡,Ambient temperatuer 20℃,Wind Speed 1m/s | ||||||||||||

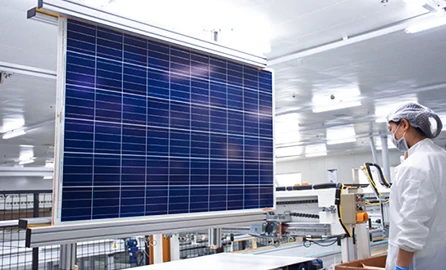

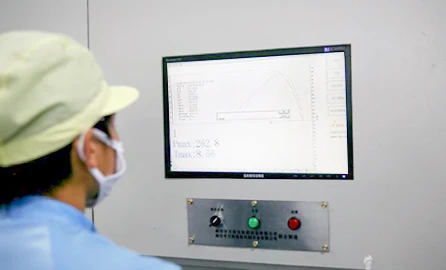

Strict QC System
Comprehensive QC information management system with barcode ID, Quality traceable system in place to allow quality data flow
constantly.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.

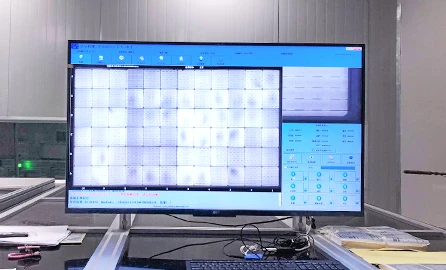

Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.

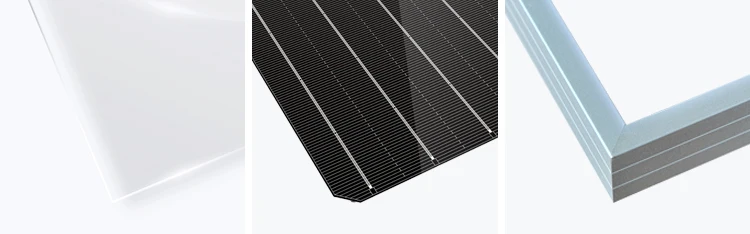

Grade A Material

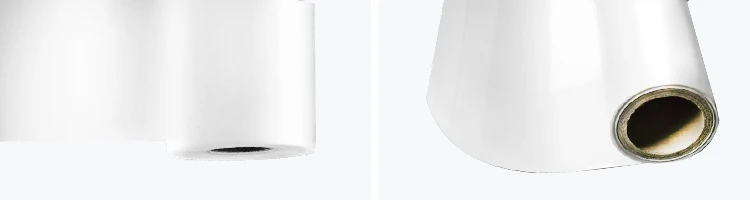

>90% Higher Transmittance EVA,Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer
Durability.
Durability.
21kV High-Voltage Breakdown Test, Better Durability Withstand Fire/Dust/UV/Tear Tests For Super Isolation Back Sheet,Multi-layer
Structure.
Structure.
12% Ultra Clear Tempered Glass.
30% Lower Reflection
30% Lower Reflection
22% Higher Efficiency,5BB Cells
93 Fingers PV Cells, Anti-Pid
93 Fingers PV Cells, Anti-Pid
120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
(Black/Silver Optional)
110% Seal-lip Design Glue Injection
(Black/Silver Optional)

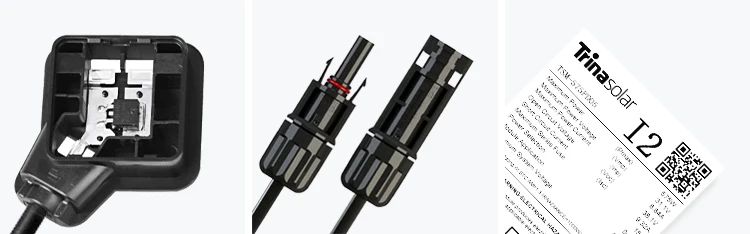

IP67 Waterproofness Junction Box
Innovative Full-Glue-Filled
Innovative Full-Glue-Filled
4mm2 Qualified cable with MC4
500N Tensile Strength
500N Tensile Strength
Waterproof Labels
The original brand
The original brand

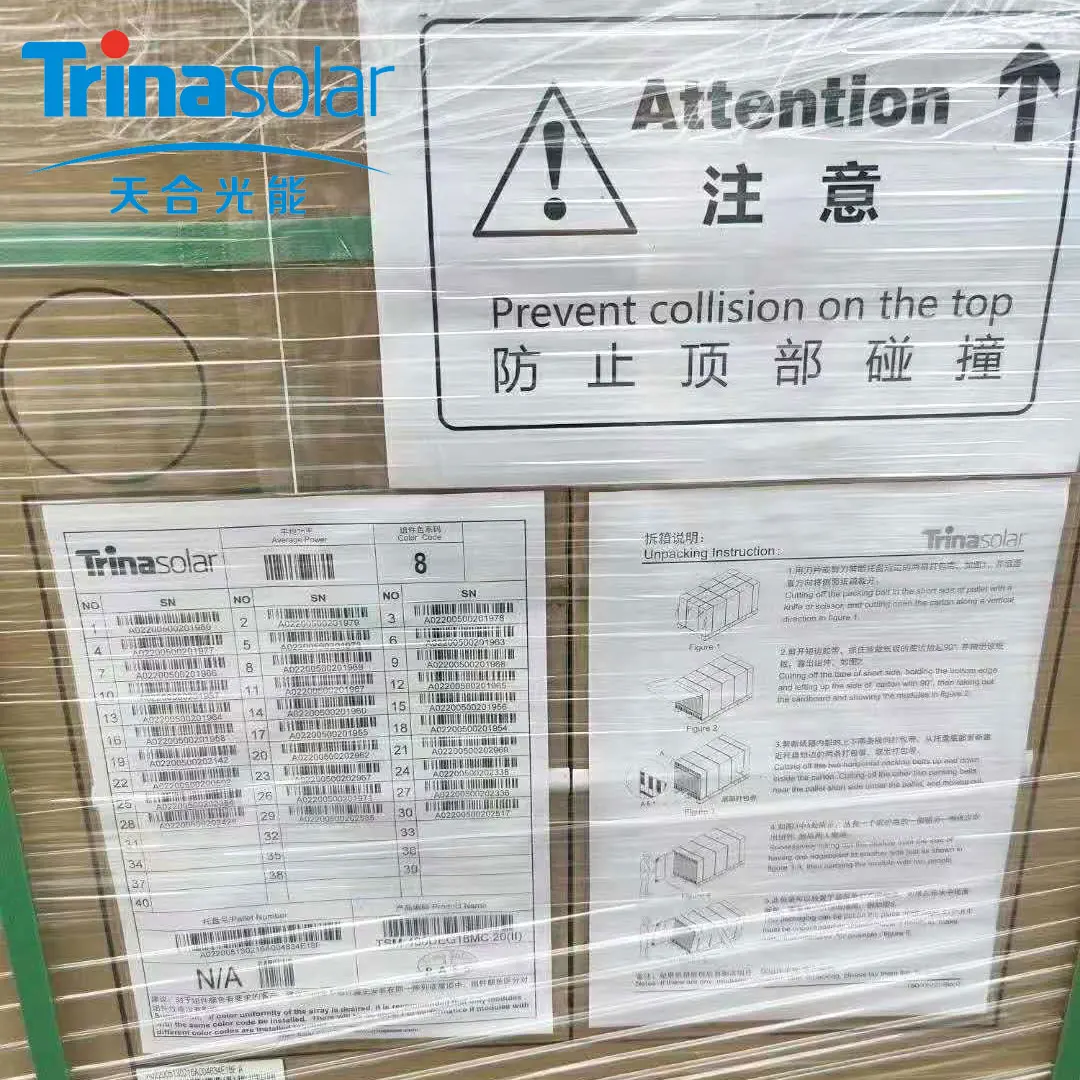

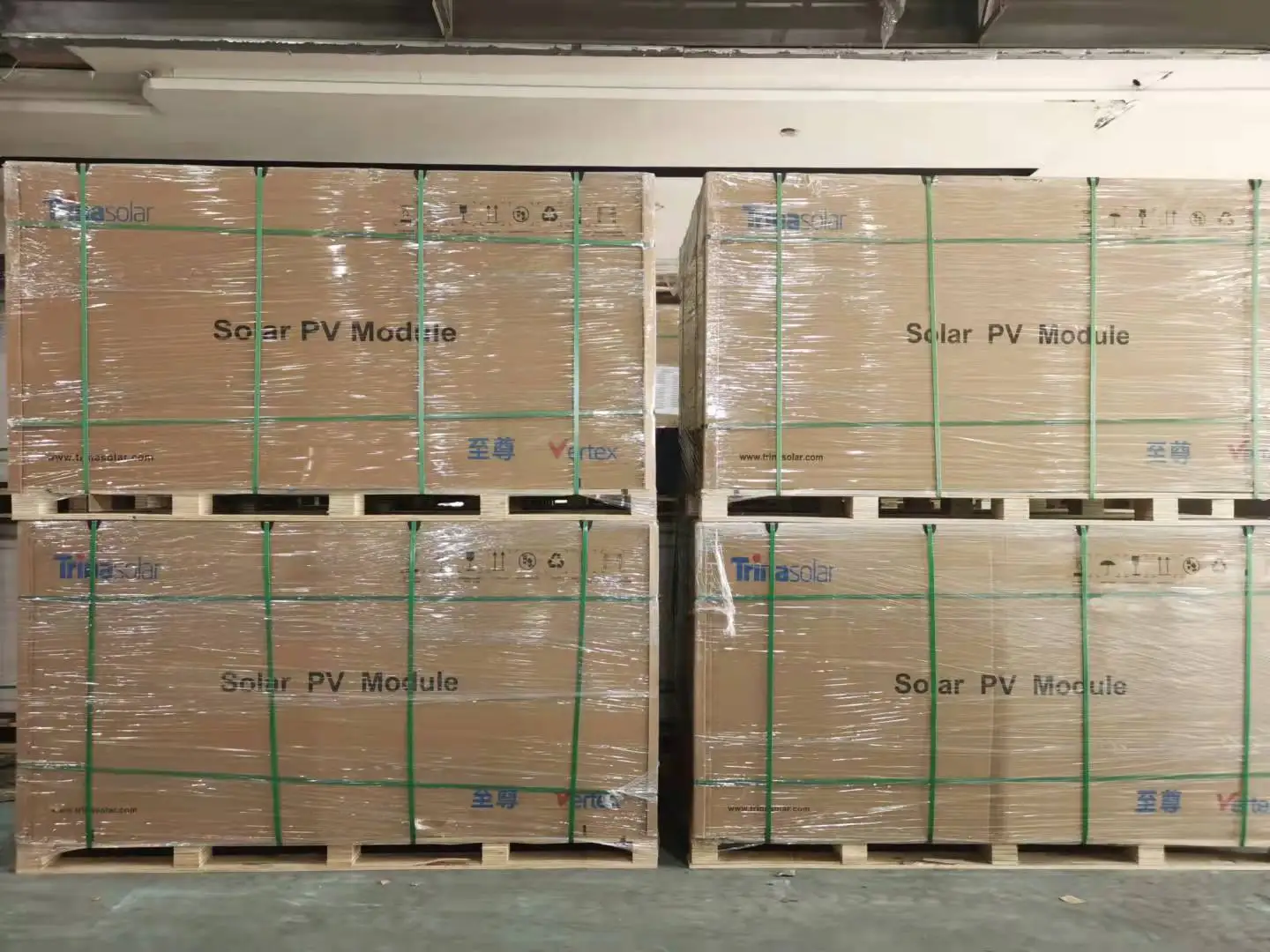

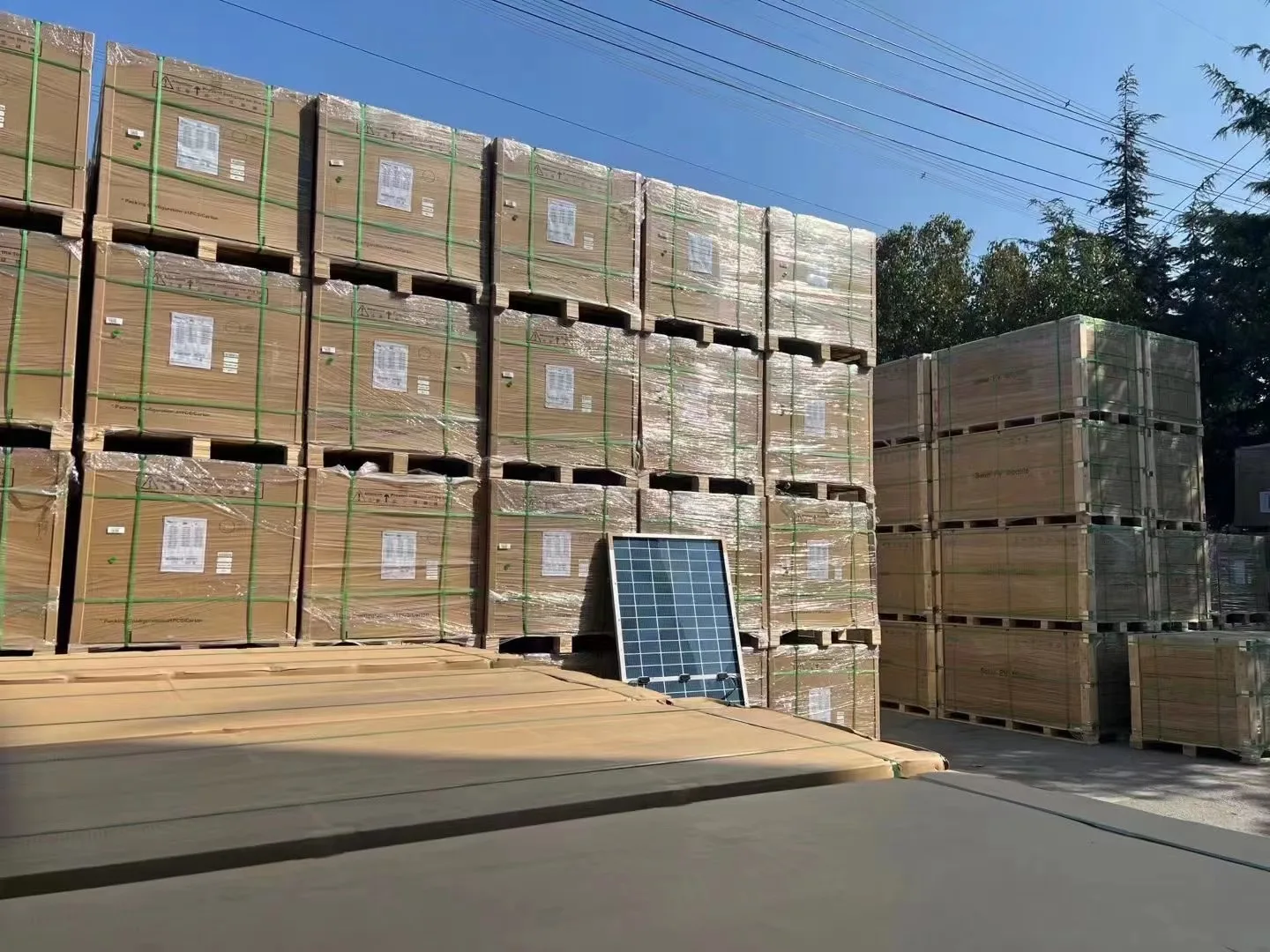

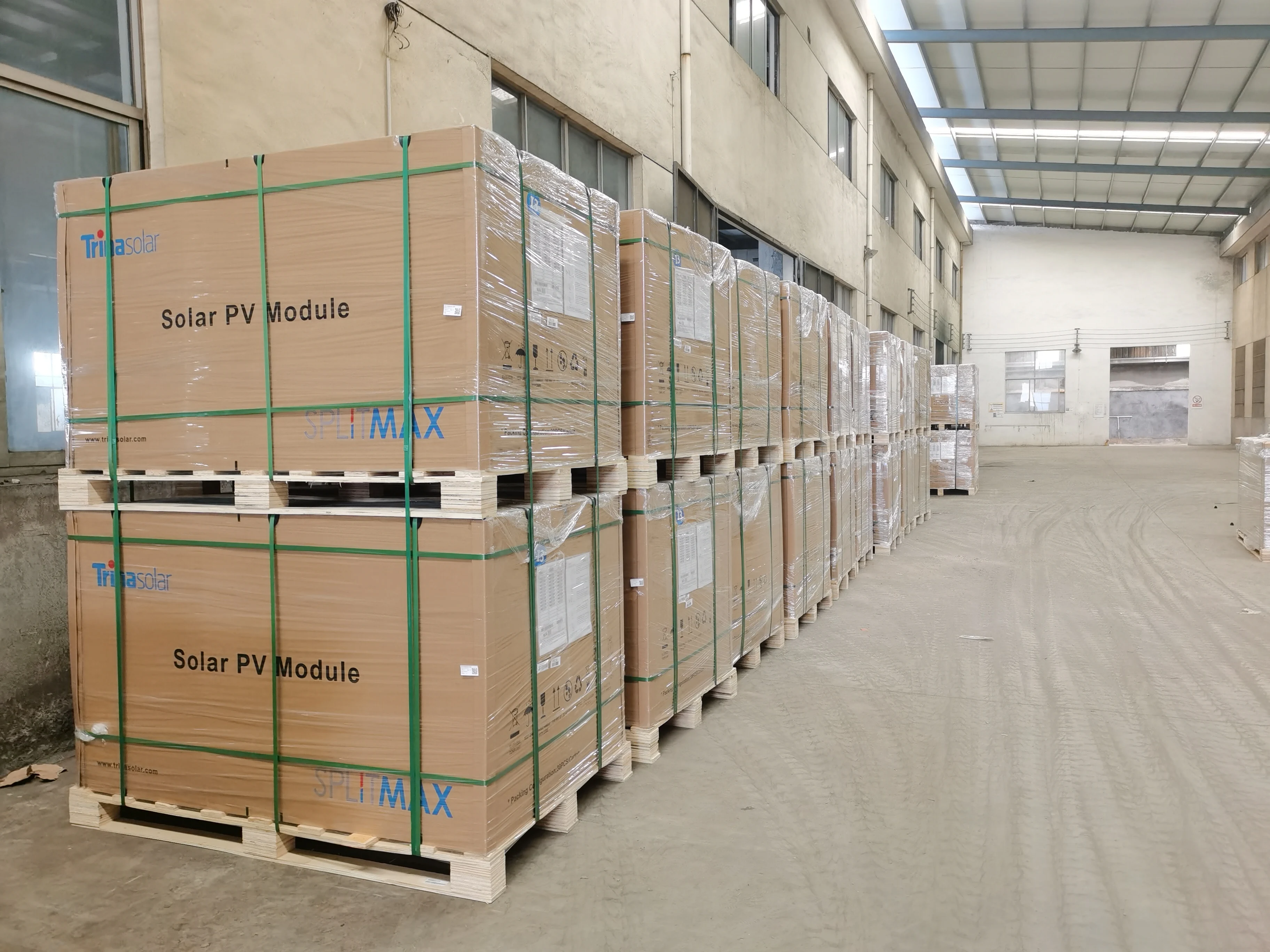

Product packaging
Our partners

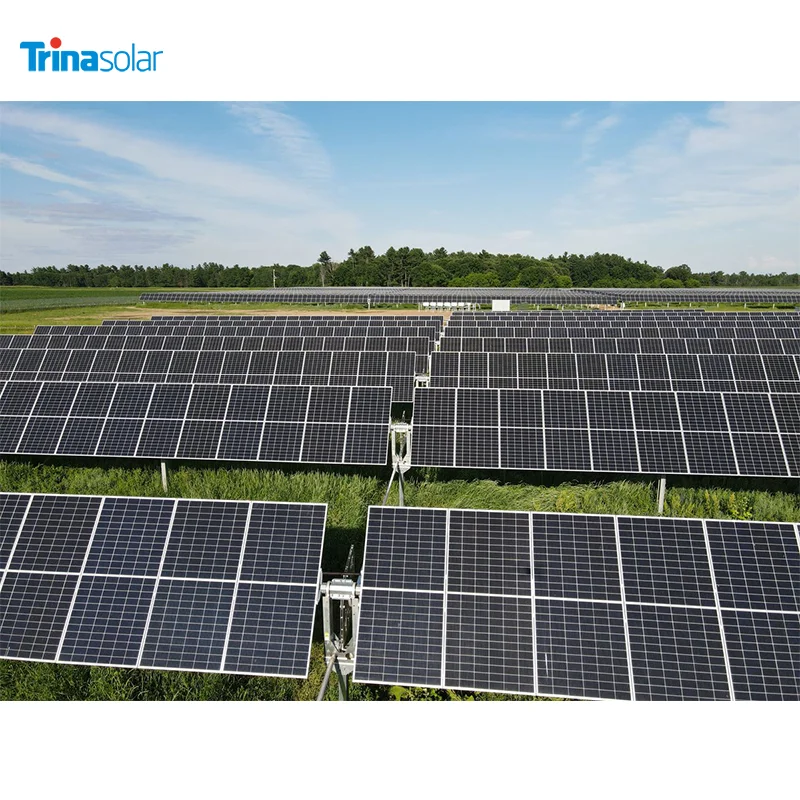

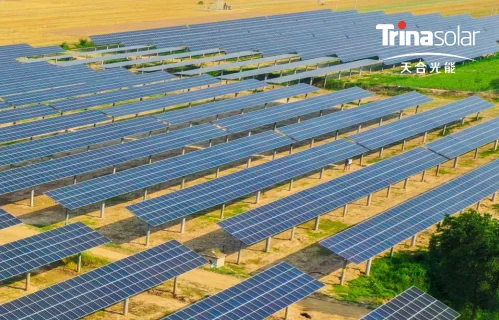

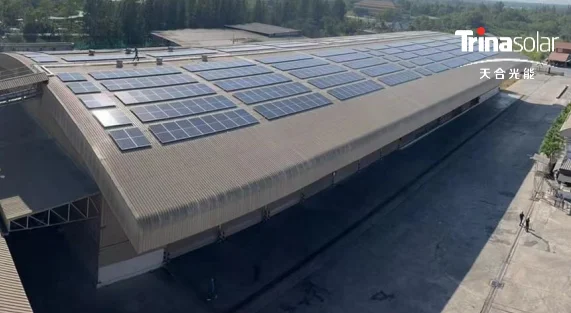

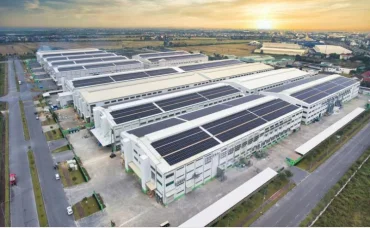

Project case
Contact us
FAQ
1. What advantages do we have?
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase. The delivery time is short, the goods can be delivered within 1 week to 15days upon receipt of the money(Except for special reasons).
Many brands, with a variety of brands, a variety of categories.
One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience, Goyor Group continues to be part of the renewable energy transition by helping you harvest clean energy at any given location in the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase. The delivery time is short, the goods can be delivered within 1 week to 15days upon receipt of the money(Except for special reasons).
Many brands, with a variety of brands, a variety of categories.
One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience, Goyor Group continues to be part of the renewable energy transition by helping you harvest clean energy at any given location in the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
