concrete special shapes beam and columns machine

Share on (1600532154531):


Price:

Quantity:


Product Overview

Description



Product Overview

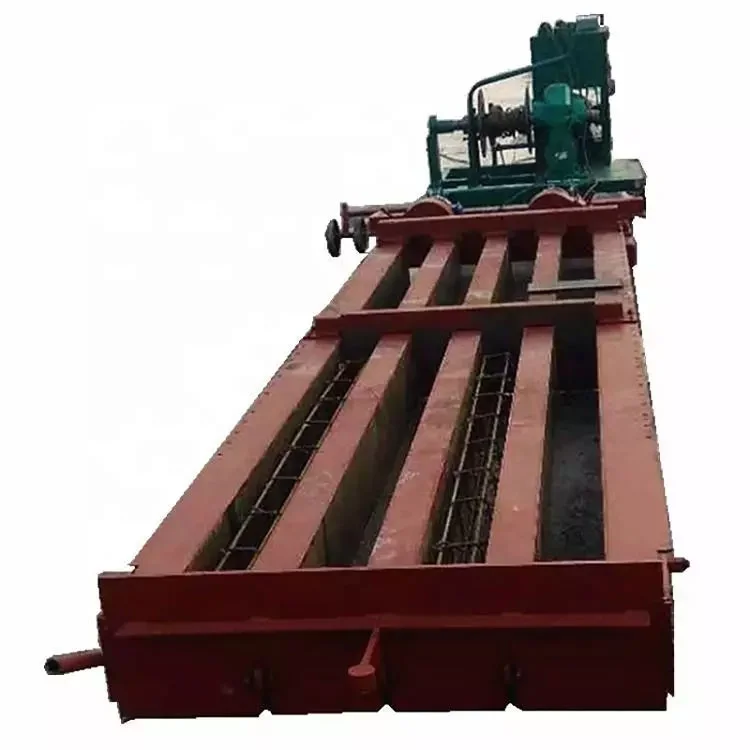

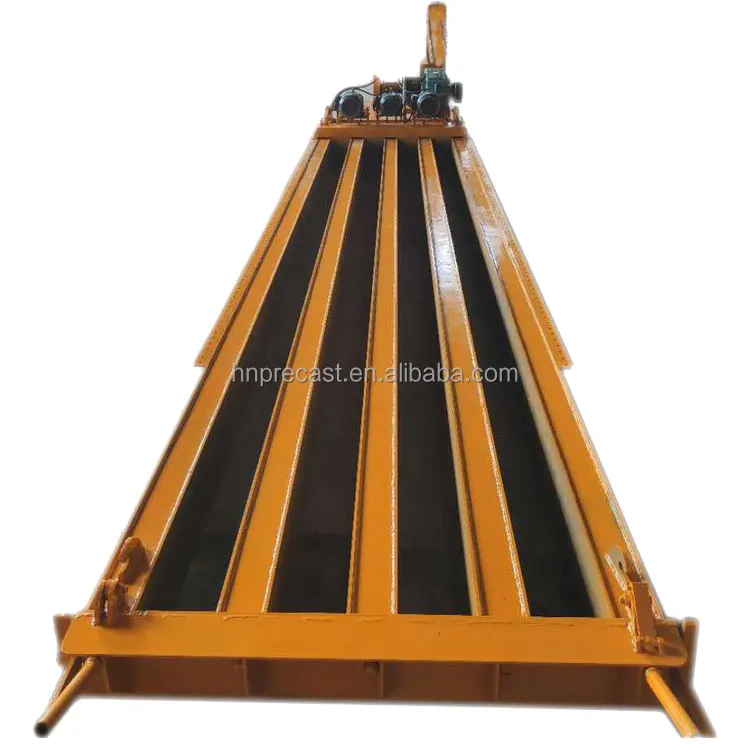

Inner vibration type Of precast concrete beam making machine
The machine is specially designed for making the large size of load-bearing concrete beam in building insdustry .It can make 1-4 lines of beams depend on the size of finisehed beams


PRODUCT SPECIFICATIONS


No
Models
Beam sizes
No. of beams
Motor Power
1
WZB-15X15
15X15CM
4 beams
5KW
2
WZB-20X20
20X20CM
4 beams
7.5KW
3
WZB-25X25
25X25CM
4 beams
10KW
4
WZB-30X30
30X30CM
3 beams
12KW
5
WZB-30X20
30X20CM
4 beams
11KW
6
WZB-20X40
20X40CM
2 beams
15KW
7
WZB-20X60
20X60CM
1 beams
18KW


FEATURES AT A GLANCE


Features
1.Easy to operate and the operators do not require special skills
2. Efficient production. 3-4 rows of concrete beams can be completed with few minutes
3. More compact concrete beam with good finished quality
4. The size of finished beam accurate
5. The structure of mahcine is simple .Easy to maintain .
6. Only need 2-3 manpower for whole production progress


Mould Traction Device
Mould body
Vibration cores

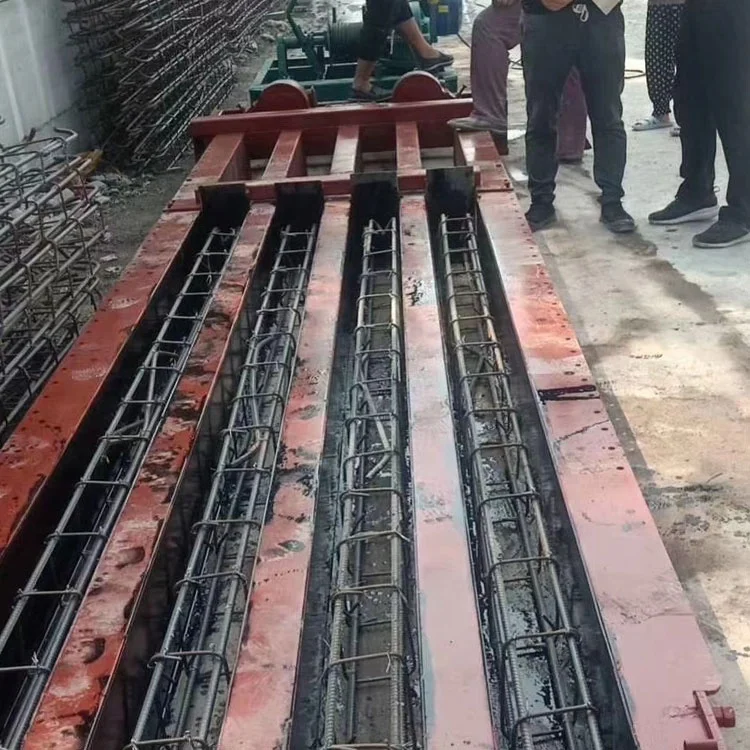

Steel cages as the reinforcements
The concrete beams can be reinforced with steel cages or steel strands


Finshed Products And Applications

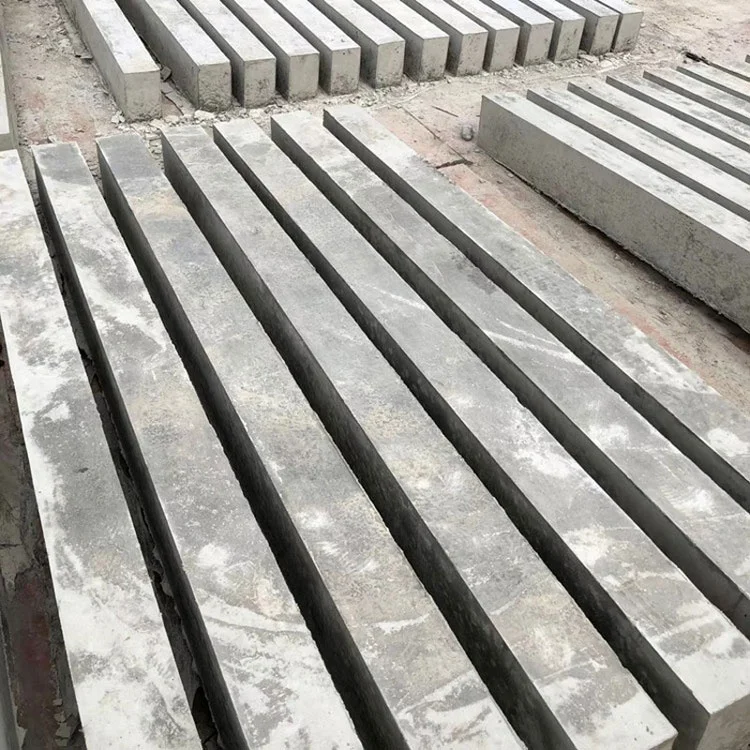

Finished Concrete Beams
Beam specifications can be pre-customized
Concrete Lintel beam
The lintel beam can be used for brick structure or steel concrete structure buildings

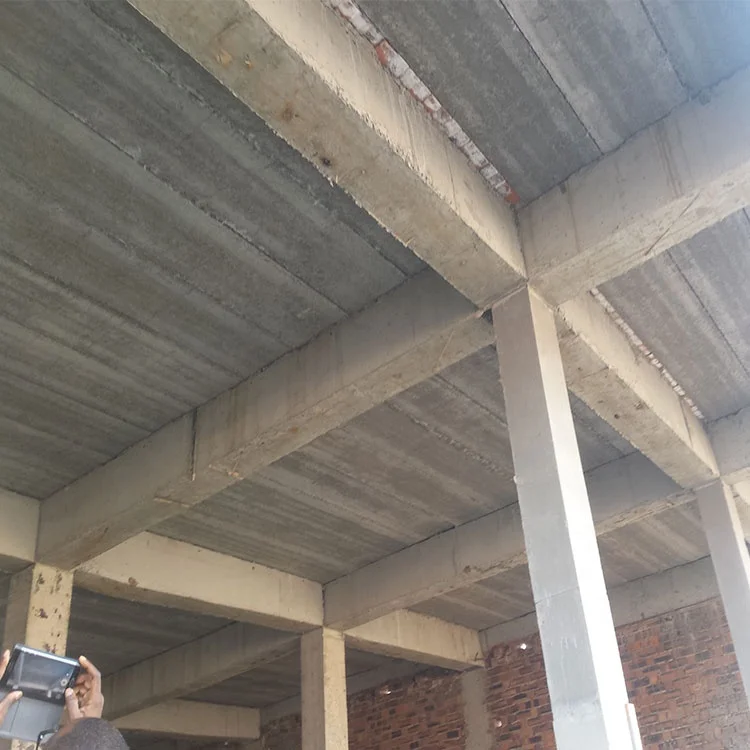

Load bearing beam

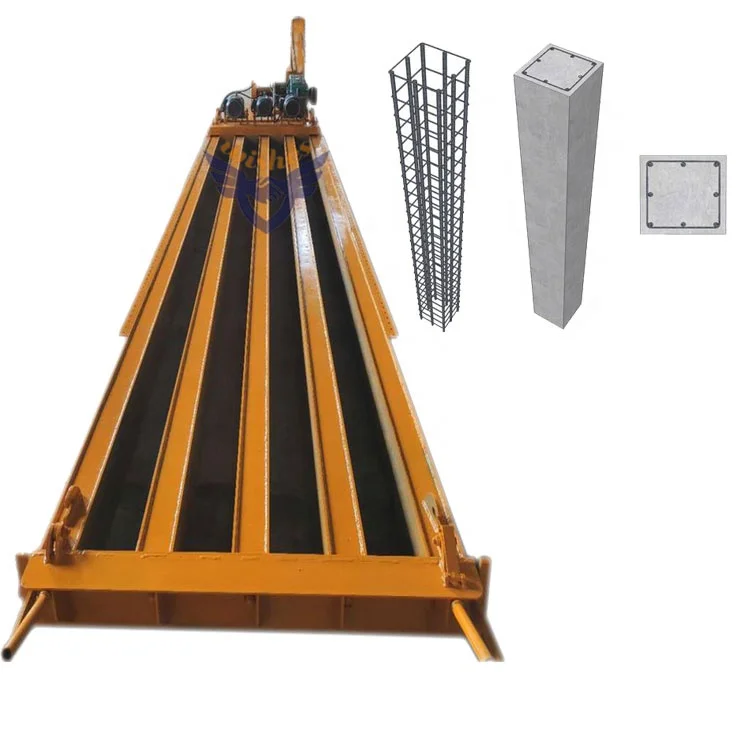

Load bearing beams or supporting columns


FAQ


Q1:What sizes of beam your machine can make ?
A1: Thickness 15-40mm, width Max.60CM
Q2: How long is your lead time?
A2: 10- 20 working days
Q3: How is this machine packed and shipped
A3:wood case for LCL or nude packed in the container
