C6136 c6140 manual lathe 6240 precision mesin bubut mini for sale
- Category: >>>
- Supplier: Shandong Mainland Cnc Equipment Co. Ltd
Share on (1600532161065):
Product Overview
Description
Products Performance
Features:
* This series universal lathe machine is suitable for internal and external turning , tapering , and other rotating faces , metric , module and inch threads , as well as drilling and pull oil slot , widely used in axial and plates processing .
* The lathe bed is wider than normal machine , the width of bed is 312mm, owns high rigidity , guideway after high frequency quenching , with high durability .
* Easy operated , one handle to operate quite convenient .
* Own high rigidity in both structure and transfer parts , high percent the use of power make the machine cutting easily . Lot of optional accessories for you to choose .
* Whole side test before leave the factory , make sure the machine owns high stability and more reliable .
* The lathe bed is wider than normal machine , the width of bed is 312mm, owns high rigidity , guideway after high frequency quenching , with high durability .
* Easy operated , one handle to operate quite convenient .
* Own high rigidity in both structure and transfer parts , high percent the use of power make the machine cutting easily . Lot of optional accessories for you to choose .
* Whole side test before leave the factory , make sure the machine owns high stability and more reliable .

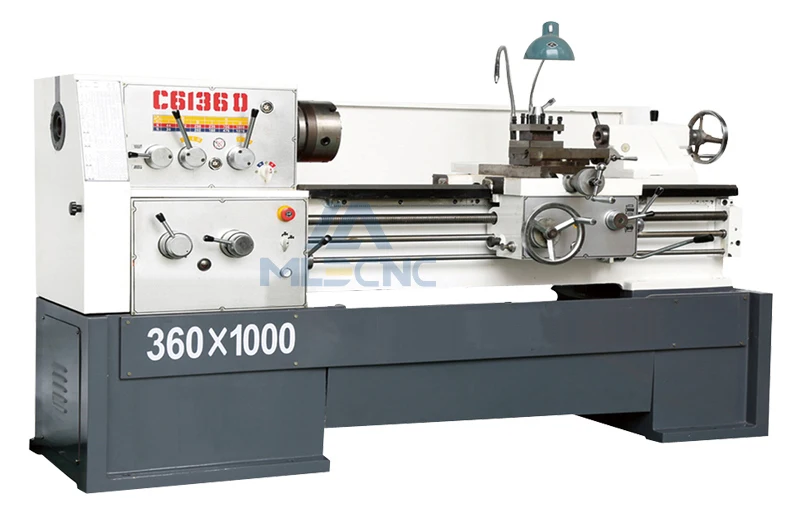

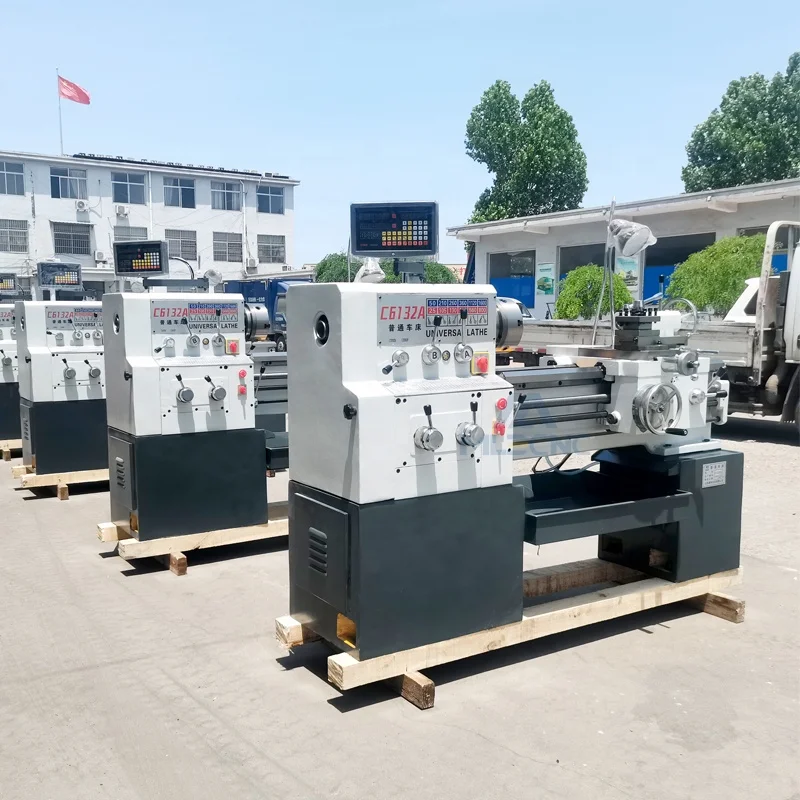

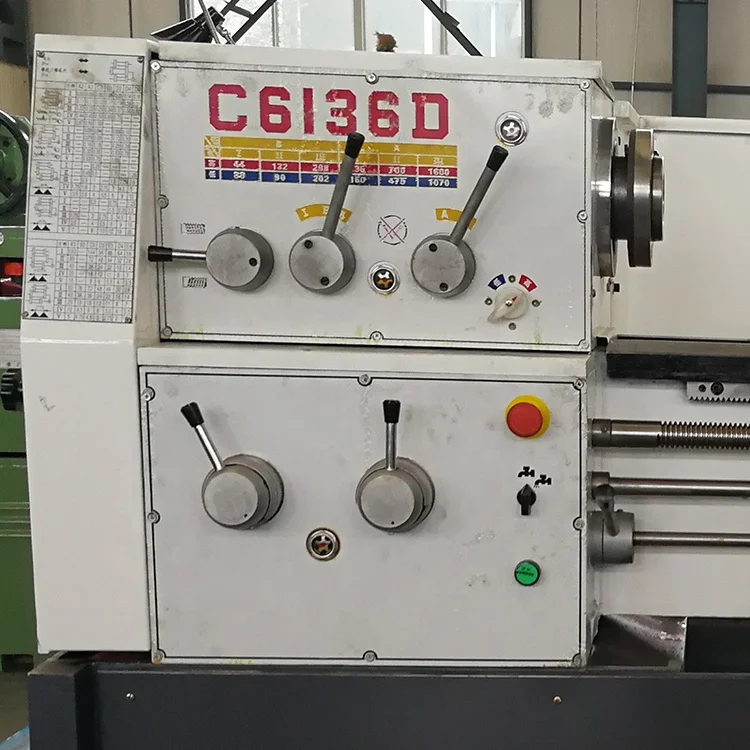

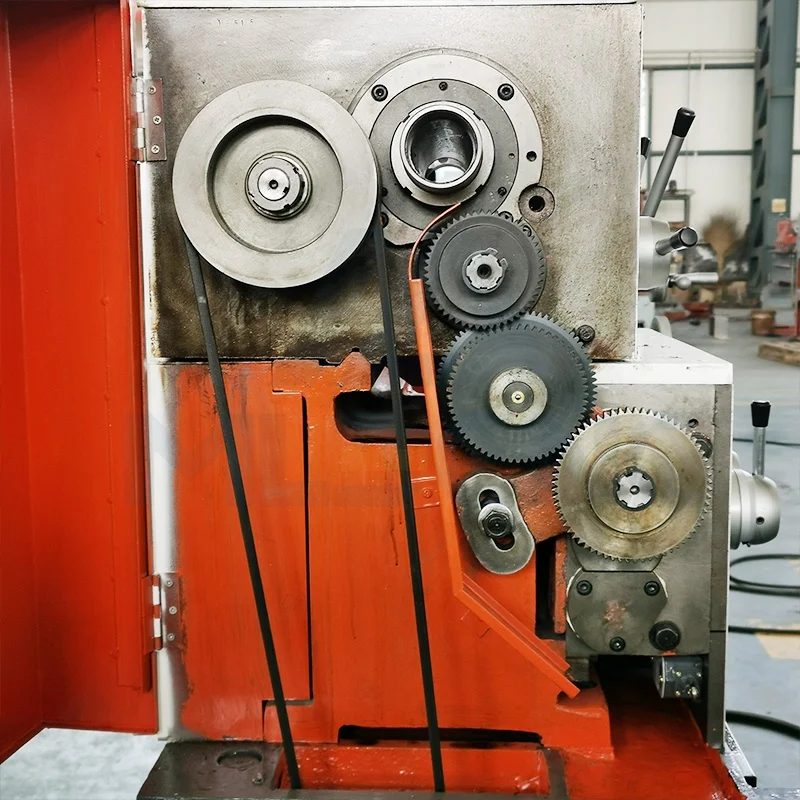

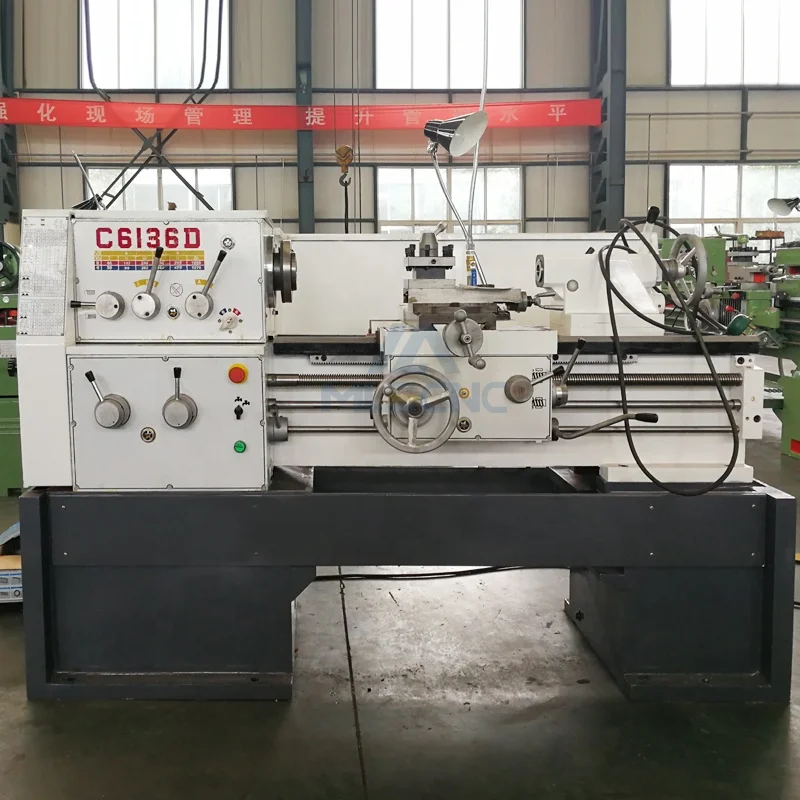

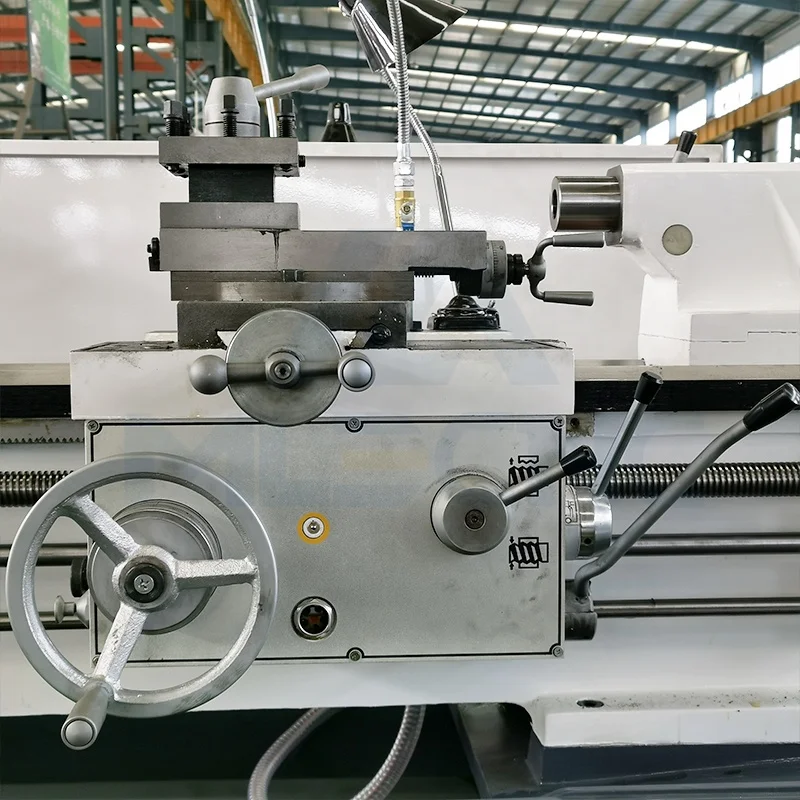

Machine Photos
Product Paramenters
specifications | C6136/C6236 | C6140/C6240 | |||
Max. swing over bed | 360mm | 400mm | |||
Max. swing over carriage | 200mm | 240mm | |||
Max. length of work piece | 750mm/1000mm | ||||
Width of bed | 312mm | ||||
Section of turning tool | 20×20 | ||||
Spindle | Spindle speed | 30-1600r/min | |||
Hole through spindle | ∮52mm | ||||
Spindle taper | MT6 | ||||
Feed | NO. of feed | 0.039-1.05mm 0.019-0.52mm | |||
Range of metric threads | 0.5-20mm | ||||
Range of inch threads | 80-1.75 | ||||
Range of module threads | 0.25-10mm | ||||
Range of diametral pitc threads | 160-3.5dp | ||||
Tailstock | Max. tailstock spindle travel | 100mm | |||
Tailstock spindle diameter | ∮60mm | ||||
Taper of tailstock spindle center hole | MT4 | ||||
Main motor | 3/4KW | ||||
Packing dimensions | Overall dimensions for 750mm | 2000×1130×1540 | |||
Overall dimensions for 1000mm | 2250×1130×1540 | ||||
Weight | Overall dimensions for 750mm | 1500kg | 1700kg | ||
Overall dimensions for 1000mm | 1600kg | 1800kg | |||
Standard Accessories
Standard :
1. 3-jaw chuck;
2. Cooling system;
3. Work Lamp.
4. Back guard
2. Cooling system;
3. Work Lamp.
4. Back guard
Optional :
1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
5. Foot plate;
6. Steady rest and Follow rest
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
5. Foot plate;
6. Steady rest and Follow rest

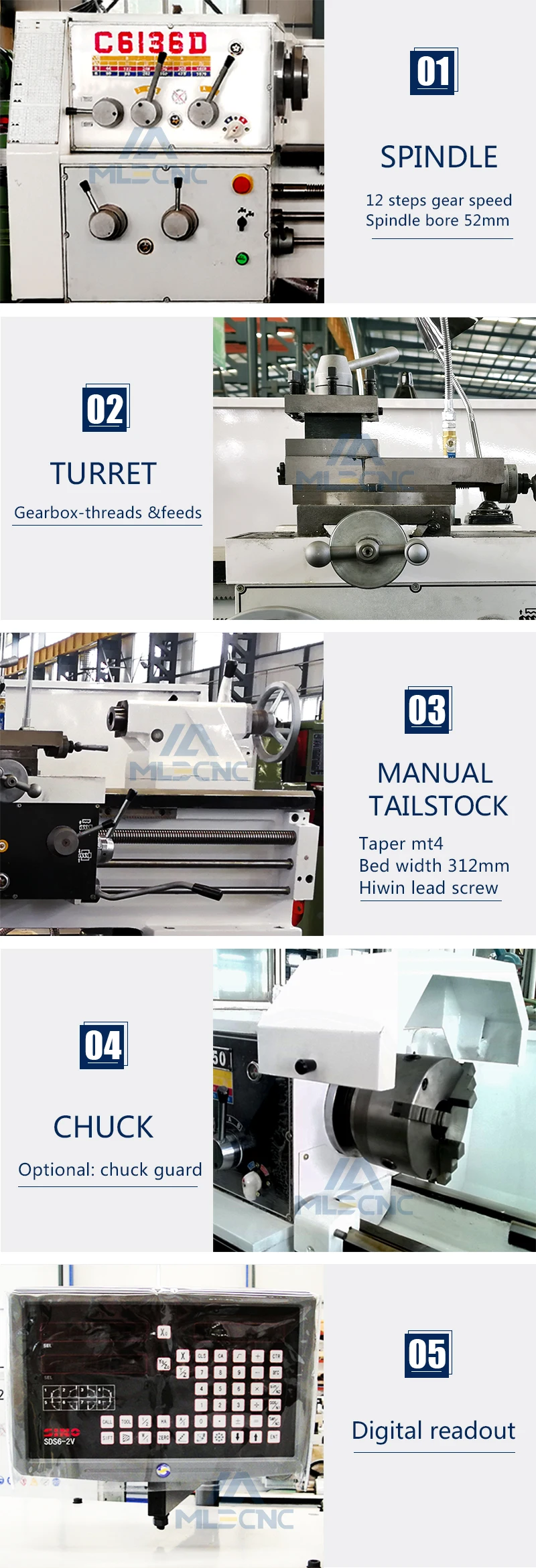

Products Details
Recommend Products
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
