Small Snake Tube Inspection Camera For HAVC Duct Work
- Category: >>>
- Supplier: Shenzhen QYTeco Limited
Share on (1600532161332):
Product Overview
Description

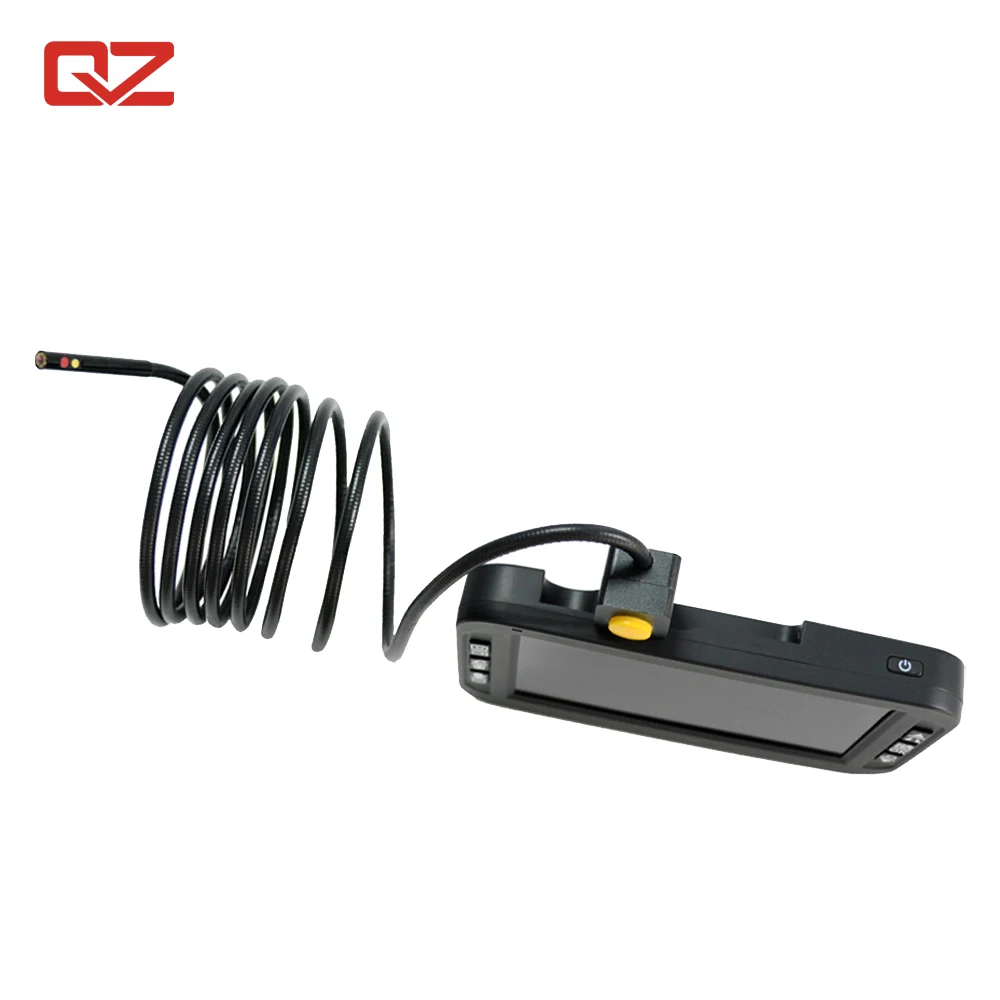

Dual Camera Snake Tube Borescope For Cavity Wall Inspection
Product Description
This product is designed with two small HD cameras for side view and front view, make users unveil the narrow internal objects and/or structures easily. The item specially suitable for cavity wall, sewer lines, HVAC duct work, aircraft and automotive engines/cylinders inspection. It's portable and convenient.
Features
*720P HD ultra small dual cameras.

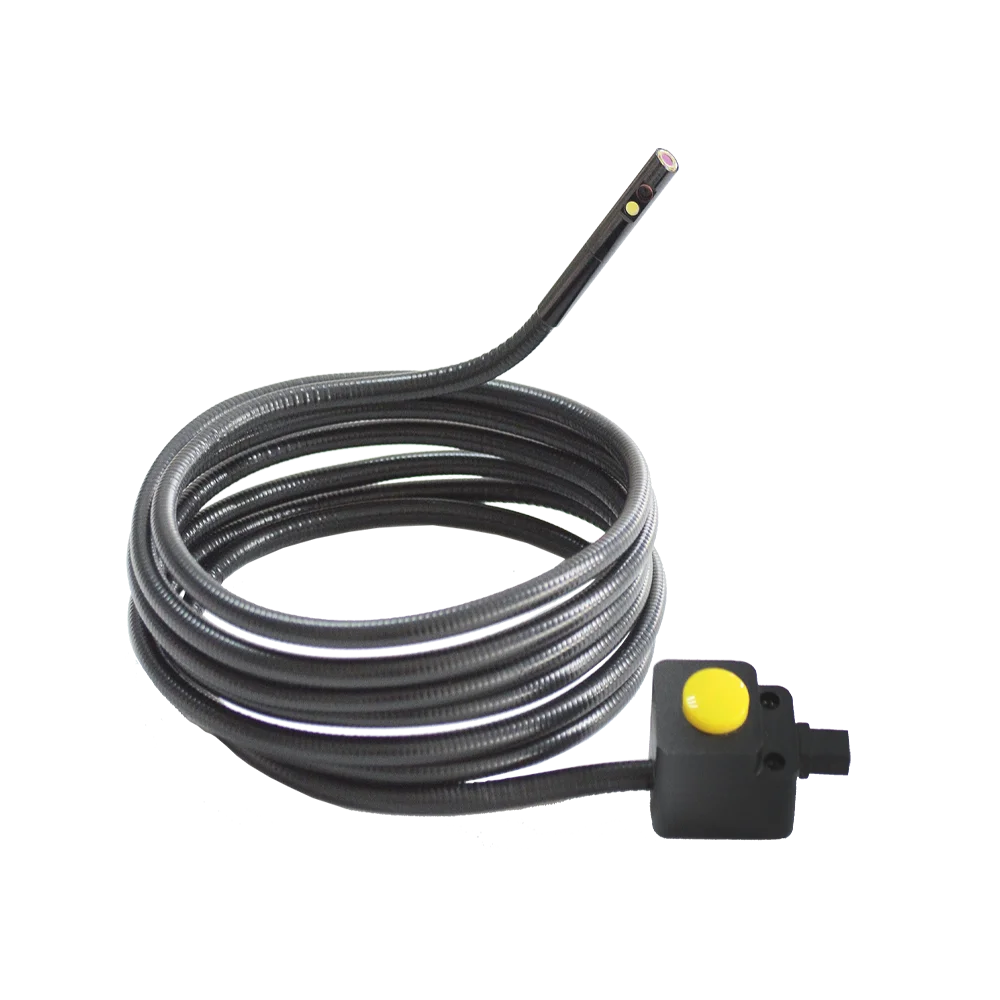

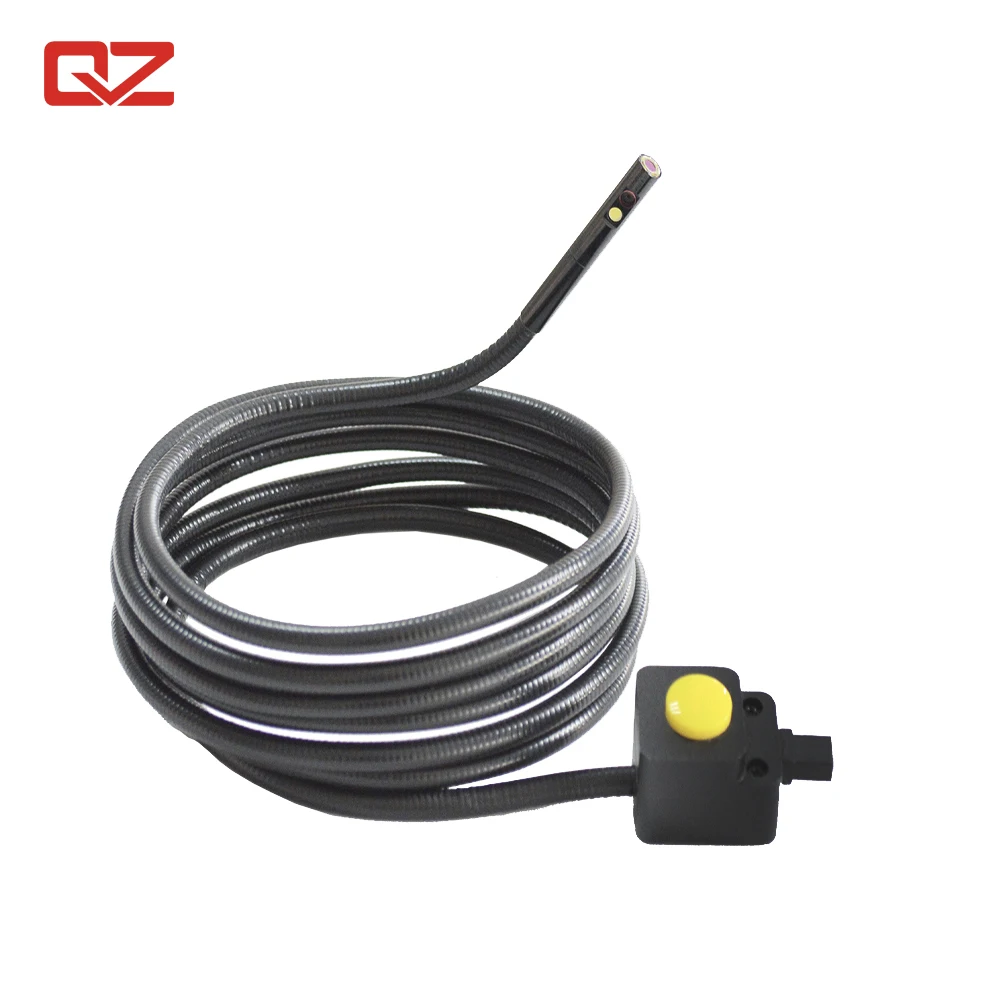

*Snake tube camera probe with outer diameter 5.5mm.
*Insertion tube length 2m standard.

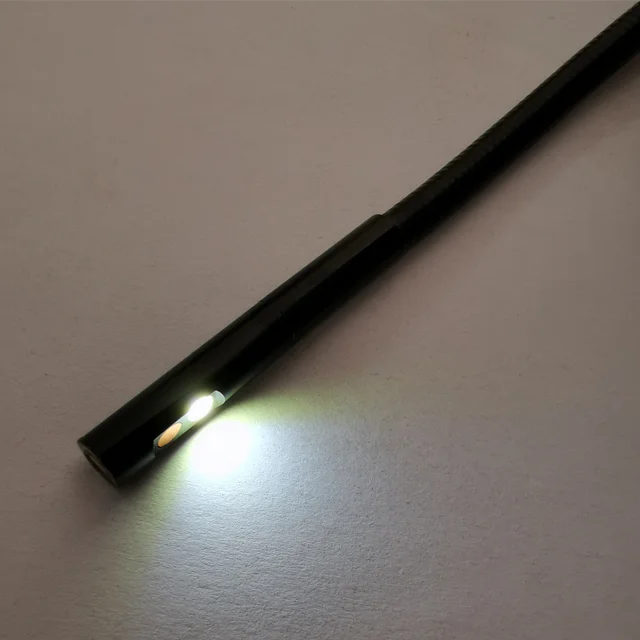

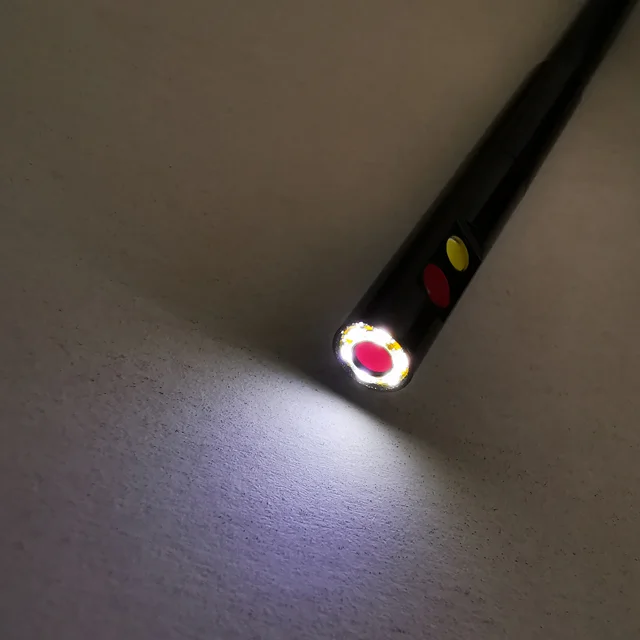

*6 light-adjustable front view LEDs and 1 light-adjustable big side view LED providing light up to 1 meter.

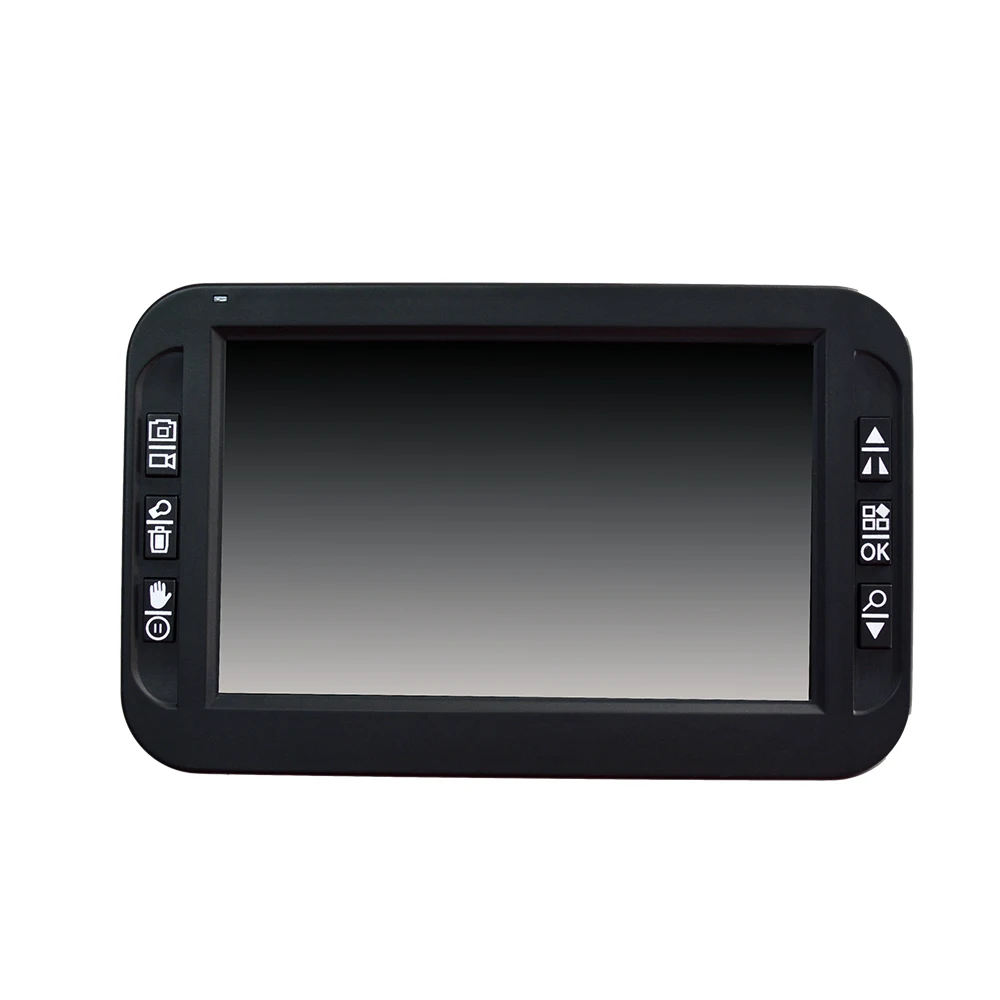

*5 inch high contrast color LCD display.
*7 navigation buttons on the monitor for functional partition.
*Photo and video recording function.
*Image still function in PHOTO status.
*Built-in rechargeable Li-battery for long working time.
Specification
Items | Product Standard | Specifications |
Camera Probe | Camera Lens | CMOS |
Resolution | 1280*720 | |
View Angle | 65° | |
Focal Distance | 4cm | |
Depth of Field(DOF) | 1.5cm -20cm | |
Front View Light Source | 6 LEDs for 1m Irradiation Distance | |
Side View Light Source | 1 big LED for 1m Irradiation Distance | |
Camera Probe Outer Diameter | 5.5mm | |
Insertion Length | 2m | |
Metal Part length | 40mm | |
Waterproof Level | IP67(Probe only) | |
TFT Display | Size(Active Area) | 5 inch |
Resolution | 800*480 | |
Luminance for LCM | 500 | |
Image Zoom | 3 times(1.0X, 1.5X, 2.0X) | |
Image Flip | 180° flip | |
Image/Video | Image/Video Resolution | 1280*720 |
Signal Format | Digital | |
Image Format | .JPG | |
Video Format | .AVI | |
Internal Memory | Micro SD Card( support Max.32G) | |
Power Supply | Working Voltage | 5V |
Working Current | 460mA | |
Li-battery Capacity | 3800aAh | |
Charging Hour | About 5 Hours | |
Work Time | Continuous Working Time | About 5 Hours |
Working Temperature | Working Temperature | -10° - +60° |
Application
*Locating insects or dead rats or corrosion inside cavity walls.
*Black mold inspection.
*Electrical, plumbing, wiring, network/phone and CATV routing.
*Small automotive engines and other related inspections.
*Gun bore and related inspections.
*Motor inspections
*HVAC duct systems
*Aviation related applications.
*Natural gas pipe inspections.
*Quality assurance inspections.
*Insurance litigation and verification inspections
*Verification of standards protocols in small and tight areas.
*Building appraisal applications.
*Construction, property managers and contractors.
Packaging & Shipping
Packing List
Shipping
Shipping way could be chosen according to customer requirements, courier delivery, air cargo, sea cargo or designated freight forwarding . We will coordinate with every delivery from factory to destination, and keep reporting the status of transportation.
Shipping way could be chosen according to customer requirements, courier delivery, air cargo, sea cargo or designated freight forwarding . We will coordinate with every delivery from factory to destination, and keep reporting the status of transportation.
Our Advantages
R&D Team
We have a group of R&D team with decades of professional experience in electronic industry:
To ensure the original design and the best of raw material selection.
To provide OEM/ODM/Customized products and services.
To strengthen technical support before or after-sales.
To maintain the innovation of products and the quick reaction capability to the market.
Selling Services
We supply products at producer price. We offer the spare parts for repair.
We don't set MOQ except for the OEM/ODM/Customized products.
We can provide fast delivery since we always have products in stock and keep the supply of raw materials normal.
We warmly welcome friends of all circles to visit and give full cooperation.
Warranty
Our products are warranted for one full year (checking and repairing services) from the date of purchase which products are not being damaged by any man-made factors.
We have a group of R&D team with decades of professional experience in electronic industry:
To ensure the original design and the best of raw material selection.
To provide OEM/ODM/Customized products and services.
To strengthen technical support before or after-sales.
To maintain the innovation of products and the quick reaction capability to the market.
Selling Services
We supply products at producer price. We offer the spare parts for repair.
We don't set MOQ except for the OEM/ODM/Customized products.
We can provide fast delivery since we always have products in stock and keep the supply of raw materials normal.
We warmly welcome friends of all circles to visit and give full cooperation.
Warranty
Our products are warranted for one full year (checking and repairing services) from the date of purchase which products are not being damaged by any man-made factors.
FAQ
Price
We provide the competitive factory price based on EXW or FOB. We can quote the best freight cost by courier/air/forwarder for your reference.
We provide the competitive factory price based on EXW or FOB. We can quote the best freight cost by courier/air/forwarder for your reference.
MOQ
We don't have MOQ except for OEM/ODM/customized products. The prices vary depending on order quantity.
Order Process & Payment term Online order is available now, we also can provide offline order:
Step 1: Please you place order to us by email or message.
Step 2: We send Proforma Invoice to you for your confirmation.
Step 3: You make payment after confirmation.
Payment term :T/T , Western Union(only for payment less than 2000USD)
Step 4: We arrange the delivery and provide tracking information.
Packing

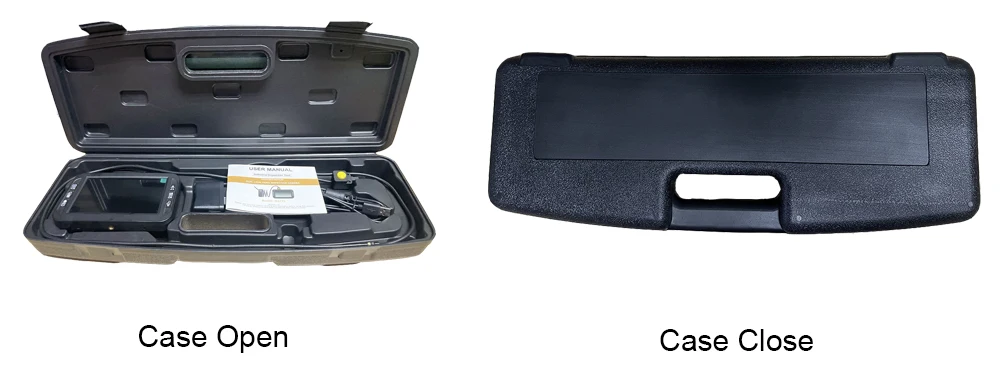

All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as standard and tool case optional. Special requirements should be mentioned in order.
Production Time
Usually our products are in stock, but if one of our product is out of stock, the production time for standard products will be from 3-15 days according to the order quantity. For OEM/ODM/customized products, the production time will be 20-45 days different according to the degree of difficulty or easiness.
We don't have MOQ except for OEM/ODM/customized products. The prices vary depending on order quantity.
Order Process & Payment term Online order is available now, we also can provide offline order:
Step 1: Please you place order to us by email or message.
Step 2: We send Proforma Invoice to you for your confirmation.
Step 3: You make payment after confirmation.
Payment term :T/T , Western Union(only for payment less than 2000USD)
Step 4: We arrange the delivery and provide tracking information.
Packing
All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as standard and tool case optional. Special requirements should be mentioned in order.
Production Time
Usually our products are in stock, but if one of our product is out of stock, the production time for standard products will be from 3-15 days according to the order quantity. For OEM/ODM/customized products, the production time will be 20-45 days different according to the degree of difficulty or easiness.
