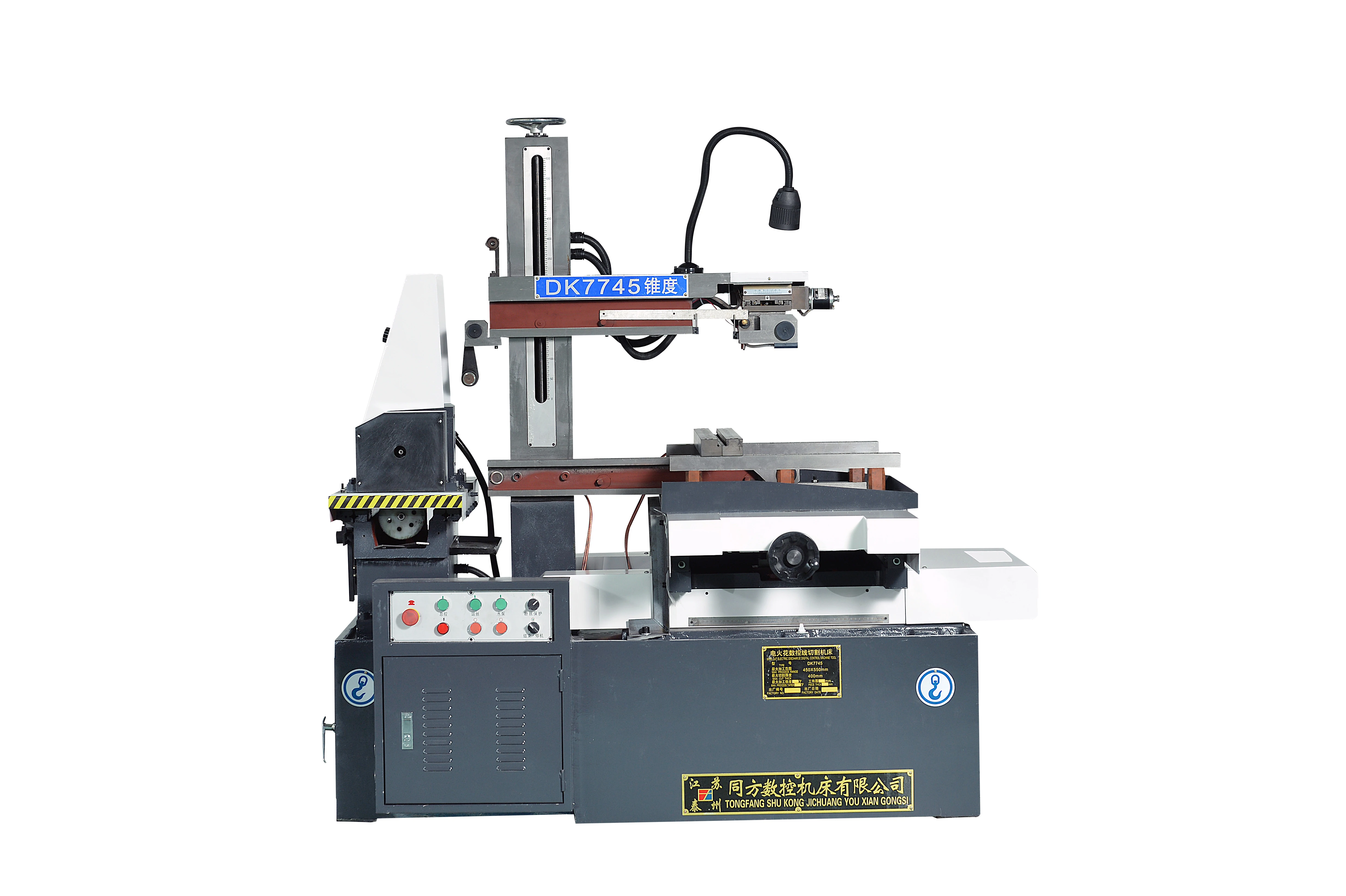

Taizhou Tongfang CNC has been focusing on the research and development of CNC wire cutting products for more than 20 years. The company produces a full range of DK77 CNC wire EDM machines, which use high-precision steel-inlaid V-shaped guide rails (linear guide rails are optional) and P3-level high-precision ball screws. The technology and quality have taken the lead in the industry among similar products, with complete models, long service life and high precision. Machine specifications can be customized according to customer needs, non-standard models DK7740(45)J, DK7750(55)J, DK7763J, DK7780J, DK77100J, DK77120J and even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision medium-speed wire EDM machines (accuracy≤±0.0025mm, roughness≤0.8μm). The following are the main parameters of DK77 series machines:
1. Standard maximum cutting taper: ±6°/80mm; (optional ±15°, ±30°, ±45°)
2. Accuracy ≤0.015mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)
3. The best surface roughness is less than or equal to Ra2.5μm (single knife), Ra1.5μm (multiple knife);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Max. Cutting speed≥120mm²/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 3KW;
7. Working fluid: water-based emulsion (recommended DX-1 DX-4 Nanguang-1)
1. Standard maximum cutting taper: ±6°/80mm; (optional ±15°, ±30°, ±45°)
2. Accuracy ≤0.015mm, in line with GB7926-2005 standard; (if equipped with linear guide rail, the accuracy can reach 0.01mm)
3. The best surface roughness is less than or equal to Ra2.5μm (single knife), Ra1.5μm (multiple knife);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Max. Cutting speed≥120mm²/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 3KW;
7. Working fluid: water-based emulsion (recommended DX-1 DX-4 Nanguang-1)
Model | Worktable travel(mm) | Worktable size (mm) | Max. cutting thickness(mm) | Max. load(kg) | Dimensions(mm) | Weight(kg) |
DK7720 | 200*250 | 300*400 | 200 | 80 | 1000*900*1000 | 800 |
DK7725 | 200*320 | 320*510 | 300 | 120 | 1120*950*1240 | 1000 |
DK7735 | 350*450 | 360*630 | 400 | 300 | 1240*1170*1400 | 1200 |
DK7745 | 450*550 | 460*690 | 400 | 450 | 1600*1200*1400 | 1400 |
DK7755(50) | 550*630 | 550*900 | 600 | 700 | 1720*1680*1700 | 2000 |
DK7763 | 630*800 | 650*1040 | 600 | 1000 | 2100*1940*1780 | 2500 |
DK7745J | 450*630 | 460*840 | 400 | 500 | 1700*1600*1600 | 1800 |
DK7755J | 550*800 | 550*1040 | 600 | 750 | 2000*1900*1700 | 2300 |
DK7763J | 630*1000 | 650*1240 | 600 | 1100 | 2300*2200*1800 | 3000 |
DK7780 | 800*1000 | 890*1220 | 600 | 1200 | 3000*2400*1800 | 3500 |
DK7780J | 800*1200 | 890*1560 | 600 | 1500 | 3000*2400*1800 | 4500 |
DK77100 | 1000*1200 | 1060*1590 | 600 | 2000 | 3500*2800*2500 | 5500 |
DK77120J | 1200*1600 | 1230*1880 | 600 | 3200 | 3800*3000*2500 | 8000 |
Controller of the standard configuration
Fully enclosed intelligent controller (single-pass single-cut)
* Standard system:X8(Support multiple language switching)
* Optional system:AutoCut,HL,HF
* Standard system:X8(Support multiple language switching)
* Optional system:AutoCut,HL,HF
* The parameter adjustment reference table provides convenience for the operator to set the processing parameters
* Concise high-frequency parameter adjustment panel(Marked with English description)
* Adopt touch dustproof button Short-circuit automatic retraction program reverse processing
* Mirror cutting,can also be used for arbitrary angle and circular rotation
* Can store 4999 wire cutting control instructions at one time
* Automatic shutdown at the end of processing
* With digital display function Power-off protection
* Fully enclosed,anti-fouling and dust-proof
* Concise high-frequency parameter adjustment panel(Marked with English description)
* Adopt touch dustproof button Short-circuit automatic retraction program reverse processing
* Mirror cutting,can also be used for arbitrary angle and circular rotation
* Can store 4999 wire cutting control instructions at one time
* Automatic shutdown at the end of processing
* With digital display function Power-off protection
* Fully enclosed,anti-fouling and dust-proof
OPTIONAL CONTROLLER
* Standard system:AutoCut with AutoCAD
* Optional system: X8,HF
Vertical high-speed intelligent controller (single-pass single-cut)
* Standard system:AutoCut with AutoCAD
* Optional system: X8,HF
* The parameter adjustment reference table provides convenience for the operator to set the processing parameters
* Concise high-frequency parameter adjustment panel(Marked with English description)
* Adopt touch dustproof button
* Integration of programming and control; simultaneous programming of processing, real-time tracking and display of processing trajectory; three-dimensional modeling
* CAD/CAM data exchange operation for up and down special-shaped, equal radius, right-angle transition taper machining
* International standard ISO code control
* Fully enclosed, dust-proof and dirt-proof
* Concise high-frequency parameter adjustment panel(Marked with English description)
* Adopt touch dustproof button
* Integration of programming and control; simultaneous programming of processing, real-time tracking and display of processing trajectory; three-dimensional modeling
* CAD/CAM data exchange operation for up and down special-shaped, equal radius, right-angle transition taper machining
* International standard ISO code control
* Fully enclosed, dust-proof and dirt-proof
Fully intelligent multi-pass(multi-cut)controller
* Standard system:AutoCut with AutoCAD
* Two processing modes are supported: ordinary fast wire feed mode and medium wire feed multi-cut processing mode
* Standard system:AutoCut with AutoCAD
* Two processing modes are supported: ordinary fast wire feed mode and medium wire feed multi-cut processing mode
* With cutting speed adaptive control
* The cutting process is displayed in real time, and the processing preview is convenient
* Real-time monitoring of the machining status of the X, Y, U, V four axes of the machine tool
* With a user-maintainable process library, making multiple runs simple and reliable
* The cutting process is displayed in real time, and the processing preview is convenient
* Real-time monitoring of the machining status of the X, Y, U, V four axes of the machine tool
* With a user-maintainable process library, making multiple runs simple and reliable
Software System Display

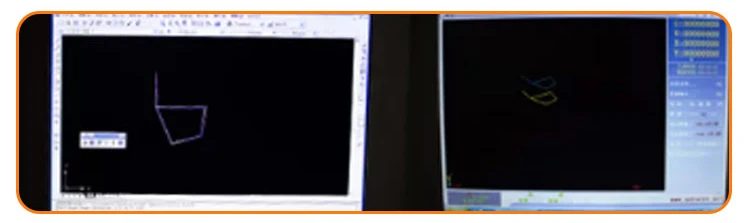

AutoCut System With AutoCAD
* The software can be directly embedded into various versions of software such as AutoCAD and CAXA
* Real-time monitoring of X, Y, U, V four-axis machining status of wire EDM machine tools
* One or multiple cuts can be made to increase processing speed and finish
* With user-maintainable technology library function, make multiple processing easy and reliable
* Support the backlash compensation function, which can compensate the screw backlash error of the machine tool to improve the precision of the machine tool
* Support pitch compensation: can perform segmental compensation for the pitch error of the machine tool
* Support two processing modes: ordinary fast wire feed mode, medium wire feed multiple cutting processing mode
* With Chinese, English and Russian language switching
* It is convenient for customers to operate multiple machines by one person, input and export drawings, and the equipment can be connected to the network
* The software can be directly embedded into various versions of software such as AutoCAD and CAXA
* Real-time monitoring of X, Y, U, V four-axis machining status of wire EDM machine tools
* One or multiple cuts can be made to increase processing speed and finish
* With user-maintainable technology library function, make multiple processing easy and reliable
* Support the backlash compensation function, which can compensate the screw backlash error of the machine tool to improve the precision of the machine tool
* Support pitch compensation: can perform segmental compensation for the pitch error of the machine tool
* Support two processing modes: ordinary fast wire feed mode, medium wire feed multiple cutting processing mode
* With Chinese, English and Russian language switching
* It is convenient for customers to operate multiple machines by one person, input and export drawings, and the equipment can be connected to the network
