Vacuum Insulation Panel for Building Insulation Fireproof Wall Facade Insulation Material Fumed Silica VIP
- Category: >>>
- Supplier: Sichuan Linglinghao Technology Co. Ltd.
Share on (1600532302286):
Product Overview
Description
Products Description

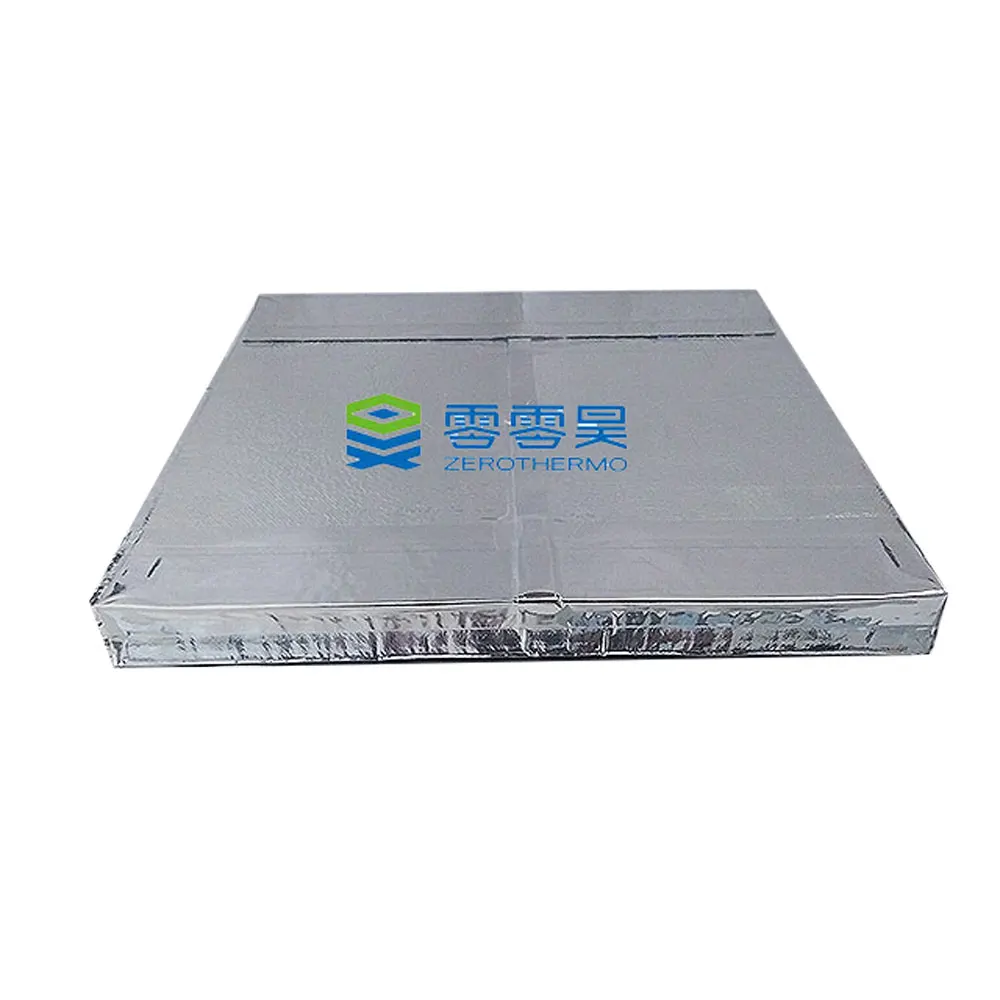

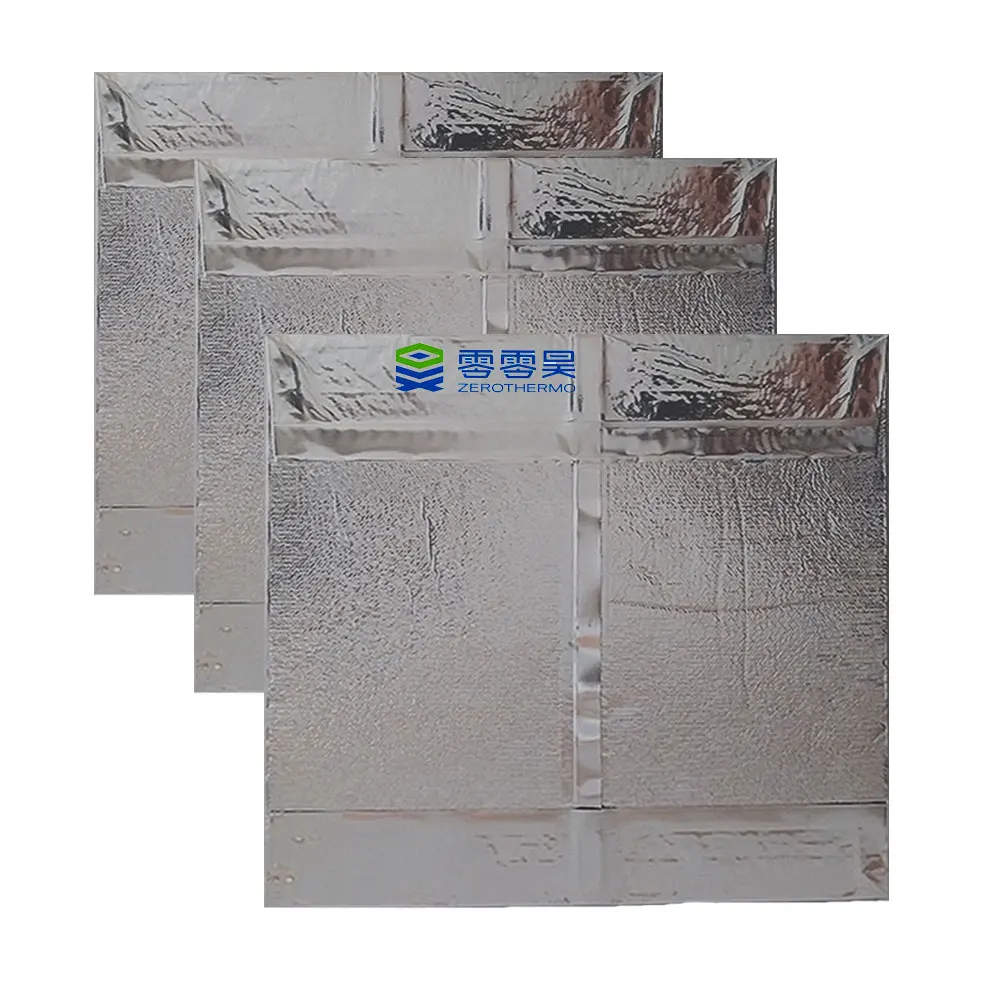

Vacuum Insulation Panel for Building Insulation Fireproof Wall Facade Insulation Material Fumed Silica VIP (Vacuum insulation panel insulated vips based on fumed silica cored material)
Zerothermo FS VIP(fumed silica vacuum insulation panels) thermal conductivity is less than 0.0045w / (m.k), which is the best cold chain insulation material until now. It's low thermal conductivity and good thermal insulation and energy saving. When different insulation materials are selected to achieve the same insulation effect, the vacuum insulation panel (VIP board) can make the insulation materials smaller or make the available space of the incubator larger. In the same insulation space, the vacuum insulation panel (VIP board) can make the insulation box work longer.
vacuum insulation panel(insulated panels) not only provides larger space utilization in cold chain insulation application but also has obvious insulation effect and energy-saving economic benefits. It is a high-quality and efficient cold chain insulation material.
Standard size: 300mmx600mmx25mm
400mmx600mmx25mm
800mmx600mmx25mm
900mmx600mmx25mm
400mmx600mmx25mm
800mmx600mmx25mm
900mmx600mmx25mm

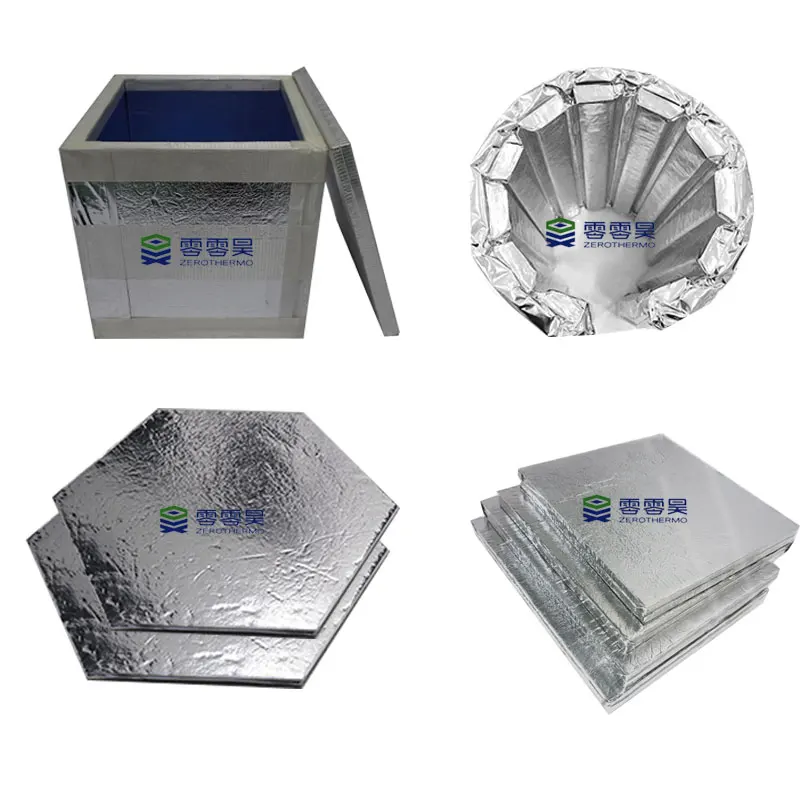

or customized size & shape according to you own design requirements.
Our Factory
Zerothermo is one factory (70,000 sqms) of Beijing Jiutian Zhenshi Groop which focus on Vacuum technology,and we are committed to R&D, production, Sales and service,and have got "ISO certification ROHS REACH SGS Test".
Team & Exhibition
Vacuum Technology Empowers Heat Insulation
By application of vacuum technology, the VACUUM INSULATION PANEL (or VIP) becomes one of the most effective and promising insulation materials. Now, the VIP has won appreciations worldwide, and becomes the very first choice for your insulation solutions.
Structure of VIP
Core Material:
Composed by microporous materials with good insulation performance, normally fumed silica.
Barrier:
High performance gas barrier, with an aluminum layer, prevents vacuum failure.
Product Features
Super Insulation Performance
The microporous core material itself has good insulation performance. After being sealed in vacuum, its insulation performance becomes dramatically better, its thermal conductivity can reach as low as 0.0045W/(m·K), even 4 times
better than Aerogel.
Good Fireproof Performance
As its main composition is fumed silica, the non-organic material, the fireproof level of VIP can reach Level A, compared with most part of organic materials as XPS, EPS, or PU, the VIP can be safer during application.
Environmentally Safety
As its main composition is fumed silica, the non-organic material, no toxic or polluted gas emission.No ODS (ozone depleting substances).And we have passed the REACH and ROHS test reports certificated
by SGS
Stable Quality
Several measures have been taken to assure the quality of products. And we guarantee the long-term stability of the vacuum degree of VIP.
Economic & Efficiency
Thanks to super insulation performance of VIP, when it is being applied practically, the insulation thickness can be dramatically reduced, which saves considerable effective space.
Specification
ITEMS | PERFORMANCE |
Thermal Conductivity [W/(m·K)] | ≤0.0045 |
Thermal Resistance [m·K/W] | ≥4 |
Density [kg/m3] | 180~240 |
Puncture Strength [N] | ≥18 |
Tensile Strength [kPa] | ≥100 |
Compression Strength [kPa] | ≥100 |
Surface Water Absorption [g/m2] | ≤100 |
Expansion Rate After Being Punctured [%] | ≤10 |
Thermal Conductivity After Being Punctured [W/(m·K)] | ≤0.025 |
Service Life [years] | ≥50 |
Flame-retardant | Level A |
Working Temperature [℃] | -70~80 |
Durability (W/m.k) | Increase rate ≤0.001 ( Aging test) |
Size | Size: standard size or customized size |
Application

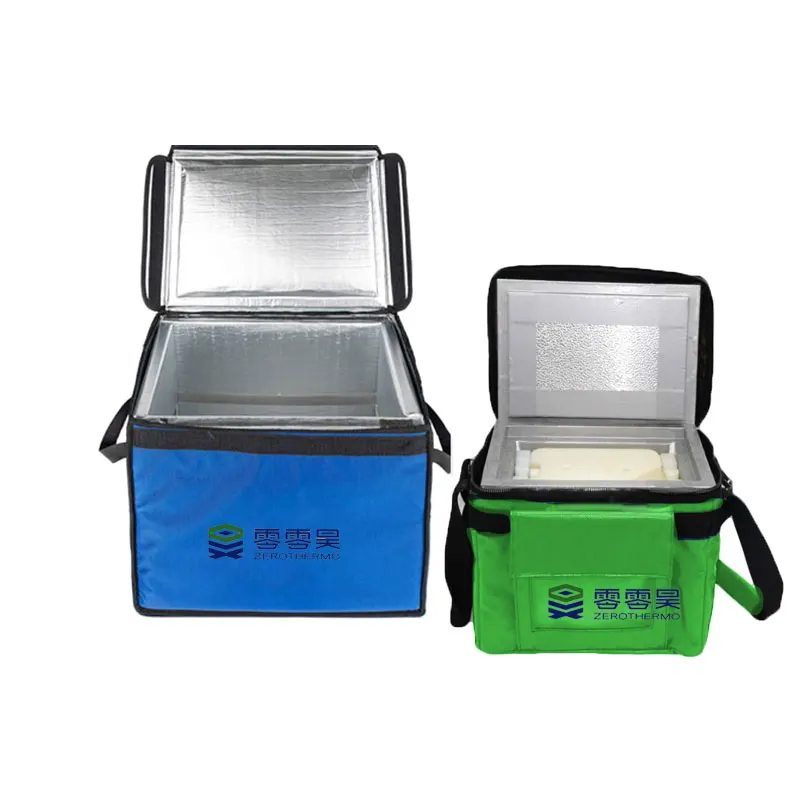

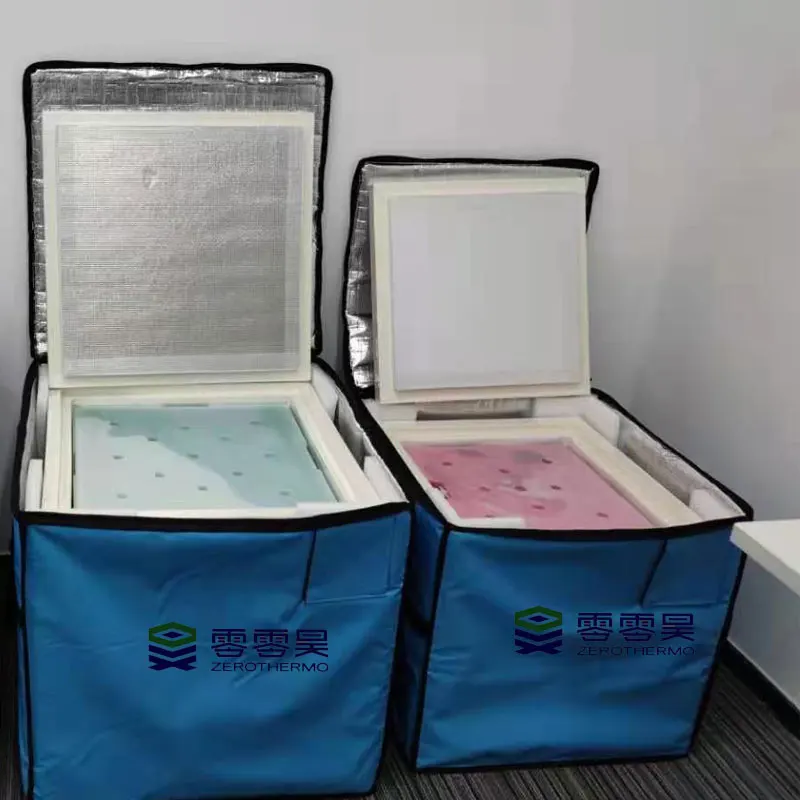

Zerothermo fumed silica vacuum insulation panels(VIP) are used for thermal insulation,such as cold chain logistics (especially used for vaccine cold boxes, ultra-low temperature freezers, cold storage containers), household refrigerators, yacht refrigerators, mini refrigerators, car refrigerators ,cryogenic freezers, vending machine, building wall, fireproof door, LNG storage, floor insulation materials and high temperature industry.
R&D Center
Until now Zerothermo has R & D and sales centers in Beijing, USA, Chengdu,Nanjing, the whole group has 330 R&D engineers and total 1100 employees
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Pallets packing Truck transportation
Certification
Company Profile
Zerothermo Technology Co., Ltd. is a high-tech company focusing on R&D, production, sales and service of vacuum insulation technology. The factory is located in Sichuan and covers an area of 70,000 sqms. Main products include vacuum insulation panel, integrated vacuum insulation and decoration panel, fabricated vacuum insulation and decoration wall panel, vacuum glass, vacuum insulated doors and windows, solar photovoltaic glass, healthy and energy-saving building, cold-chain insulation material and composite material.
The company has a high-level innovative R&D team and is one of the editing institutions of Vacuum Insulation Panel National Standard. Zerothermo has participated in multiple construction of demonstration projects led by Ministry of Housing and Urban-Rural Development of China, which have been selected into Important Projects Library of Made in China 2025.
Since the founding of the company, we have been searching for the best solutions for Insulation. By serious attitude and professional spirit, we will devote every effort to promote the development of world's energy saving industry.
The company has a high-level innovative R&D team and is one of the editing institutions of Vacuum Insulation Panel National Standard. Zerothermo has participated in multiple construction of demonstration projects led by Ministry of Housing and Urban-Rural Development of China, which have been selected into Important Projects Library of Made in China 2025.
Since the founding of the company, we have been searching for the best solutions for Insulation. By serious attitude and professional spirit, we will devote every effort to promote the development of world's energy saving industry.
FAQ
1. Who are we?
Zerothermo is a specialized supplier of insulation material VIP(Vacuum Insulation Panel) ,based in Sichuan, China. We have our own plants(70000sqms) and focusing on R&D, production, Sales and service.Until now Zerothermo has R & D and sales centers in Beijing, USA, Chengdu,Nanjing, the whole group has 330 R&D engineers and total 1100 employees. We have established good relationship with customers from all over the world.
2. How to guarantee quality
We always adhere to the principle of "Quality is the core of the survival of an enterprise". We have the strict quality control policy in the whole production process . If there is some quality issue, we will provide the best solutions and always take our responsibilities even though the possiblility is very very low.
3.What you can buy from us?
Our main products are insulation materials include fumed silica vacuum insulation panel for cold-chain logistics, freezer,refrigerator,and high temperature insulation material- flexible nano thermal insulation mat, and high temperature nano microporous panel ,and others for construction and industrial applications.
5. What services can we provide?
Customer support service: we provide the best and most professional customer service
Prices and Delivery Terms: FOB, CFR, CIF, EXW, DDP
Payment Currency: USD, EUR, JPY, CAD, CNY, AUS
Payment Terms: T/T, L/C, D/P D/A, Western Union, Cash
Zerothermo is a specialized supplier of insulation material VIP(Vacuum Insulation Panel) ,based in Sichuan, China. We have our own plants(70000sqms) and focusing on R&D, production, Sales and service.Until now Zerothermo has R & D and sales centers in Beijing, USA, Chengdu,Nanjing, the whole group has 330 R&D engineers and total 1100 employees. We have established good relationship with customers from all over the world.
2. How to guarantee quality
We always adhere to the principle of "Quality is the core of the survival of an enterprise". We have the strict quality control policy in the whole production process . If there is some quality issue, we will provide the best solutions and always take our responsibilities even though the possiblility is very very low.
3.What you can buy from us?
Our main products are insulation materials include fumed silica vacuum insulation panel for cold-chain logistics, freezer,refrigerator,and high temperature insulation material- flexible nano thermal insulation mat, and high temperature nano microporous panel ,and others for construction and industrial applications.
4.Do you accept customization?
Yes,OEM &ODM is okay, we can produce the items based on your own design, for example, size and thickness,shape
Yes,OEM &ODM is okay, we can produce the items based on your own design, for example, size and thickness,shape
5. What services can we provide?
Customer support service: we provide the best and most professional customer service
Prices and Delivery Terms: FOB, CFR, CIF, EXW, DDP
Payment Currency: USD, EUR, JPY, CAD, CNY, AUS
Payment Terms: T/T, L/C, D/P D/A, Western Union, Cash
6.How to get the samples?
We can provide customized samples and best service, please contact us for more information.
You are welcome to visit our factory!
You are welcome to visit our factory!
