crude oil refine to gasoline diesel fuel distillation plant
About Us
Shangqiu Sihai Machinery Equipment Co., Ltd. is a collection of research and development, production, sales and after-sales services, which has rich experience in the field of waste management over 20 years.
Our company covers an area of 37,000 square meters. Our company has a huge professional technical team, including 2 senior engineers, 16 senior technicians, 28 mid-class technicians, and 82 technicians.
Our main products are waste tires pyrolysis plant, waste rubber refining equipment, waste plastic recycling machine and other waste management units, and waste oil purification equipment, tire oil distillation plant, plastic oil refinery machine and crude oil distillation purification unit. Our products have been exported to China, South Korea, Thailand, the Philippines, India, Malaysia, Malaysia, Myanmar, Afghanistan and the United States and other countries and regions, which obtain a better reputation and happy feedback.
We will continue to innovate and improve to give you a nice turnkey projects.
Product Description
1 | Model | ZL-10(continuous) |
2 | Raw Material | Crude oil/plastic oil/tire oil/black oil/heavy oil/used engine oil |
3 | Structure | Vertical/Horizontal |
4 | 24-hour handling capacity | 10tons |
5 | 24-hour oil production | 8-9 tons (10-15% gasoline,70-75% diesel) |
6 | Working pressure | Negative pressure/Vacuum |
7 | Power | 16kw |
8 | Cooling system | Water cooling |
9 | Cooling water consumption | 2 tons |
10 | Heating mode | Directly heating |
11 | Installation | Have basis |
12 | Noise DB(A) | <85 |
13 | Host dimension | (Dia)1600*(L)3500 |
14 | Working form | Continuous operation |
15 | Delivery Time | 20 days |
16 | Packing | 2* 40HC |
17 | Area need | 300 square meters |

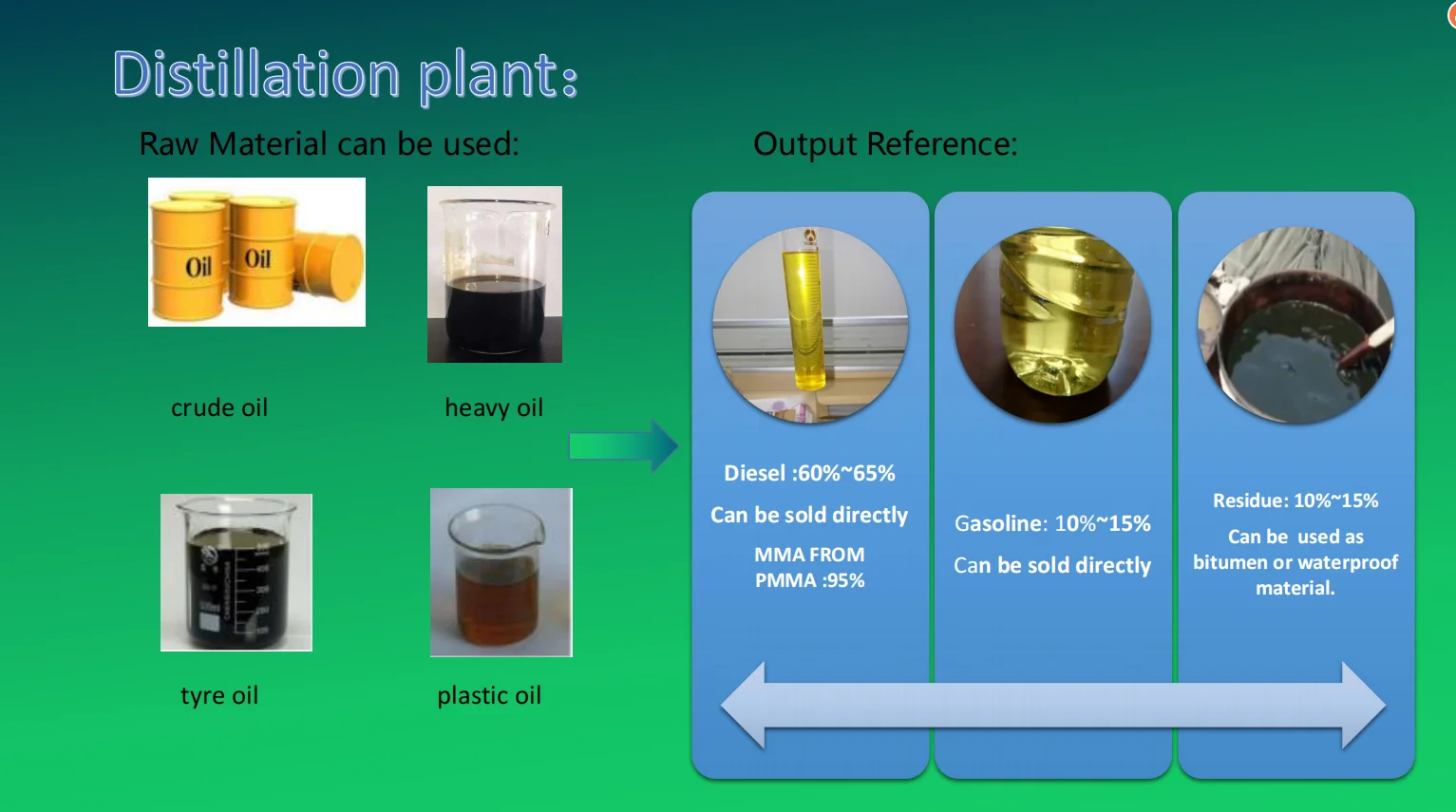

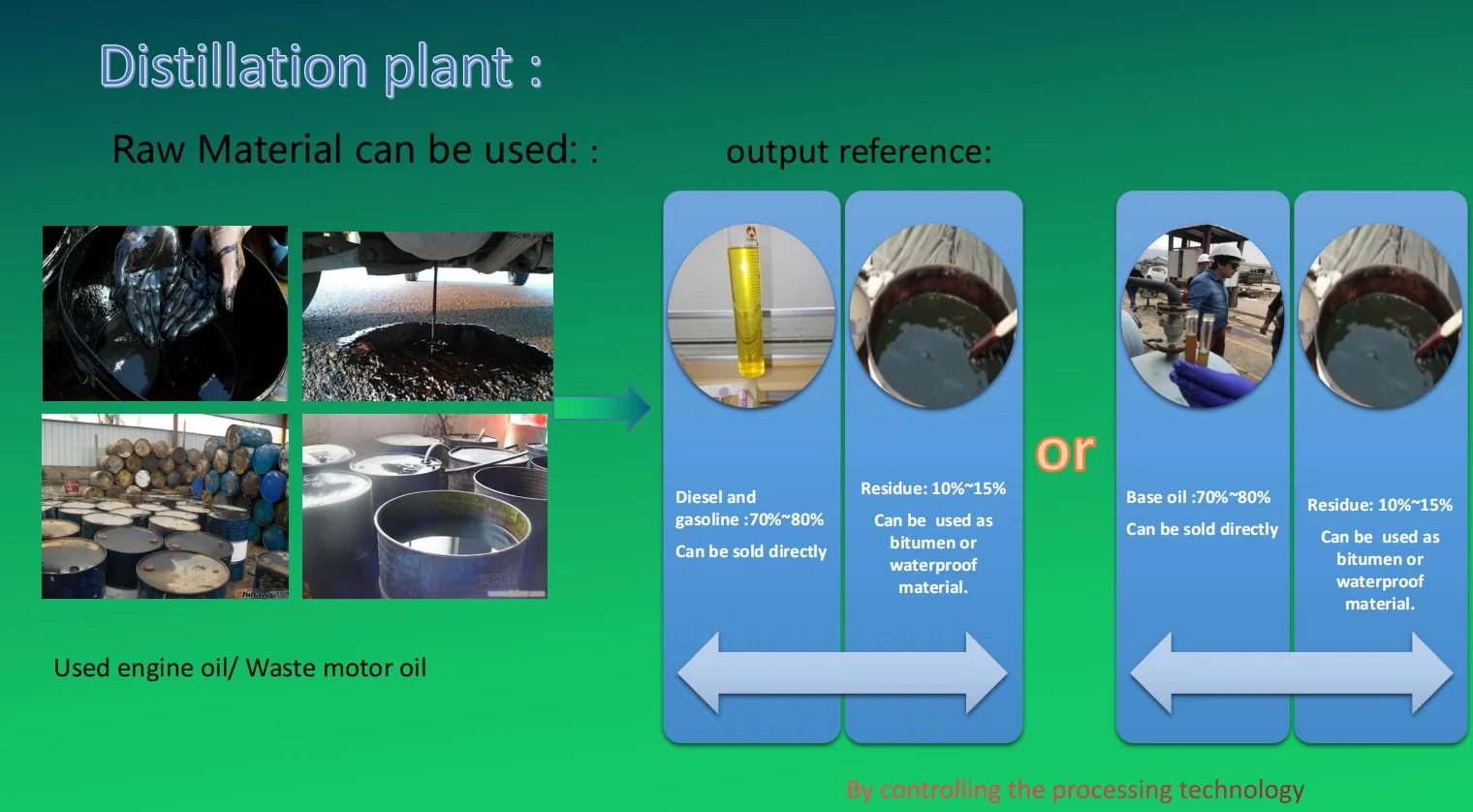

1. Raw material:
a. Waste oil .example: waste diesel, waste oil residue etc.
b. rubber oil
c. plastic oil
d. waste original oil
e. waste engine/motor oil
2. Components of Equipment
A. Vertical reactor/Horizontal reactor
B. Reducer system
C. Condensation system
D. Collector
E. Oil collecting tank
F. Residue tank
G. Oil-gas separator
H. Water cooling system
I. Water seal
J. Pressure & Temperature monitoring gauge
K. Deodorization system
L. Efficient anti clog cooling system
M. Gas heating system (waste gas process system)
N. Smoke desulphurization and dust removal system
3.Production flow:
4. Products features:
a. Reduce pressure distillation technology
This new technology is better than original ordinary pressure distillation technology, which shows on purity, transparence, and lightness. This technology will do deodorization and destinke process to the raw material oil automatically by "dry type" reduce pressure distillation method, which can fall of the temperature of distill process and the oil output will higher 5%-10%.
b. Continuous produce 24-hours
24-hours raw material put into automatically according to oil output flow and reactor temperature.
c. High efficient gas heating system
During this process, it will produce a large amount of gas CH4-C2H6, which cannot be fluidity with normal temperature and pressure. Those gas will be fully burned in the special gun nozzle and produce a plenty energy.
d. Intelligence smoke dust removal system
The smoke dust removal system with intelligence desulphurization, have a special with bi-directional water impact cyclone dust remove room, which can ensure the smoke discharge amount meet governmental relative standards.

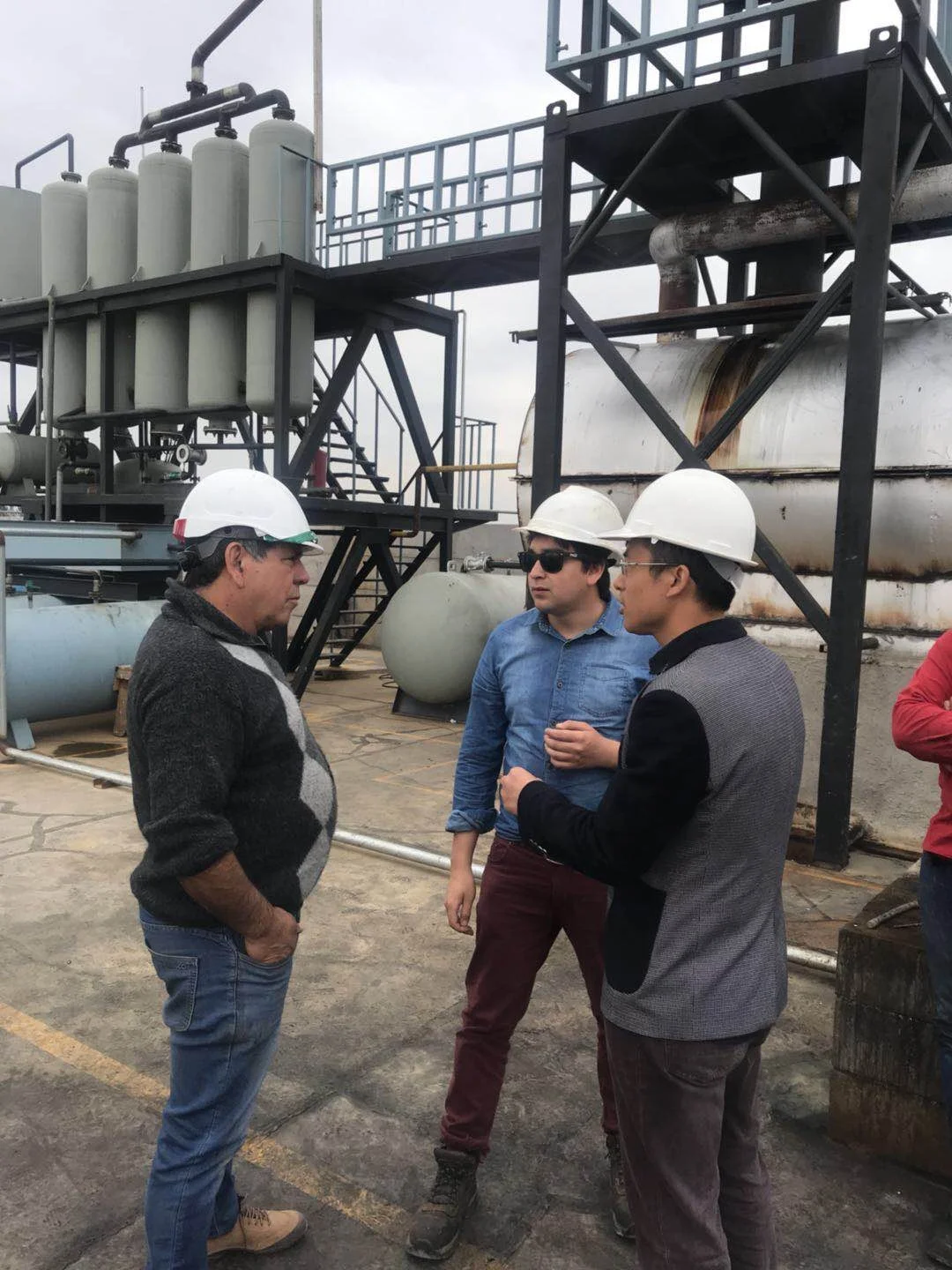

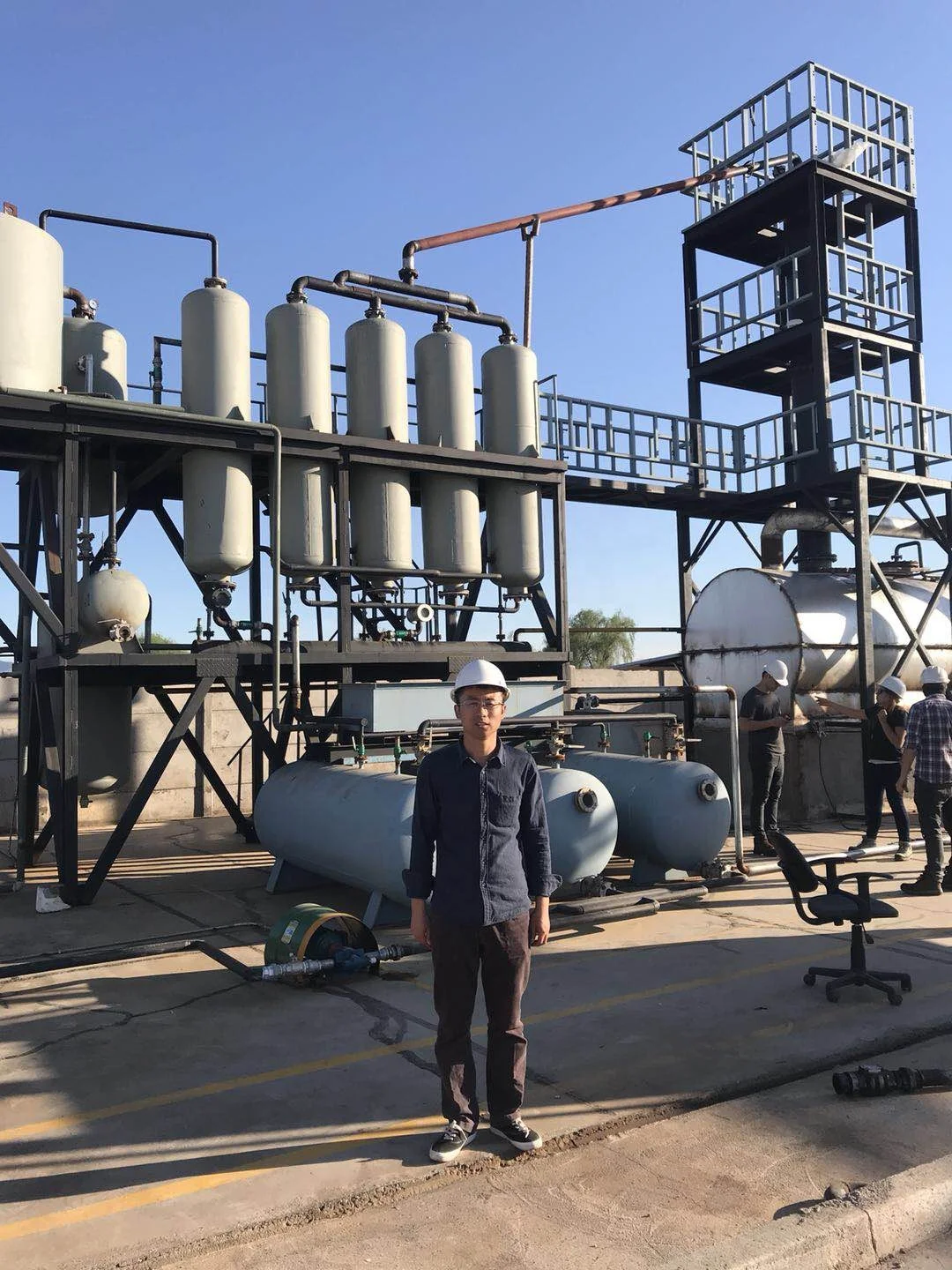

Clients Visiting

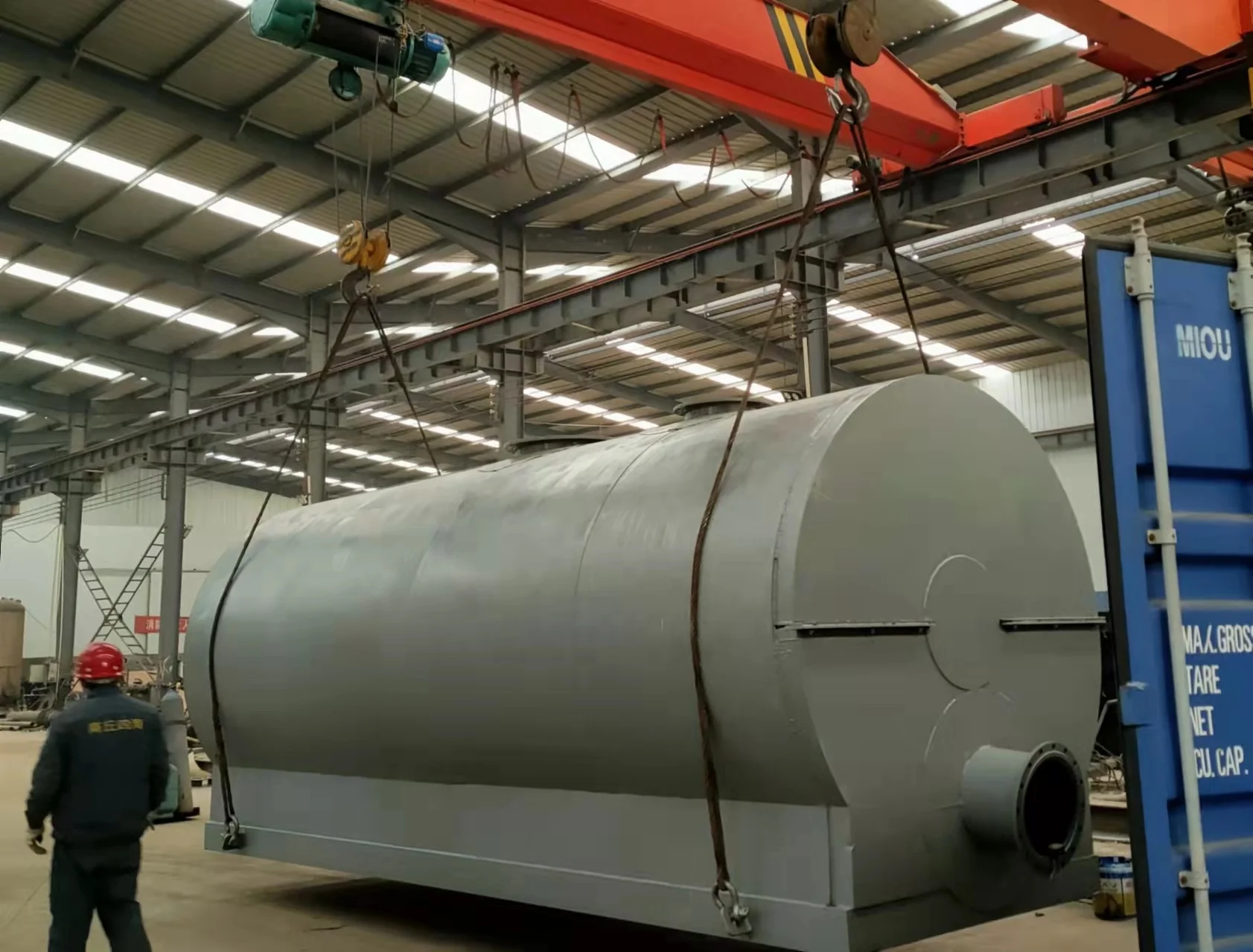

Packaging & Shipping
2*40HC SEAWORTHY
Our Services
Field installation and commission, one year maintance warranty ,8years lifelong.
FAQ
Q: How long is your quality guarantee?
A: 1years
Q: Do you resign your engineer to do the field installation and commission?
A:Yes we do resign our engineer to do the field installation and commission.
Q: Different waste oil mix can be the raw material?
A: Yes, different waste oil mix can be the raw material.
