Freeshipping YUSHI NDT Ultrasonic Flaw Detector YUT 2600 Weld Inspection DAC Curve Manufacturer Portable
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (1600532581082):
Product Overview
Description

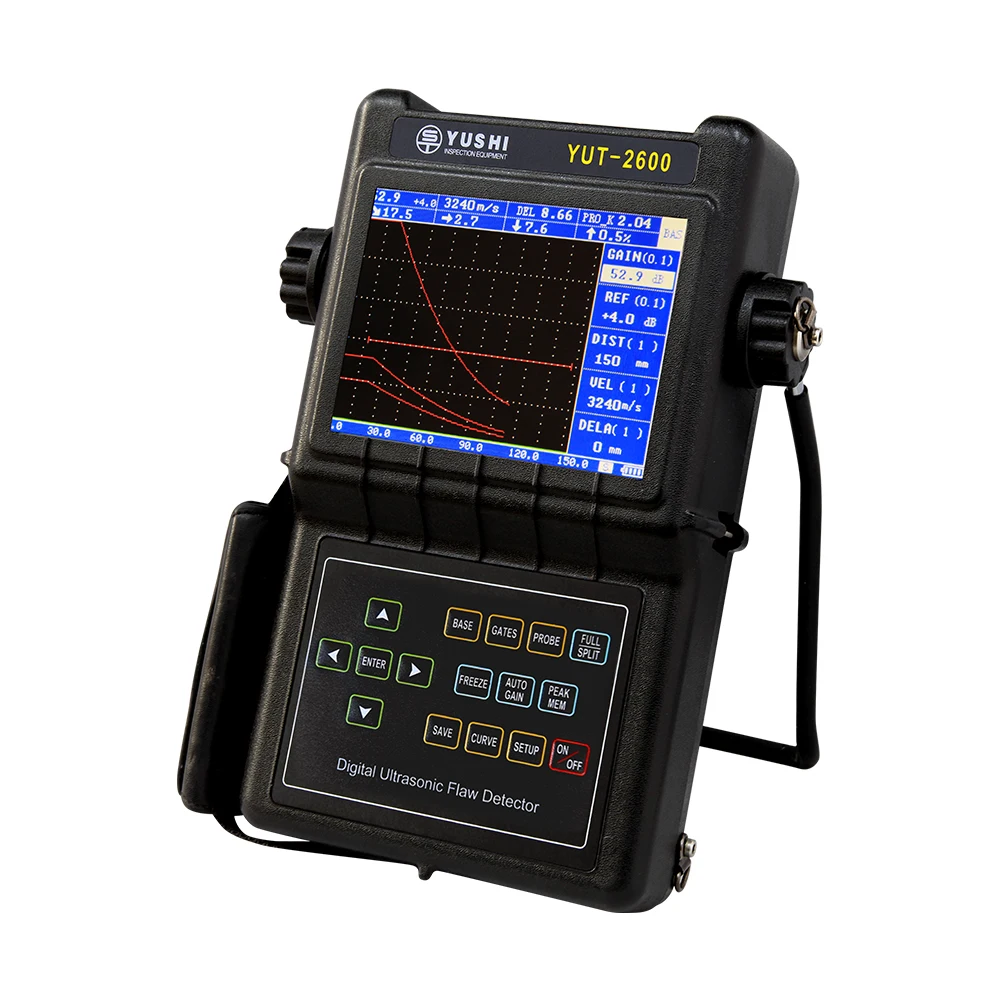

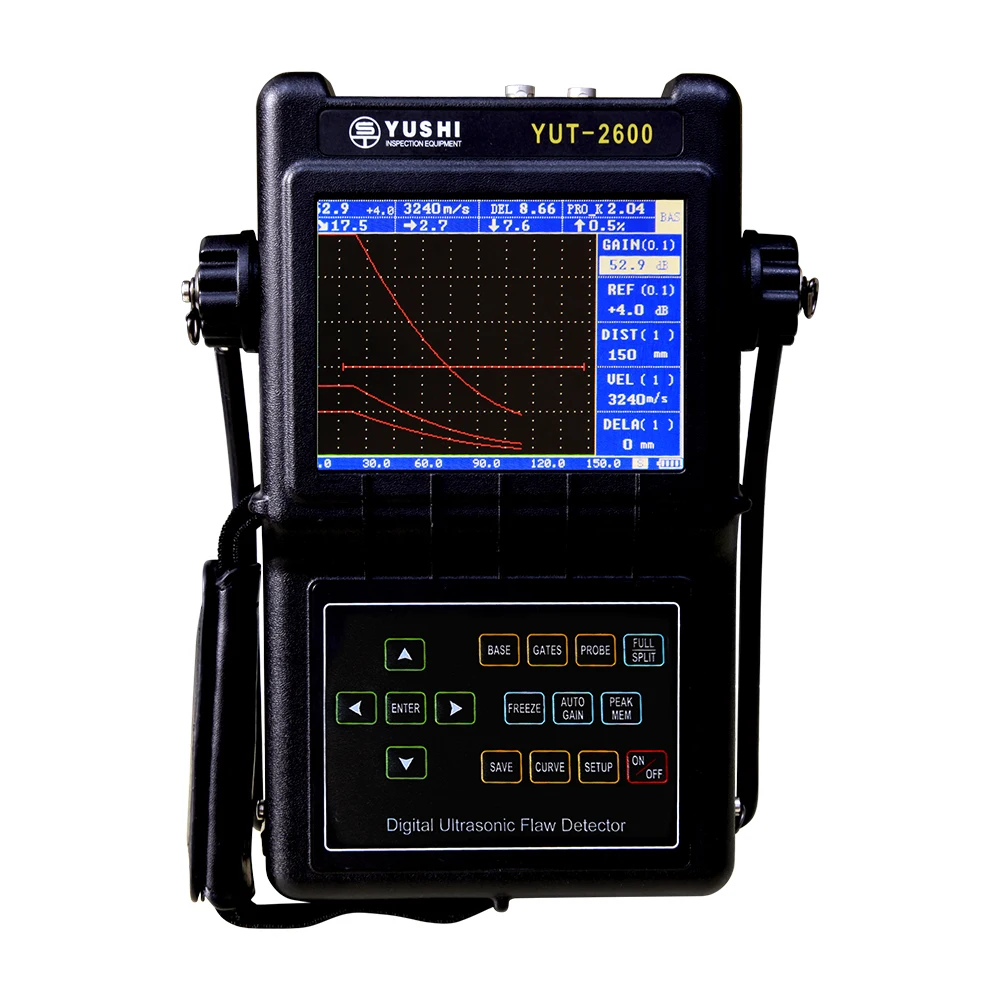

YUSHI YUT-2600
Ultrasonic Flaw Detector
•Bulk Storage: Up to 1000 data sets
•Perfect DAC curve functions
•Data Communication
•Flaw Positioning
•Real-time display the dB difference & SL quantitative values.
•Automatically record the date and time of the stored waveform.
Products Description
Full Screen Display Function
The echo display area covers the entire screen , the operator will have the maximal view.
Peak memory
capture and memorize real time peak signal amplitude, helpful to precise positioning and fast search
Data Logger & UtView Software
Up to 1000 data sets can be stored, including waveforms, curves and parameters etc. (including the traditional 1000 channels).
Communicating with the computer through the RS232 interface to transfer the waveform and data to realize the management of the detection results and the generation and printout of the detection report on the computer.
Communicating with the computer through the RS232 interface to transfer the waveform and data to realize the management of the detection results and the generation and printout of the detection report on the computer.
DAC Curve
Practical application of DAC curve
Full Screen Display Function | The echo display area covers the entire screen , the operator will have the maximal view. |
Bulk Storage | Up to 1000 data sets can be stored, including waveforms, curves and parameters etc. (including the traditional 1000 channels). |
Measuring Point | Peak Mode or Front Mode |
Echo-echo Thickness Measurement | No need of zero calibration , the net thickness of the base material can be directly measured through the coating. |
Wave Crest Memory | Real time envelopes show the highest wave of the flaws and record the maximum value of the flaws, it is helpful to exact positioning and fast testing of the flaws. |
Automatic Gain | Automatically adjust the gain to the pre-set amplitude height. |
Alarming Function | Afferent echo /echo loss alarming |
Solid Waveform Display | Enhancing the waveform visual contrast so the omission will hardly happen during the fast testing. |
Real-time Clock | Automatically record the date and time of the stored waveform. |
Display Freezing | Catching the waveform and the sound path data at any moment and removing the gate after freezing to measure the echo wave parameters. |
Flaw Positioning | Real -time display the sound path S, horizontal X, depth Y, and wave height H |
Flaw Quantify | Real-time display the dB difference & SL quantitative values |
Digital Inhibition | 0-80%, increasing by 1%, not affecting the linearity and gain. |
A、B Gate | Two independent measurement gates, monitoring the echo amplitude and the sound path distance. |
DAC Curve | Perfect DAC curve functions, enable the curves to change along with the changes of the gain, sound path, and displacement. |
Languages | Chinese and English |
Data Communication | Communicating with the computer through the RS232 interface to transfer the waveform and data to realize the management of the detection results and the generation and printout of the detection report on the computer. |
Working Frequency | (0.5-15)MHz |
Detection Range | (0-4500)mm |
Material Sound Vecocity | (1000-9999) m/s |
Operation Mode | Pulse echo, double crystal |
Pulse Shift | (0-2000)mm |
Probe Zero | (0-99.99)us |
Gain Adjustment | (0-110)dB,(0.1,1,2,6)dB stepping |
Vertical Linearity Error | ≤3% |
Horizontal Linearity Error | ≤0.3% |
Sensitivity Allowance | ≥55dB（deep 200mm Φ2 Flat-bottom hole) |
Inhibition Range | 0-80% Adjustable |
Resolution | ≥40dB（5P14 ) |
Dynamic Range | ≥32dB |
Average Noise Level | ≤10% |
Battery Working Time | 9 hours |
Power | 12V DC，220V AC |

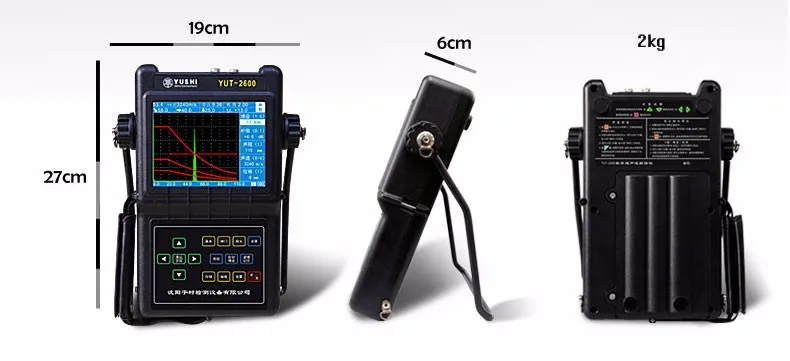

Dimensions | 270mm x190mm x 60mm |
Weight | 2kg ( Including batteries) |

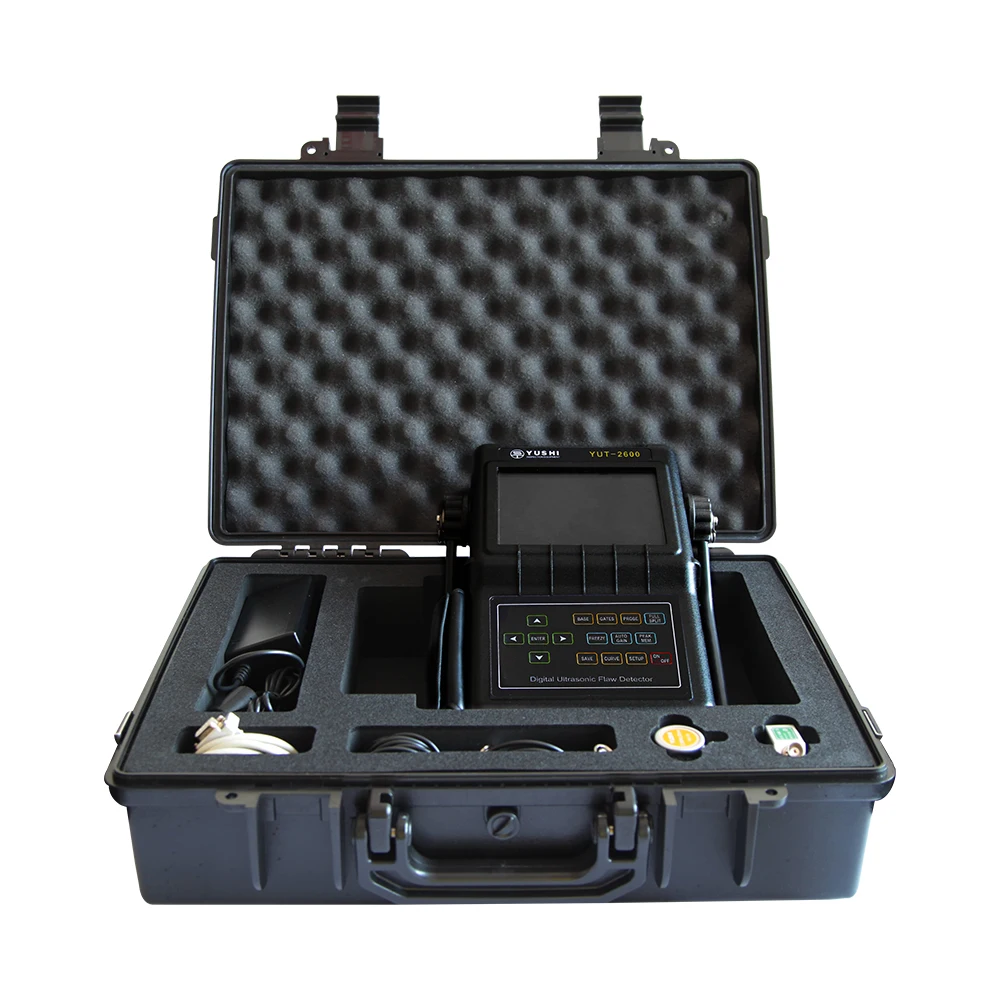

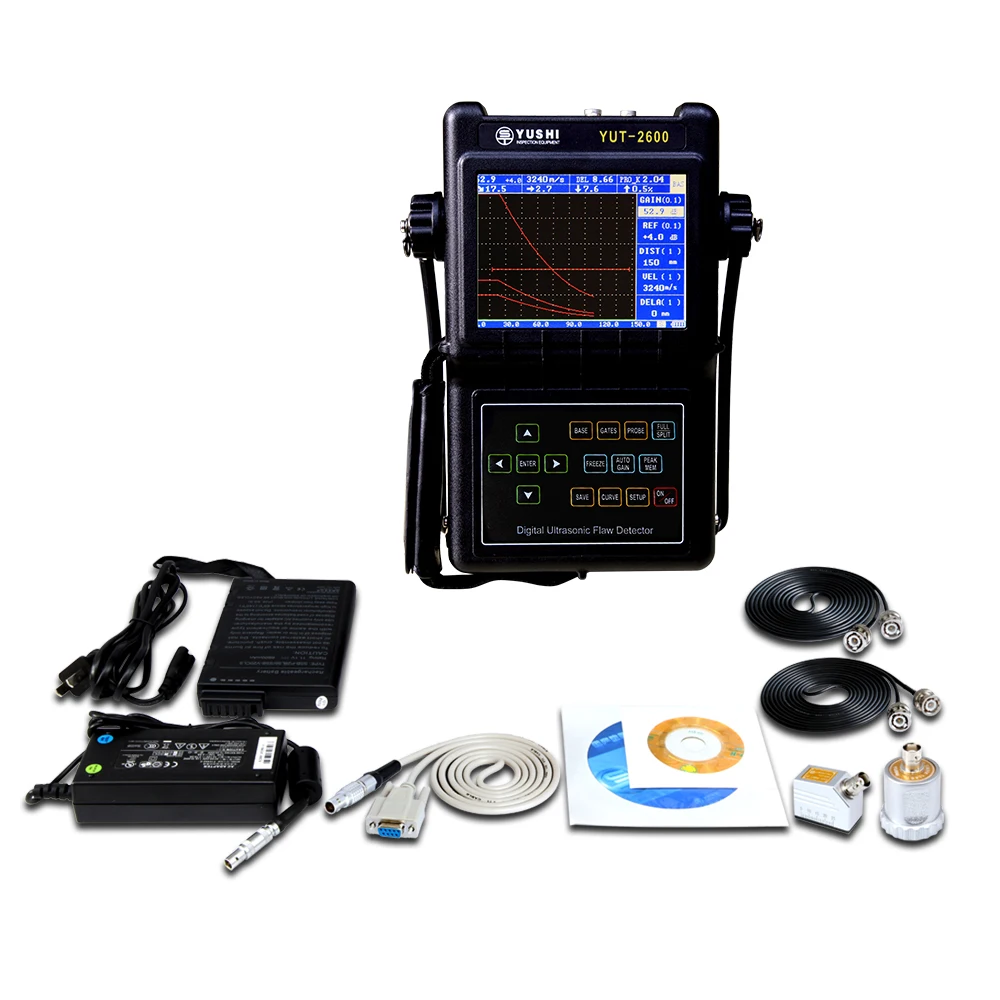

Product Configuration
•Ultrasonic Flaw Detector *1
•Lithium Battery*1
•Battery Charger*1
•Probe Cable*1
•Straight Beam Probe(Include Test Report)*1
•Angle Beam Probe(Include Test Report)*1
•Communication Cable*1
•Communication CD*1
•Demo CD*1

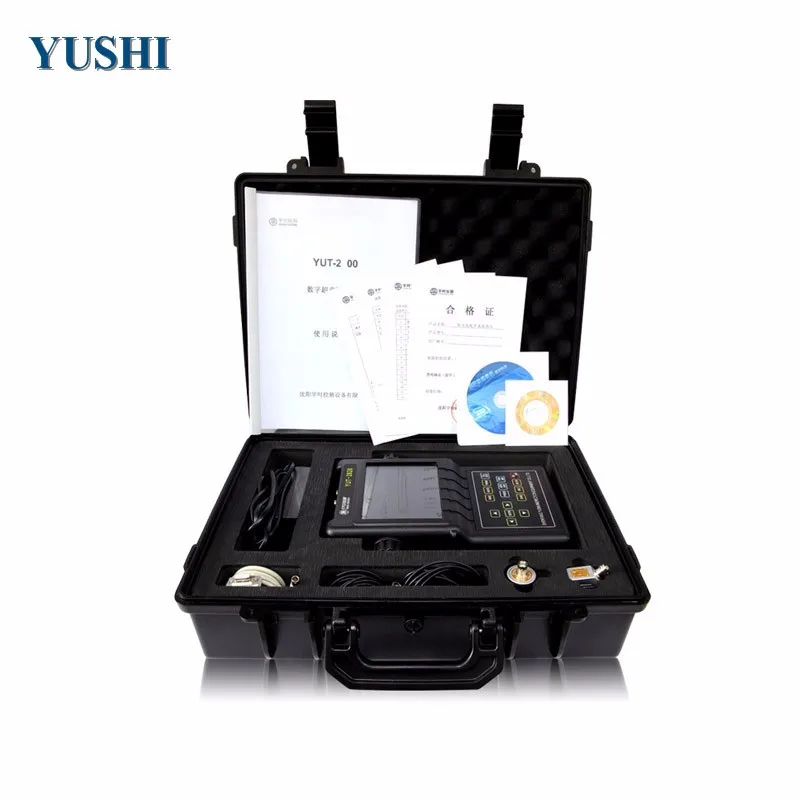

•Instrument Case*1
•Instrument Case Belt*1
•Operation Manual*1
•Certificate of Quality*1
•Warranty Card*1
•Tracking Card*1
•Packaging List*1
FAQ
Q1:Are you a trading company or a manufacturer？
A1:We are a manufacturer.
Q2:How long is the delivery time?
A2:1-3 working days after payment.
Q3:How to send the goods?
A3:We usually send samll order goods by express delivery such as FedEx, DHL etc. If you have your choice,we'll follow up as your suggests.
Q4:What is your terms of payment?
A4:Payment is 100% in advance. We can accept all kinds of payment terms.
Q5:Are you checking all your goods before delivery?
A5:Yes, all of products must be checked strictly before they leave the factory.
