TTL RS232 RS485 Wireless Data Transmitter and Receiver 433mhz 868mhz 915mhz Radio Frequency Module
- Category: >>>
- Supplier: Shenzhen Thingsend Communication Tech Co. Ltd.
Share on (1600533158424):
Product Overview
Description
Product Description
Product Introduction

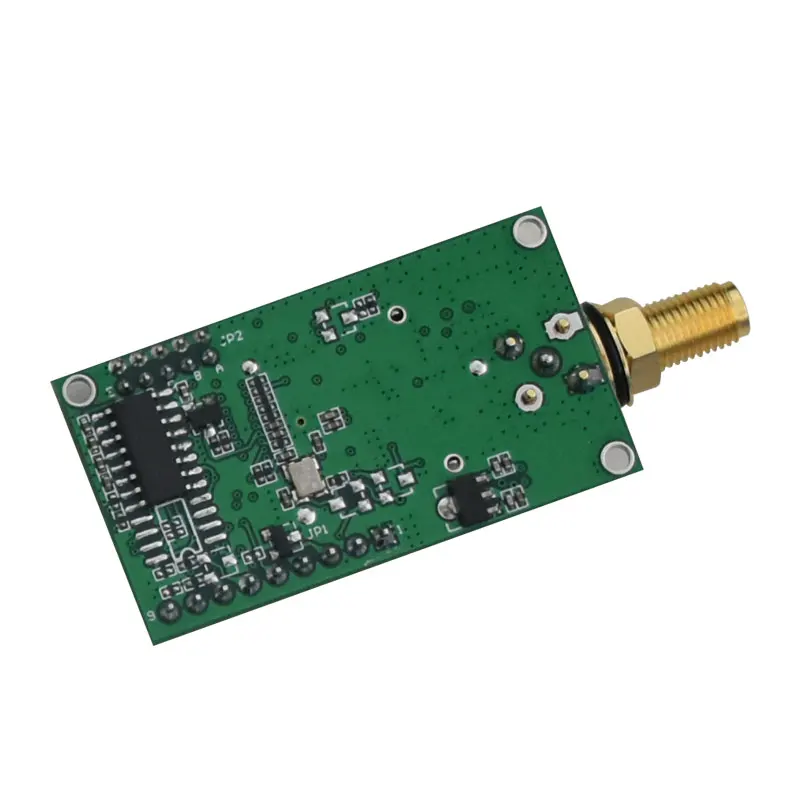

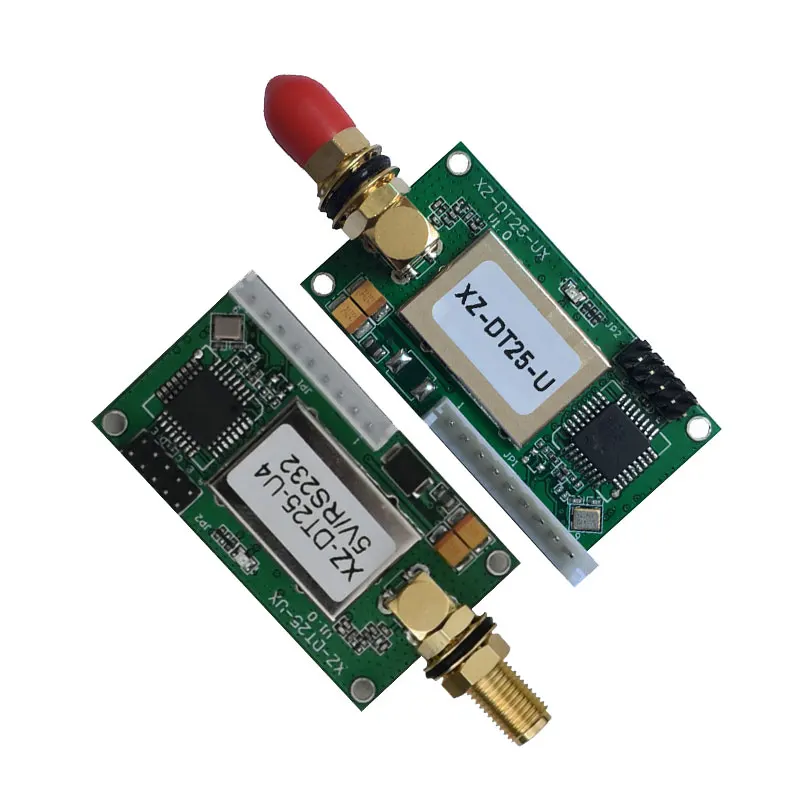

XZ-DT25-U(100mW) is a 100mw wireless transceiver, can act as both transmitter and receiver,and it can work with our XZ-DT25-H(502,35w,25w),XZ-DT25-M(8w,5W),XZ-DT25-L(2w,500mW).
Technical Parameters
XZ-DT25-U Parameters | ||
Frequency Range | 136～174MHz, 410～470MHz,868mhz,915mhz | |
Frequency stability | ≤±1.5PPm | |
Transmit Power | 100mW | |
Modulation | GFSK/4GFSK | |
Air Data Rate | 1200～115200bps settable by user | |
Baud Rate | 1200～115200bps settable by user | |
Interface | TTL/RS232/RS485 | |
Power Supply | 3.3-5V | |
Interface Data Format | 8E1/8N1/801 | |
Receiving Sensitivity | -125dBm@1200bps/-120dBm@9600bps | |
Channel Bandwidth | 10KHZ@1200bps/25KHZ@9600bps | |
Emission Current | ≤1.5A (Max Output Current is not less than 2A) | |
Receiving Current | ≤80mA | |
Working Temperature&humidity | -40℃～80℃ (industrial grade),10% to 90% relative humidity, no condensation | |
Dimension(L/W/H) | 32 X 20X 7mm | |
Weight(g) | ≤50g | |

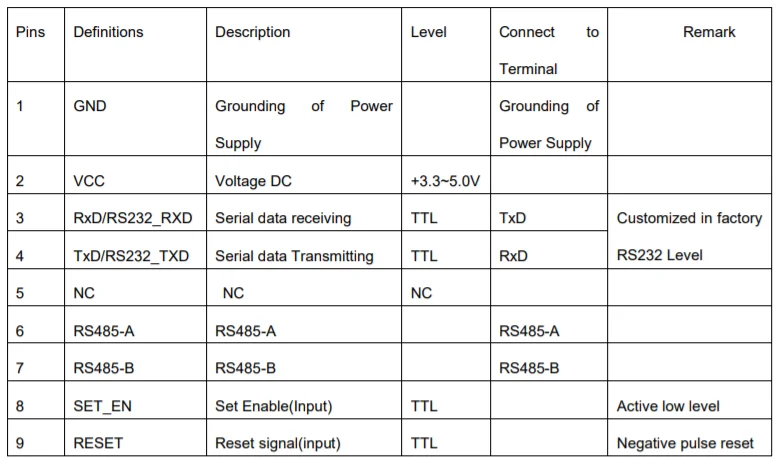

Pin Definitions
Software Program

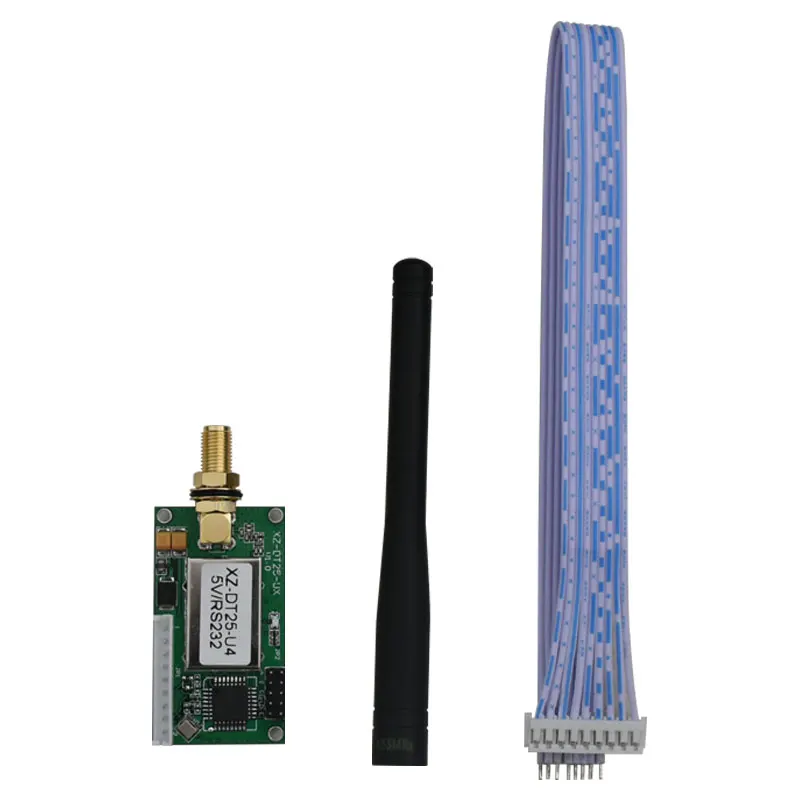

Package Includes
2*100mW receiver
2*rubber antenna
2*ECH9 pins cable
Company Profile
Packing
FAQ
Q1. Is Thingsend manufacturer or a trading company?
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
Q2. Can I customize the product?
A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported.
Q3. Can I have free samples?
A:Sorry,we do not provide free samples,but you can buy samples and test them for 2 weeks, and if you're not satisfied with them,then you can return the goods and we'll return your money.
Q4. What's the delivery time?
A:For prototype, it will be sent within 5 working days after you have paid. For bulk orders, it depends on your order quantity.
Q5: What is the payment terms?
A: PayPal, Western Union and T/T are preferred.
