Product Overview
Description
Product Description
MODEL NO.: SMART CB RADIO
Frequency: 24.715~30.105MHz
Function:
• Mode:EU,EUH,CE,UK,PL,E1,I2,DE,DEH.
• AM/FM mode.
• ASQ/SQ function.
• EMG channel CH9/19.
• Dual Watch.
CB band: 26.965-27.405MHz
10 Meter radio: 28.000-29.695MHz
Function:
• Mode:EU,EUH,CE,UK,PL,E1,I2,DE,DEH.
• AM/FM mode.
• ASQ/SQ function.
• EMG channel CH9/19.
• Dual Watch.
• VOX function
Certification:
FCC ID : T4K-SMART
CE certification
Specification
GENERAL | ||||||
Modulation Mode | AM/FM | |||||
Frequency Range | 28.000-29.695MHz | |||||
Frequency Tolerance | ±5.0ppm | |||||
Input Voltage | 13.2V | |||||
Dimensions | 109x104x25mm | |||||
Weight | 415g | |||||
Operating Temperature Range | -20℃ to +50℃ | |||||
Current Drain | Transmit | 3A MAX | ||||
Receive | Squelched 0.3A | |||||
VOL Max | 0.7A | |||||
Antenna Connector | UHF, SO-239 | |||||
TRANSMITTER | ||||||
Power Output | 15 Watts FM/ 8 Watts AM | |||||
Transmission interference | inferior to 4nW | |||||
Frequency Response | 300-3000Hz | |||||
Modulated signal distortion | inferior to 5% | |||||
Output Impedance | 50 ohms | |||||
RECEIVER | ||||||
Sensitivity | Less than 1uV for 10dB(S+N)/N | |||||
Image Rejection | 70dB | |||||
Adjacent Channel Rejection | 60dB | |||||
IF Frequencies | 1st 10.695MHz | |||||
2nd 455KHz | ||||||
Automatic Gain Control(AGC) | Less than 10dB change in audio | |||||
Output for inputs from 10 to 50000uV | ||||||
Squelch | less than 1uV | |||||
Audio Output Power | 1Watts at 8Ω less than 10% distortion | |||||
Frequency Response | 300-3000Hz | |||||
Recommend Products
Packing & Delivery
Package Includes:
CB Radio

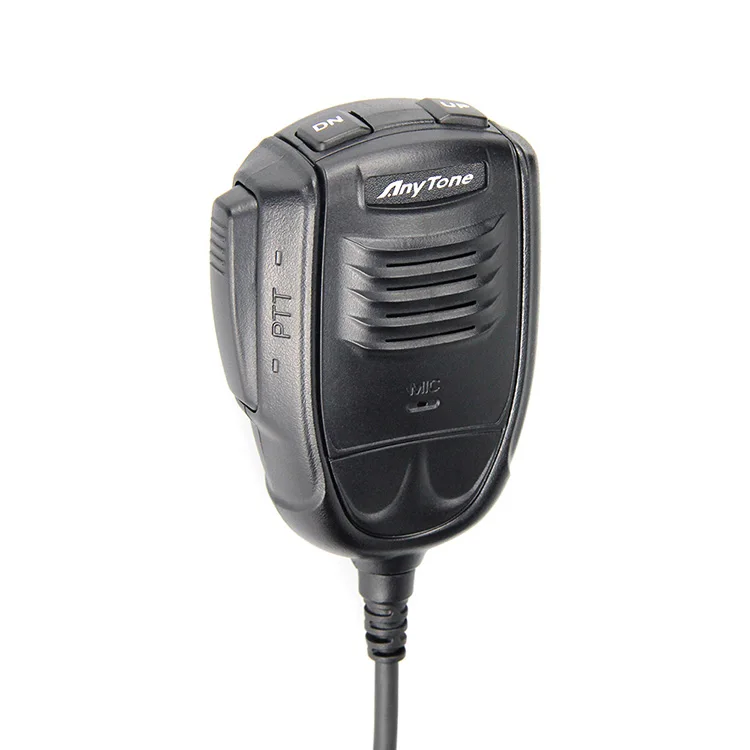

Microphone
Bracket
User manual
Accessories
