c6241 C6246 horizontal gap bed lathe machine / made in china lathe machine
- Category: >>>
- Supplier: Shandong Mainland Cnc Equipment Co. Ltd
Share on (1600533184108):
Product Overview
Description
Products Performance
Product description:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
Features:
1.The tail frame has the advantages of fast cam clamping device, high work efficiency.
2.The ultrasonic frequency quenched guideways have a good wear-resistance.
3.Can be used for processing cylindrical or conical surface, end face , the inner hole,inch or metric screw thre
2.The ultrasonic frequency quenched guideways have a good wear-resistance.
3.Can be used for processing cylindrical or conical surface, end face , the inner hole,inch or metric screw thre

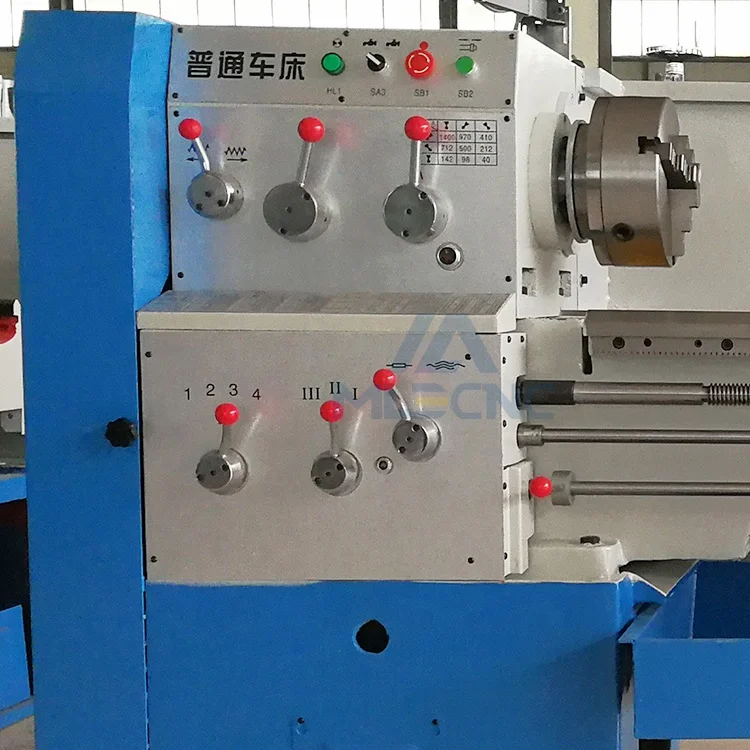

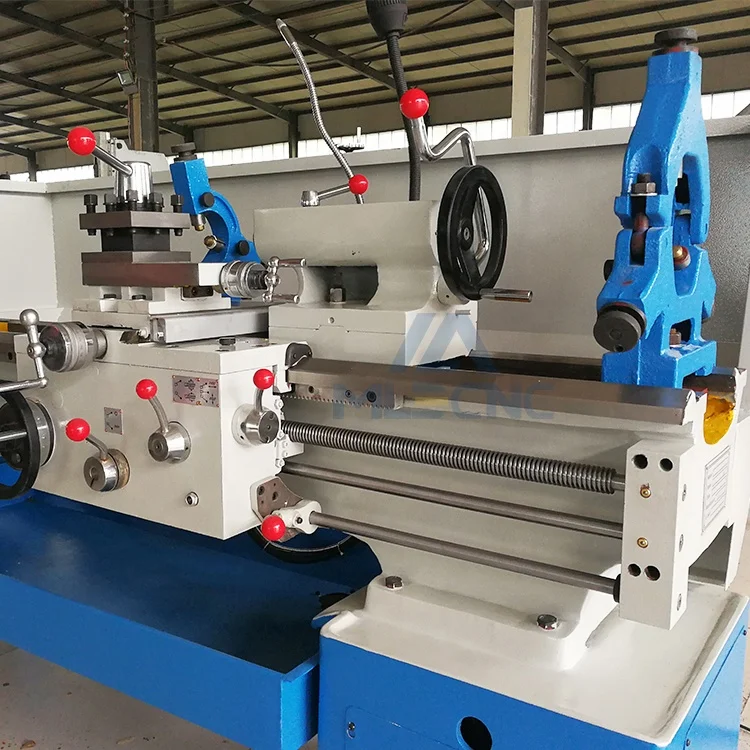

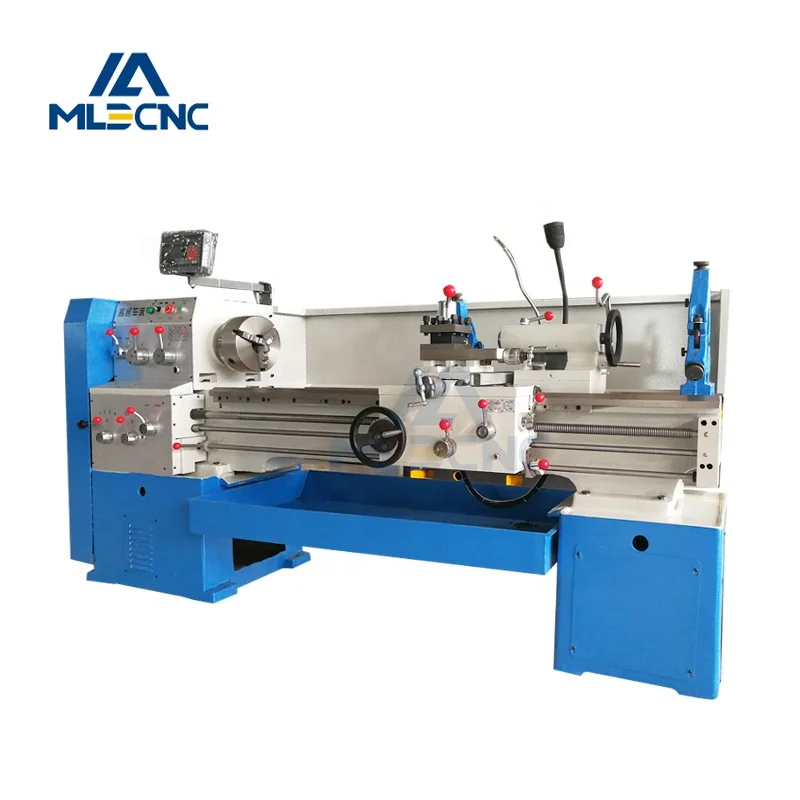

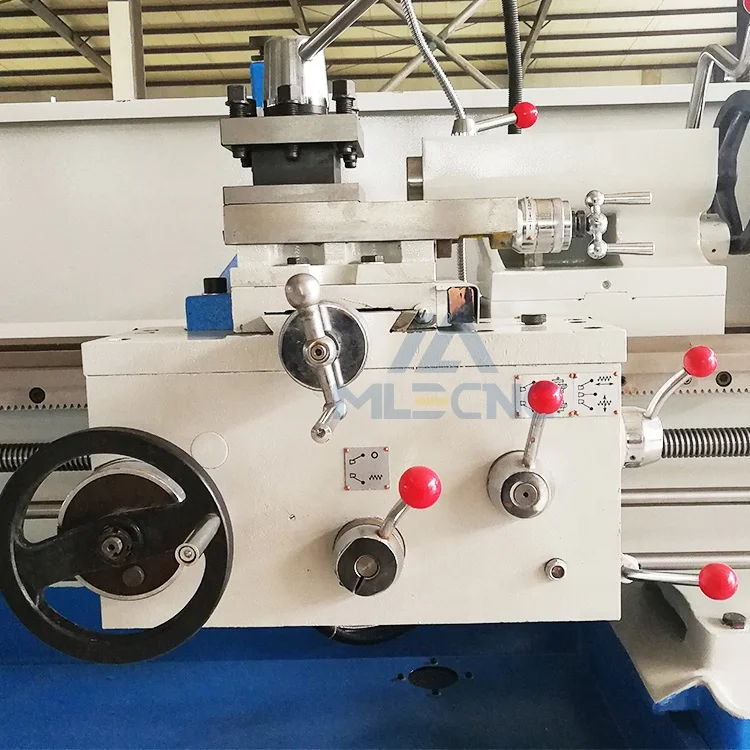

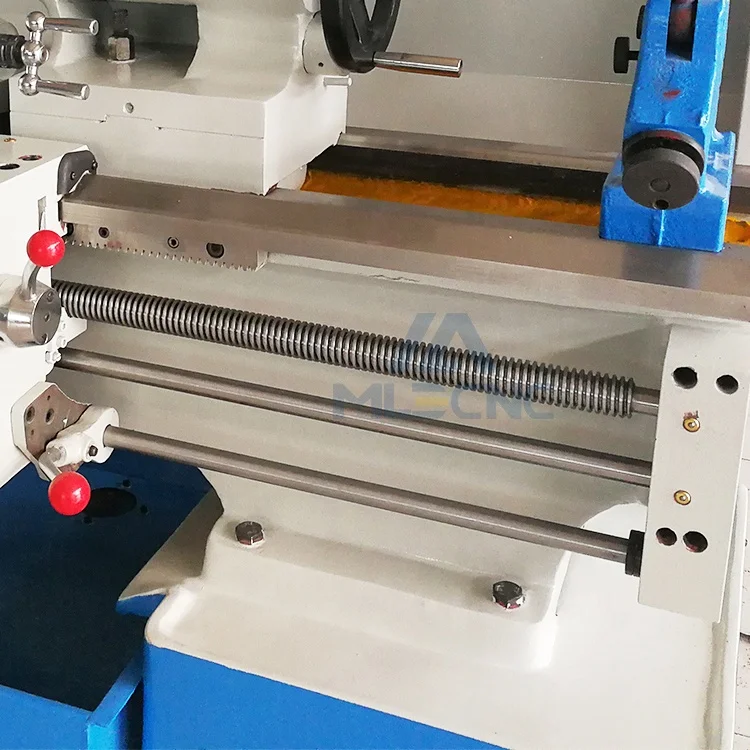

Machine Photos
Product Paramenters
Specifications | C6241 | C6246 |
Swing over bed | 410mm(16") | 460mm(18") |
Swing in gap diameter | 640mm(25-1/8") | 690mm(27-1/8") |
Distance between centers | 1000mm(40")/1500mm(60")/2000mm(80") | 1000mm(40")/1500mm(60")/2000mm(80") |
Valid length of gap | 165mm(6-1/2") | 165mm(6-1/2") |
Width of bed | 300mm(11-13/16") | 300mm(11-13/16") |
Spindle nose | D1-6 | D1-6 |
Spindle bore | 58mm(2-1/4") | 58mm(2-1/4") |
Taper of spindle bore | No.6 Morse | No.6 Morse |
Range of spindle speed | 12 changes, 25～2000r/min | 12 changes, 25～2000r/min |
Compound rest travel | 128mm(5") | 128mm(5") |
Cross slide travel | 285mm(11-1/4") | 285mm(11-1/4") |
Max.section of tool | 25×25mm(1"×1") | 25×25mm(1"×1") |
Lead screw thread | 6mm or 4T.P.I. | 6mm or 4T.P.I. |
Longitudinal feeds range | 42 kinds, 0.031～1.7mm/rev(0.0011～0.0633"/rev) | 42 kinds, 0.031～1.7mm/rev(0.0011～0.0633"/rev) |
Cross feeds range | 42 kinds, 0.014～0.784mm/rev(0.00033"～0.01837"/rev) | 42 kinds, 0.014～0.784mm/rev(0.00033"～0.01837"/rev) |
Threads metric pitches | 41 kinds, 0.1～14mm | 41 kinds, 0.1～14mm |
Threads imperial pitches | 60 kinds, 2～112T.P.I. | 60 kinds, 2～112T.P.I. |
Threads diametral pitches | 50 kinds, 4～112DP | 50 kinds, 4～112DP |
Threads module pitches | 34 kinds, 0.1～7MP | 34 kinds, 0.1～7MP |
Taistock sleeve dia. | 60mm(2-5/16") | 60mm(2-5/16") |
Taistock sleeve travel | 130mm(5") | 130mm(5") |
Taistock taper | No.4 Morse | No.4 Morse |
Main motor power | 5.5kW(7.5HP) 3PH | 5.5kW(7.5HP) 3PH |
Coolant pump power | 0.1kW(1/8HP) 3PH | 0.1kW(1/8HP) 3PH |
Overall dimension(L×W×H) | 220/275/325×108×134cm | 220/275/325×108×134cm |
Packing size(L×W×H) | 225/280/330×112×162cm | 225/280/330×112×162cm |
Net weight | 1580/1745/1900kg | 1645/1810/1965kg |
Gross weight | 1845/2050/2230kg | 1910/2115/2295kg |
Standard Accessories
Standard Accessories:
3-jaw chuck
Dead center
Center sleeve
Foundation bolts
Tool box
Dead center
Center sleeve
Foundation bolts
Tool box
Steady Rest
Follow
Optional Accessories:
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Face plate
Quick change tool post
Taper turning attachment
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Face plate
Quick change tool post
Taper turning attachment
