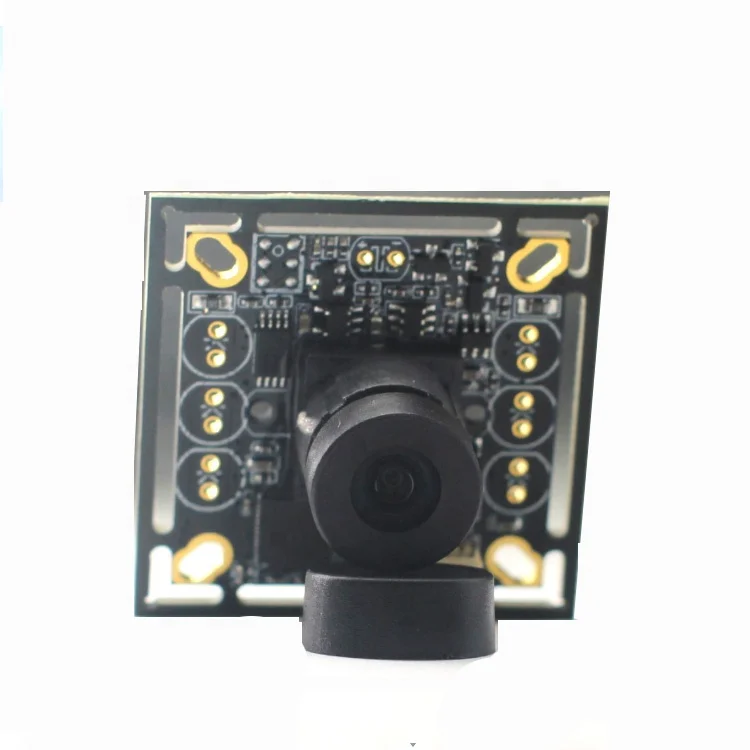

AR0144 sensor 1280x800 60fps hd Global Shutter mini Industrial Inspection Machine usb network camera module
- Category: >>>
- Supplier: Shenzhen Wenqiao Electronics Limited
Share on (1600533293086):
Product Overview
Description
Image Sensor | AR0144 |
Max. Resolution | 1280(H) *800 (V) |
Pixel Size | 3.0µm×3.0µm |
Focusing Type | Fixed Focus |

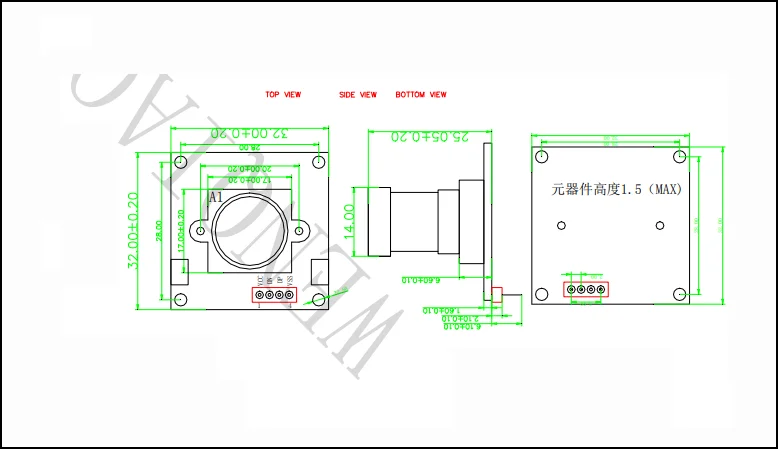

Board Size | 32.0mm×32.0mm×25.05mm |
Compression format | MJPEG / YUY2(YUYV) |
Interface | USB2.0 |
Lens Parameter | Size: 1/4, FOV: 67 Degrees |
IR filter: 650±10nm/850±10nm/940±10nm(selectable) | |
Resolution & frame | 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG |
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG | |
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE | |
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG | |
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG | |
640x480@ 30fps YUV / 320x240@ 30fps YUV | |
1920*1080@5fps YUV | |
1280*720@10fps YUV | |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
Power Voltage | DC5V |
Power supply | USB bus power 5V |
Connector | USB 5pin 1.25 |
Operating System support | Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) |
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC | |
AGC/AEC/Whiter Balance | Auto |
Application | Face Recognition,Laptop,Cars,Medical Devices,Industrial Devices |
Q1:Can you provide customized service?
A1: Yes.
Q2:What is the MOQ of an order?
A2: 1pcs.
Q3:How can we guarantee quality?
A3: Always a pre-production sample before mass production;
Always final Inspection before delivery;
Tow years warranty.
Always final Inspection before delivery;
Tow years warranty.
Q4:Why choose us?
A4: Our group is the top 3 manufacturer in the word in camera module industry.
