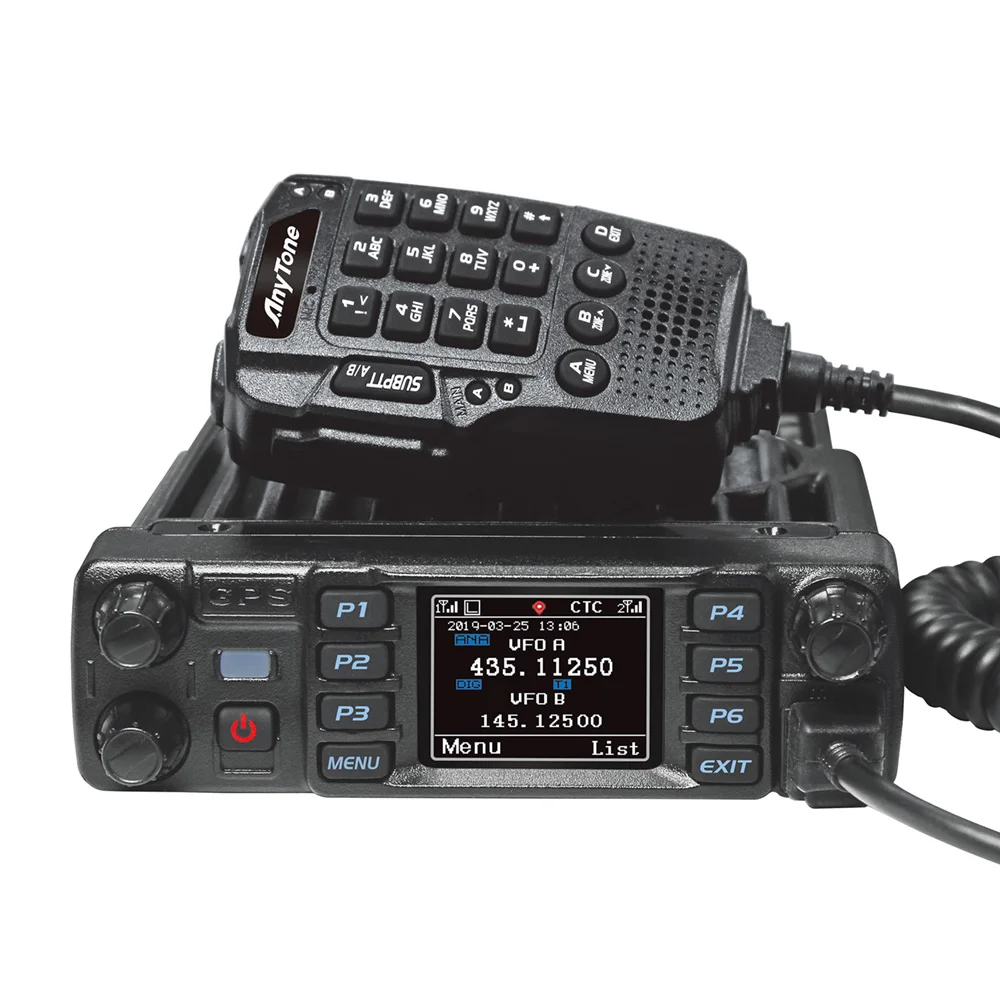

Anytone AT D578UV PLUS Dual Band Amateur Radio with DTMF microphone Walkie Talkie Cross band Repeater function
- Category: >>>
- Supplier: Qixiang Electron Science & Technology Co. Ltd.
Share on (1600533405717):
Product Overview
Description
Product Description
MODEL NO.: AT-D578UV Plus
Functions:
#BT function
New BT feature compatible with many newer car entertainment systems and BT devices. It cannot be guaranteed that it will work with all of these devices. Anytone will continue improving the BT function to allow more device and car models in the future. No time frame for these future BT updates is available.
#Roaming New Built-in Roaming Feature
#APRS (GPS) DMR-APRS Tx/Rx and Analog APRS Tx/Rx, (GPS)
#Additional Memory Larger (2G) Memory for Future Enhancements
#Aircraft Receive 108-136 MHz "AM" Aircraft Receive Feature
#TFT Display Background Display and Font Colors are User changeable
#Digital Monitor Monitor One or Two Timeslots
#Zone Select User Selectable Zones from Keypad
#Auto RX Mode Receiver Auto Selects to incoming Digital or Analog Signal
#GPS Built-in GPS feature
#Memory Channels 4,000 channels
#DMR Talk Groups 10,000
#Digital Contacts 500,000 (complete worldwide database from DMR-MARC)
#Power Levels VHF (144-148 MHz): 50/25/10/1 Watts, 220 (222-225 MHz) 5/1 Watts, UHF (400-480 MHz): 45/25/10/1 Watts
#Zones 250 zones, up to 250 channels per zone.
#Display 1.77 inch color TFT Screen with selectable dual channel or single channel display
#Bandwidth 12.5 / 25.0 kHz Analog, and 12.5 kHz DMR
#Import/Export Enhanced CPS allows direct input and export of channels, digital IDs and talkgroups #Amateur Radio Ideal for Amateur Radio DMR networks and analog frequencies. Software importable worldwide amateur contact database.
#DMR Compatibility Supports both Tier I and Tier II operation, making it compatible with DMR repeaters that utilize two-slot TDMA technology
#Amateur Radio Also operational on amateur radio DMR networks and analog frequencies. Software importable worldwide amateur contact database. #Cross-band Repeat Built-in Cross-band repeat function
#Programmable FCC 47CFR90.203 requires the keypad locked in the shipping configuration. Software keypad unlocking and re-programming are available with the included USB Programming Cable.
#Speaker Connection Single and Dual Speaker output
#Quiet Tones CTCSS/DCS tone squelch with split tone and custom tone capability
#Frequency Range 136-174 MHz Rx, 144-148 MHz Tx / 400-480 MHz Rx, 420-450 MHz Tx / 222-225 MHz Rx/Tx / 108-136 MHz Rx
#Package Includes Dual-band / Tri-band VHF/UHF Mobile Radio, Mounting Bracket, Microphone w/ keypad, BT PTT button and charging cable, free USB Programming cable and downloadable software, 6 ft fused DC power cable, user manual.
#Certifications Amateur FCC Part 97 Certified, FCC ID: T4K-D578UV
New BT feature compatible with many newer car entertainment systems and BT devices. It cannot be guaranteed that it will work with all of these devices. Anytone will continue improving the BT function to allow more device and car models in the future. No time frame for these future BT updates is available.
#Roaming New Built-in Roaming Feature
#APRS (GPS) DMR-APRS Tx/Rx and Analog APRS Tx/Rx, (GPS)
#Additional Memory Larger (2G) Memory for Future Enhancements
#Aircraft Receive 108-136 MHz "AM" Aircraft Receive Feature
#TFT Display Background Display and Font Colors are User changeable
#Digital Monitor Monitor One or Two Timeslots
#Zone Select User Selectable Zones from Keypad
#Auto RX Mode Receiver Auto Selects to incoming Digital or Analog Signal
#GPS Built-in GPS feature
#Memory Channels 4,000 channels
#DMR Talk Groups 10,000
#Digital Contacts 500,000 (complete worldwide database from DMR-MARC)
#Power Levels VHF (144-148 MHz): 50/25/10/1 Watts, 220 (222-225 MHz) 5/1 Watts, UHF (400-480 MHz): 45/25/10/1 Watts
#Zones 250 zones, up to 250 channels per zone.
#Display 1.77 inch color TFT Screen with selectable dual channel or single channel display
#Bandwidth 12.5 / 25.0 kHz Analog, and 12.5 kHz DMR
#Import/Export Enhanced CPS allows direct input and export of channels, digital IDs and talkgroups #Amateur Radio Ideal for Amateur Radio DMR networks and analog frequencies. Software importable worldwide amateur contact database.
#DMR Compatibility Supports both Tier I and Tier II operation, making it compatible with DMR repeaters that utilize two-slot TDMA technology
#Amateur Radio Also operational on amateur radio DMR networks and analog frequencies. Software importable worldwide amateur contact database. #Cross-band Repeat Built-in Cross-band repeat function
#Programmable FCC 47CFR90.203 requires the keypad locked in the shipping configuration. Software keypad unlocking and re-programming are available with the included USB Programming Cable.
#Speaker Connection Single and Dual Speaker output
#Quiet Tones CTCSS/DCS tone squelch with split tone and custom tone capability
#Frequency Range 136-174 MHz Rx, 144-148 MHz Tx / 400-480 MHz Rx, 420-450 MHz Tx / 222-225 MHz Rx/Tx / 108-136 MHz Rx
#Package Includes Dual-band / Tri-band VHF/UHF Mobile Radio, Mounting Bracket, Microphone w/ keypad, BT PTT button and charging cable, free USB Programming cable and downloadable software, 6 ft fused DC power cable, user manual.
#Certifications Amateur FCC Part 97 Certified, FCC ID: T4K-D578UV
Specification
General | value | |||
Frequency Range | Dual band(US Part90):136-174MHz(V),400-480MHz(U) Europe: 144-146MHz(V),430-440MHz(U) Australia: 144-148MHz(V), 420-450MHz(U) Tri band(US):144-148MHz(V), 222-225MHz, 420-450MHz(U) | |||
Channel Capacity | 4000 channels | |||
Channel Spacing | 25KHz (Wide Band) ,12.5KHz (Narrow Band) | |||
Phase-locked Step | 5KHz, 6.25KHz | |||
Operating Voltage | 13.8V DC ±15% | |||
Frequency Stability | ±2.5ppm | |||
Operating Temperature | -20℃~+60℃ | |||
Power Supply Current Requirement (min) | 15 Amps | |||

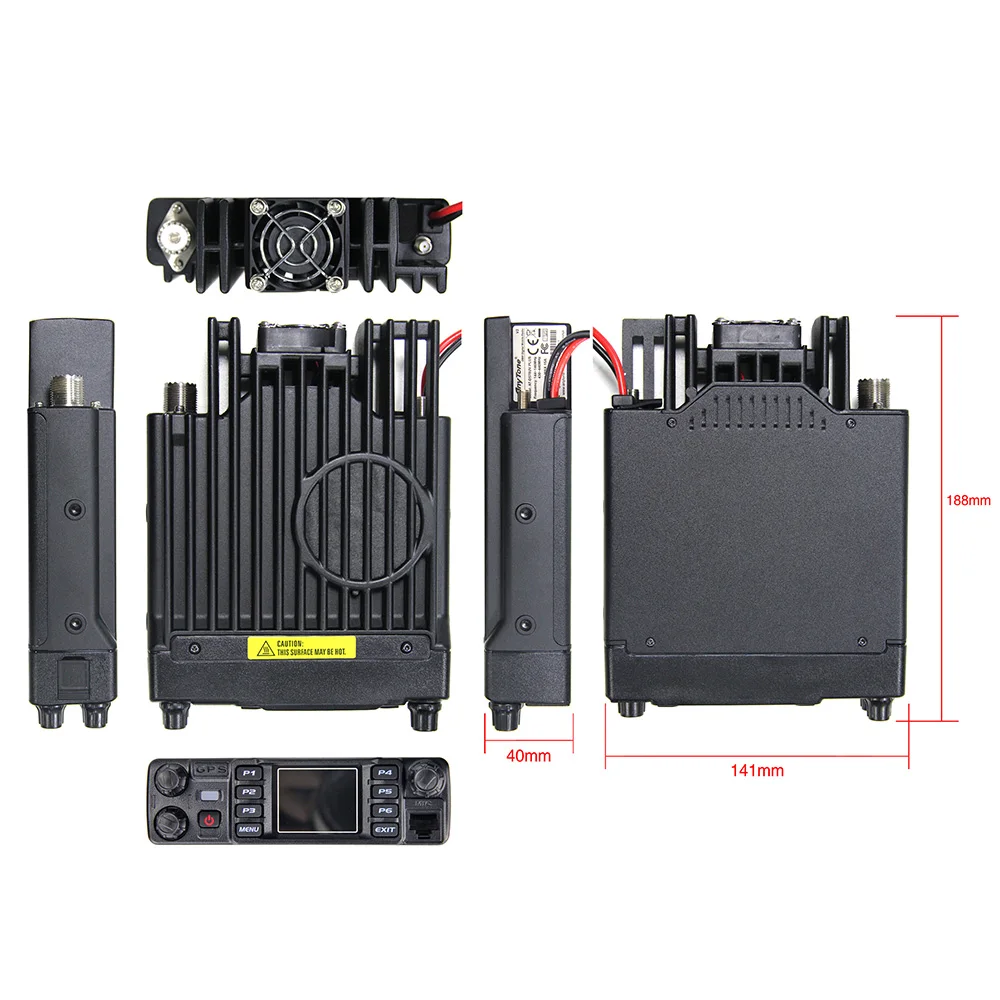

Size | 188x141x40mm (radio only) | |||
Weight | 1.04kg (without accessories) | |||
Receiving Part | ||||
Wide band | Narrow band | |||
Sensitivity(12dB SINAD) | ≤0.25μV | ≤0.35μV | ||
Digital Sensitivity | 0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) | |||
Adjacent Channel Selectivity | ≥70dB | ≥60dB | ||
Spurious Emission | ≤-57dB | ≤-57dB | ||
Spurious Rejection | ≥70dB | ≥70dB | ||
Blocking | 84db | |||
Hum & Noise | ≥45dB | ≥40dB | ||
Audio Distortion | ≤5% | |||
Audio Power Output | 2W/8Ω | |||
Transmitting Part | ||||
Wide band | Narrow band | |||
Power Output | Turbo | 55W at 144-148MHz 40W at 430-440MHz | ||
High | UHF/VHF 25W | |||
Middle | UHF/VHF 10W 222-225MHz 5W | |||
Low | UHF/VHF/225MHz 1W | |||
Modulation | ±5.0KHz@25KHz | ±2.5KHz@12.5KHz | ||
Adjacent Channel Power | ≥70dB | ≥60dB | ||
Hum & Noise | ≥40dB | ≥36dB | ||
Spurious Emission | ≤-36dBm | ≤-36dBm | ||
4FSK Digital Modulation | 12.5KHz（data）7K60FXD 12.5KHz（data+voice）7K60FXE | |||
Audio Distortion | ≤5% | |||
Error rate | ≤3% | |||
Details Images
Recommend Products
Packing & Delivery

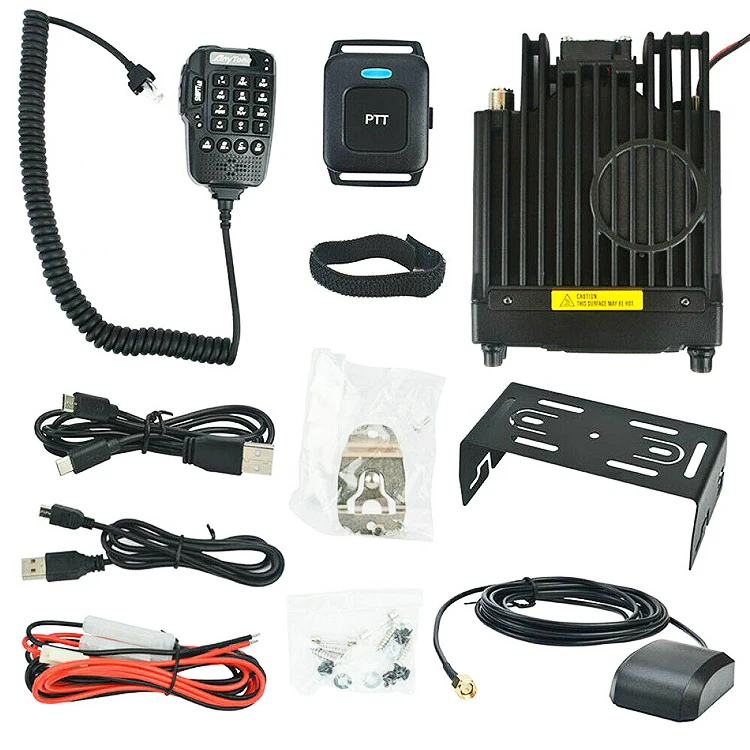

Package Includes:
Dual-band VHF/UHF Radio

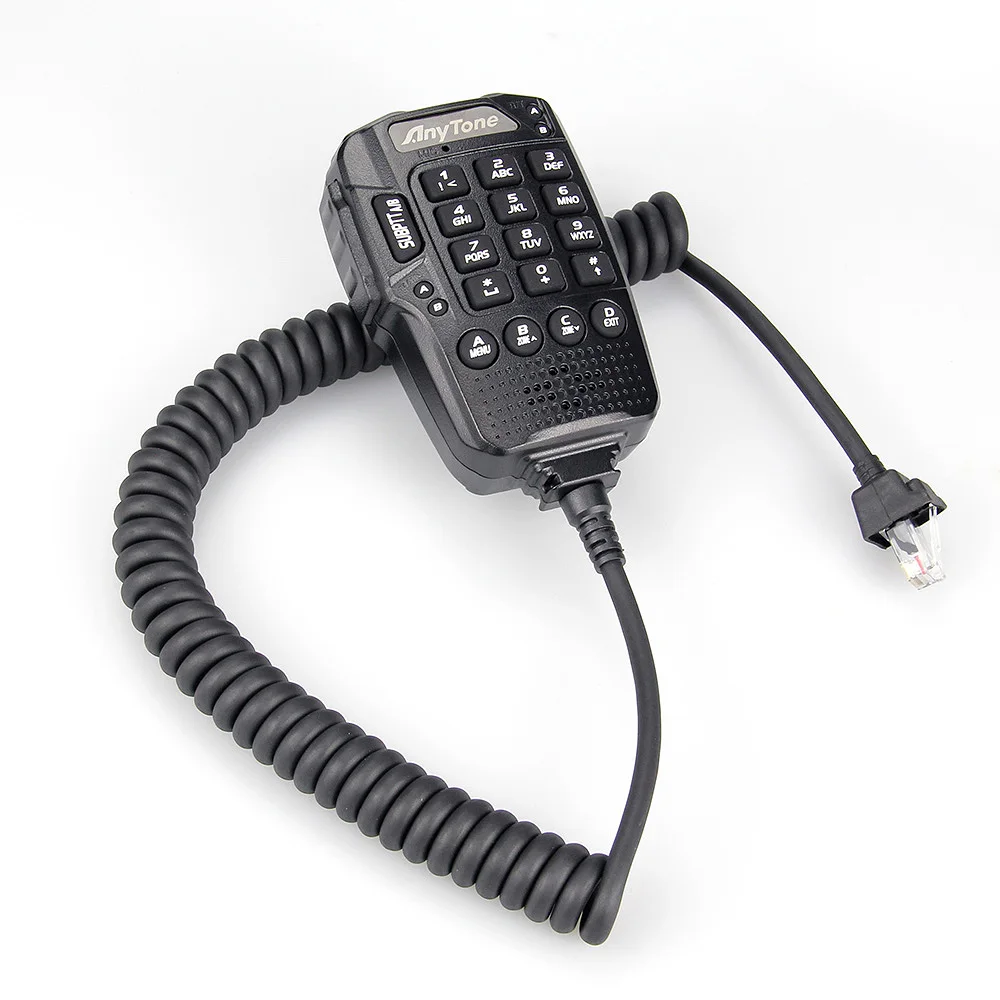

Microphone
Charger
Dual-band antenna
Belt clip

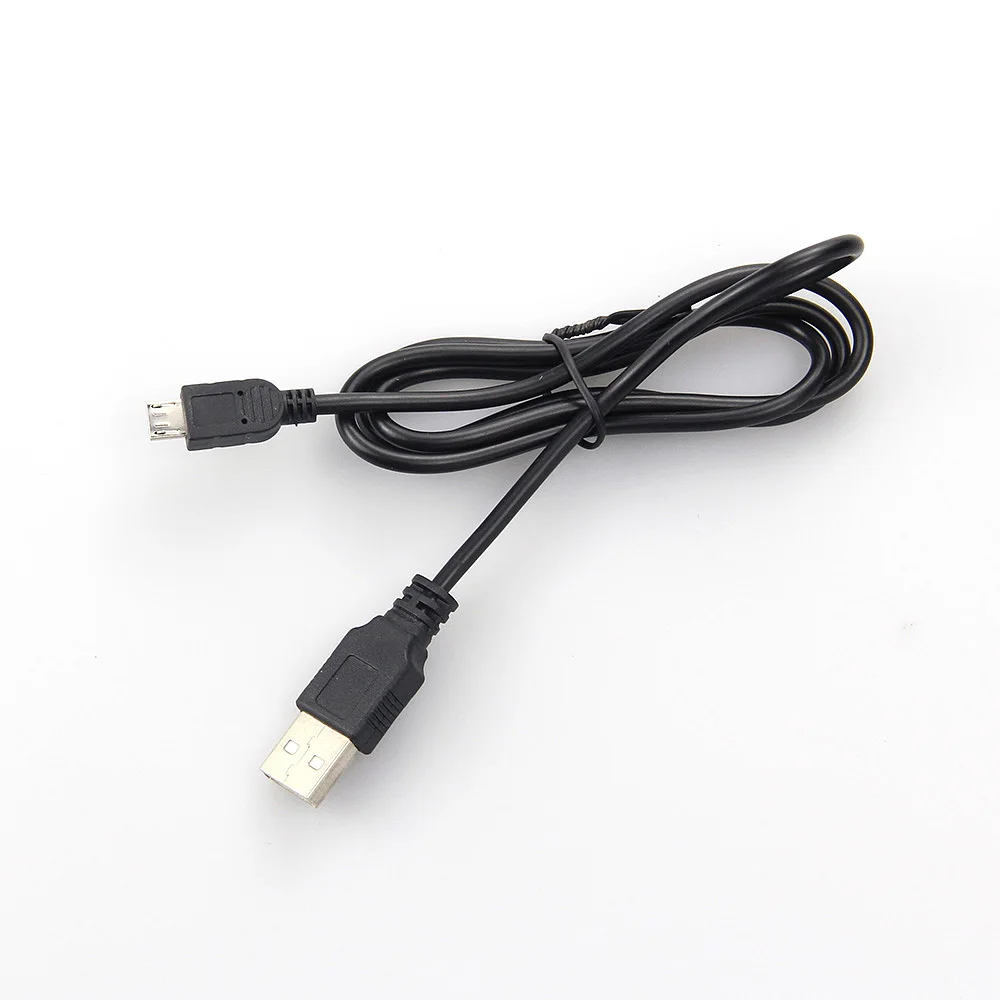

Free USB Programming cable and downloadable software
User manual.
Dual-band VHF/UHF Radio
Microphone
Charger
Dual-band antenna
Belt clip
Free USB Programming cable and downloadable software
User manual.

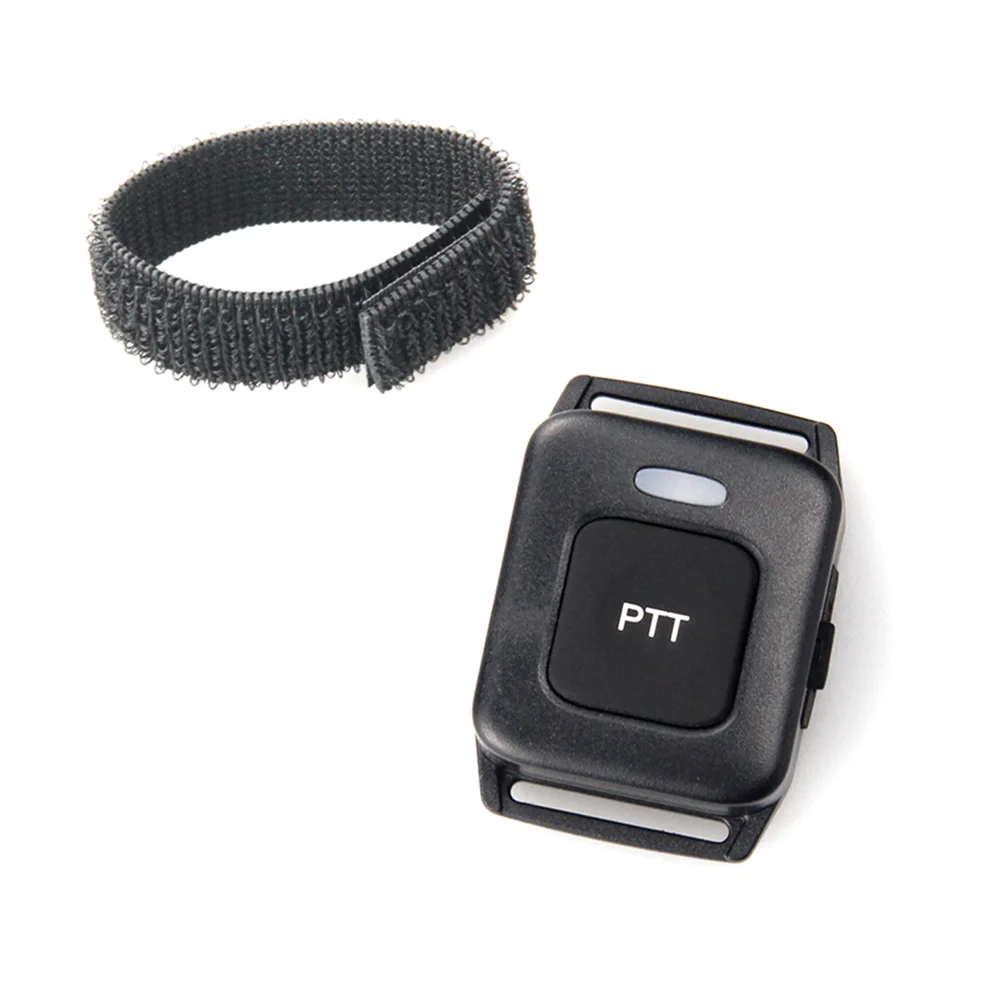

BT PTT button

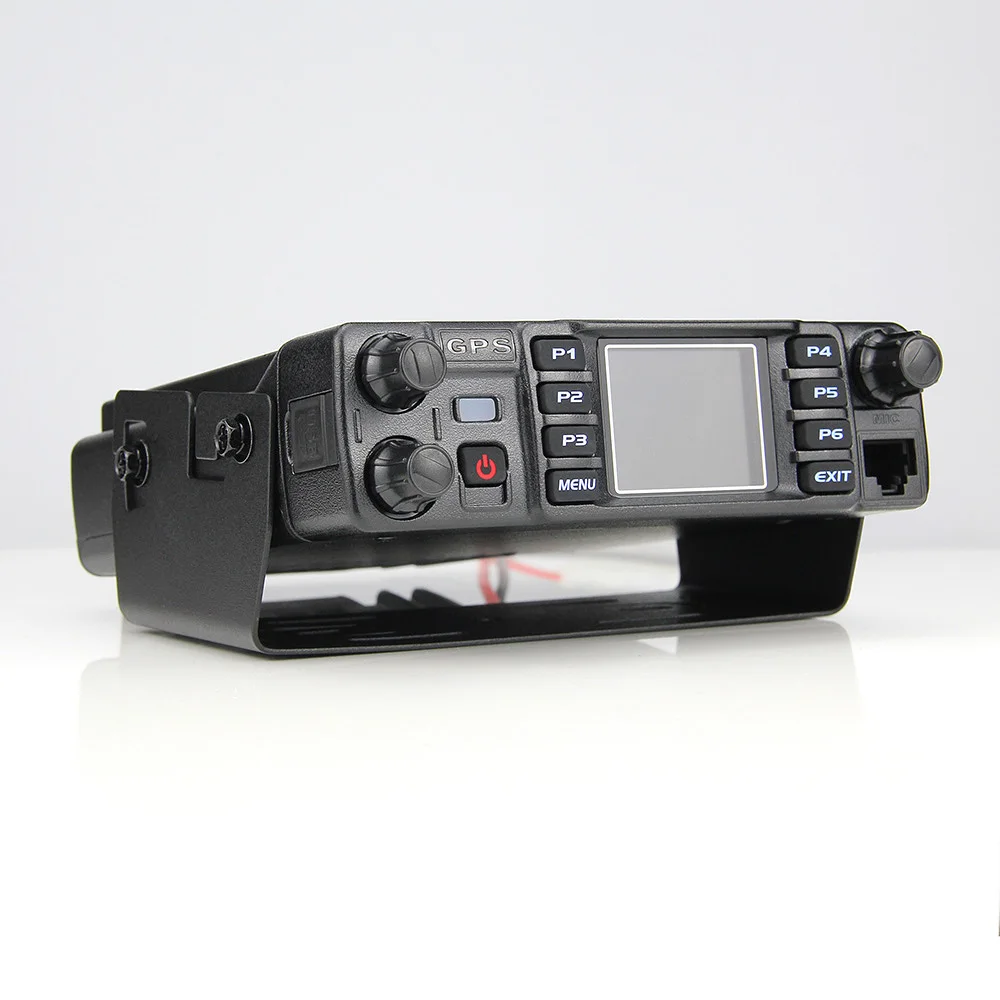

Brasket and accessories
