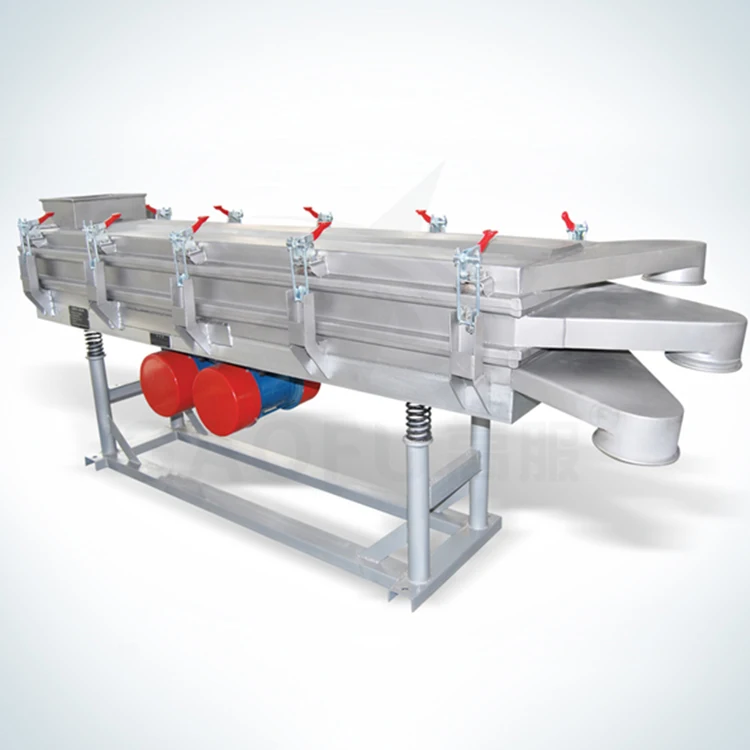

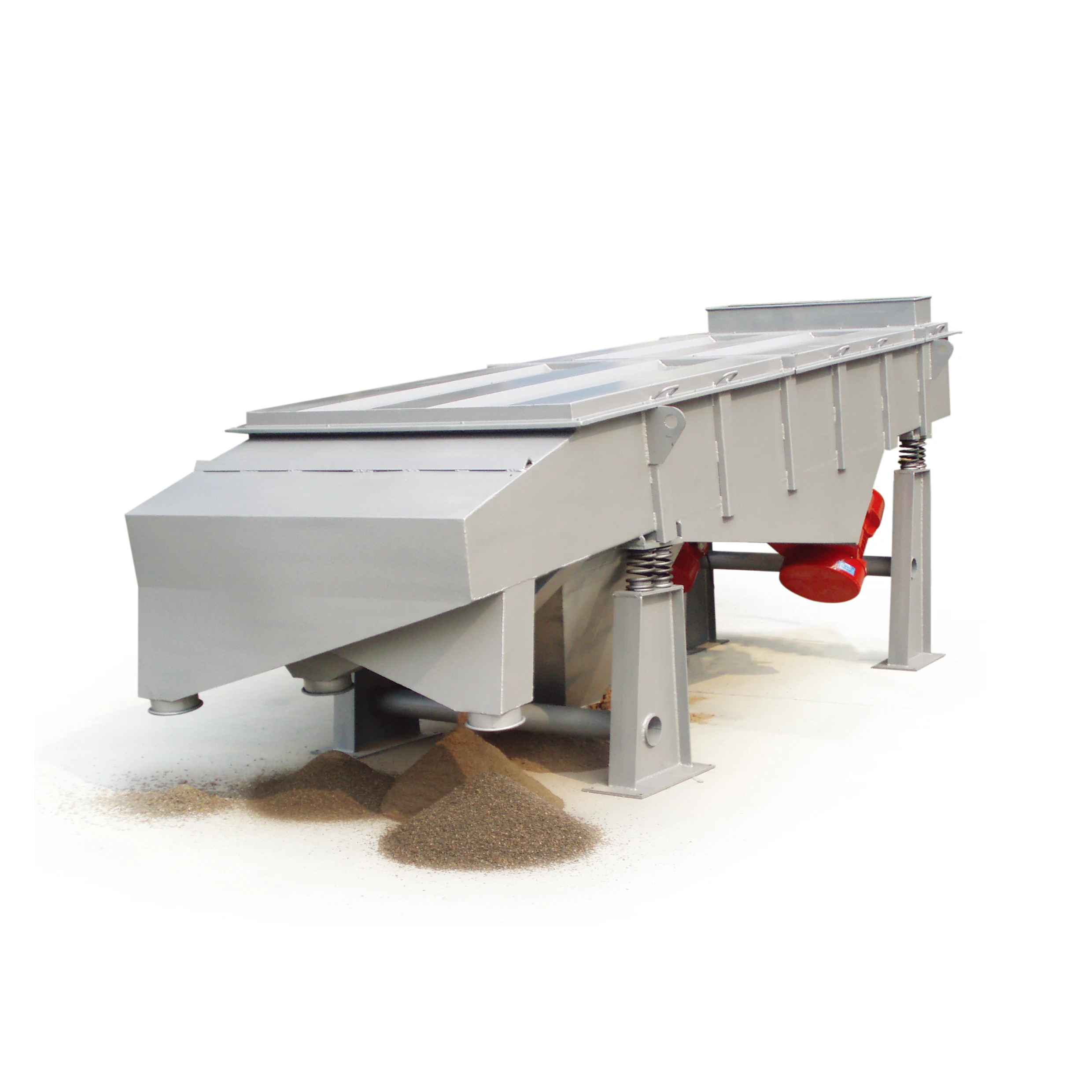

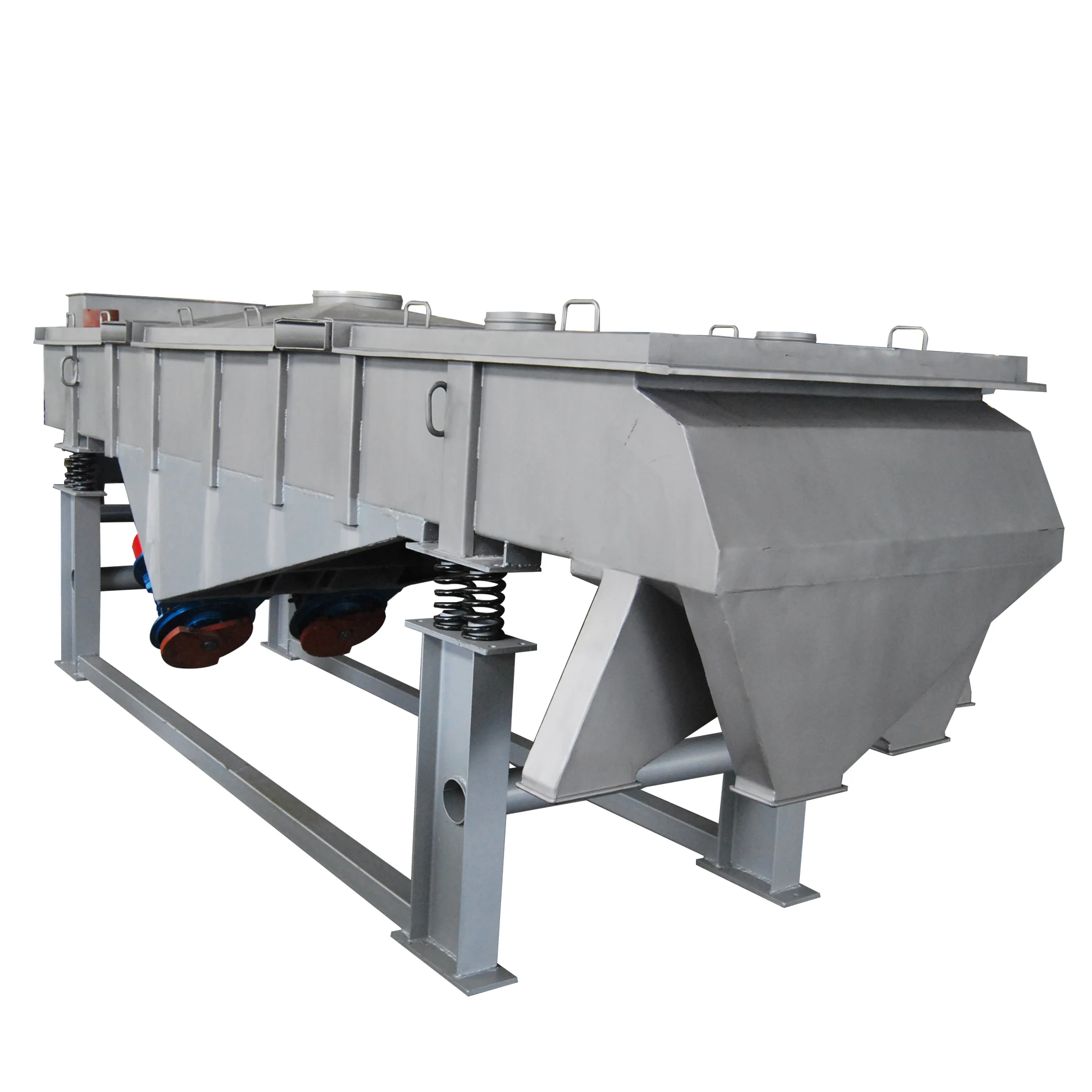

XXNX Hot fully automatic sand sieving machine technical sand vibrating screening machine
- Category: >>>
- Supplier: Xinxiang Dezhong Intelligent Equipment Co. Ltd
Share on (1600533427562):
Product Overview
Description

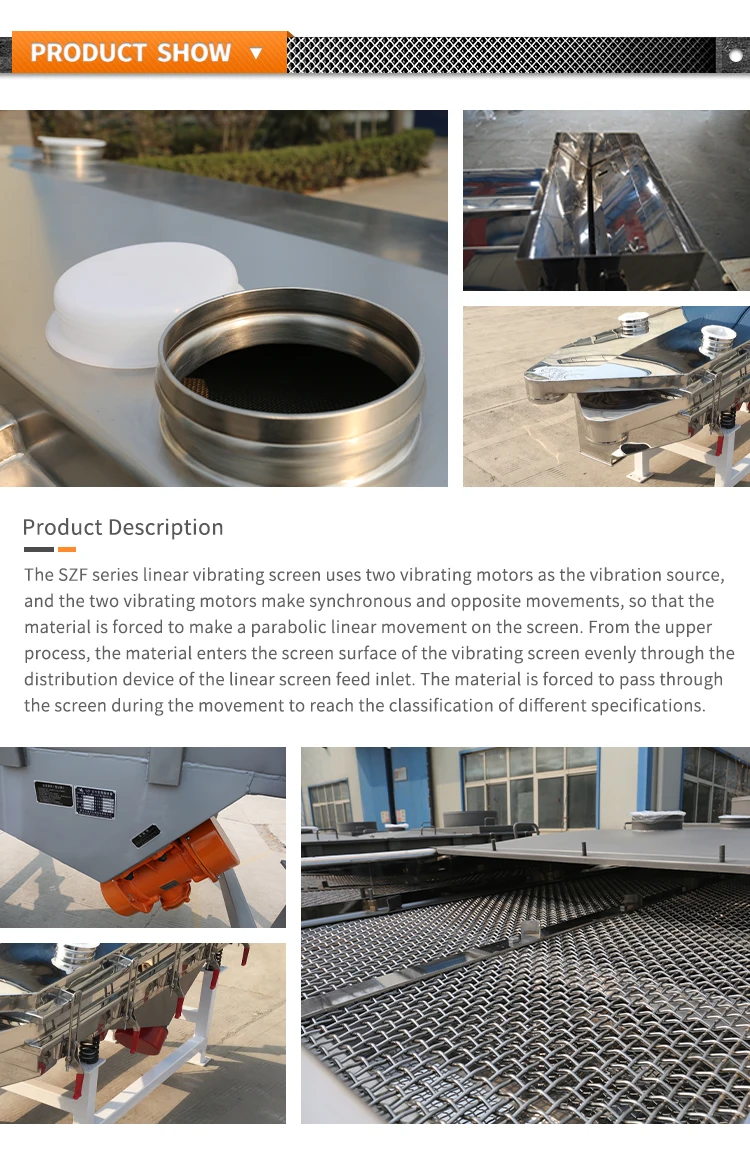

Product Description
Linear vibrating screen is driven by double vibrating motor. When the two vibrating motors are rotated synchronously and counter-rotating, the exciting force generated by the eccentric blocks cancels each other out in the direction parallel to the motor axis, and superimposes a resultant force in the direction perpendicular to the motor axis, so the motion trajectory of the screen machine for a straight line. The two motor shafts have an inclination angle relative to the screen surface. Under the combined force of the exciting force and the self-gravity of the material, the material is thrown up on the screen surface and moves forward in a straight line, so as to achieve the purpose of screening and grading the material.
Product Paramenters
Model | Size （mm） | Granularity (mm) | Inclined angle | Amplitude (mm) | Layers | Power (KW ) |
SZF--520 | 500*2000 | 2*(0.4-0.75) | ||||
SZF--525 | 500*2500 | 2*(0.4-0.75) | ||||
SZF--1020 | 1000*2000 | 2*(0.4-0.75) | ||||
SZF--1025 | 1000*2500 | 2*(0.4-1.1) | ||||
SZF--1030 | 1000*3000 | 2*(1.1-1.5) | ||||
SZF--1040 | 1000*4000 | 2*(1.1-1.5) | ||||
SZF--1235 | 1200*3500 | 2*(1.1-2.2) | ||||
SZF--1250 | 1200*5000 | 2*(1.1-2.2) | ||||
SZF--1535 | 1500*3500 | 2*(1.1-2.2) | ||||
SZF--1565 | 1500*6500 | 2*(2.2-3.7) | ||||
SZF--1845 | 1800**4500 | 0.074-15 | 2*(2.2-3.7) | |||
SZF--2050 | 2000*5000 | 2*(2.2-3.7) | ||||
SZF--2260 | 2200*6000 | 2*(2.2-3.7) |
Application
Metallurgy Abrasives industry:
gravel ,sand ,crushed stone , quartz sand ,etc
gravel ,sand ,crushed stone , quartz sand ,etc
Chemical industry
Plastic ,rubber ,pet flakes ,etc
Other industry
Rice bran ,wood chips ,etc

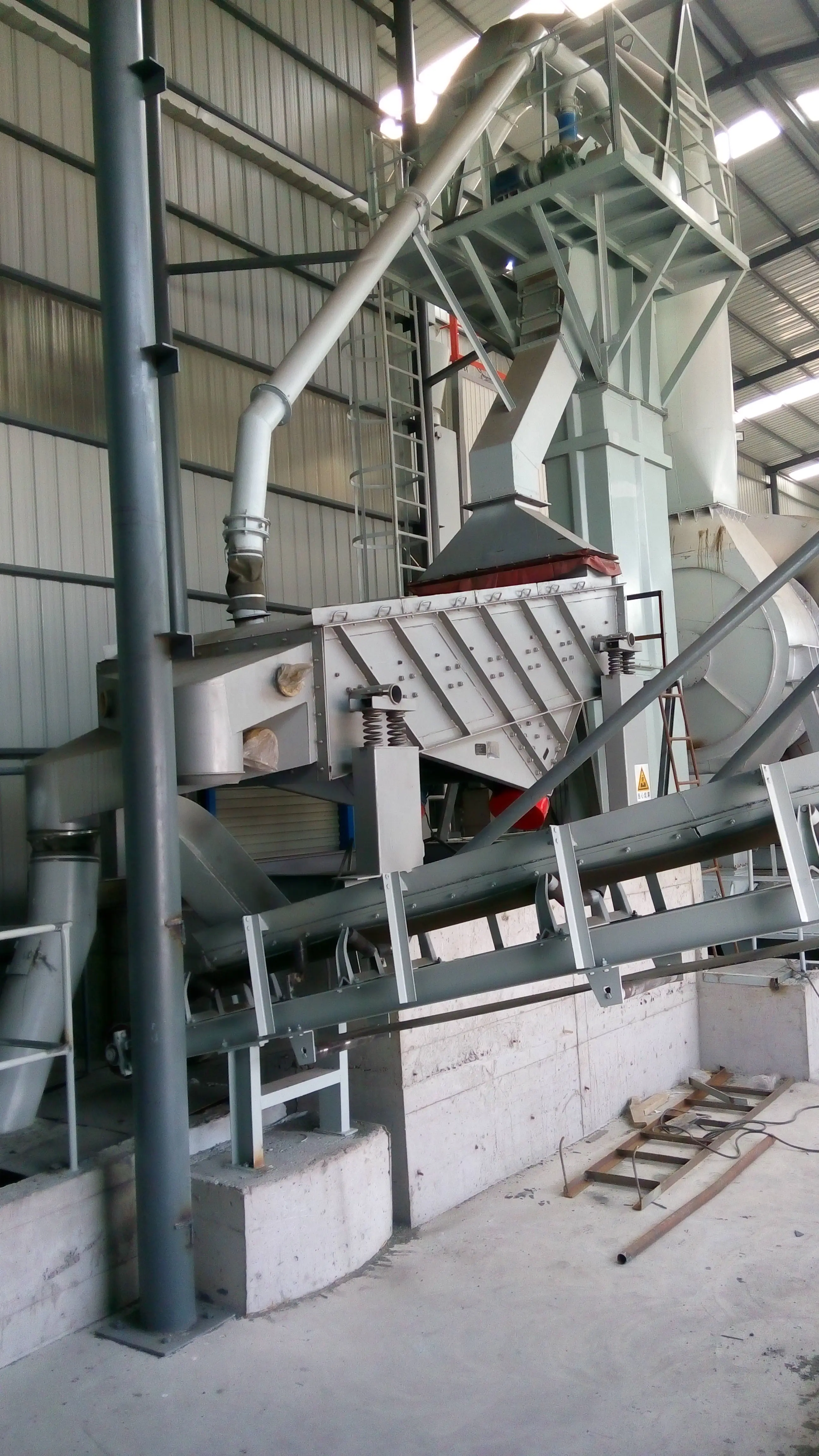

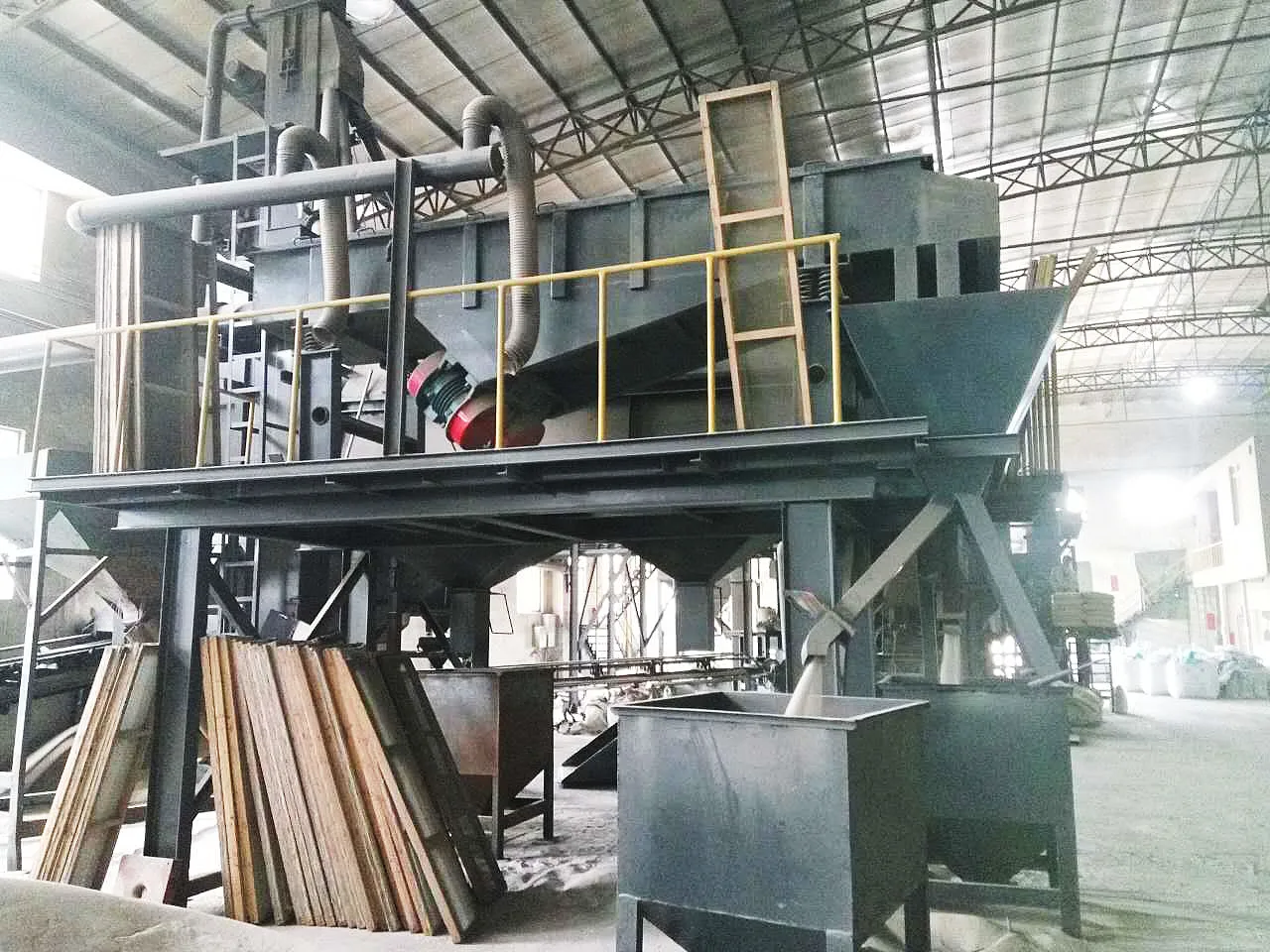

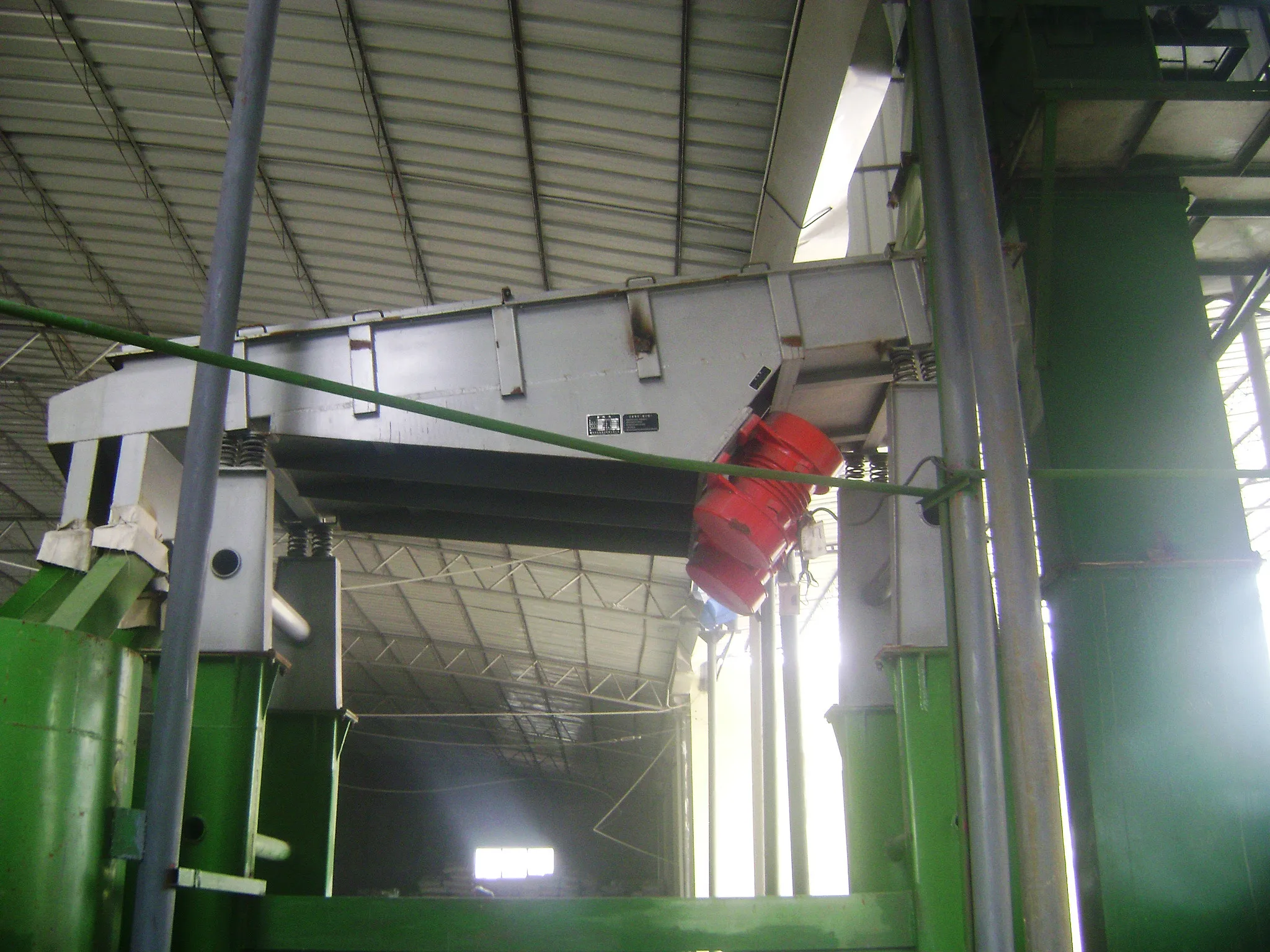

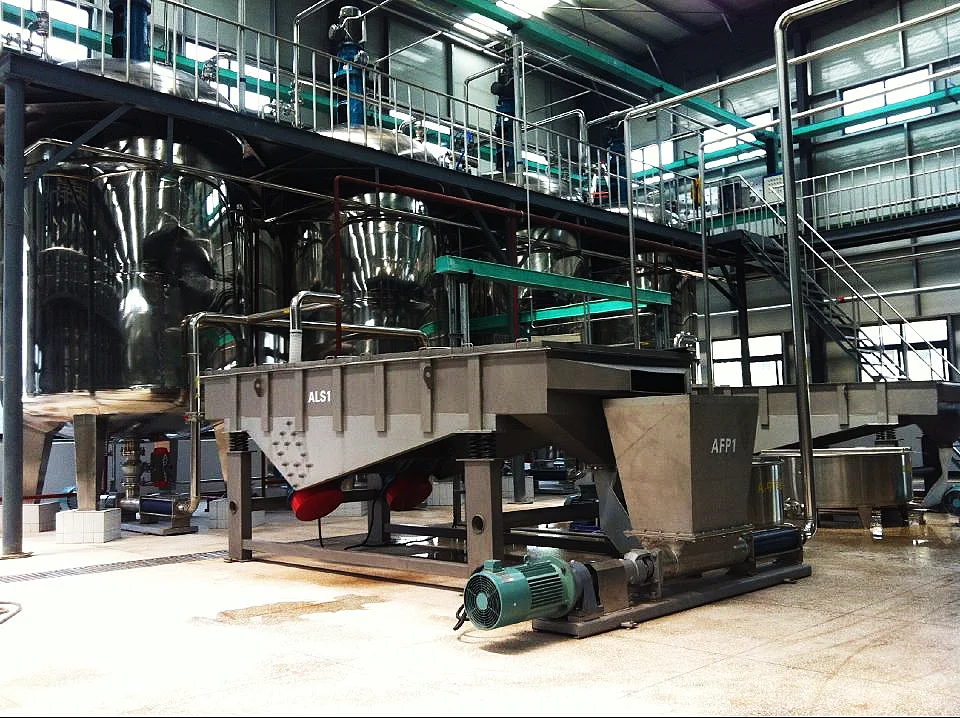

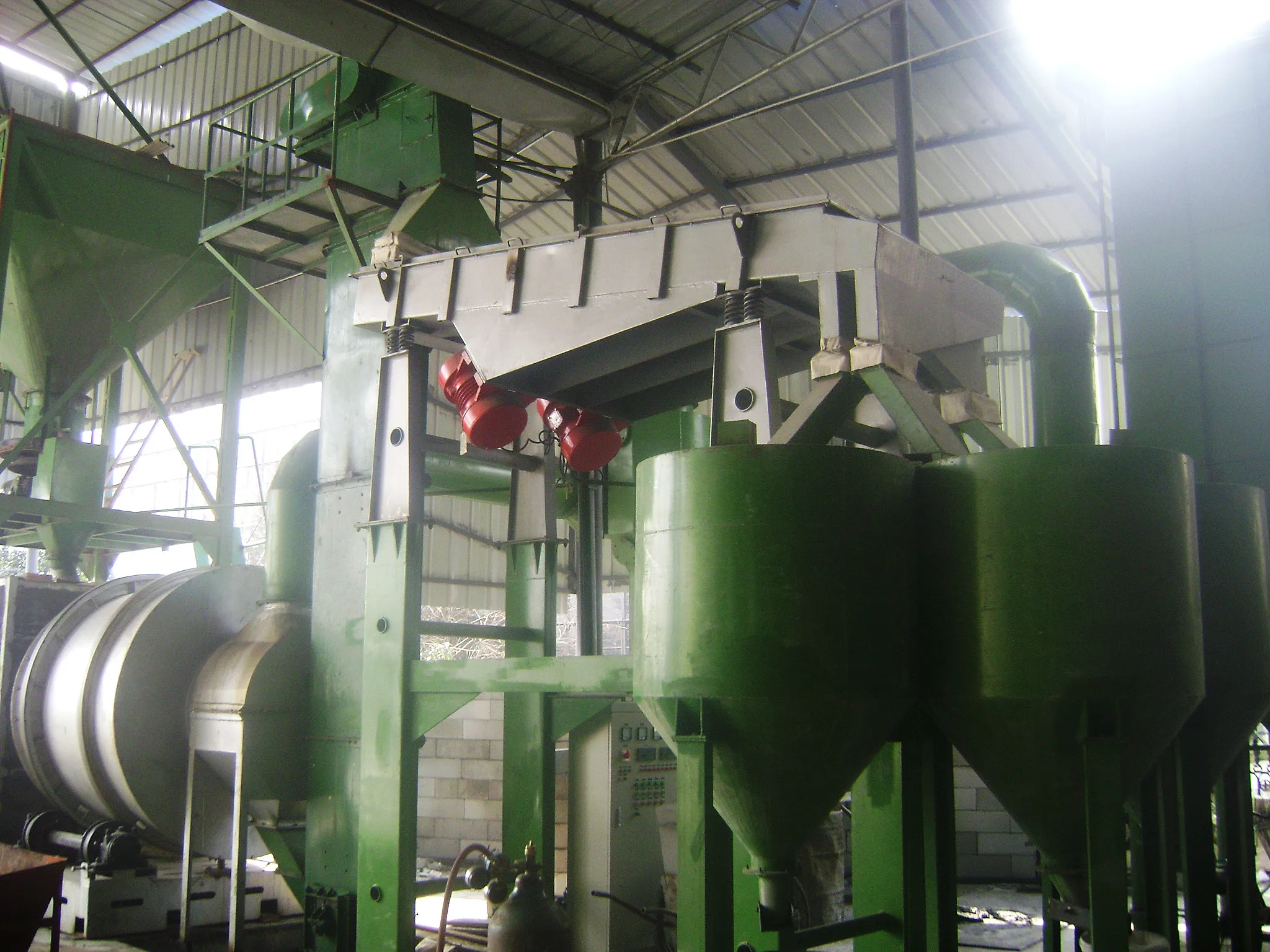

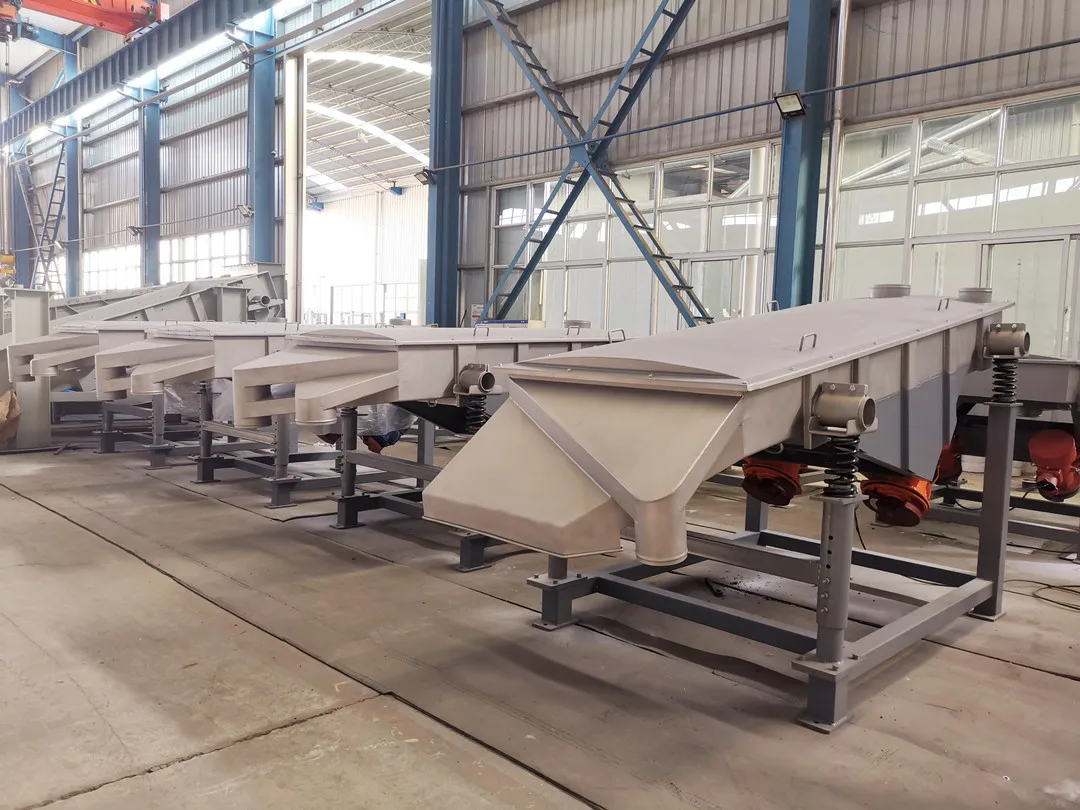

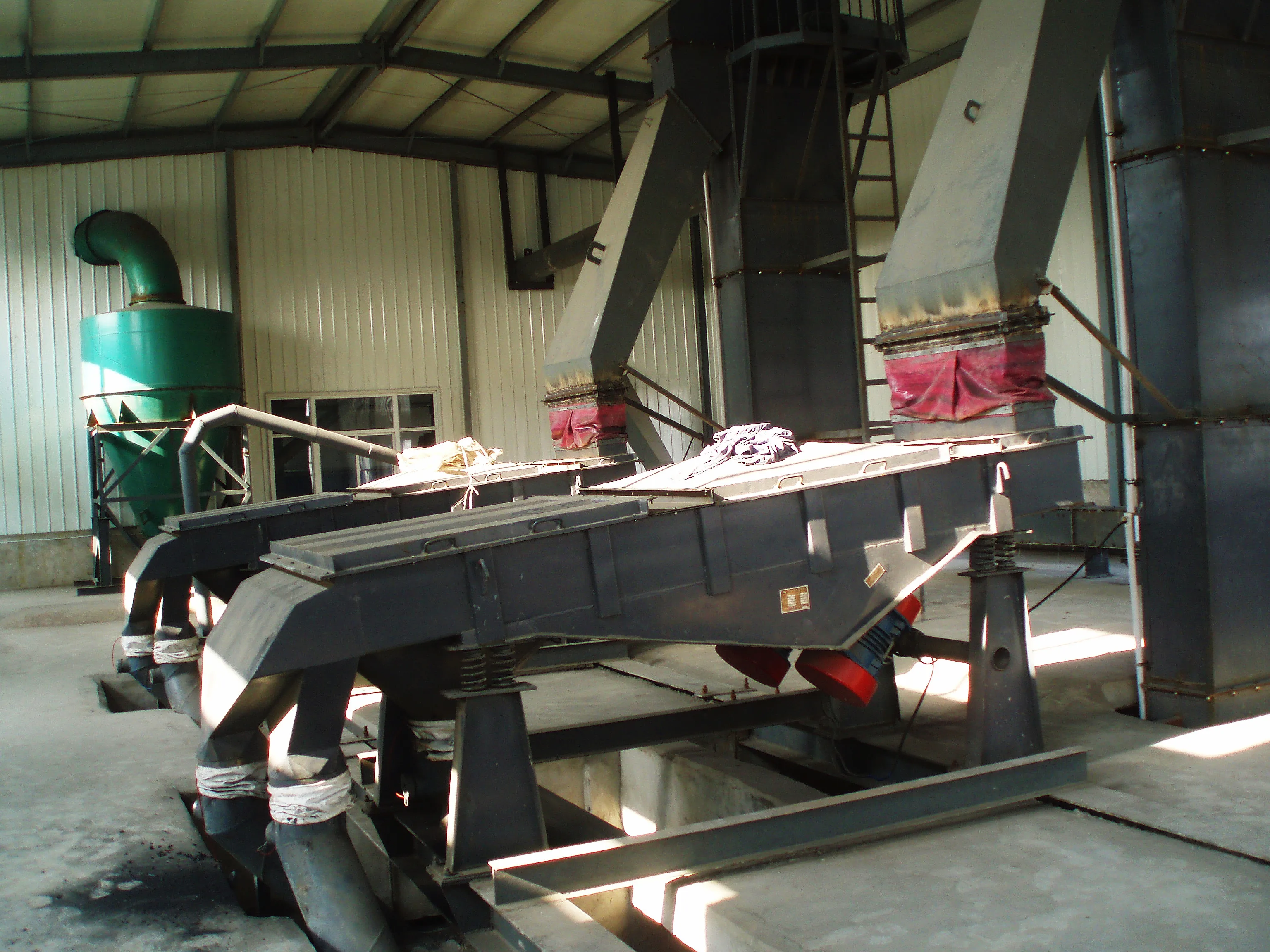

Working on site
Company Profile
1.Q: How To Order ?
Step 1, please tell us what model and quantity you need;
Step 2, then we will make you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2.After-sales Service 1 year warranty for all kinds of products;
3.Payment T/T, Western Union, Money gram ,Escrow.
4.Transportation Transported by DHL , UPS, EMS, Fedex ,Air freight. sea freight.
5.Do you support drop shipping?
Yes,your drop shipping is available.
Step 1, please tell us what model and quantity you need;
Step 2, then we will make you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2.After-sales Service 1 year warranty for all kinds of products;
3.Payment T/T, Western Union, Money gram ,Escrow.
4.Transportation Transported by DHL , UPS, EMS, Fedex ,Air freight. sea freight.
5.Do you support drop shipping?
Yes,your drop shipping is available.
