Product Overview
Description
Product Description
Main purpose

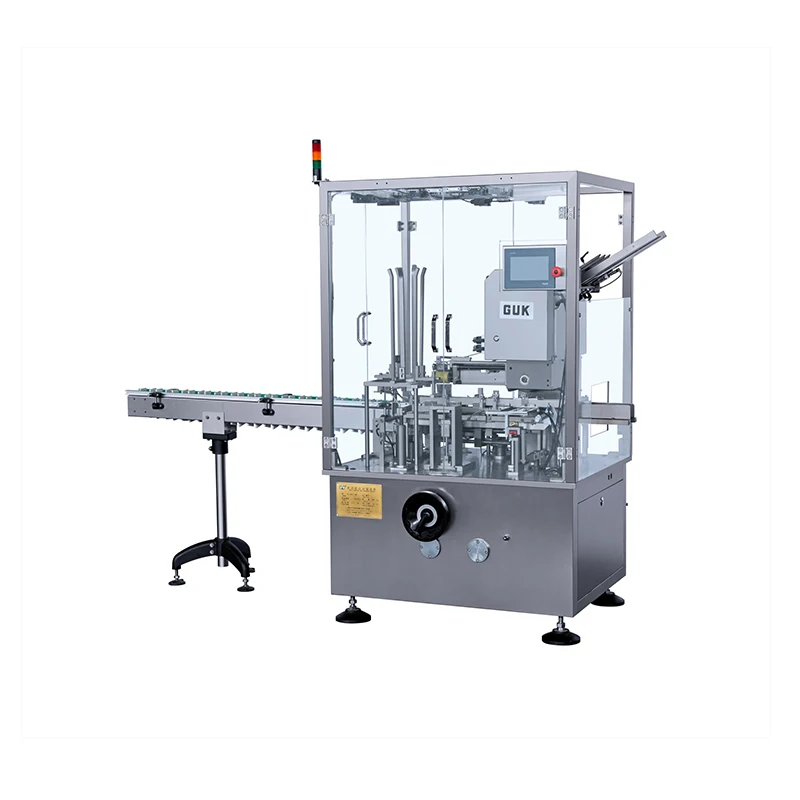

The equipment is mainly used for automatic cartoning of blister formed capsules, tablets, blister plates with external aluminum foil packaging and other similar objects. This machine can be operated separately. Its front end can be connected with the pillow packaging machine to realize higher production efficiency.
Main Feature
It adopts variable frequency speed control and PLC automatic control system.
It adopts the human-machine interface operating system, which automatically displays the cartoning speed, quantity and other performance parameters, and also displays fault caused and operation and maintenance methods.
The adjustment and use of various specifications within the stipulated range can be realized in one machine.
It is provided with manual and automatic switching funcations.
The use instructions folding and cartoning functions can be completed synchronously.
Three rows of batch numbers can be printed on the medicine box synchronously, and the function of printing the serial number can be added.
It is provided with the automatic detection system, and the function of positioning, stopping and online elimination is provided for nonconforming products.
It can be equipped with the hot melt adhesive machine.
Model | HDZ-100 | HDZ-150 | |
Carton size | L:50-160 W:20-90 H:12-55mm | ||
Speed | 50-80 Cartons/min | 80-150 Cartons/min | |
Dimensions | 1150*1120*1550mm | 2280*1050*2030mm | |
Weight | 1000KG | 1250KG | |
Voltage | 380V/50Hz | ||
Power | 1.1KW | 1.5KW | |
Compressed air | 0.6Mpa | ||
Air consumption | 30-90 L/min | ||
Company Profile
The company took the lead in China to develop and introduce domestically advanced Wanshen HDZ-100B bubble card board box packaging machines, filling a gap in China and obtaining a patent certificate from the state. It also developed five series of packaging multi-functional automatic packaging machines about HDZ-100 type, more than 40 specifications products on the base. Our products are in conformity with GMP. The machines apply to medicine, food, cosmetics, health products, electronic products, small light industrial products and have equipped a few hundreds of factories internal and external.
Wanshen multi-functional automatic packaging machines are designated as "National new product" by the economic state, as "Project supported by National High-tec Industry Industrialization Promotion"by the State Planning Commission, as "Project supported by the fund for Technical Innovation" by the Ministry of Science & Technology. The company has been awarded the "Excellent Enterprise", "Provincial Private Technology Enterprise" and it is designated as "High-tec Product, High-tec Company" by Provincial Department of Science and Technology, "the development and production base of multi-functional packaging machine in Jiangxi Province" by Provincial Economic and Trade Commission and Packaging Association.
The company has mature technical and development capability of packaging machinery. In additional to providing with the standard models for the customers, we can also design in accordance with project requirements and related equipment integration. We will take high-quality products, preferential prices, excellent services, innovative spirit to welcome friends from all circles.
Wanshen multi-functional automatic packaging machines are designated as "National new product" by the economic state, as "Project supported by National High-tec Industry Industrialization Promotion"by the State Planning Commission, as "Project supported by the fund for Technical Innovation" by the Ministry of Science & Technology. The company has been awarded the "Excellent Enterprise", "Provincial Private Technology Enterprise" and it is designated as "High-tec Product, High-tec Company" by Provincial Department of Science and Technology, "the development and production base of multi-functional packaging machine in Jiangxi Province" by Provincial Economic and Trade Commission and Packaging Association.
The company has mature technical and development capability of packaging machinery. In additional to providing with the standard models for the customers, we can also design in accordance with project requirements and related equipment integration. We will take high-quality products, preferential prices, excellent services, innovative spirit to welcome friends from all circles.
FAQ
1. who are we?
We are based in Shanghai, China, start from 1997,sell to Domestic Market(70.00%),Southeast Asia(13.00%),Mid East(8.00%),South America(3.00%),Eastern Europe(3.00%),Africa(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HDZ-100B Bubble Cap Board Automatic Cartoning Machine,HDZ-150G Soft Tube Automatic Cartoning Machine,HDZ-100K Water Needle Automatic Cartoning Machine,HDZ-100P Automatic Cartoning Machine,WS-250 Adjustable Transparent Mask Machine
4. why should you buy from us not from other suppliers?
Manufacturer of packaging machines over 23 years. Except for standard machines for pharmaceuticals and cosmetics, can customize according to specific products. Well exported abroad, receiving re-orders being of reliable quality and stable running.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shanghai, China, start from 1997,sell to Domestic Market(70.00%),Southeast Asia(13.00%),Mid East(8.00%),South America(3.00%),Eastern Europe(3.00%),Africa(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HDZ-100B Bubble Cap Board Automatic Cartoning Machine,HDZ-150G Soft Tube Automatic Cartoning Machine,HDZ-100K Water Needle Automatic Cartoning Machine,HDZ-100P Automatic Cartoning Machine,WS-250 Adjustable Transparent Mask Machine
4. why should you buy from us not from other suppliers?
Manufacturer of packaging machines over 23 years. Except for standard machines for pharmaceuticals and cosmetics, can customize according to specific products. Well exported abroad, receiving re-orders being of reliable quality and stable running.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
