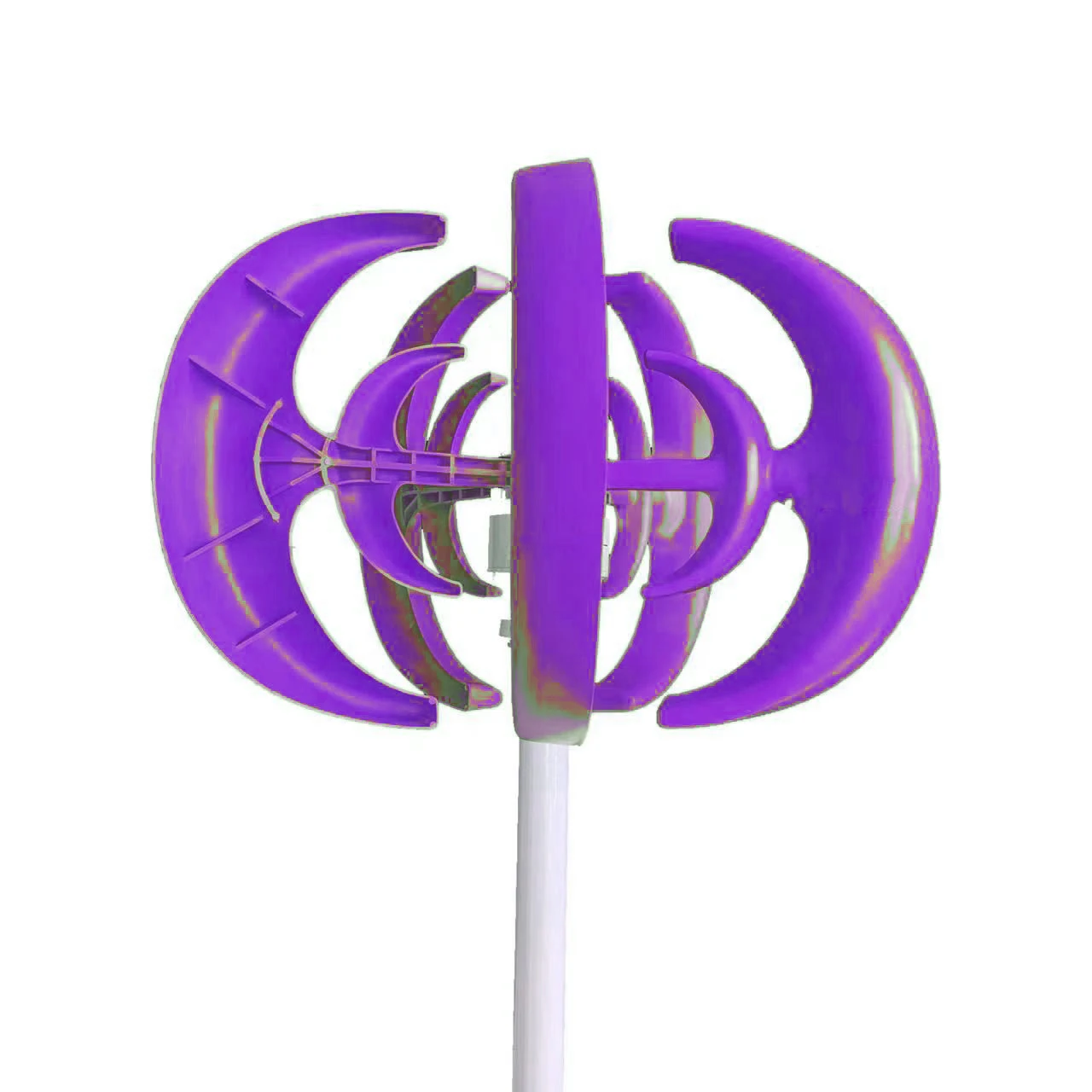

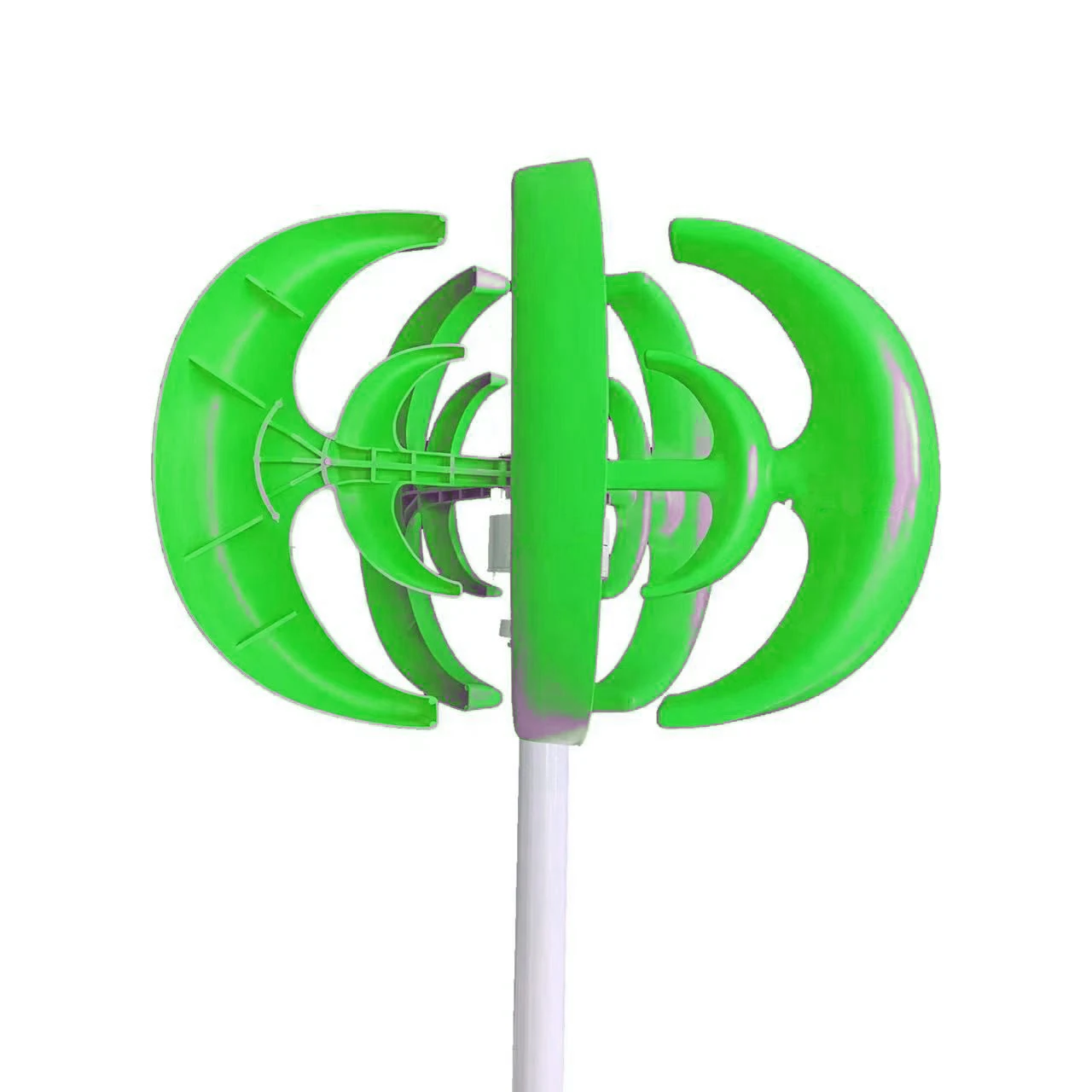

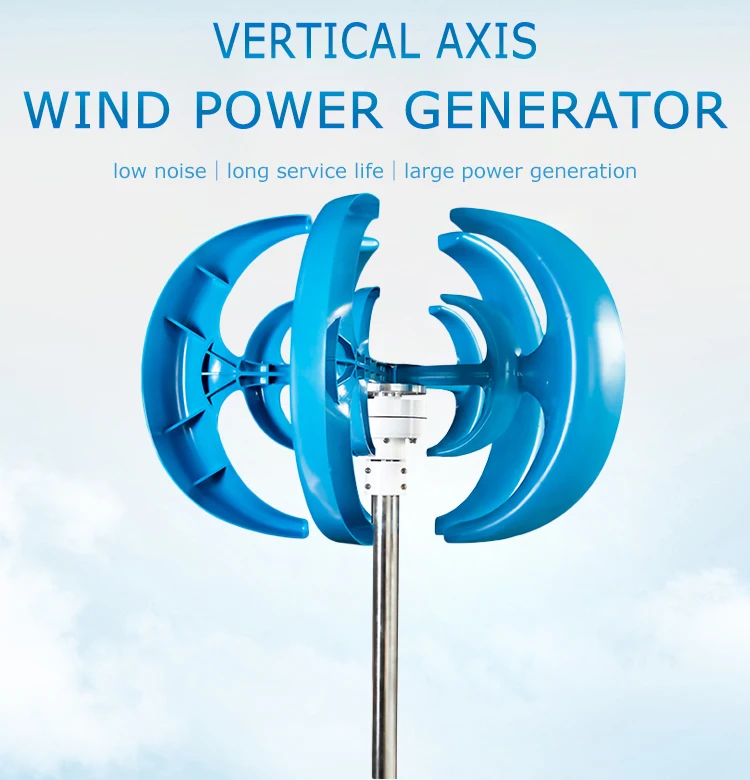

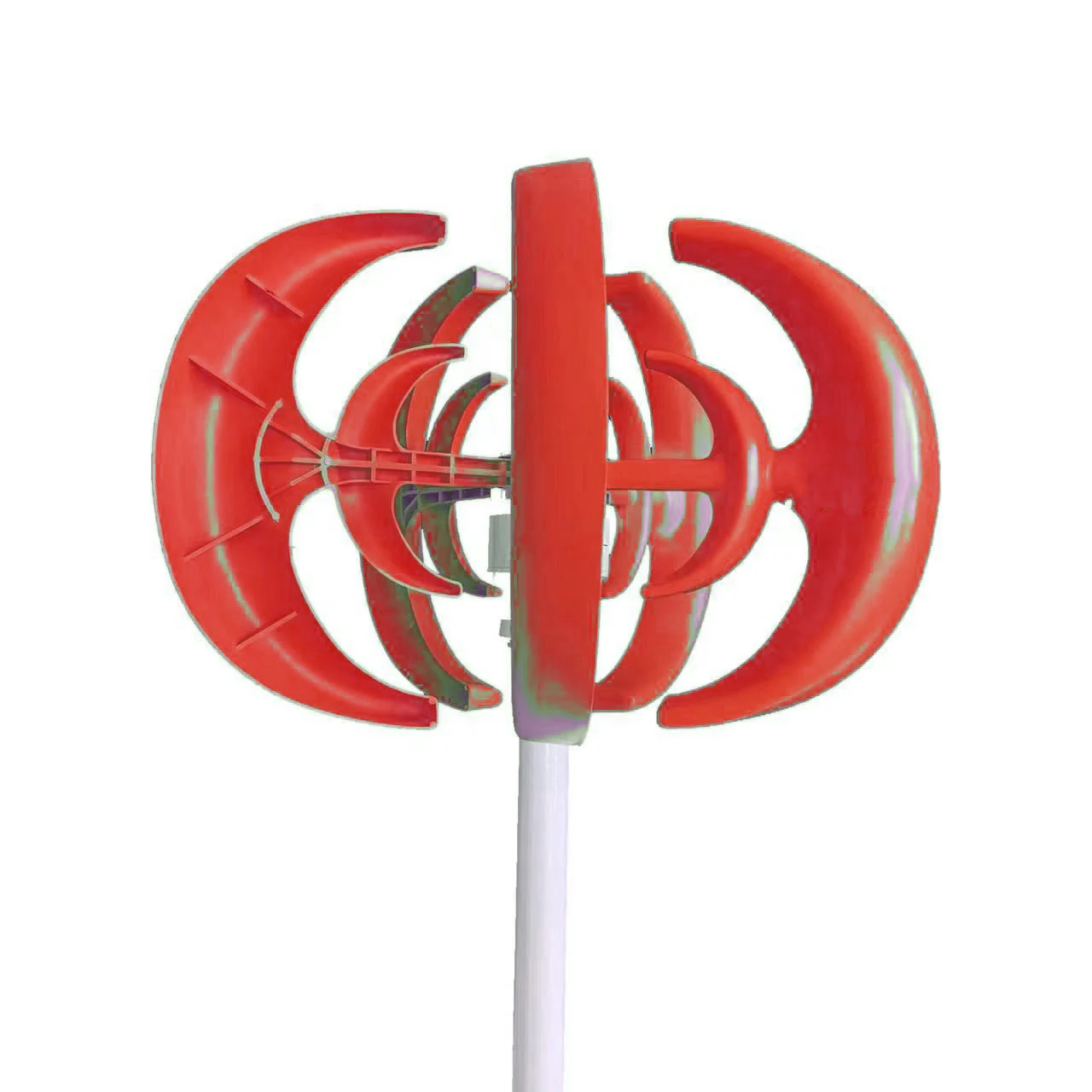

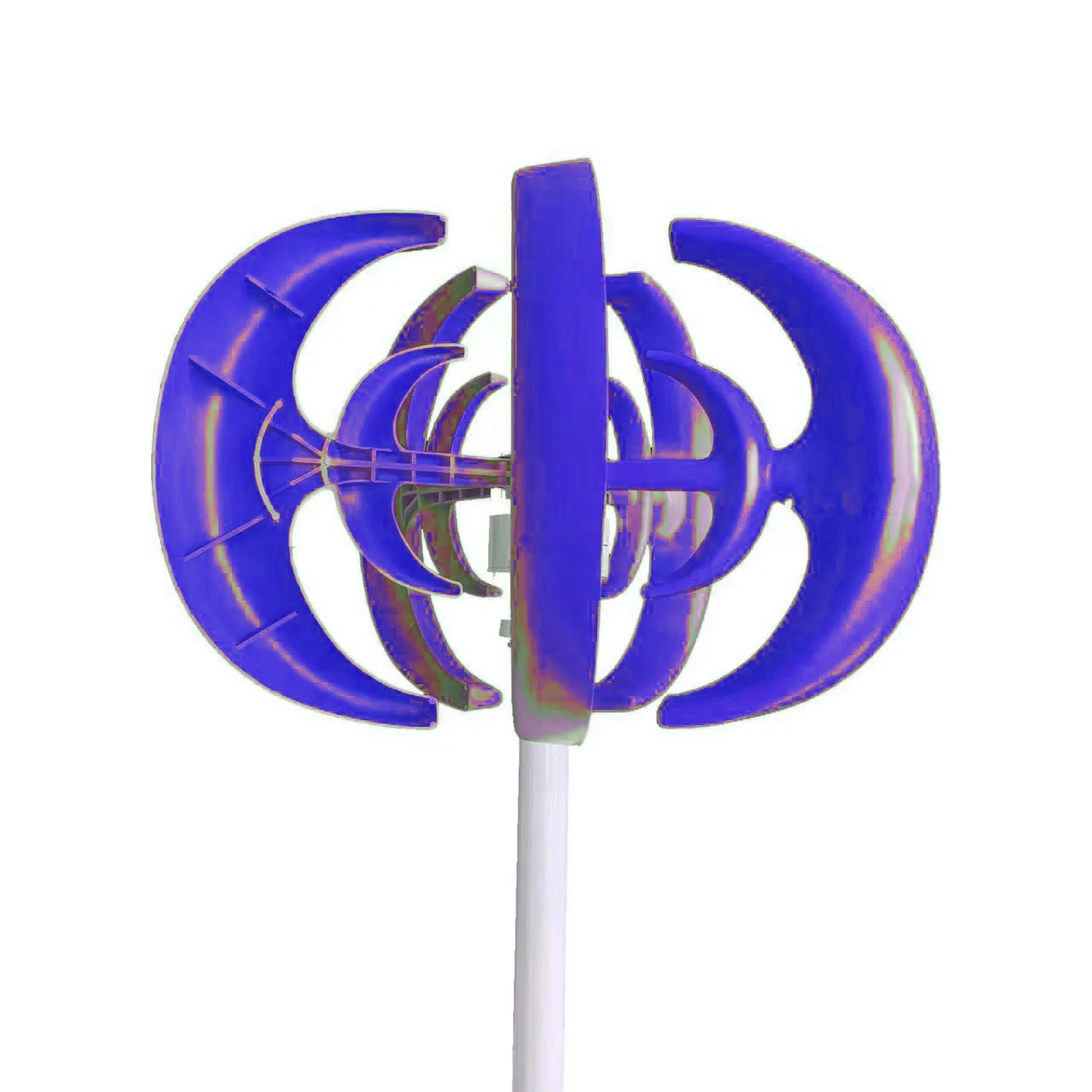

220V dc magnet low noise domestic most efficient 100w 200w 500w home vertical wind turbine kit
- Category: >>>
- Supplier: Guangzhou Funeng Electric Power Technology Co. ltd.
Share on (1600533483967):
Product Overview
Description
Guangzhou Funeng Electric Power Technology Co.,ltd.
Guangzhou Funeng is a processional, fast growing company. The company is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, inverter, battery, controller and solar system,wind power system.
Features
*Safety
The use of nylon glass fiber has better flexibilit, so the problems of blade falling of, fracture and blade flying out have been better solved.
*Noise
Horizontal plane rotation and blade design based on the principle of aircraft wing are adopted to reduce the noise to a level that can not be measured in the natural environment.
*Wind resistance
The horizontal rotation design principle makes it less subject to wind pressure and can resist super typhoon.
*Turning radius
Because of its different design structure and operation principle, it has smaller turning radius than other forms of wind power generation, saves space and improves efficiency.
*Generation curve characteristics
The starting wind speed is lower than that of other forms of wind turbines, the rising range of power generation is gentle and the stability is better.
*Uilization wind speed range
The special control principle is adopted to expand its suitable operating wind speed range to 2.5 ~ 25m/ s, obtain greater total power generation while making maximum use of wind resources, and improve the economy of wind power equipment.
*Braking device
The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic braking. It is more suitable for use in areas without typhoon and super gust.
The use of nylon glass fiber has better flexibilit, so the problems of blade falling of, fracture and blade flying out have been better solved.
*Noise
Horizontal plane rotation and blade design based on the principle of aircraft wing are adopted to reduce the noise to a level that can not be measured in the natural environment.
*Wind resistance
The horizontal rotation design principle makes it less subject to wind pressure and can resist super typhoon.
*Turning radius
Because of its different design structure and operation principle, it has smaller turning radius than other forms of wind power generation, saves space and improves efficiency.
*Generation curve characteristics
The starting wind speed is lower than that of other forms of wind turbines, the rising range of power generation is gentle and the stability is better.
*Uilization wind speed range
The special control principle is adopted to expand its suitable operating wind speed range to 2.5 ~ 25m/ s, obtain greater total power generation while making maximum use of wind resources, and improve the economy of wind power equipment.
*Braking device
The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic braking. It is more suitable for use in areas without typhoon and super gust.
Model | R-100W | R-200W | R-300W | R-500W | R-800W | R-1KW | |||||
Rated power | 100W | 200W | 300W | 500W | 800W | 1KW | |||||
Maximum power | 150W | 250W | 350W | 550W | 900W | 1.2KW | |||||
Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | |||||
Start-up wind spped | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | |||||
Rated wind speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | |||||
Suvival wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 40m/s | |||||
Number of blades | 5 pieces | ||||||||||
Blades material | nylon fiber | ||||||||||
Fuselage material | nylon fiber | ||||||||||
Generator | Three phase ac permenent magnet generator / Maglev generator | ||||||||||
Control System | Electromagnetic brake | ||||||||||
Yaw Mode | automatically windward angle | ||||||||||
Lubrication mode | Self-lubricating | ||||||||||
Tower form | Guyed tower / Independent tower | ||||||||||
Working temperature | -40℃~80℃ | ||||||||||
