Professional Steam Boiling Noodle Making Machine Production Line
- Category: >>>
- Supplier: Henan Brother Machinery Co. Ltd.
Share on (1600533492671):
Product Overview
Description
Product Description
Boiled Noodle Production Line
Boiled noodles production Line developed by the company and technical colleges features strict control on production process links and adopt mechanical and electrical interation mode.Wheat flour noodles are subjected to a soaking through steam heating treatment, oil mixing, cooling and packaging to form cooked products. This kind noodles need to be subjected to secondary braising, steaming(braised noodles), frying and braising(fried noodles), boiling and mixing in boiling water(hot-dry noodles and alkaline noodles), soaking and leaching(cool braised noodles), etc.The production equipment is the most popular industrial equipment at present market, widely accepted by consumers.
Specification
Model | Capacity(KG/H) | Install Power(KW) | Overall Size(M) |
JXM-10 | 100 | 10 | 10*5*5 |
JXM-20 | 200 | 15 | 15*5*5 |
JXM-30 | 300 | 20 | 20*5*5 |
JXM-40 | 400 | 25 | 25*5*5 |
JXM-50 | 500 | 30 | 30*5*5 |
JXM-60 | 600 | 35 | 35*5*5 |
JXM-70 | 700 | 40 | 40*5*5 |
JXM-80 | 800 | 45 | 45*5*5 |
JXM-90 | 900 | 50 | 50*5*5 |
Processing Flow
Details Images
ALKALI MIXING TANK
CAPACITY:500-1000KG PER TANK
MATERIAL: SUS304/316
FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
MAIN PARAMETERS: MIXING TIME: 10MINS
WATER CONTENT: PURED WATER BETTER
RATION FEEDING TANK
CAPACITY:50-150KG PER BATCH
MATERIAL: SUS304/316
FUNCTION: TO PUMP THE WATER TO MIXER BY RATION CONTROL
MAIN PARAMETERS: ELECTRIC VALVE CONTROL
FEEDING AUTOMATICALLY
DOUGH MIXER
CAPACITY: 50-350KG PER BATCH
MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS: MIXING TIME:15-20MM
WATER CONTENT:11-14%
WATER ADD:30-35%

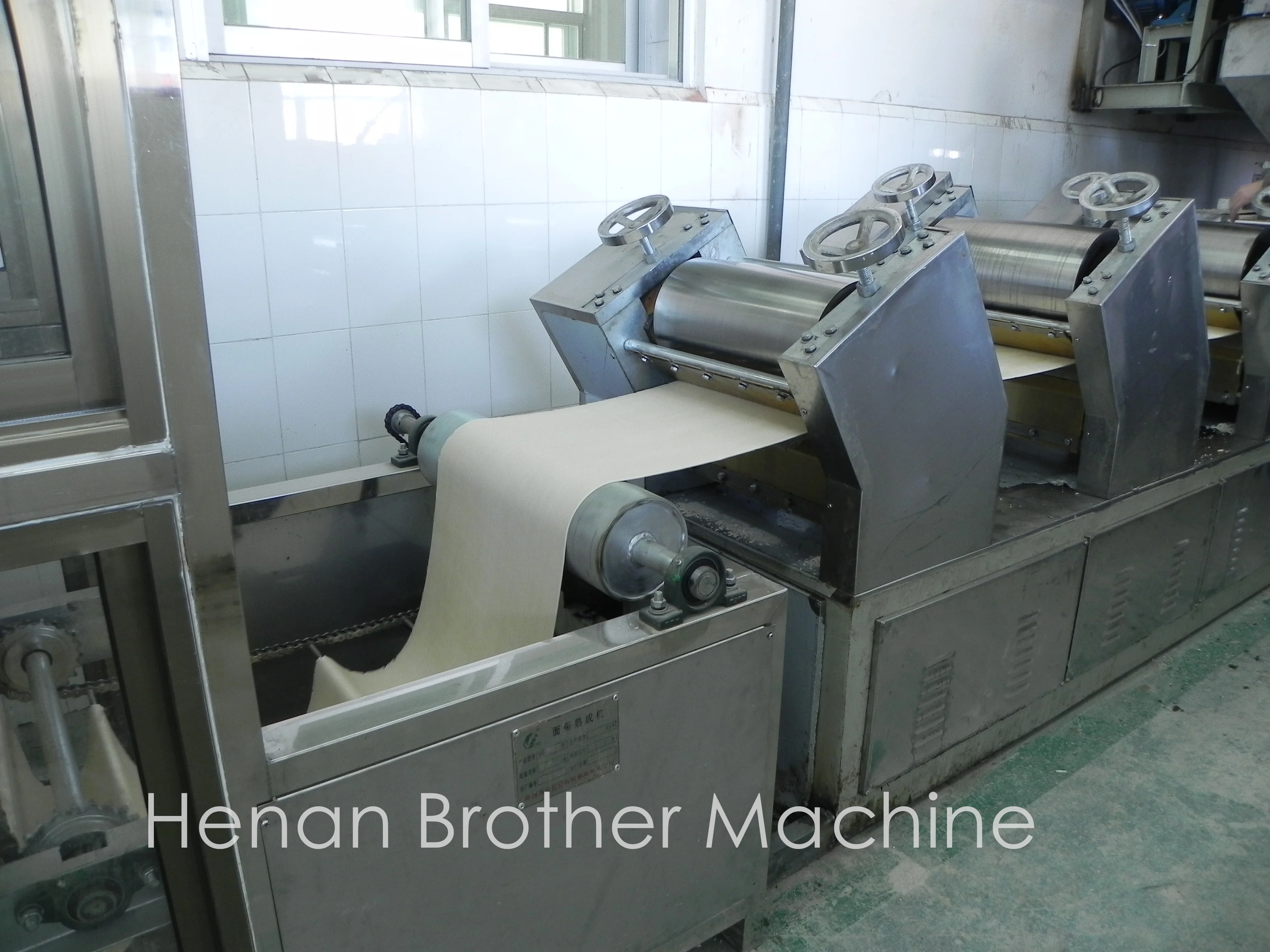

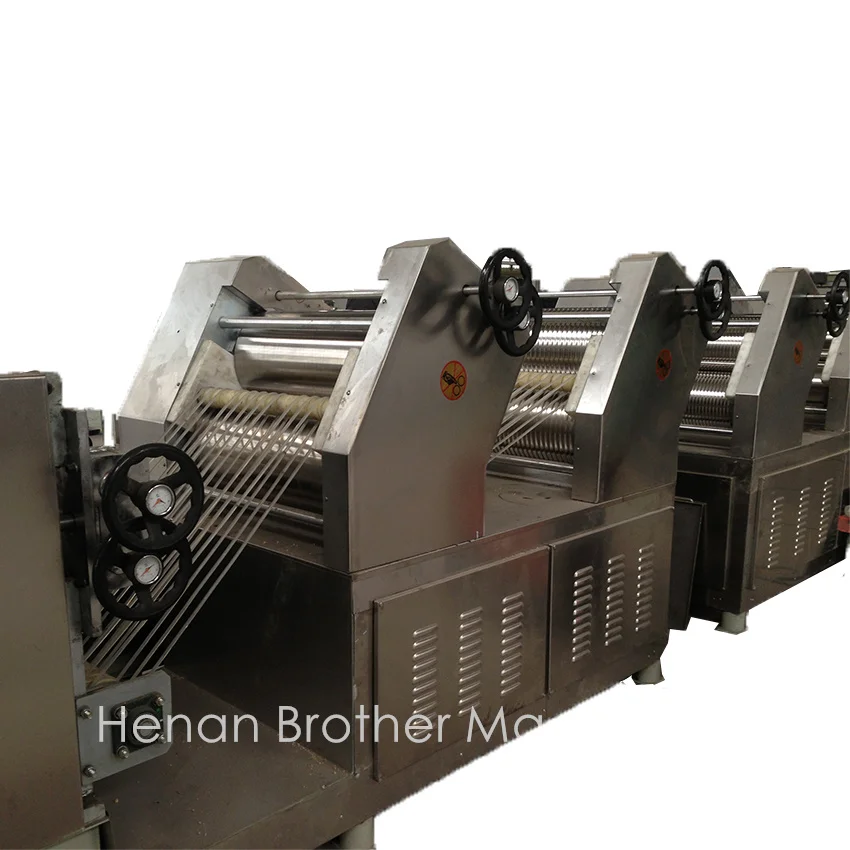

CONTINUOUS DOUGH ROLLING MACHINE
MOTOR TYPE: SOLO OR COMPOUND TYPE
ROLLER WIDTH:200-1500MM
MATERIAL: ALLOY STEEL OR SUS304
FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS
MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM
ROLLING SPEED: 7M-10M PER MINMOTOR TYPE: SOLO OR COMPOUND TYPE

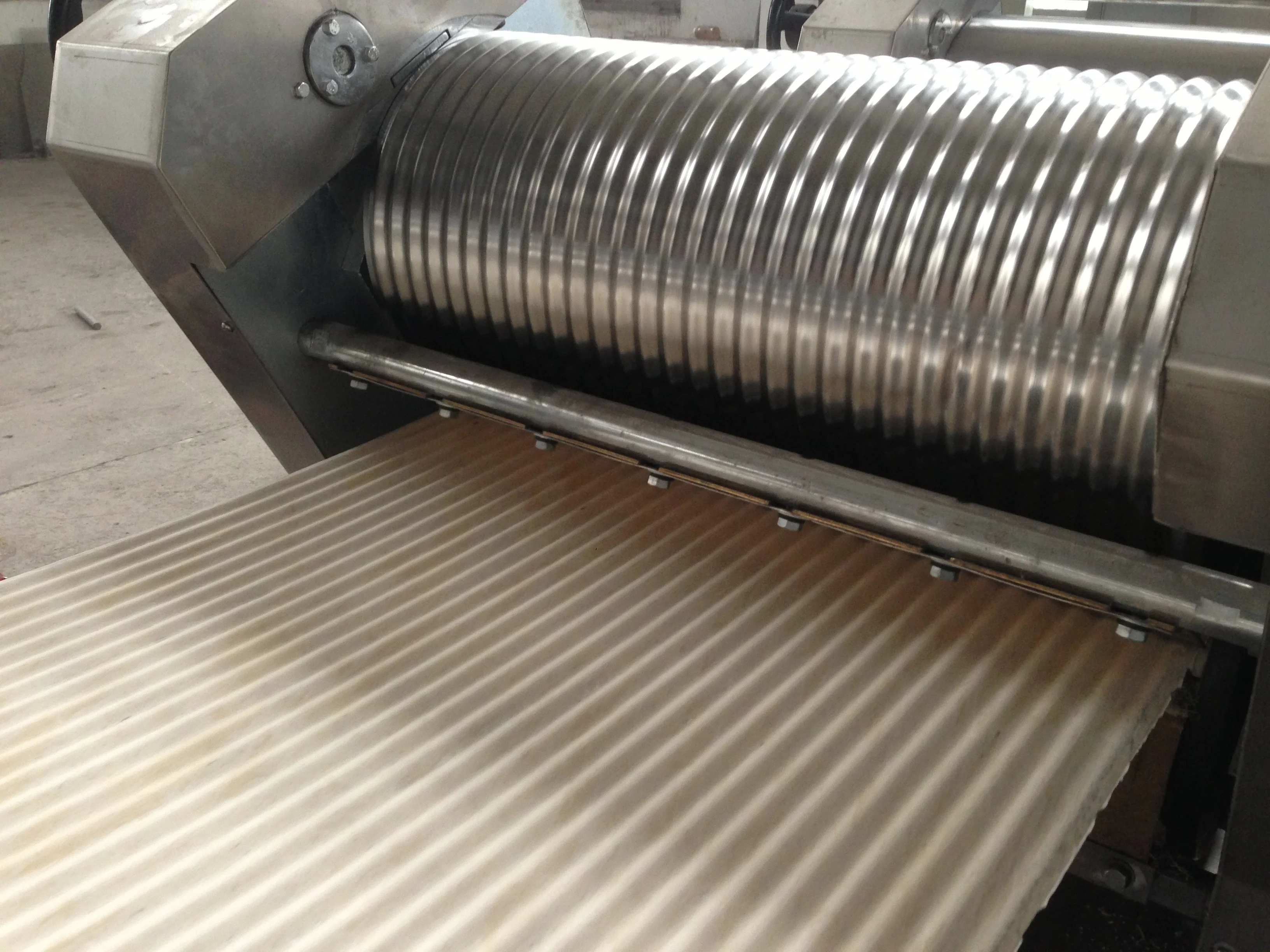

PATENT WAVED ROLLERS
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO ROLL THE DROUGH BY WAVE ROLLER FOR CHEWFUL AND STRENGTH
MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM
ROLLING SPEED: 7M-10M PER MIN
MOTOR TYPE: SOLO OR COMPOUND TYPE
WAVE SIZE ADJUSTABLE

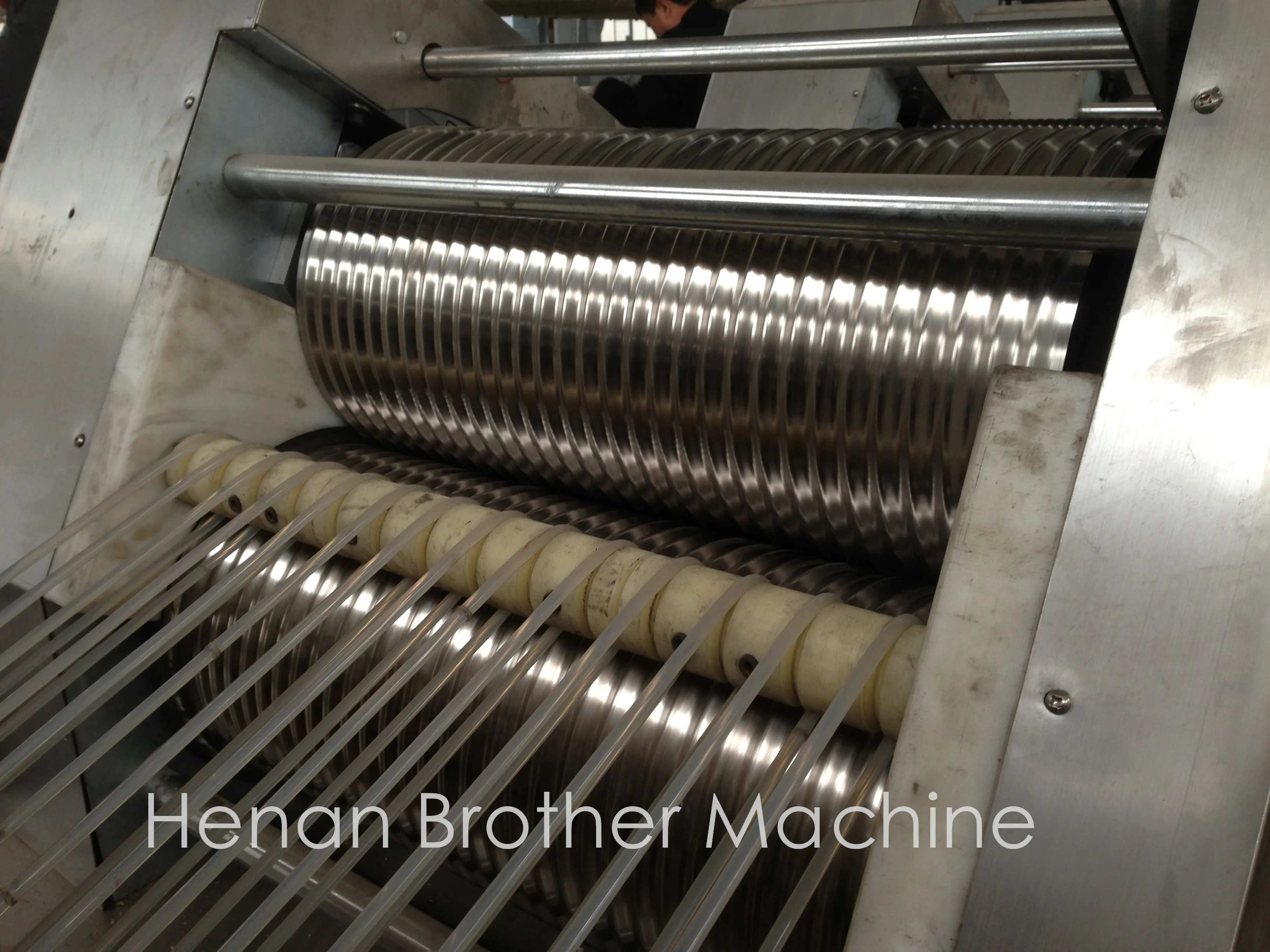

NOODLE SLITTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
SLITTER TYPE: ROUND AND SQUARE
NOODLE FIXED LENGTH CUTTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO CUT NOODLES BEFORE BOILING
MAIN PARAMETERS: CUT LENGTH ADJUSTABLE
SPEED ADJUSTABLE
MATERIAL: SUS304
FUNCTION: TO CUT NOODLES BEFORE BOILING
MAIN PARAMETERS: CUT LENGTH ADJUSTABLE
SPEED ADJUSTABLE

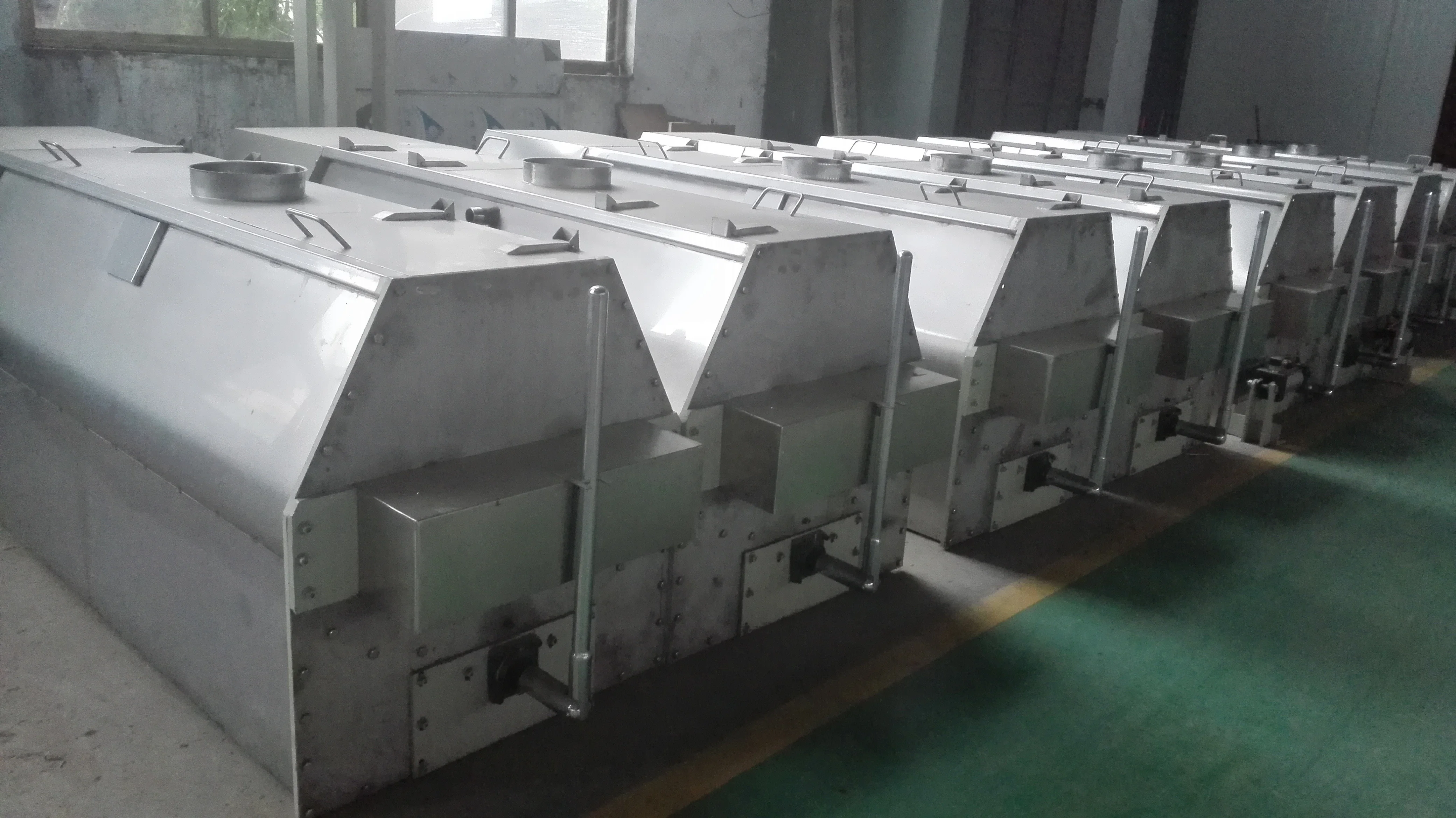

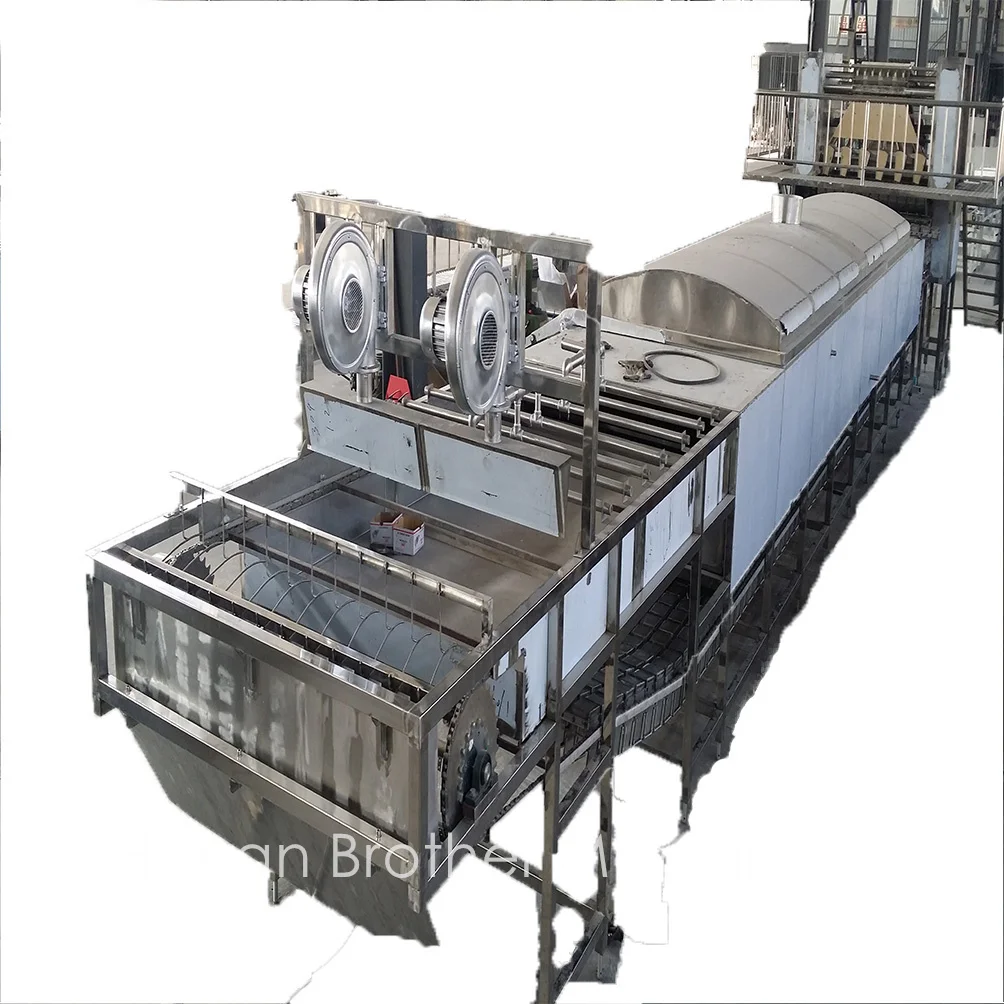

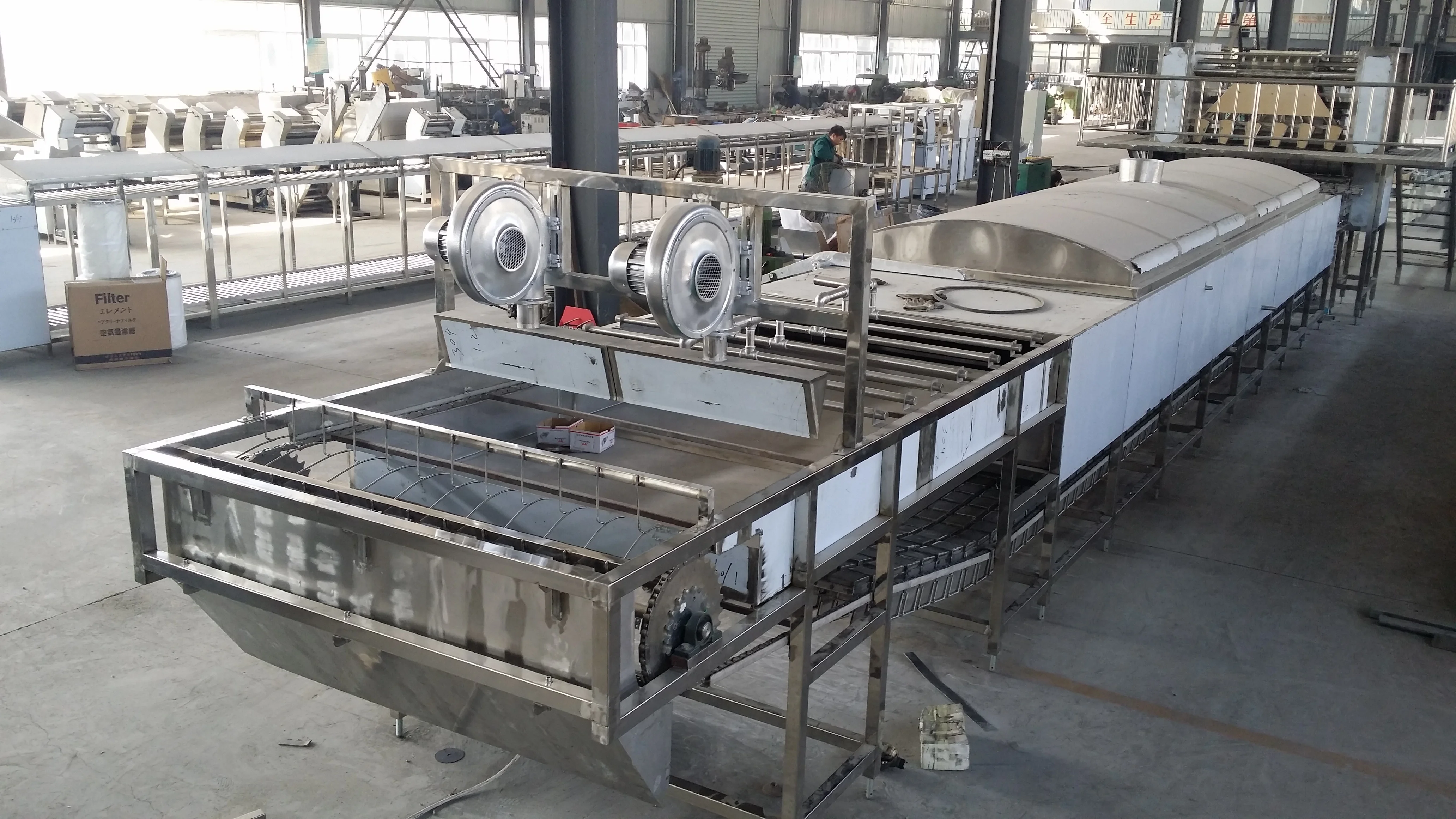

NOODLE BOILING MACHINE BUSKET TYPE
CAPACITY: 200-600KG PER TIME
MATERIAL: SUS304
FUNCTION: TO BOIL NOODLES IN WATER IN DIFFERENT BUSKET
MAIN PARAMETERS: BOILING BUSKET 5-8 UNITS
BOILING TEMP: 95-100-105-80-60

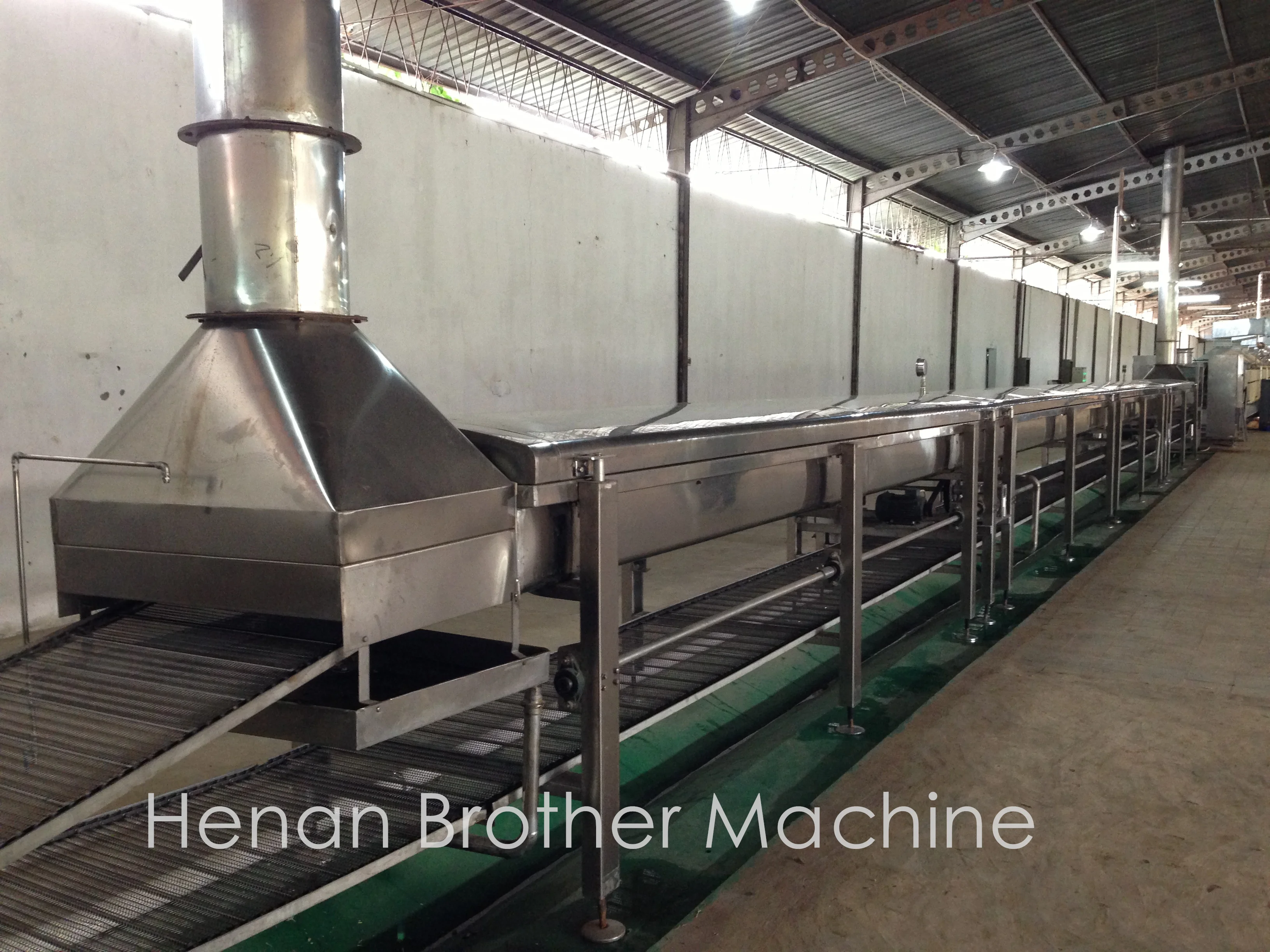

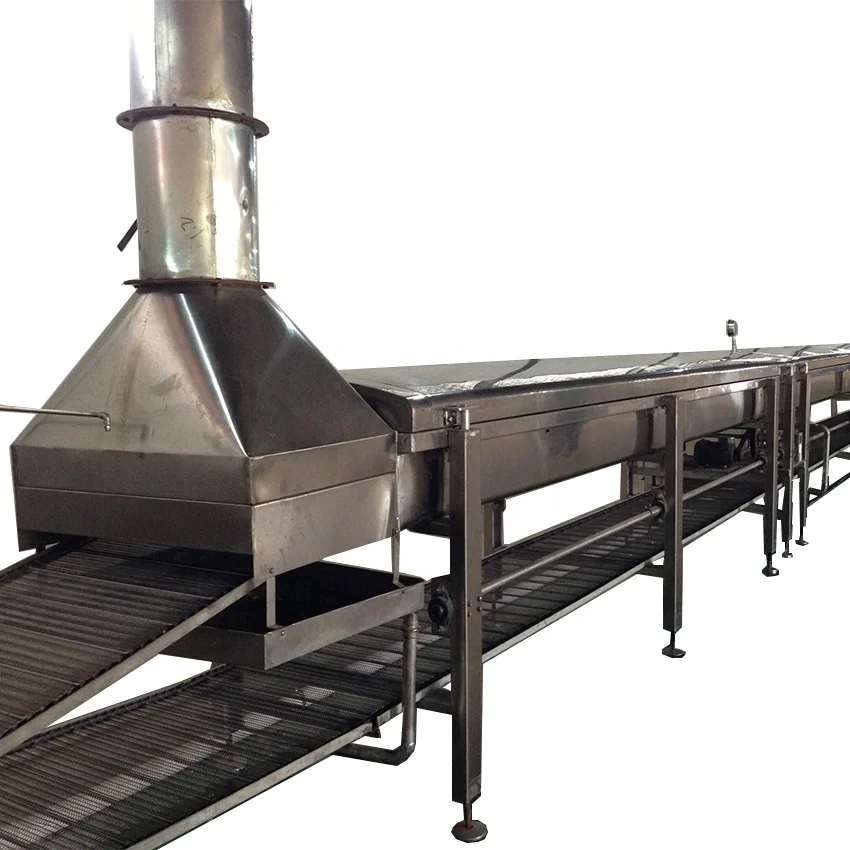

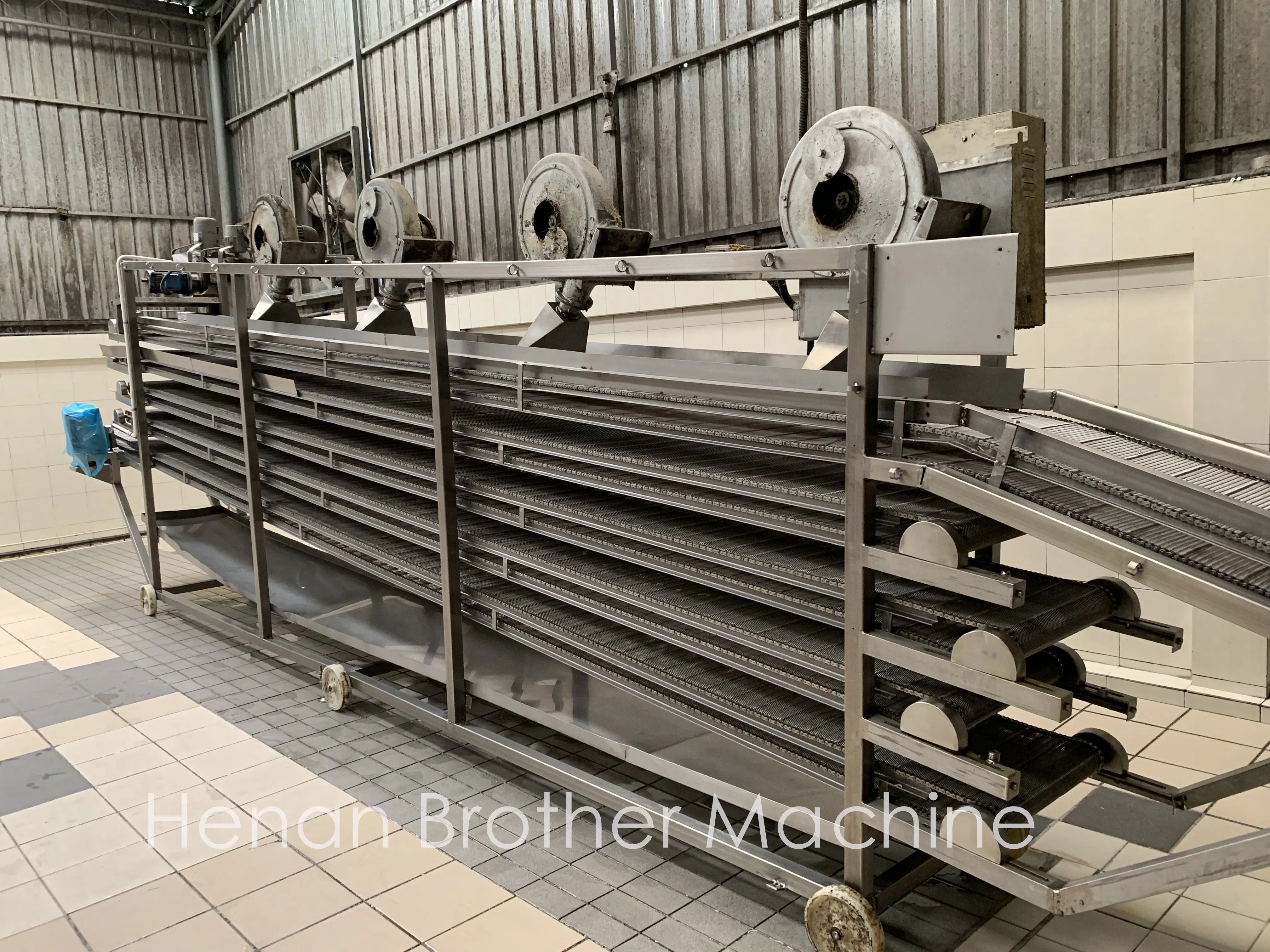

NOODLE MESH COOLER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO COOL NOODLES AFTER BOILING
MAIN PARAMETERS: FIVE LAYERS MESH RUNNING 0.37KG FANS ON TOP
Packing & Delivery
Overseas Service And Clients
Company Profile
Henan Brother MACHINERY MANUFACTURING CO.,LTD is located in Henan Province of China. Founded in 2002, which specializes in manufacturing, researching and technical suotion complete sets of noodle machines.
Flagship products:Capacity Range: 100kg/hr-2000kg/hr
=Oil Fried Instant Noodles Production Line (square&cup)
=Hot Air Dried Instant Noodles Production Line (shape as request)
=Chow-Mein Production Line(dried or steamed)
=Dried Stick Noodle Production Line( Chinese Spaghetti)
= Multifunctional Noodles Project (fried/dried/steamed)
=Modification&updating Service (as per request)
The friends from all over the world are warmly welcome to build the Win-Win future with us anytime.
FAQ
Q: I am a fresh man in noodles industry and without any experience .
A: The key is you must have passion only, the rest is our job : site visIt,design, feasibility Report,cost analyst,deal or make friend only,installing,training,servicing of noodle machine,free technical formula available.
Q: How about your noodle machine quality?
A: All main parts of the machine are made of 304 stainless steel. We will be responsible for site installation and commissioning.If there is anything wrong with the machine, our engineers can be on site to repair it within two days. Even if the machine doesn't break down. We also pay a return visit twice a year by video phone.
Q: My recent noodle machine is still working but high wastage.
A: Basically,you don't have to replace it if not extend business, we do machine upgrade ,free service check.
Q: I need noodle machine spare parts.
A: We make all kinds of noodle machine spare parts: roller,slitter set, brass comb, divider, SUS304(316) mesh net, noodle casing box and cover,chain,scraper, food grade souping pallet,chain gears etc.
Q: Is it possible to visit you and see your running factory?
A: Of course , you can visit our domestic customer's noodle factory and oversea's both.
Q: I want small capacity noodle machine.
A: Available, low cost but good quality design for you.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian and so on.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian and so on.
