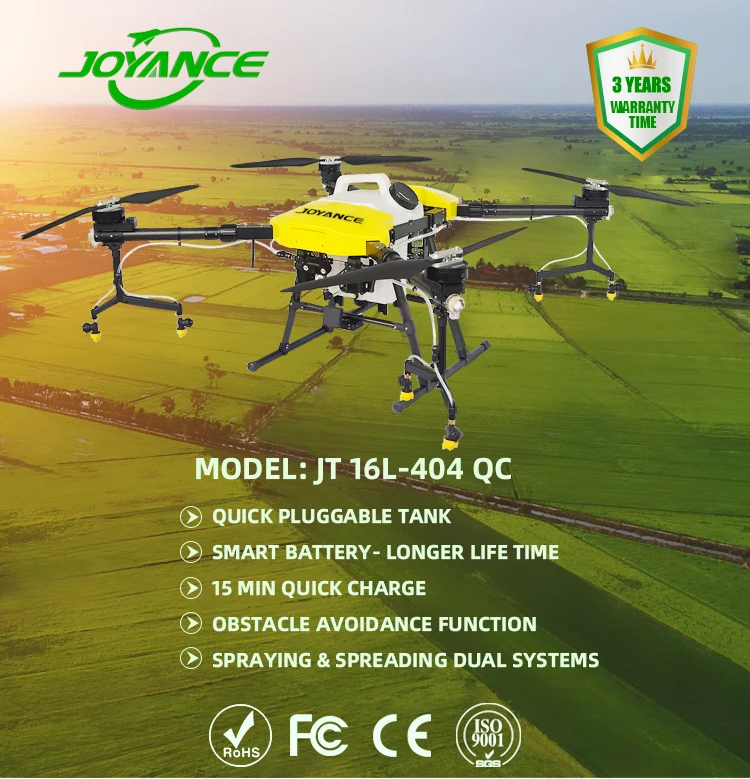

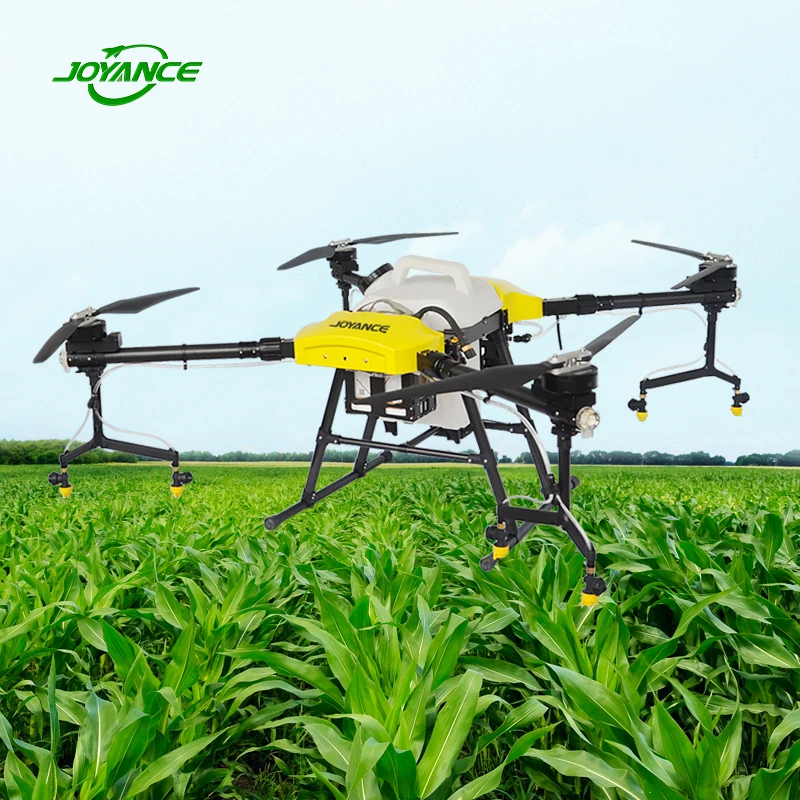

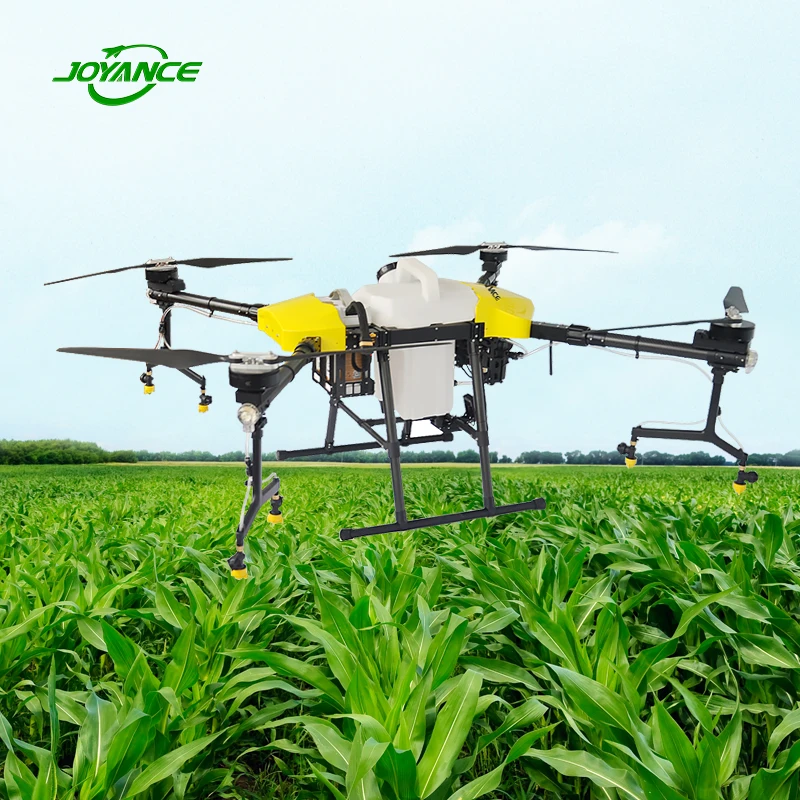

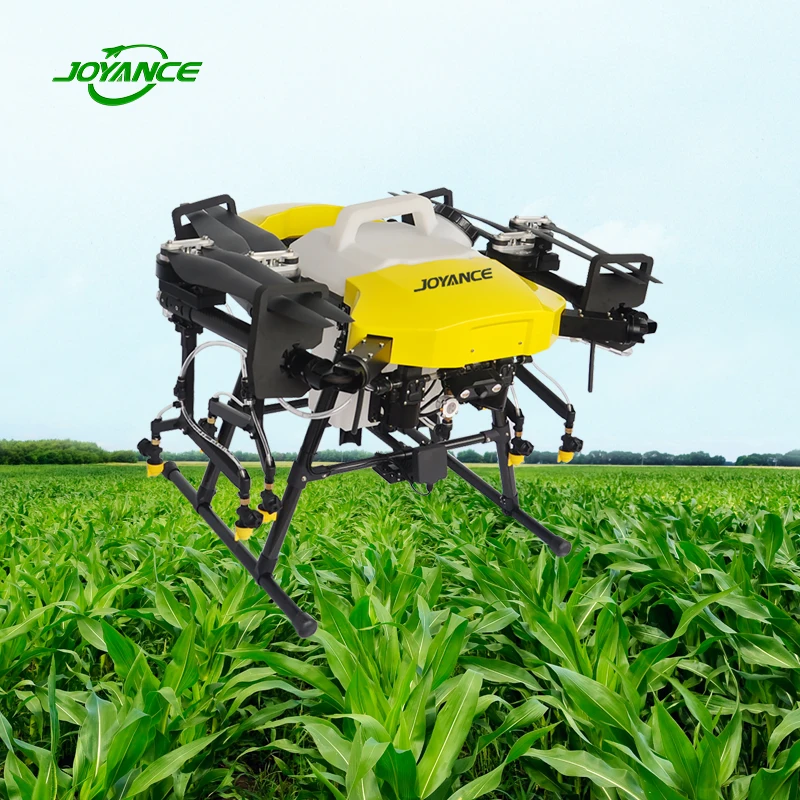

Factory cost efficient price16L 20L 30L payload agriculture drone Farming Electrical pulverizador agricola
- Category: Aircraft >>>
- Supplier: Shandong Joyance Intelligence Technology Co. Ltd.
Share on (1600533509725):
Product Overview
Description
Products Description
Model | JT10L-404QC | JT16L-404QC | ||
Pesticide Tank | 10L | 16L | ||
Net Weight | 13kg | 18kg | ||
Take-off Weight | 27kg | 40kg | ||
Flying Time | 10~15min | 10~15min | ||
Flying Radius | 0~1500m | 0~1500m | ||
Flying Height | 0~30m | 0~30m | ||
Flying Speed | 0~12m/s | 0~12m/s | ||
Work Temperature | -10~70°C | -10~70°C | ||
Work Humidity | 0~90% | 0~90% | ||
Spray Speed | 0~8m/s | 0~8m/s | ||
Spray Width/Nozzle No. | >3.5~5.5m / 4 Nozzles | >4~6m / 8 Nozzles | ||
Spray Flow | 1~1.5L/min | 2~2.5L/min | ||
Spray Efficiency | 5~7Ha/Hr | 8~10Ha/Hr | ||
Flying Downward Airflow | 4~15m/s | 4~15m/s | ||
Wind Resistance | 10m/s | 10m/s | ||

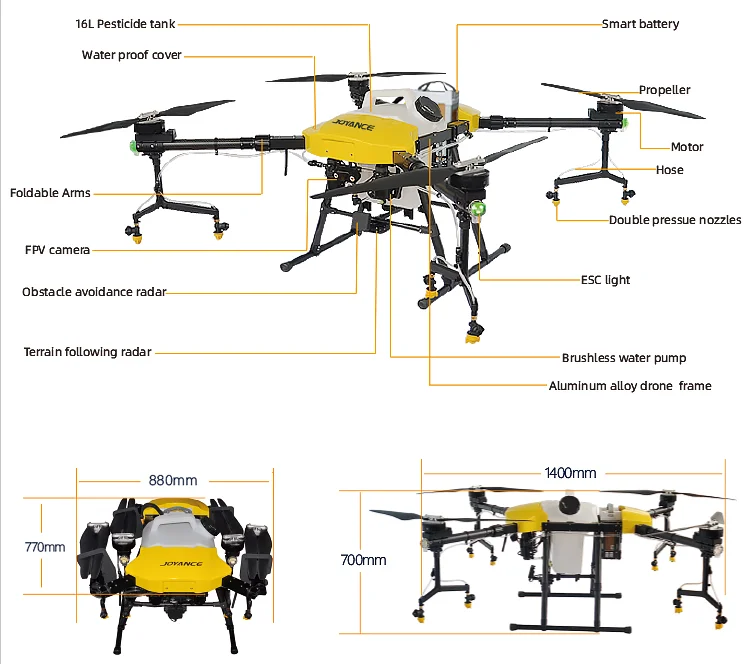

Machine Size | Spread Size | W1.14m x L1.12m x H0.58m | W1.40m x L1.35m x H0.7m | |
Folded Size | W0.82m x L0.64m x H0.58m | W0.85m x L0.85m x H0.7m | ||

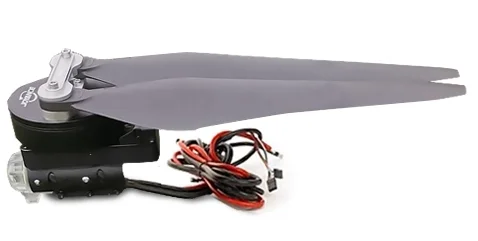

Power System | Motor | Brushless | Brushless | |
Propeller | Carbon Fiber | Carbon Fiber | ||
Propeller | Rapid Throttle Response | Rapid Throttle Response | ||
Flight Control | K++ V2 | K++ V2 | ||
Remote Controller | Joyance Datalink T12 RC | Joyance Datalink T12 RC | ||
Battery / Quantity | 14S 10000mAh / 1pc | 14S 20000mAh / 1pc | ||
Adapter + Charger | Dual-Channel Charger 2400W | Dual-Channel Charger 3000W | ||
Aluminum box size / weight | 98*92*68cm / 50kg | 98*92*75cm / 65kg | ||

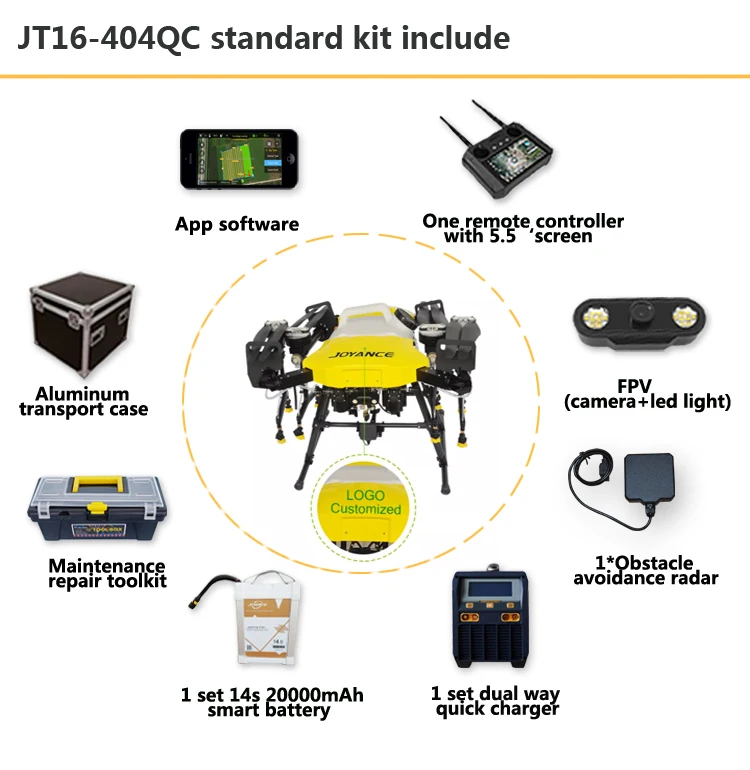

Toolkit | Maintenance/Repair Tools | Maintenance/Repair Tools | ||
Product Feature
1.

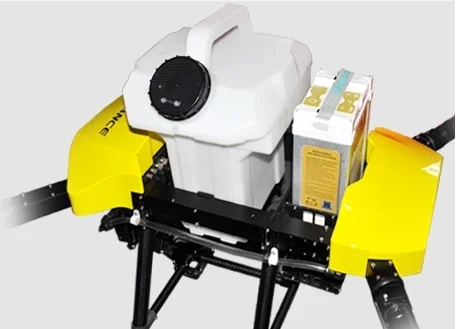

Pluggable smart battery,saves replacement time and improves work efficency.
2.
3.
4.
5.

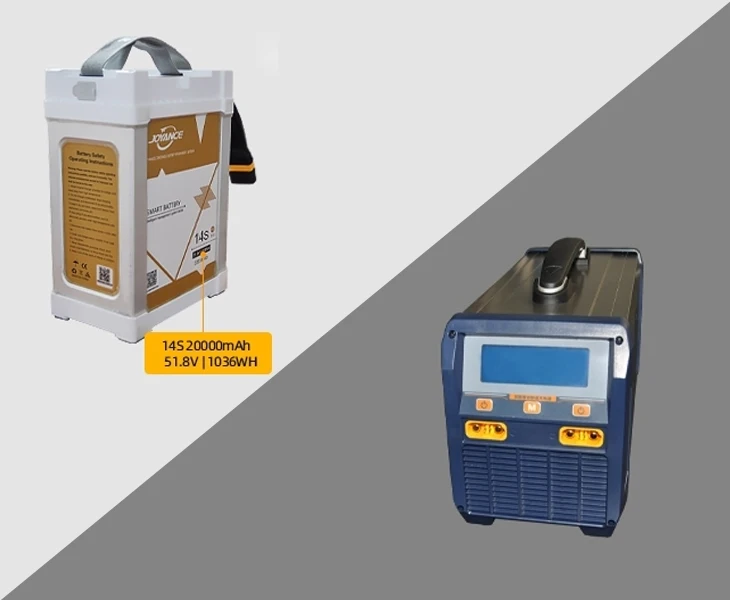

Adopt smart battery,high energy density,support fast charge,longer life.Built -in battery management system,easy to manage and maintain.
Fast-charging charger,fast charging speed,reducing the number and cost of battery purchase.

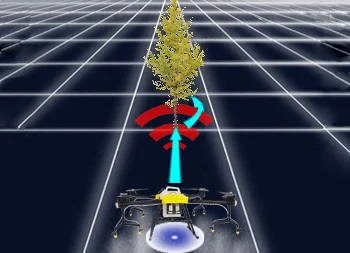

Radar systems support obstacle detection and work safely in fields with many trees.
High pressure nozzles Effect of spraying
Centrifugal nozzles optional accessory
The difference between high pressure nozzles and centrifugal nozzles
Nozzles | High pressure nozzles | Centrifugal nozzles |
Droplet size | 100-200 um | 40-150 um |
Spraying width | 0.5-1 m | 3 m |
Working theory | Water pressure to spray water out of pump | There is a small motor to run inner nozzle,water is sprayed by centrifugal force,more evenly |
Price | Low price,normal,easy to buy and change | High price,repair and change cost is high |
Suitable theory | Rice,wheat,corns,etc | Fruit trees,large level crops |
Why choose us

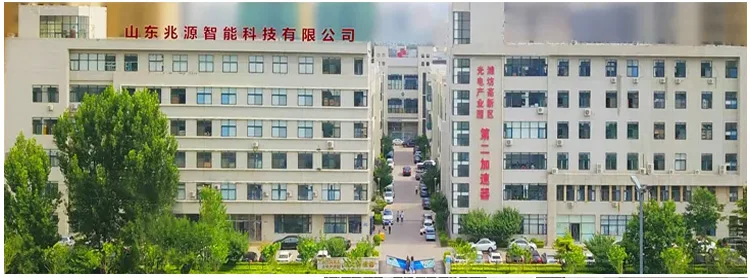

Shandong Joyance Intelligence Technology Co.,Ltd.
● Leading & professional sprayer drone solution provider
● 10 years of R&D experience & teams
● 200 units per month output
● Shortest delivery time ≤3 working days, sufficient spare parts in stock
● Real users in 82 countries & regions
● Overseas technical support Agricultural Spraying Drone, Fogger Drone, Spreading Drone
● Lifetime online after-sale service
● CE, FCC, RoHS, ISO 9001 certification
● Top quality & Competitive price & Your reliable partner
● Looking forward to dealers or agents all over the world
● 200 units per month output
● Shortest delivery time ≤3 working days, sufficient spare parts in stock
● Real users in 82 countries & regions
● Overseas technical support Agricultural Spraying Drone, Fogger Drone, Spreading Drone
● Lifetime online after-sale service
● CE, FCC, RoHS, ISO 9001 certification
● Top quality & Competitive price & Your reliable partner
● Looking forward to dealers or agents all over the world
The Patent & Certificate
After-sales & Services
√ Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.

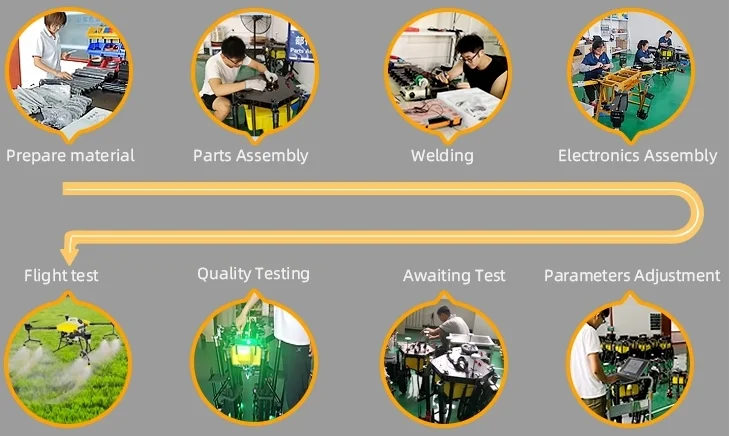

√ Ready to fly and quality control:100% tested before delivery.
√ Lifelong after-sales service, offer operation manual and videos,timely online technical support is available.
√ Free training in our factory, including operation and maintenance, takes 2-3 days
√ Lifelong after-sales service, offer operation manual and videos,timely online technical support is available.
√ Free training in our factory, including operation and maintenance, takes 2-3 days
Customer review

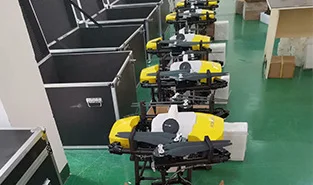

Packing and Transportation
FAQ
1. I do not know how to operate the drone, how about the training ?
We provide you detailed operation videos and manuals, also we will give you first flight instruction. Operation is very easy, we will give you all life online support to help you learn
operation of the drone. And with automatically flying app, it is more easier for beginners.
2.I have not imported things from other countries, how to do it ?
We can send drone to your port directly, you can find local customs broker to help you do importing process. It is very easy. And we can recommend your local importing agent to help you if we have.
3.What is flight time for one flight ? How many batteries do I need to buy ?
Flight time is about 8-10 minutes, and spray about 1.1 hectares lands. If you want to do continuous working all day, advice total 5 batteries and 2 chargers
4.What is the flow rate ?
operation of the drone. And with automatically flying app, it is more easier for beginners.
2.I have not imported things from other countries, how to do it ?
We can send drone to your port directly, you can find local customs broker to help you do importing process. It is very easy. And we can recommend your local importing agent to help you if we have.
3.What is flight time for one flight ? How many batteries do I need to buy ?
Flight time is about 8-10 minutes, and spray about 1.1 hectares lands. If you want to do continuous working all day, advice total 5 batteries and 2 chargers
4.What is the flow rate ?
There are two water pumps on this drone, max flow rate can reach 8L/minutes
5.Are you sprayer drone factory?
Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone. We can provide you direct after sales service and technical support all life.
6. Is uav sprayer drone ready to fly?
Yes. Before dispatch, JOYANCE will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and ready to fly.
7. What's the delivery time of sprayer drone?
2-3 days for one, please contact us for mass order.
8. What's your payment term?
50% deposit, balance before delivery. We accept T/T and alibaba online assurance order.
9.Do you have warranty ?
5.Are you sprayer drone factory?
Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone. We can provide you direct after sales service and technical support all life.
6. Is uav sprayer drone ready to fly?
Yes. Before dispatch, JOYANCE will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and ready to fly.
7. What's the delivery time of sprayer drone?
2-3 days for one, please contact us for mass order.
8. What's your payment term?
50% deposit, balance before delivery. We accept T/T and alibaba online assurance order.
9.Do you have warranty ?
Yes. We provide 3 years warranty for main frame, and 1 year warranty for main parts like remote controller and 3 months warranty for wearing parts. And we provide all life after sales service and technical support. Whenever you contact us, we are here to help you.
