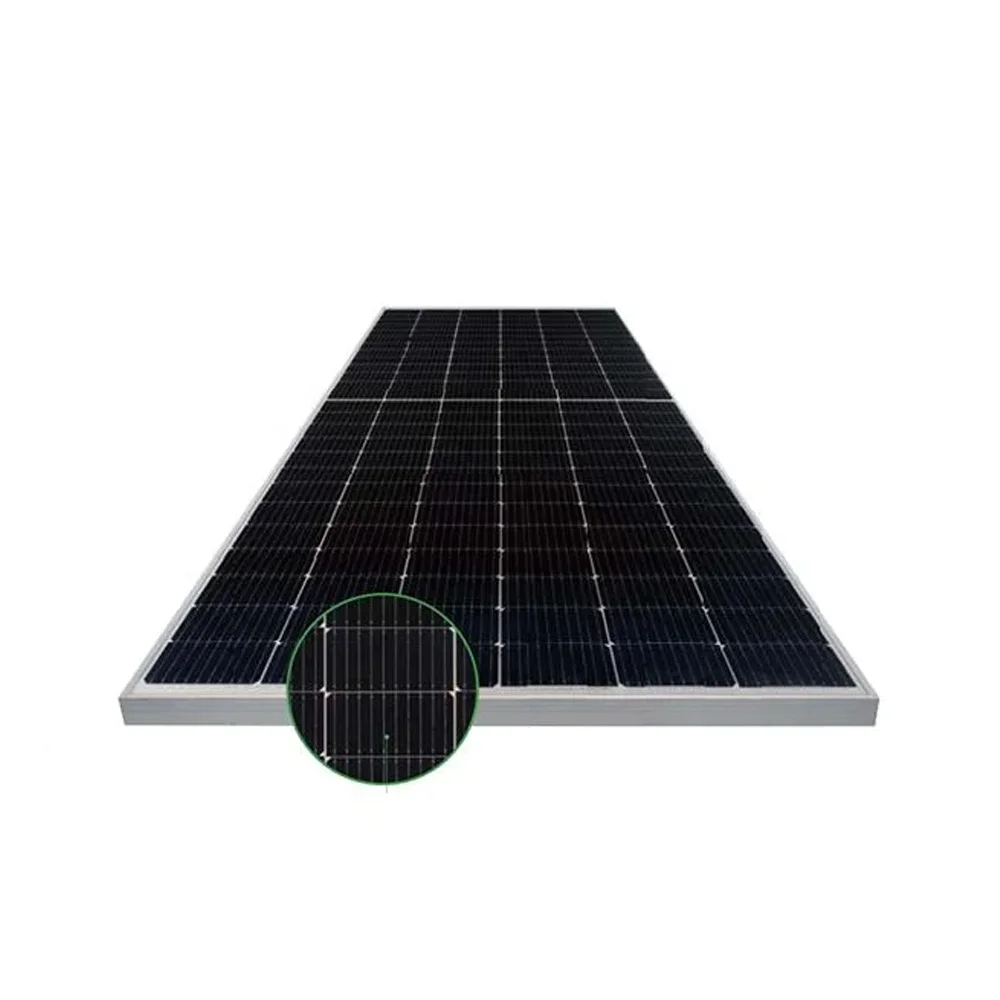

Solar panel 300w 330w 350w 400w 500w 1000w price solar panel
- Category: >>>
- Supplier: Anhui Lanrun Zhenghua Electronics Co. Ltd.
Share on (1600533523661):
Product Overview
Description
Module Type | JKM390M-72H | JKM395M-72H | JKM400M-72H | JKM405M-72H | JKM410M-72H |
Maximum Power (Pmax) | 390Wp | 395Wp | 400Wp | 405Wp | 410Wp |
Maximum Power Voltage (Vmp | 41.1V | 41.4V | 41.7V | 42.0V | 42.3V |
Maximum Power Current (Imp) | 9.49A | 9.55A | 9.60A | 9.65A | 9.69A |
Open-circuit Voltage (Voc) | 49.3V | 49.5V | 49.8V | 50.1V | 50.4V |
Short-circuit Current (Isc | 10.12A | 10.23A | 10.36A | 10.48A | 10.60A |
Module Efficiency STC (%) | 19.38% | 19.63% | 19.88% | 20.13% | 20.38% |
1.New cell string layout and split J-box location to reduce the energy loss casused by shading between modules
2. Low thermal certificates for greater energy production at high operating temperature

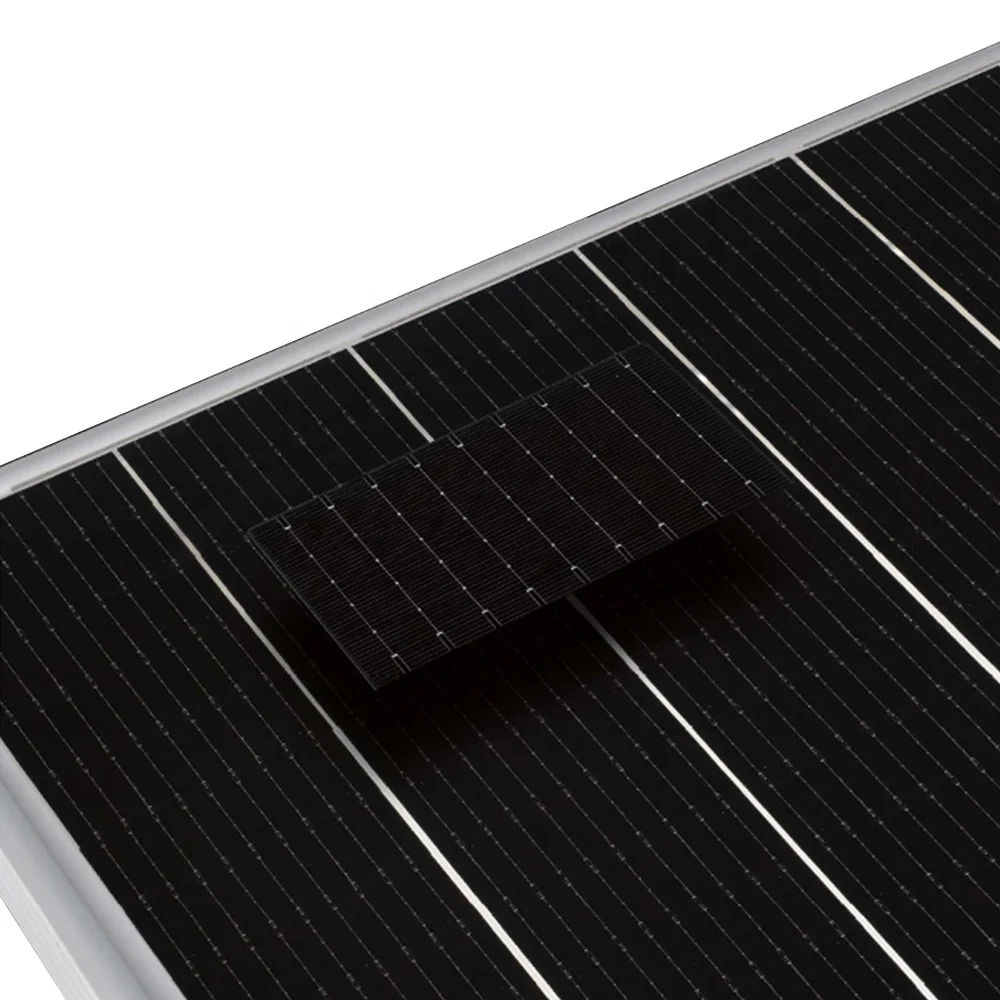

3. Low cell connection power loss due to half-cell layout (144 monocrystalline pv module)
2. Low thermal certificates for greater energy production at high operating temperature
3. Low cell connection power loss due to half-cell layout (144 monocrystalline pv module)
