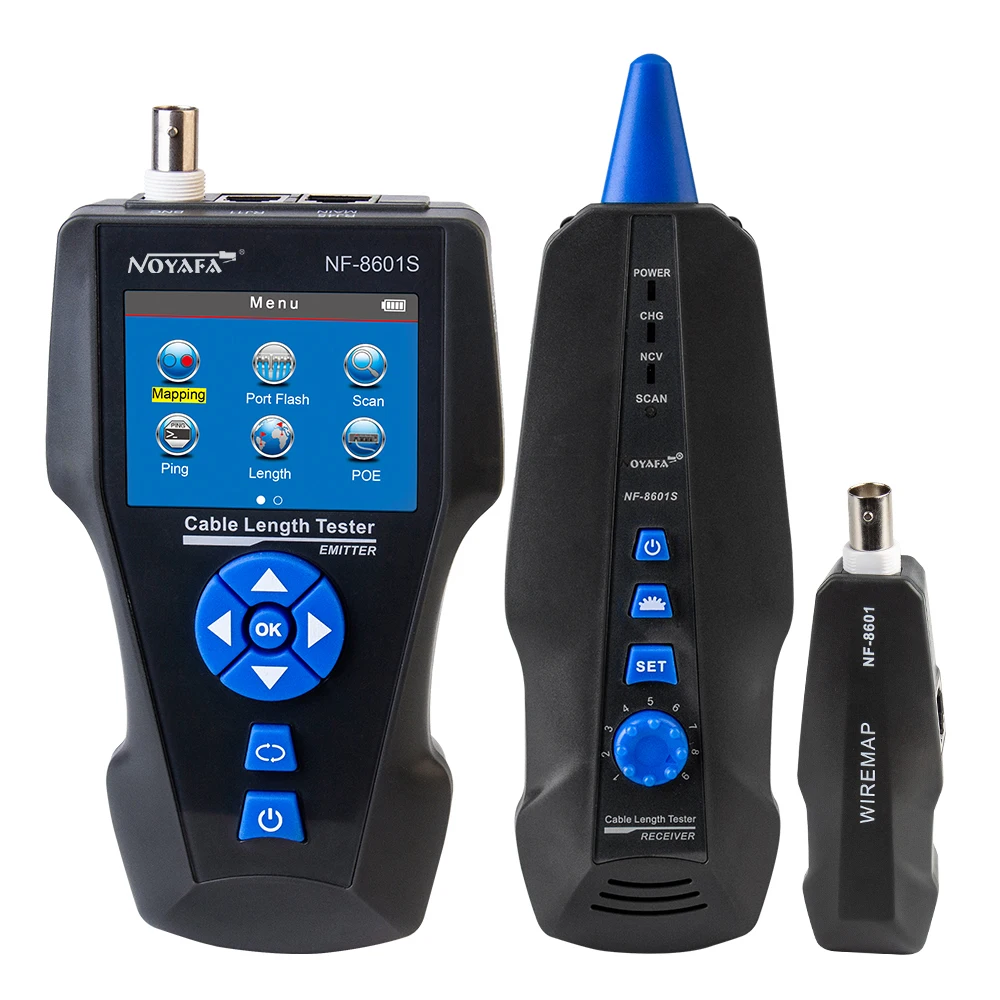

NOYAFA NF 8601S Network Cable Tester RJ45 RJ11 Multifunction TDR Length With PoE/PING/Port Testing LCD Digital Wire Tracer
- Category: >>>
- Supplier: Xi an Summitek Electronic Commerce Co. Ltd
Share on (1600533555571):
Product Overview
Description
NOYAFA NF-8601S Network Cable Tester RJ45 RJ11 Multifunction TDR Length With PoE/PING/Port Testing LCD Digital Wire Tracer
Main Functions：
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.
3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Benefits:
1. Tone traces cable with complete AC fliter.
2. TF card function to export data from computer (50sets, TXT format)
3. 2 scan modes: common switch and PoE switch
4. 3.7V lithium battery for power supply and 2.8 inch color screen
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.
3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Benefits:
1. Tone traces cable with complete AC fliter.
2. TF card function to export data from computer (50sets, TXT format)
3. 2 scan modes: common switch and PoE switch
4. 3.7V lithium battery for power supply and 2.8 inch color screen
Specification
NF-8601S Transmitter specifications | ||
Indictor | LCD 320x240 mm, with back light | |
Cable test types | STP/UTP 5E,6E network , telephone , coacial cable | |
Max. distance of wiremap | 1000m | |
Max. distance of tracing | 1000m | |
Max. distance of cable length | 1000m | |
Max. distance of calibration | 50m | |
Accuracy | up to 98%(after calibration) | |
Compatible connectors | RJ11,RJ45, PING/POE,BNC | |
Cable map indication | LCD (#1-#8) | |
Battery Type | 3.7V lithium battery 1800mAh | |
Work temperature / humidity | 10℃ ~ -60℃ / 0℃~70℃ | |
Dimension(LxWxD) | 173x92x34mm | |
NF-8601S Receiver specifications | ||
Cable hunting | RJ11,RJ45, BNC | |
Types of cable | ≥ 2 cores | |
Battery Type | 3.7V lithium battery 1800mAh | |
Dimension(LxWxD) | 183x58x35 mm | |
NF-8601S Remote unit specifications | ||
Compatible connectors | RJ11,RJ45, BNC | |
Dimension(LxWxD) | 106×32×30mm | |
