Products Description

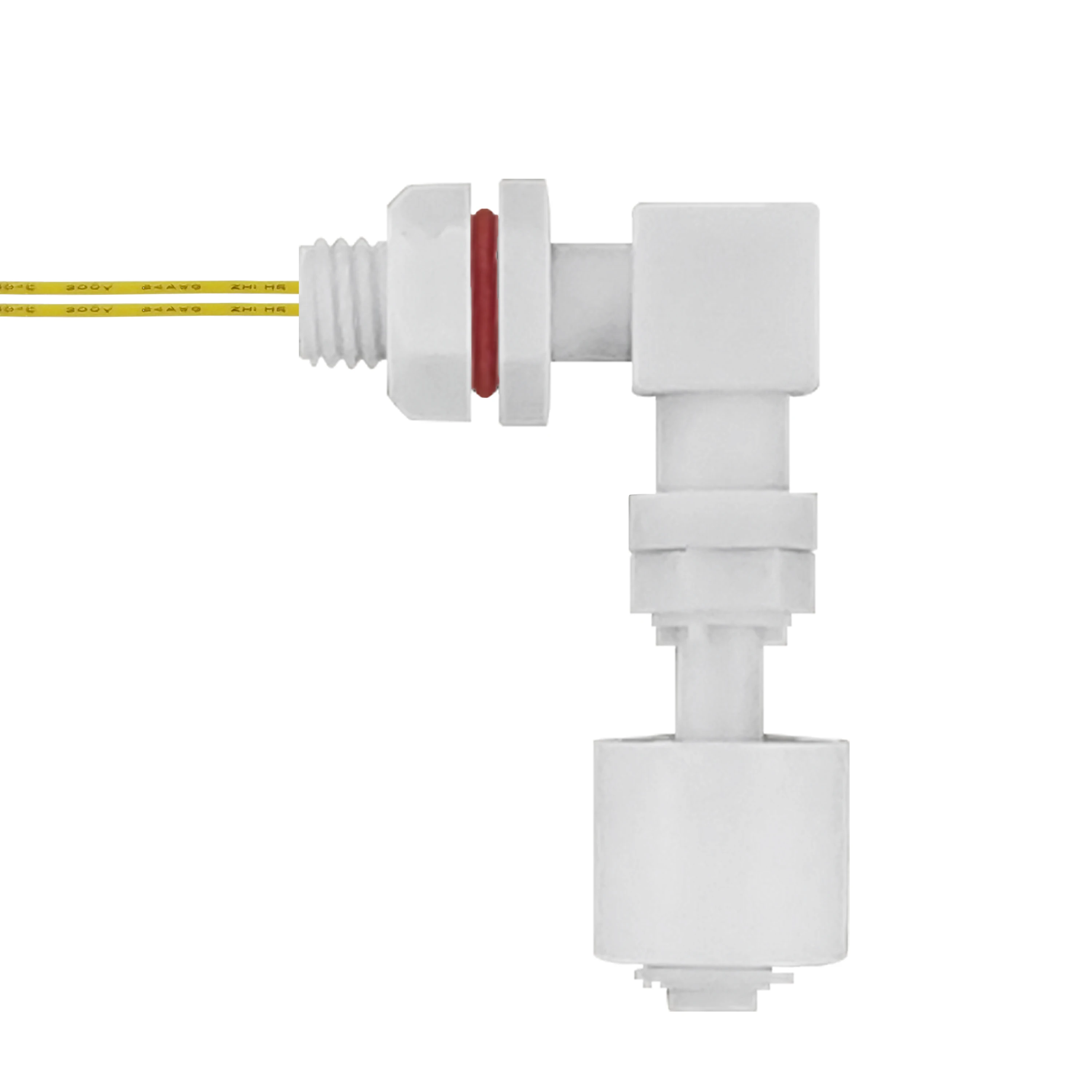

PP plastic vertical mounted liquid water level switch float sensor

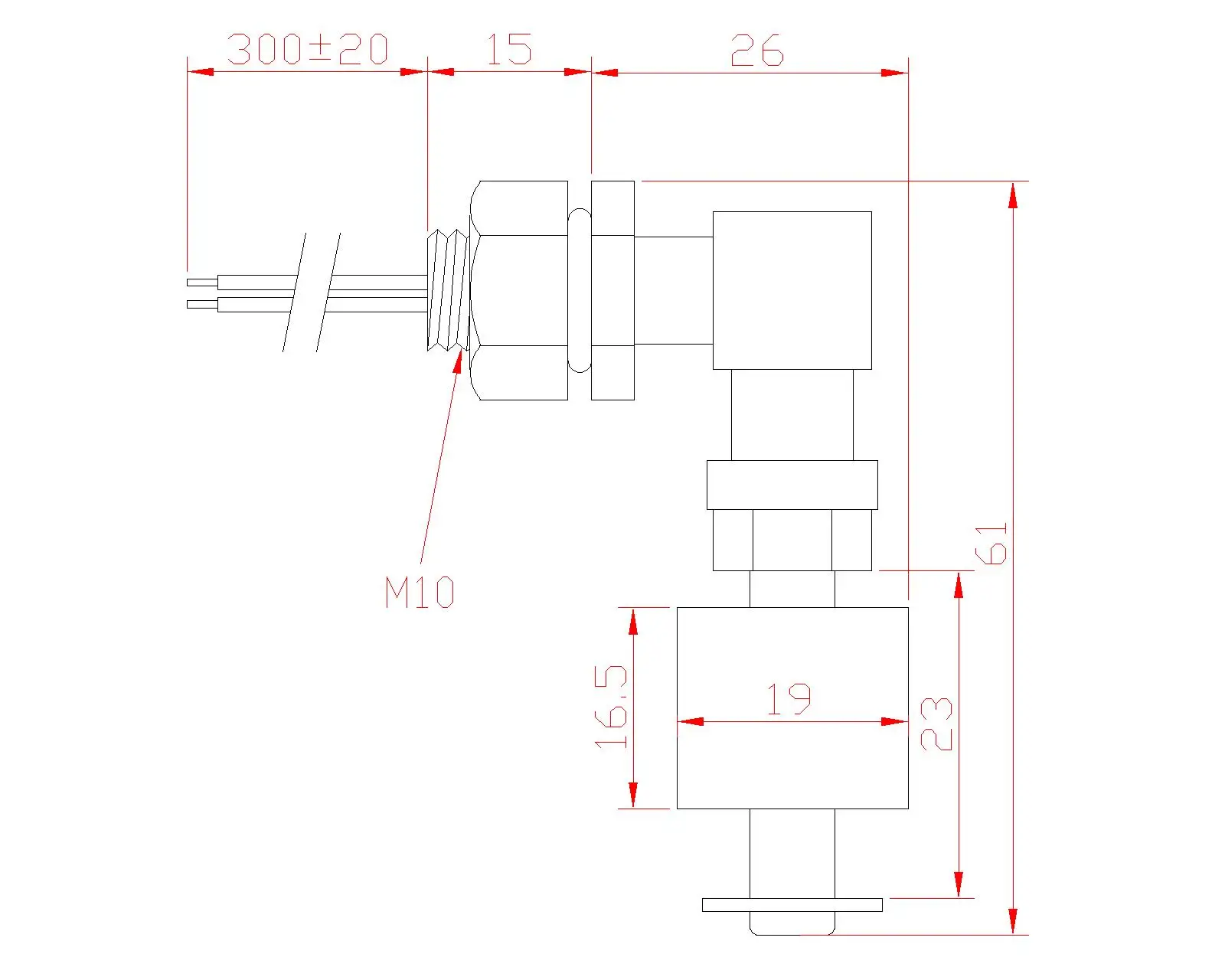

Model: LLS-HP60


Water level sensor is widely used in water/oil tank level auto control systems, to detect the liquid levels to startup and shutdown the water pump or electric valve on the basis of liquid level, or output switching signal to other signal acquisition module.




Model NO.
LLS-HP60
Installation
side mounted
Switching type
NO (normally open)
Switching voltage
100 VDC Max.
Switching Current
0.5A Max.
Contact Rating
10W Max.
Material
PP Plastic
Working temperature
-20 ~ +80 ℃
Wires length
300 ± 20mm
Customized
cable length

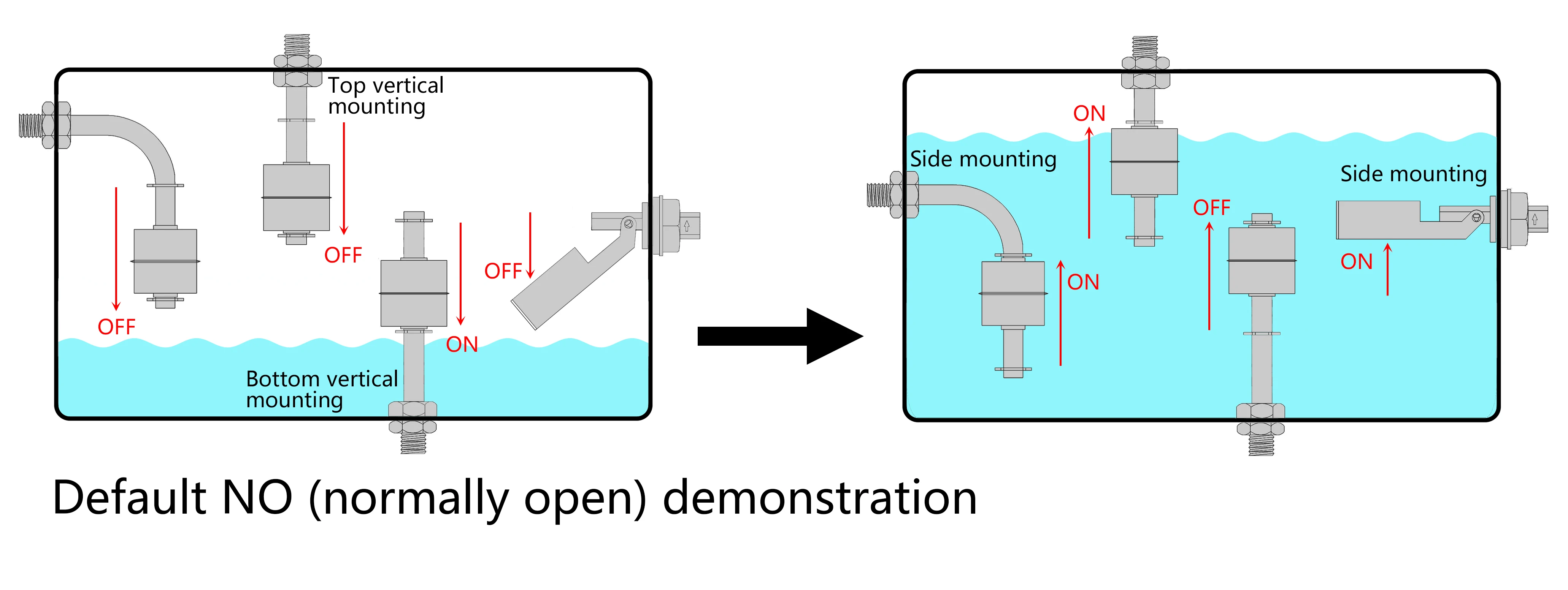

Installation Instructions
