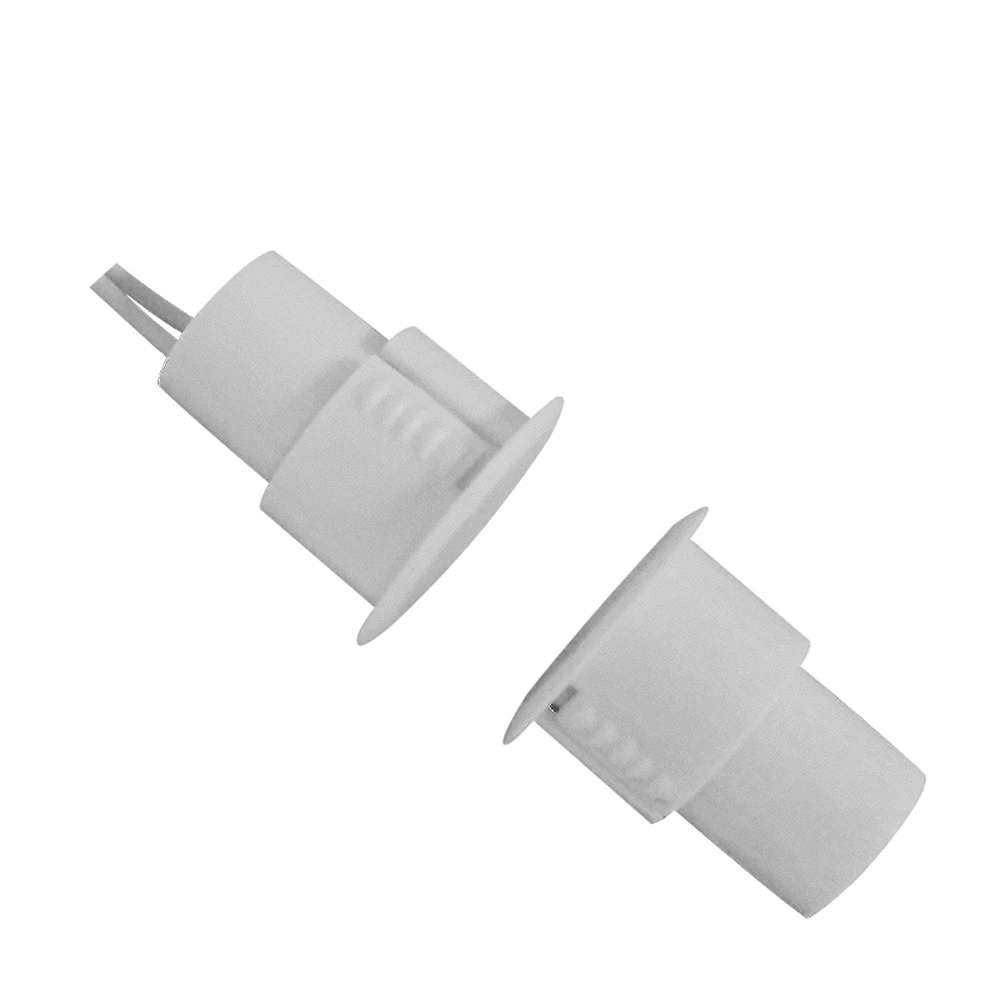

MCS 36 metal door magnetic contacts flush mounted
- Category: >>>
- Supplier: 5C Electronics Co. Ltd.
Share on (1600533619908):
Product Overview
Description
Recommend Products
Products Description
Recessed mounted door magnetic contacts switch MCS-36
Magnetic contact is widely used for alarm system(panel) to detect state of door or window.
It consists of reed switch part and magnet part .

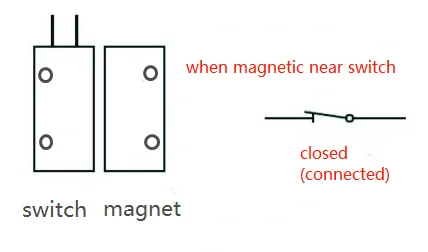

NC type we define:
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and switch OFF, then output signal to panel or trigger alarm.
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and switch OFF, then output signal to panel or trigger alarm.
Product name | magnetic contacts for metal door |
Model NO. | MCS-36 |
Installation | press flush mounted |
Operation gap | 30mm |
Output type | default NC type (if you need NO type or NCNO COM type, please contact us) |
Housing material | ABS plastic |
Housing color | brown color and white color optional |
Wires length | 350 ± 20mm |
Switching voltage | 100VDC Max. |
Switch current | 0.5A Max. |
Contact rating | 10W Max. |
Switch working life | 100000000 times |
Working temperature | -20~80℃ |
Customized | wires type / wires length / resistors |
Certification | CE,ROHS, EN50131 grade 2 |
Others | only magnet or switch parts available |
Product packaging

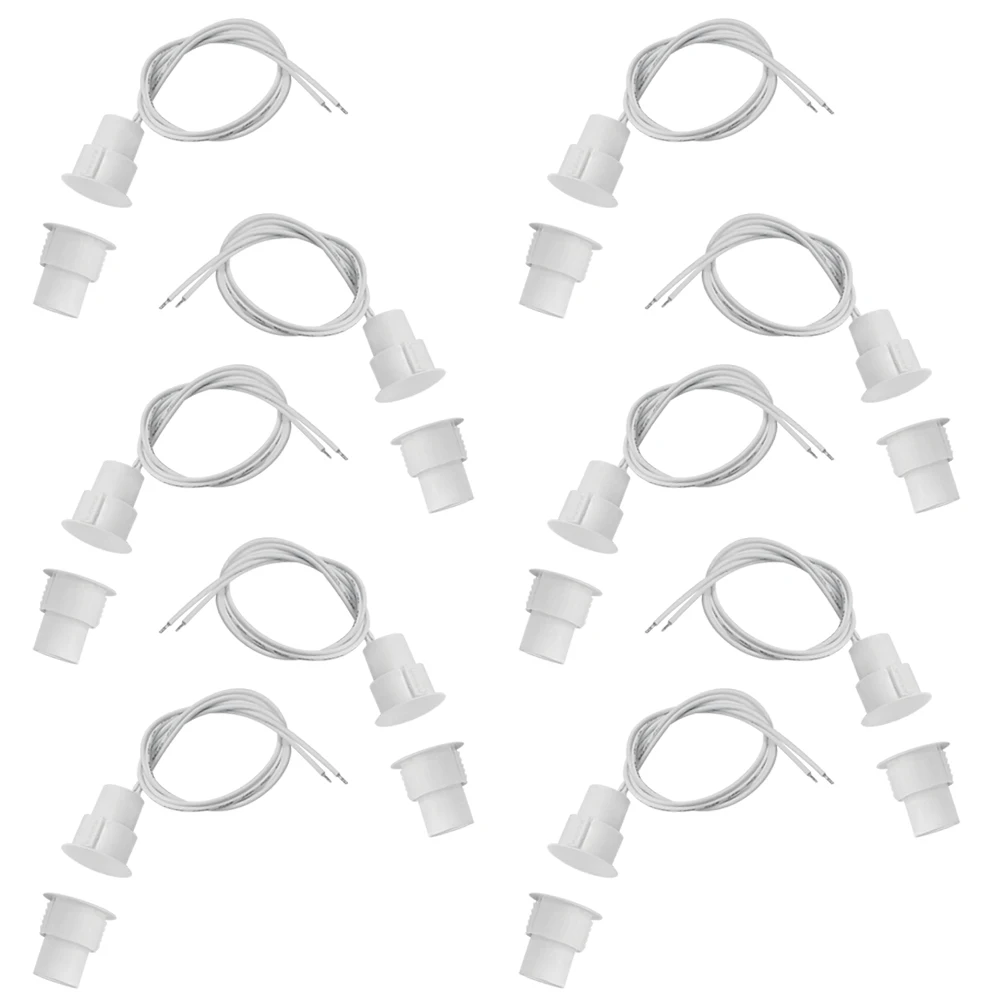

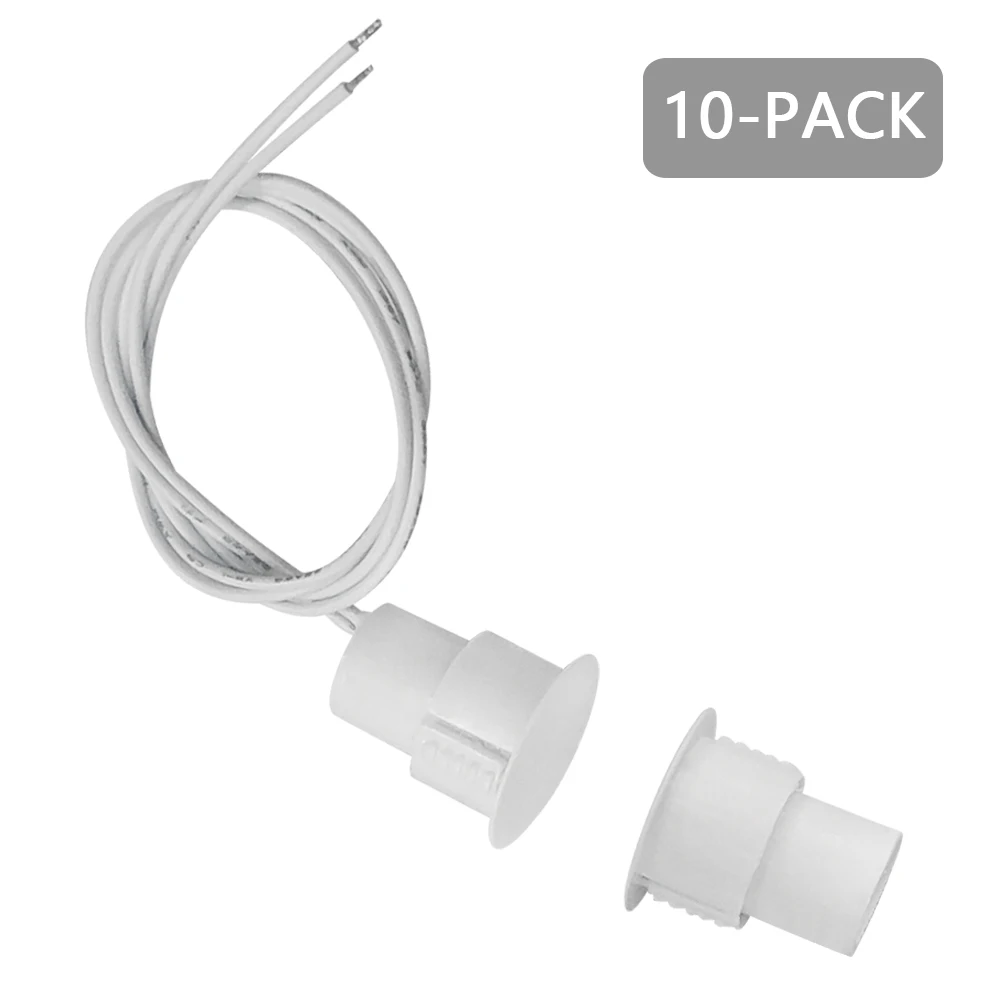

Package | 10pcs/bag |
Carton package | 600pcs |
G.W. | 14.00kgs/ctn |
N.W. | 13.50kgs/ctn |
Carton size | 38*30*30CM |
Delivery | By sea/ air/ DHL/FEDEX/UPS/TNT express etc. |
Installation drawing
