high efficient low price PET bottle PP cover lid case manufacturing making injection molding machine
- Category: >>>
- Supplier: Zhangjiagang City Best Machine Co. Ltd.
Share on (1600533664955):
Product Overview
Description
automatic plastic bottle cap making machine /bottle cap injection moulding machine price
Product Description
1800
Strong Technical design ability, Stable quality, and large production capability, Famous brand.
CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.
HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference the rotating speed of the servo motor. in this way , the control of injection moulding is not only acurate but also fast, and the repeatability of the products high as well.
Technical parameters
| Model | Clamp tonnage (KN) | Ejector tonnage (KN) | Heat power(KN) | Max.Pump pressure (MPA) | Pump motor power(kw) | Machine dinension(m) | Machine weight(t) | Oil tank capacity(L) |
| BST-1000A | 1000 | 50 | 7.6 | 16 | 11 | 4.3*1.5*1.6 | 3.4 | 180 |
| BST-1320A | 1320 | 50 | 8.2 | 16 | 13 | 4.5*1.6*1.7 | 3.9 | 200 |
| BST-1400A | 1400 | 50 | 8.2 | 16 | 13 | 4.8*1.6*1.7 | 4.2 | 220 |
| BST-1650A | 1650 | 70 | 8.2 | 16 | 15 | 5.0*1.6*1.7 | 5 | 250 |

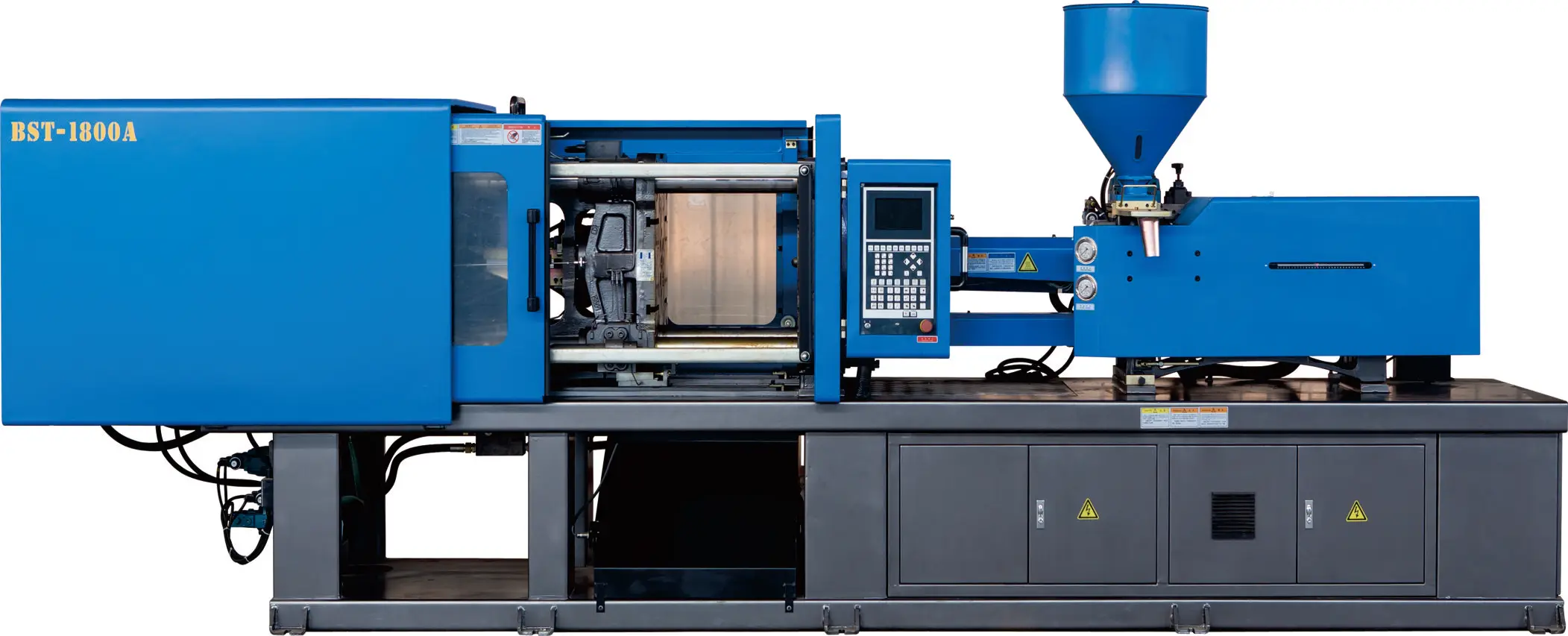

| BST-1800A | 1800 | 70 | 11 | 16 | 15 | 5.3*1.6*1.75 | 5.5 | 250 |
| BST-2050A | 2050 | 70 | 11.6 | 16 | 17 | 5.4*1.6*1.75 | 6 | 270 |
| BST-2300A | 2300 | 70 | 11.6 | 16 | 18.5 | 5.7*1.8*2.0 | 6.5 | 300 |
| BST-2600A | 2600 | 70 | 15.5 | 16 | 25 | 6.1*1.7*1.8 | 8 | 350 |
| BST-3000A | 3000 | 80 | 15.5 | 16 | 25 | 6.5*1.8*1.8 | 9 | 370 |
| BST-3400A | 3400 | 80 | 17.5 | 16 | 30 | 6.7*2.0*1.9 | 10.8 | 400 |
| BST-3850A | 3850 | 80 | 17.5 | 16 | 30 | 7.0*2.2*2.0 | 11.5 | 400 |
| BST-4500A | 4500 | 85 | 20.5 | 16 | 37 | 7.3*2.3*2.4 | 13.8 | 450 |
| BST-4800A | 4800 | 125 | 23.4 | 16 | 40 | 8.3*2.2*2.2 | 16.2 | 600 |
| BST-5200A | 5200 | 125 | 28.1 | 16 | 43.5 | 8.6*2.2*2.25 | 20 | 750 |
| BST-5800A | 5800 | 125 | 28.1 | 16 | 48.5 | 8.75*2.2*2.3 | 21.8 | 850 |
| BST-6500A | 6500 | 160 | 37.1 | 16 | 55 | 9.2*2.2*2.4 | 26 | 1000 |
| BST-7500A | 7500 | 180 | 40.9 | 16 | 67 | 10.7*2.3*2.7 | 38 | 1200 |
| BST-8500A | 8500 | 186 | 42.5 | 16 | 74 | 11*2.4*2.75 | 45 | 1300 |
| BST-11000A | 11000 | 210 | 63 | 16 | 128 | 14*2.9*4.1 | 63 | 1800 |
| BST-13000A | 13000 | 280 | 85.25 | 16 | 160 | 13.2*3.1*3.6 | 76 | 2400 |
Company Information
ZhangJiaGang City BEST Machinery Co., LTD is located in a bueatiful development zone in Tangqiao, Zhangjiagang City, Jiangsu Province, China.
Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 3,000 million fixed assets, during the past 19 years, we always force our energy into new areas of plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machcines from our company carry good quality and effective after-sales service, upon the domestic market, we hotly export machines to Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, Malaysia, Canada, Algeria, Uzbekistan and many other countries, create good sales performance and well feedback, all to strengthen our position in this field. With full enthusiasm, serious attitude and win-win business conception, welcome you to become our clients!
Packaging & Shipping
Business process
1. Inquiry-Pofessional Inquiry
2. Confirm the price, leadtime, payment term etc
3. Sheenstar sales send the proform invoice with sheenstar seal
4. Customer make the payment for deposit and send us bank receipt and offer samples
5. Inform customer has got the deposit and start to production
6. Middle production- send photos to show the production line which you can see your products in. Confirm the estimated delivery time again
7. Clients make payment for balance and Sheenstar ship the goods. Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.
8.Order can be say “finish” when you receive the goods and satisfy with them.
9. Feedback to Freedom about Quality , Service, Market Feedback & Suggestion. And we can do better.
Packing&Deliver
We take care of our machine packing and loading.
Injection machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.We should take photos of loading, and send to you for reference.
Our Services
When you finish the Preparation conditions,our fast and professional after-sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quic kly
2. When you finish the Preparation conditions,our fast and professional afters- ales service engineer team will go to your factory to install the machine,give you the op erating manual,and train your employee until they can operate the machine well.
3.We often ask feedback and offer help to our customer whose machine have been use d in their factory fo r some time.
4. We provide one year warranty
5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 . 24 hours for engineer response
7 . 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
FAQ
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The deliver time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
