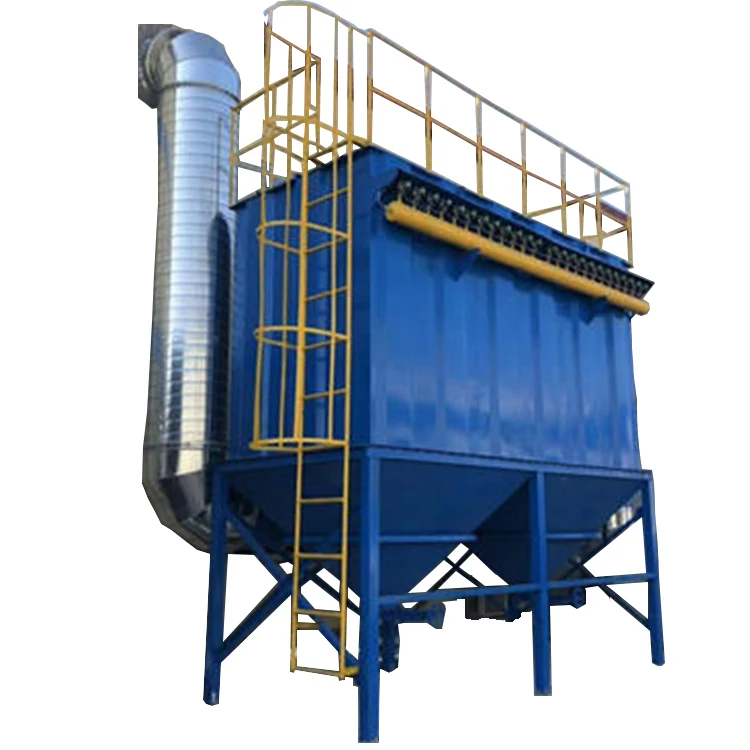

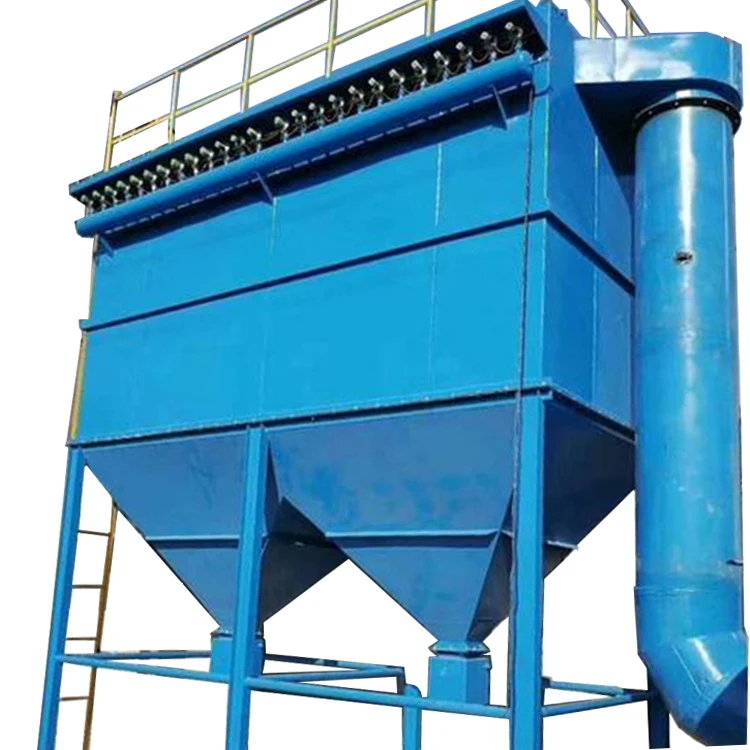

High quality electrostatic precipitator ESP industrial dedusting equipment





--------ESP Working principle--------

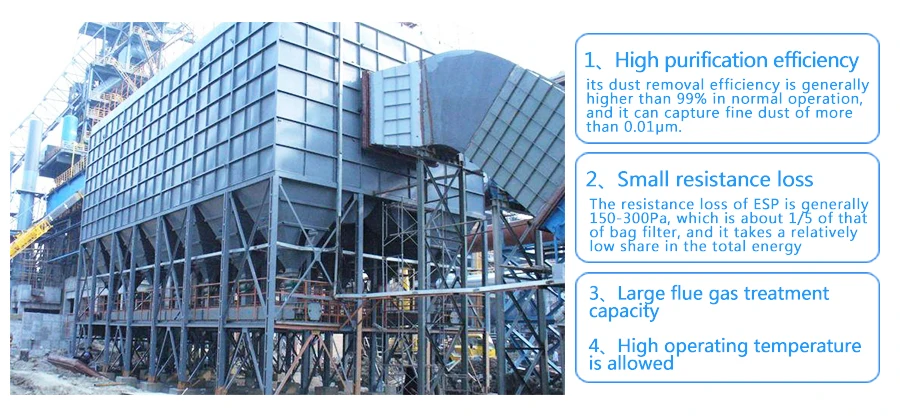

 Electrostatic precipitator (ESP) is an electrical system which uses high voltage static electricity to separate solid and particles suspended in liquid from gas.
When the dusty gas passes through the channel between the two electrodes, the electrons and positive and negative ions in the corona current will be absorbed to the dust particles at a very fast speed, making the dust particles charged. Under the action of electric field force, the charged dust particles quickly move to the opposite direction of their polarity, and finally adsorb to the electrode and release charge. When the dust is deposited to a certain thickness, the dust layer is dropped into the lower ash hopper through the percussing of the vibration device, and the purified gas is discharged into the atmosphere through the air outlet, and the purification of the gas is completed. The dust removal process can be expressed as: 1 Corona discharge →2 Dust charge →3 Dust movement →4 Deposition and release →5 Dust cleaning.

Model	Effective cross sectional area(m2)	Handle capacity 104(m3/h)	Anode effecitve area(m2)	Dimension L*W*H(m)
BL50*3	50	14-18	3000	22*9*16
BL60*3	60	17-22	3600	22*9.5*18.5
BL70*3	70	21-25	4200	22.5*10.5*17.5
BL80*3	80	24-28	4800	22.5*10.5*18
BL90*3	90	27-32	5400	23*11*19
BL100*3	100	30-36	6000	23.5*11.5*20
BL150*3	150	40-55	8400	25.5*13.5*23.5
BL200*3	200	50-70	12000	23.5*23.5*20
BL250*3	250	65-90	13800	24*25*21.5



--------ESP System composition--------
