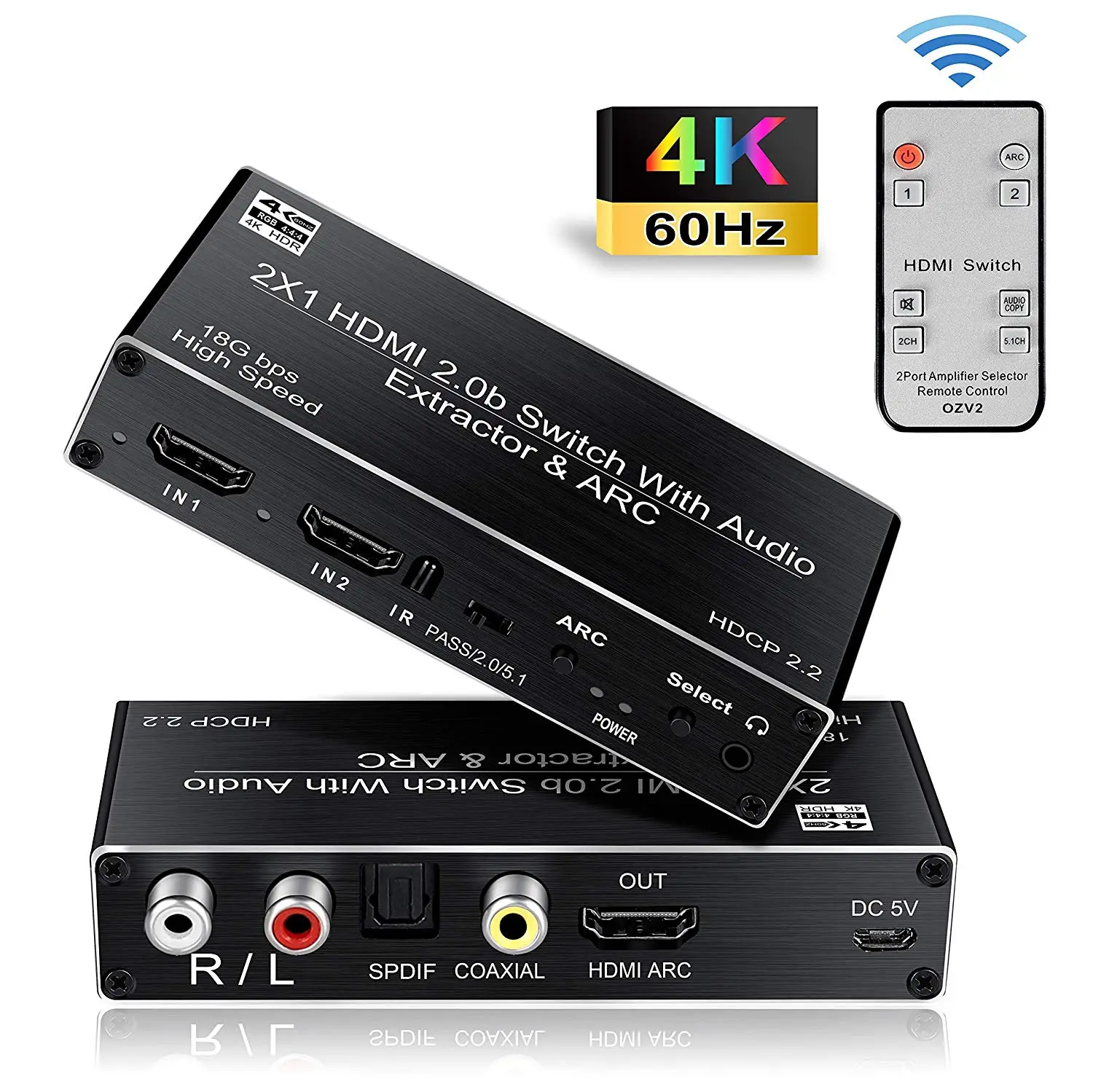

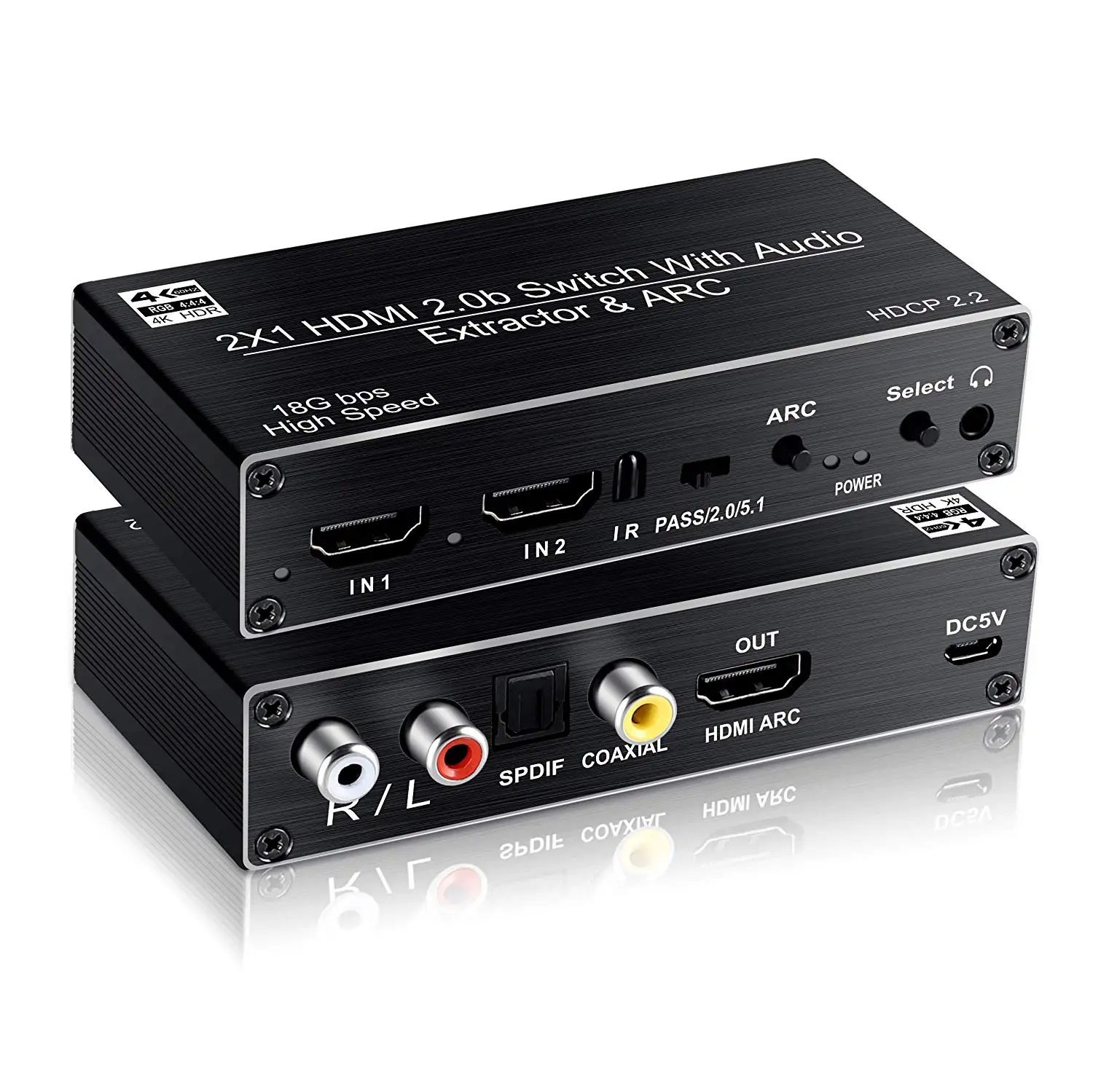

4K 120HZ HDMI Switch 2port 2 in 1 Out HDMI2.0b Switcher Box with ARC Remote Optical Toslink SPDIF Coaxial Analog RCA Audio
- Category: >>>
- Supplier: Dongguan Ouzheng Technology Co. Ltd.
Share on (1600533672300):
Product Overview
Description
Product Description
| HDMI Version | HDMI2.0b HDCP2.2 |
| HDMI Resolution | up to 3840x2160P/120Hz |
| Support Video Format | 12 bit deep color |
| Support Audio Format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max Bandwidth | 600MHZ |
| Max Baud Rate | 18.5Gbps |
| Power Adapter Format | Output: DC5V/1A |
| Material | Aluminum Alloy |
| Color | Black |
| Dimension(LxWxH) | 111X53X24.5mm |
| Weight | 250g |
| Package | Giftbox (Remote+User Manual+Power Adapter) |

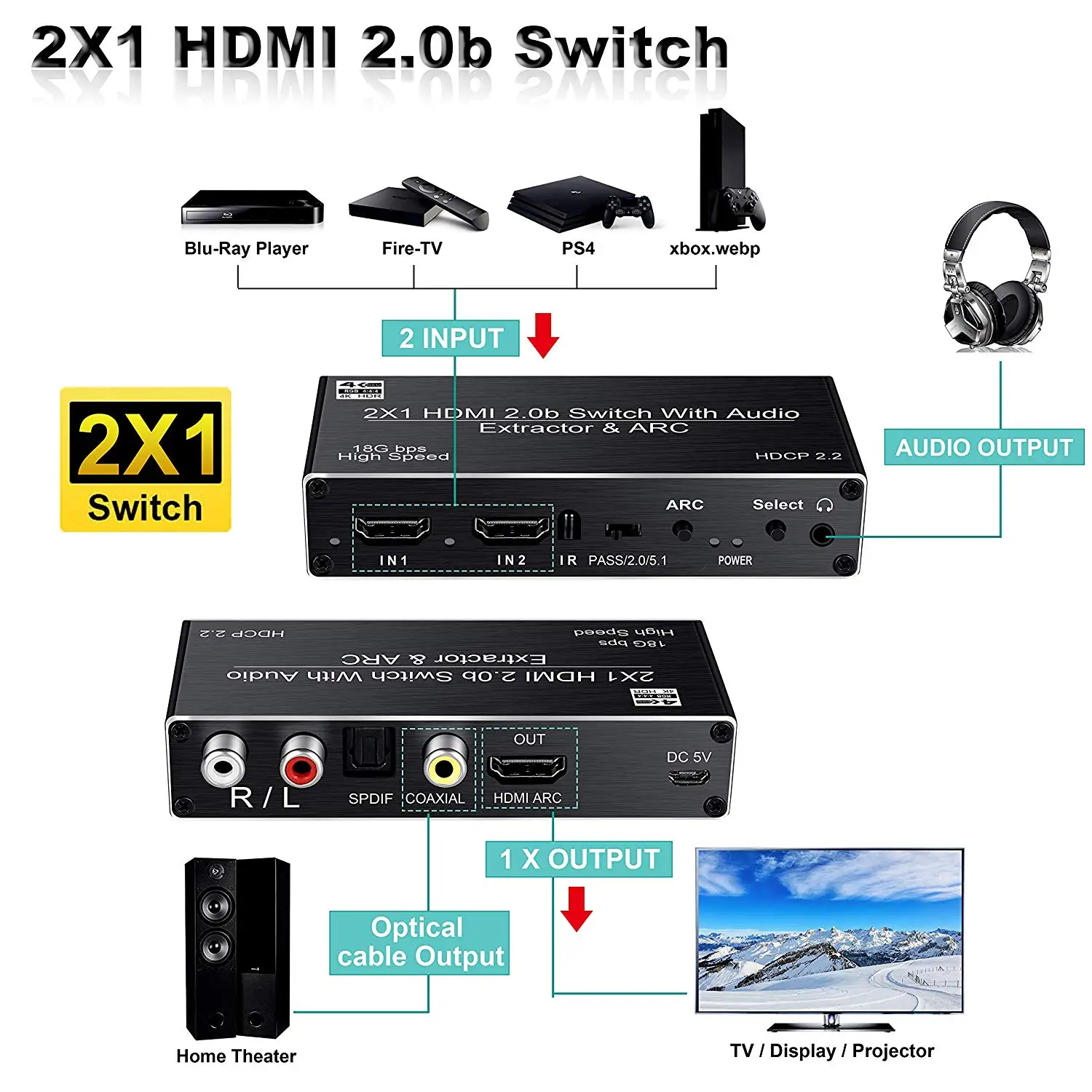

This HDMI Switcher allows you to switch easily among 2 HD sources to one HD display. Also, it can extract digital audio embedded in HDMI and output it via optical SPDIF and RCA L/R stereo and Coaxial audio out, It also support ARC (Audio Return Channel)
Feature:

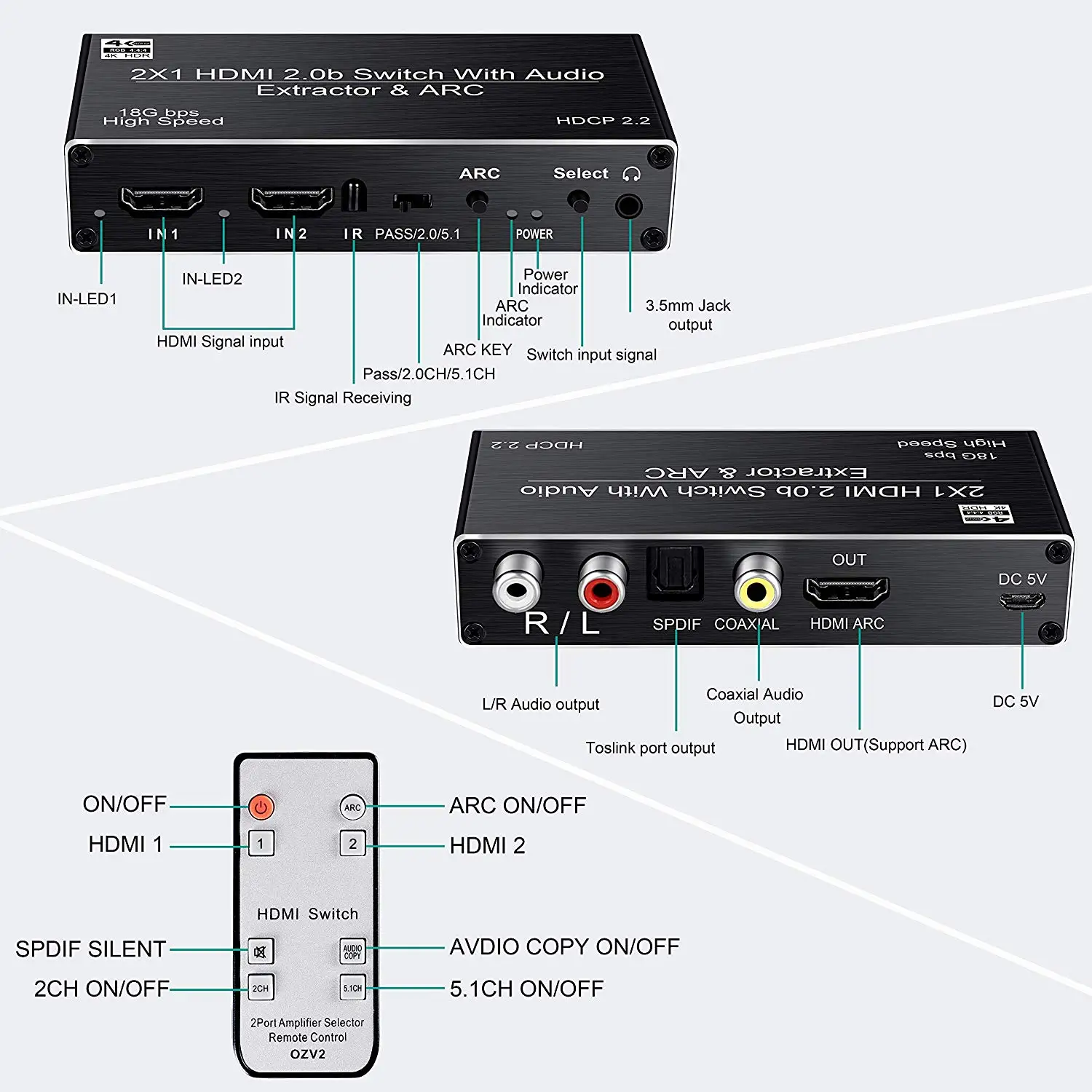

1.There are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.

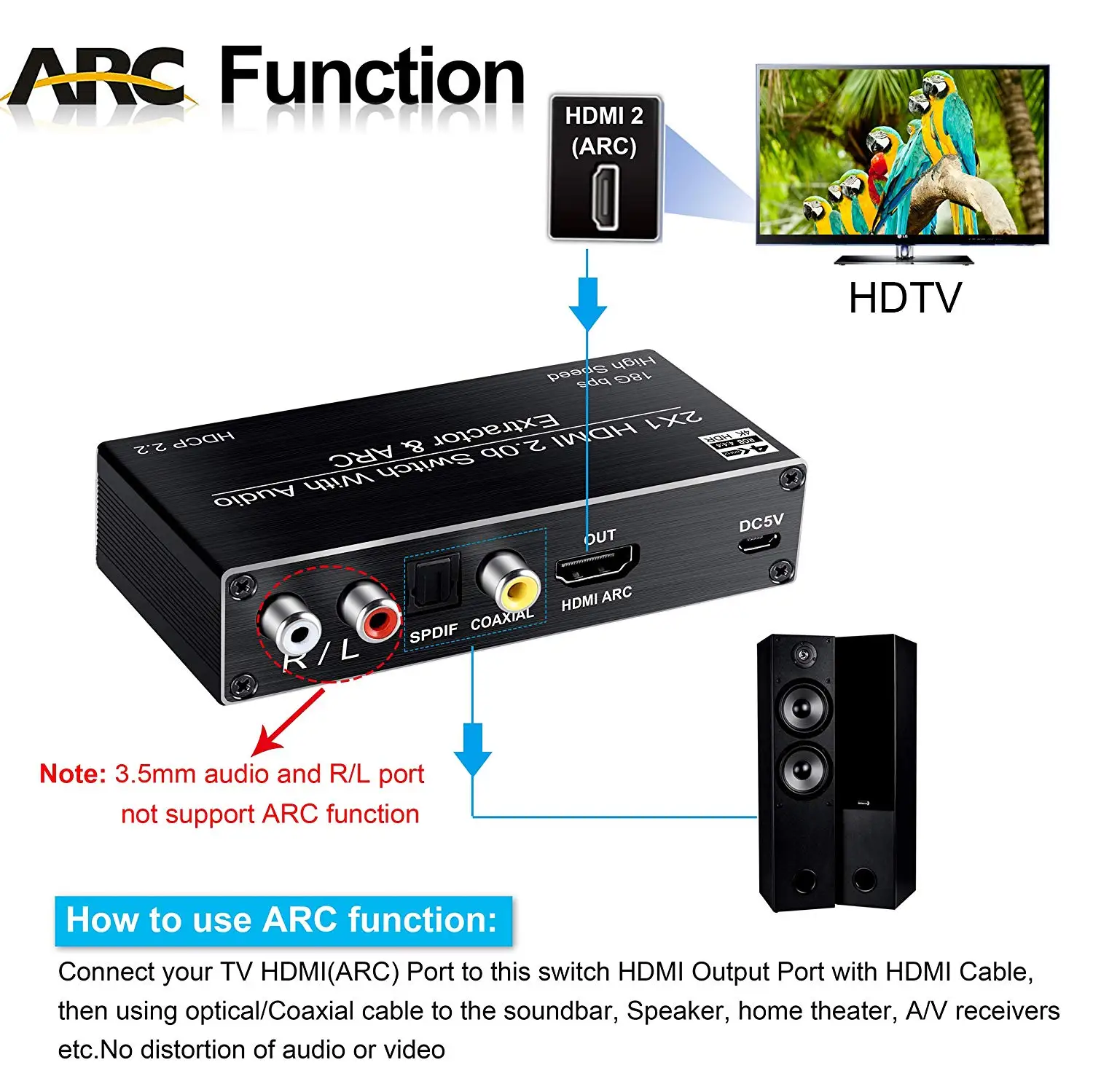

2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@120Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
9.Support HDR 2K HDR10 Wide Applicability: Compatible with any HDMI devices such as Nintendo Switch, PS4 Pro, Xbox 360, Xbox One X,PS3, Beamer, DVB Receivers, Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.
Notes:
1.lt supports coaxial cable and Optical cable are up to 10meters(max)
2.Maximum remote control distance is 8meters.
3.HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resoltion up to 4K@30HZ.

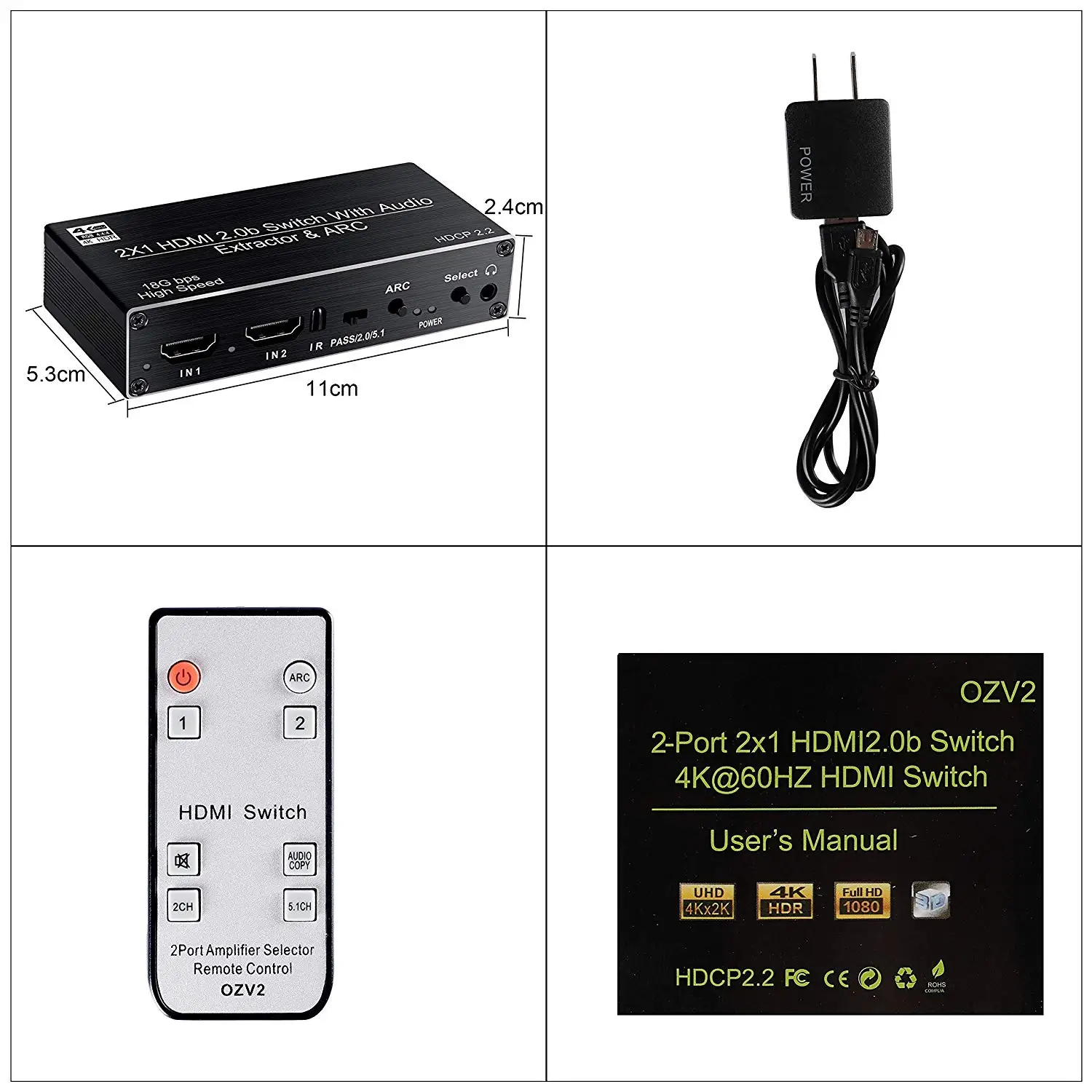

Package:
Box
1 * HDMI Switch 2x1
1 * Remote
1 * Power Adapter
1 * User Manual
Box
1 * HDMI Switch 2x1
1 * Remote
1 * Power Adapter
1 * User Manual
