High rotary speed friction washing machine PP HDPE bottle rigid material recycling line
- Category: >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd.
Share on (1600533685403):
Product Overview
Description
Product Overview
PE/PP/ABS/PS (RIGID FORM )Bottle ,Bucket,Hollow Container Recycling Machine
It used to recycling the waste HDPE/LDPE/PP Bottles and buckets,hollow container and so on.The production line including the conveyor belt,metal detector ,plastic wet crusher,floating washing tank,high speed friction washer,centrifugal dewatering machine;
drying system and label separating machine,material collecting packing system.
After crushing and washing and drying,we can use it to pelletizing line.We also can customized it for you according to your
requirement.
drying system and label separating machine,material collecting packing system.
After crushing and washing and drying,we can use it to pelletizing line.We also can customized it for you according to your
requirement.
Waste Raw Material
Final material After Washing machine
Products Description

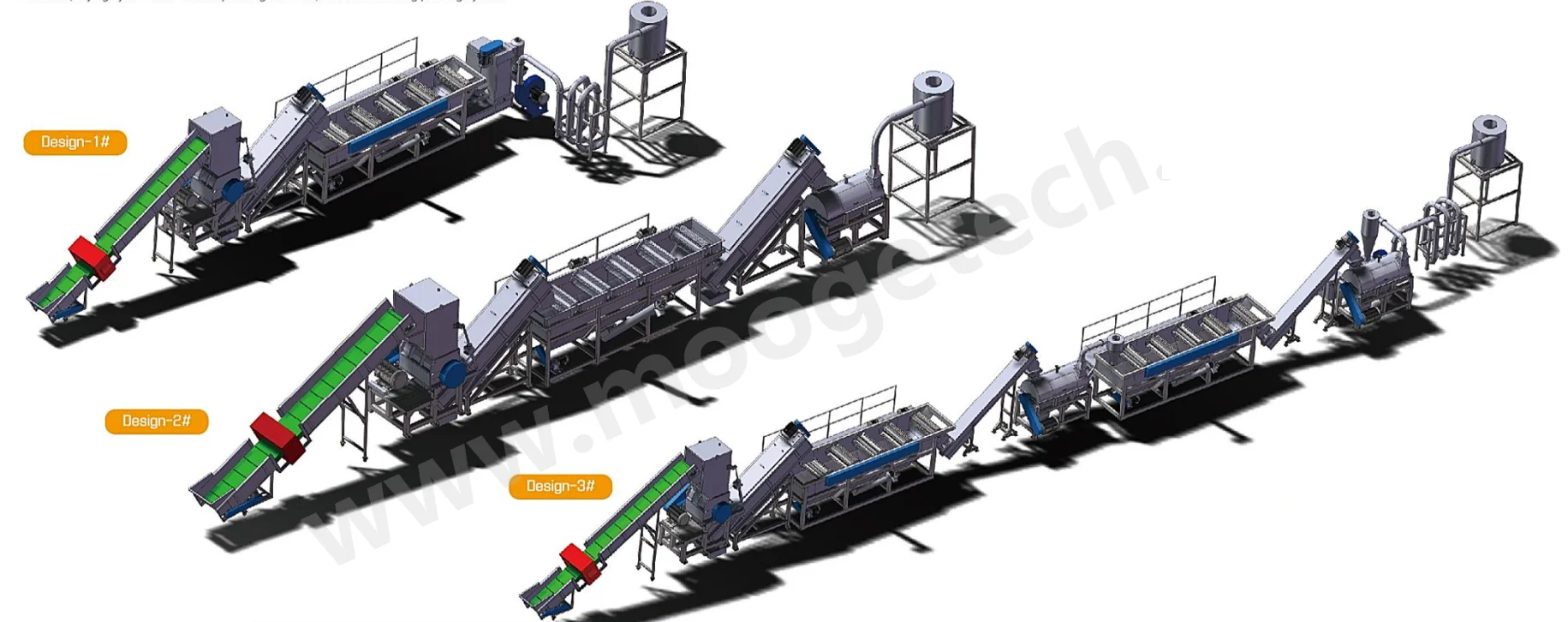

We have 300-1000 kg/h MEB Series Efficient plastic recycling machine.and We can design the layout according to your requirements .
Model | Capacity | Installed Power | Water Supply | Manpower | Area Required |
MEB-300 | 300 kg/hr | 100KW | 4-5 m3/hr | 2-3 Person | 20*4.5*5 |
MEB-500 | 500 kg/hr | 115 KW | 5-6 m3/hr | 4-6 Person | 20*4.5*5 |
MEB-1000 | 1000 kg/hr | 125 KW | 7-8 m3/hr | 8-10 Person | 23*5*5 |
MEB-1500 | 1500 kg/hr | 180 KW | 8-10 m3/hr | 12-14 Person | 23*5*5 |
MEB-2000 | 2000 kg/hr | 225 KW | 10-15 m3/hr | 16-18 Person | 28*5*5 |
Product Details
Conveyor Belt with Metal Detector
Function :Feeding material and detection the metal
Semi-Automatic model For ferrous and non-ferrous Its installed on the sorting conveyor Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm Precision fornon-Ferrous>3.2mm
Semi-Automatic model For ferrous and non-ferrous Its installed on the sorting conveyor Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm Precision fornon-Ferrous>3.2mm
Plastic Crusher Machine
Function :crushing the material into small flakes
With water inlet do wet crushing
This series blades are more wider, it will save the blades cost;Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out
With water inlet do wet crushing
This series blades are more wider, it will save the blades cost;Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out
Friction washing loader
Function: Friction washing with water to remove the dirty and loading up it
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing

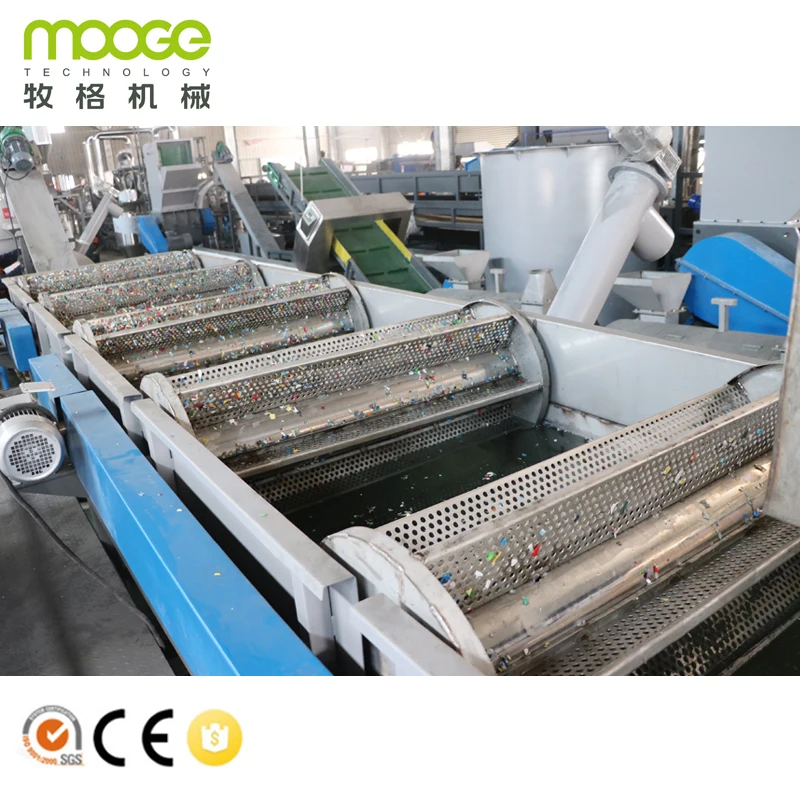

Floating washing tank
Function: Floating Washing separate the sand, soil and other dirty The roller is specially made can have more
washing for lakes but less water take out
Bottom with Positive and negative screw to pushingthe dirty into middle
washing for lakes but less water take out
Bottom with Positive and negative screw to pushingthe dirty into middle

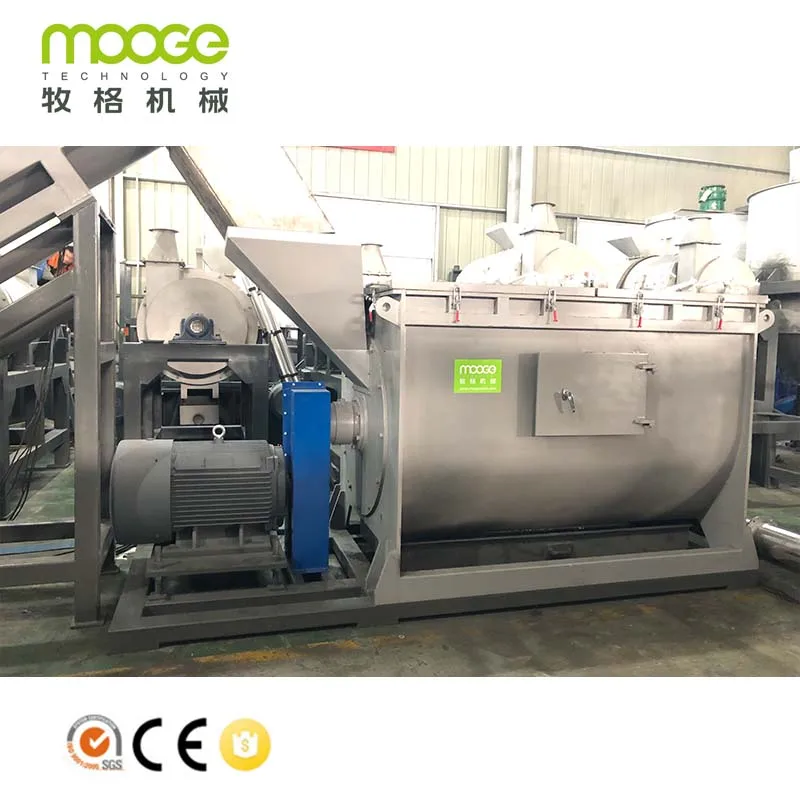

High speed dewater machine
Function: take out dirty and remover water
With the roller bearing and fixed outside of
rotor for long use life
Inside with mesh layer, mesh diameter: 3mm
With water spray system to clean the mesh
With the roller bearing and fixed outside of
rotor for long use life
Inside with mesh layer, mesh diameter: 3mm
With water spray system to clean the mesh

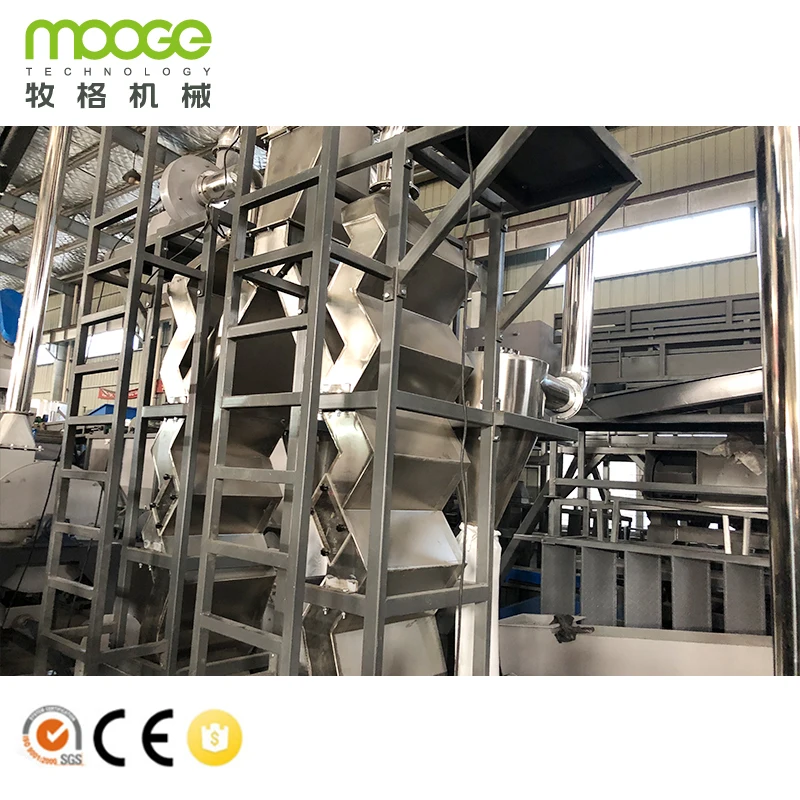

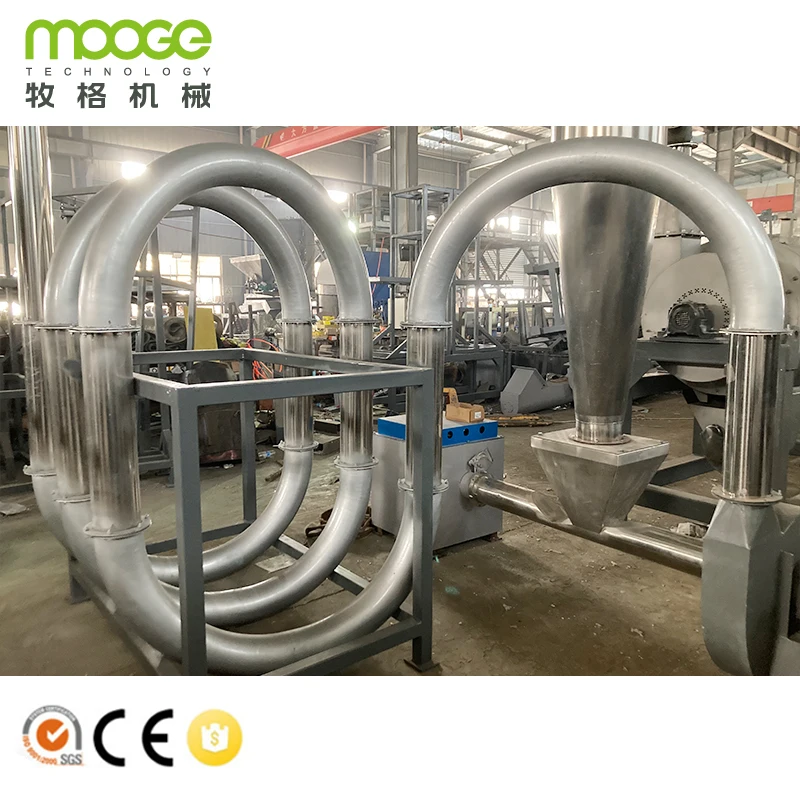

Hot air drying system
Function:drying the material
heating by electricity boxDrying pipe: 1 set Heating power box: 1 set Heating power: 48KW Drying pipe diameter: 219mm Drying pipe
length: 15m Blower power: 7.5KW
heating by electricity boxDrying pipe: 1 set Heating power box: 1 set Heating power: 48KW Drying pipe diameter: 219mm Drying pipe
length: 15m Blower power: 7.5KW
