Product Overview
Description

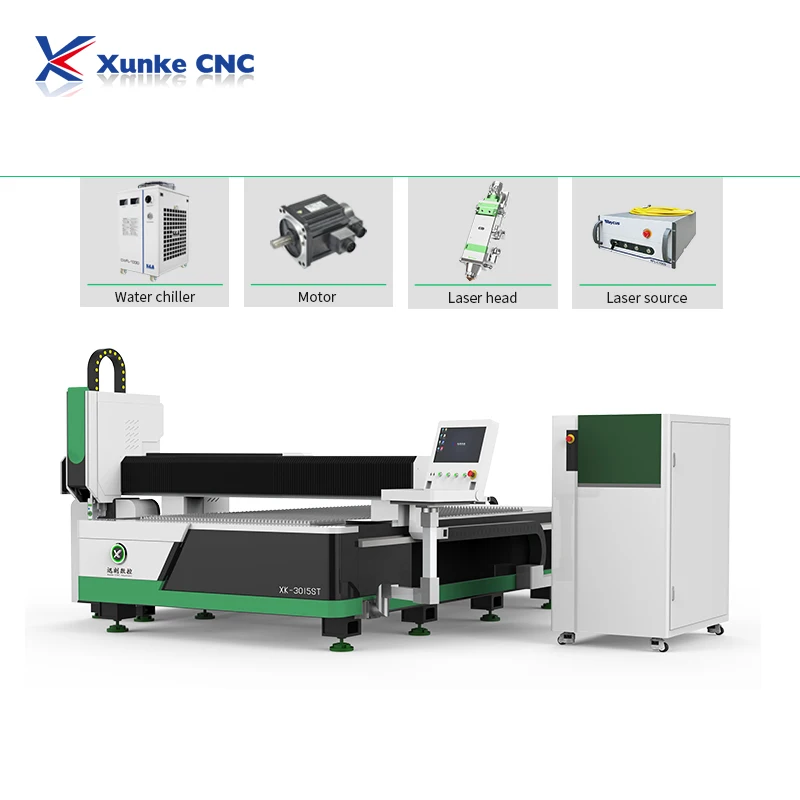

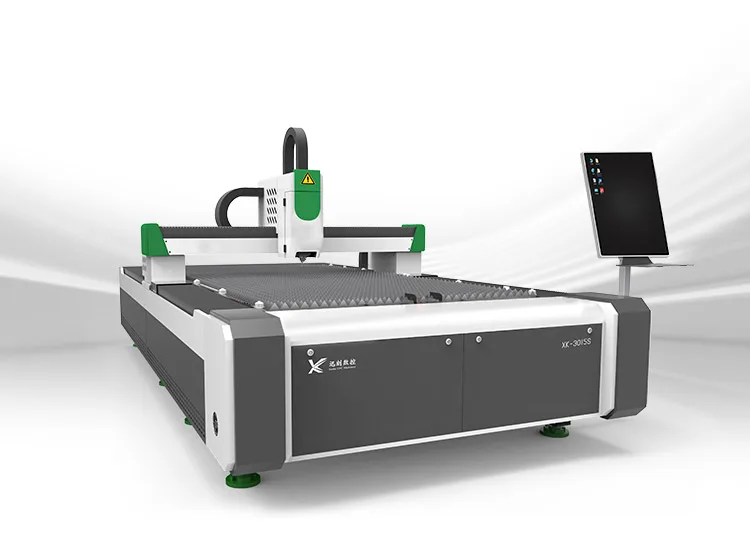

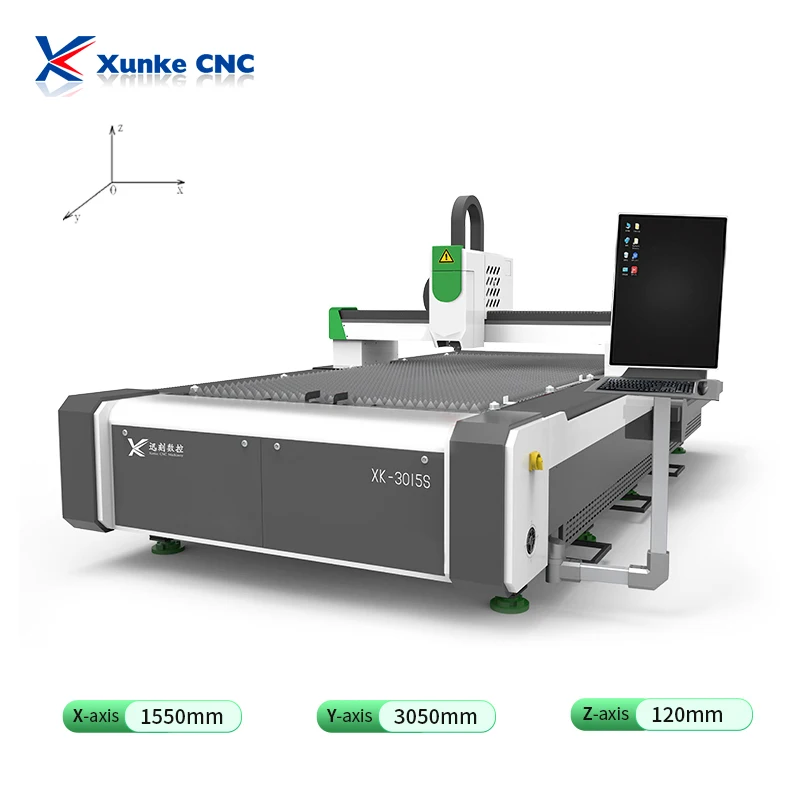

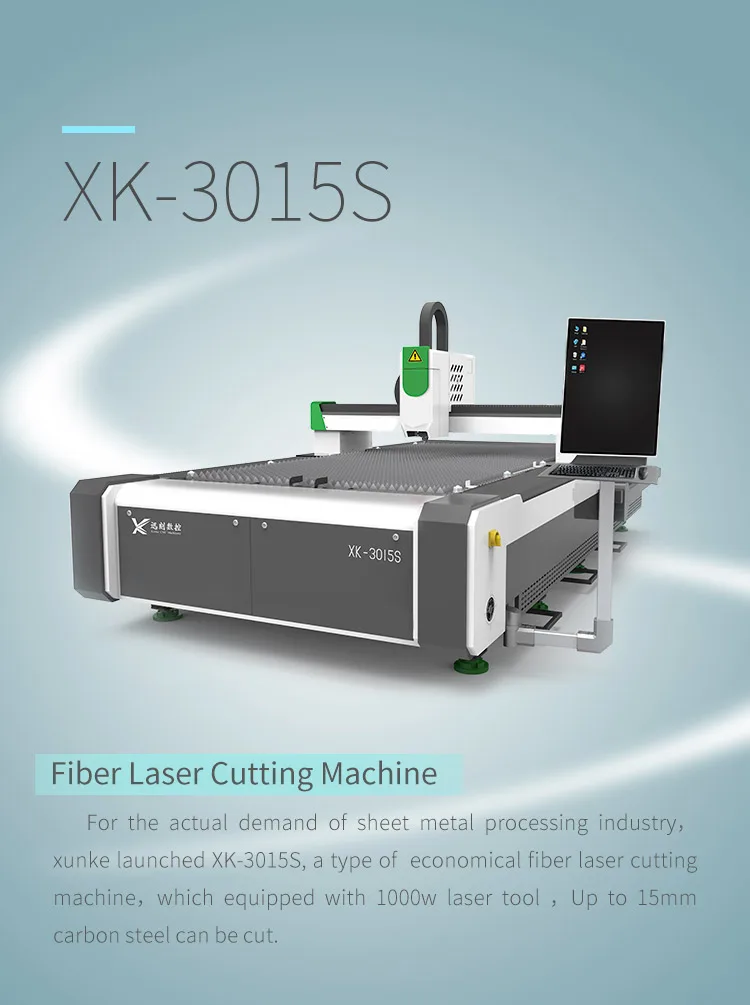

XK-3015S is designed with heavy machine body for stable working, working together with servo motor, well-known laser cutting head, durable blade platform to guarantee the accuracy and efficiency.
The working area is customized, like 1500*3000mm, 2000*4000mm, 2500*6000mm, etc.
It adopts FSTCUT Control system, which has many advantages of high integration, better control precision and more stable operation, therefore, in addition to the meet the requirement of cutting carbon steel plate, it can also meet the requirement of cutting SS plate, aluminum alloy, copper alloy and other materials.
The working area is customized, like 1500*3000mm, 2000*4000mm, 2500*6000mm, etc.
It adopts FSTCUT Control system, which has many advantages of high integration, better control precision and more stable operation, therefore, in addition to the meet the requirement of cutting carbon steel plate, it can also meet the requirement of cutting SS plate, aluminum alloy, copper alloy and other materials.
Product Paramenters
1 | Model | XK-3015S |
2 | Plane cutting width (length X width) | 3000x1500 mm |
3 | X-axis travel | 1550 mm |
4 | Y-axis stroke | 3050 mm |
5 | Z axis travel | 120 mm |
6 | X, Y axis positioning accuracy | ±0.05/1000mm mm |
7 | X, Y axis repeat positioning accuracy | ±0.03/1000mm mm |
8 | Acceleration | 1G m/s² |
9 | Maximum operating speed | 100 m/min |
10 | Maximum platform load | 900 kg |
11 | Host appearance (length, width and height) | 4500×3040×1650 mm |
12 | Laser power | 1000-3000 w |
13 | Control | system |
14 | Power supply requirement | 380v/50Hz |
Specification

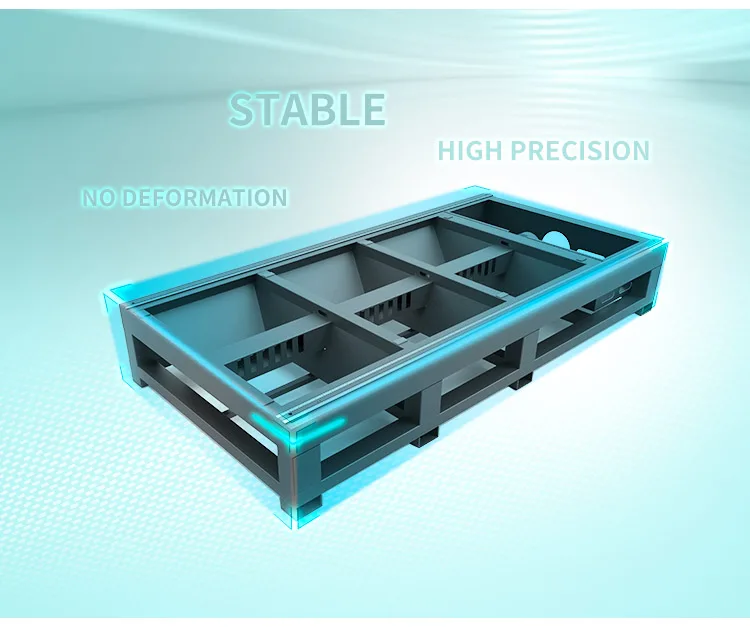

The bed adopts the national brand Q235 as the welding mother board, and a special specification measuring tool, so that the overall cutting accuracy of the bed is ≤1mm.
The bed is placed in the natural environment for aging treatment for 3 months to remove the internal stress of the bed to ensure that the equipment will not be deformed for long-term use and ensure accuracy.
The bed is placed in the natural environment for aging treatment for 3 months to remove the internal stress of the bed to ensure that the equipment will not be deformed for long-term use and ensure accuracy.
Laser cutting head
Optimized optical configuration and smooth and efficient airflow design Dial focus adjustment and manual correction, which has a flexible adjustment,adjustable range ≤ 20mm,
precision ≤ 0.05mm. Fully upgraded dust-proof design,double-layer protection
precision ≤ 0.05mm. Fully upgraded dust-proof design,double-layer protection
Touch screen control
With the big touch screen design, the laser cutting machine control will be in a convenient way.

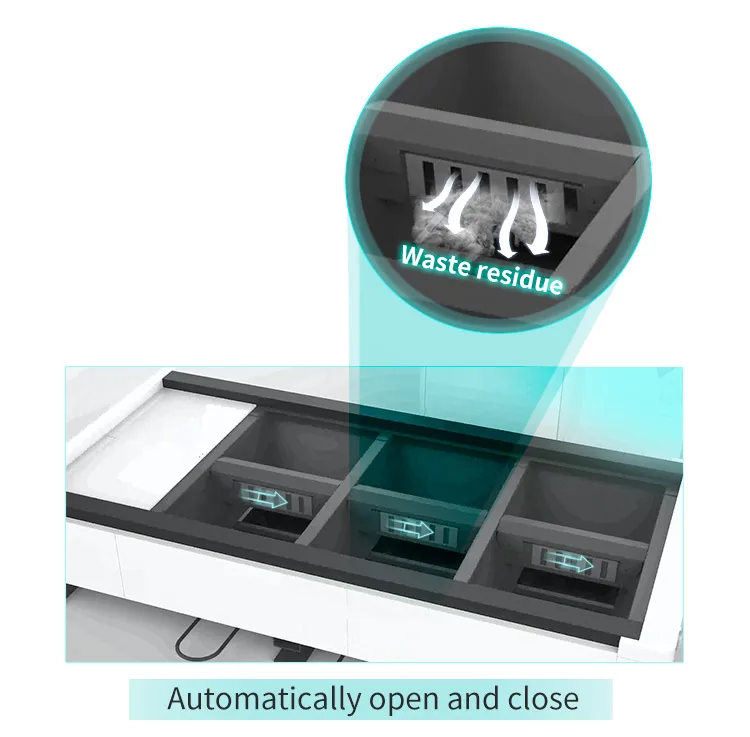

The exhaust hole of the bed is divided into three parts, which can be automatically switched on and off according to the cutting area to concentrate the wind into the same area, so as to achieve the maximum strength and the best slag pumping effect.
After-sales service
With the development of technology, fiber laser cutting machine is more and more popular in every industry, such as Automotive Parts, Kitchen Appliances, Advertising Products, Elevator manufacturing, etc.
