Product Overview

Description



Products Description


This step motor driver is a professional two phase stepping motor driver, which
can realize the motor positive or inversion control. S1，S2，S3 bit dial switchs’
function is corresponding to 6 subdivision control (1, 2, 4, 8, 16，32), and S4,S5,S6
dial switchs’ function is corresponding to 8 current control (0.5A, 1.0A, 1.5A, 2.0A,
2.5A, 2.8A, 3.0A, 3.5A). It’s suitable for driving 57, 42, 60, 39 (two phase or four
phase hybrid) stepping motor. The driver has the characteristics of low noise,
small vibration and stable operation.

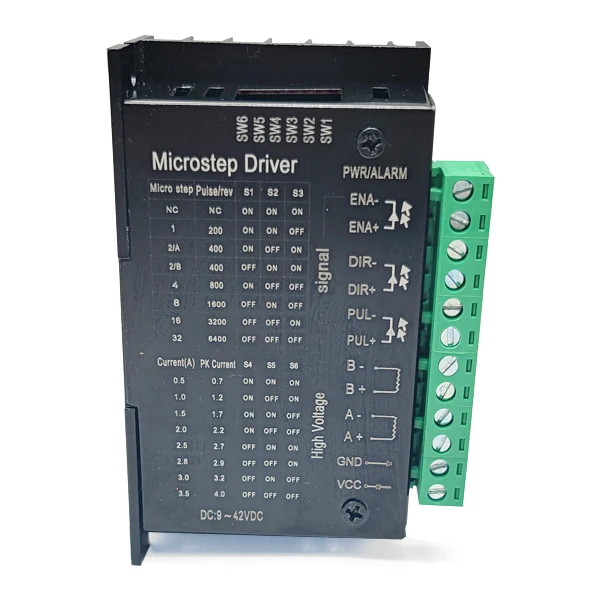

Subdivision and current setting by the code switchs
Attention: the dial switch is pressed down: ON
(1) Subdivision: setting by the S1,S2,S3.


SUB
S1
S2
S3
NC
ON
ON
ON
1
ON
ON
OFF
2/A
ON
OFF
ON
2/B
OFF
ON
ON
4
ON
OFF
OFF
8
OFF
ON
OFF
16
OFF
OFF
ON
32
OFF
OFF
OFF


(2) Current: setting by the S4,S5,S6.


CUR
S1
S2
S3
0.5A
ON
ON
ON
1.0A
ON
OFF
ON
1.5A
ON
ON
OFF
2.0A
ON
OFF
OFF
2.5A
OFF
ON
ON
2.8A
OFF
OFF
ON
3.0A
OFF
ON
OFF
3.5A
OFF
OFF
OFF
