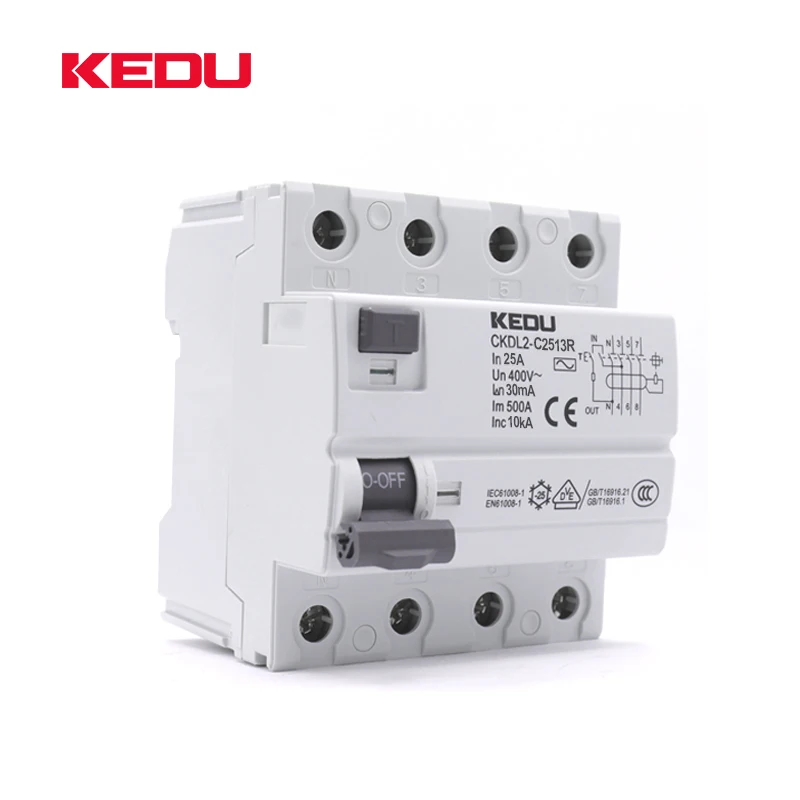

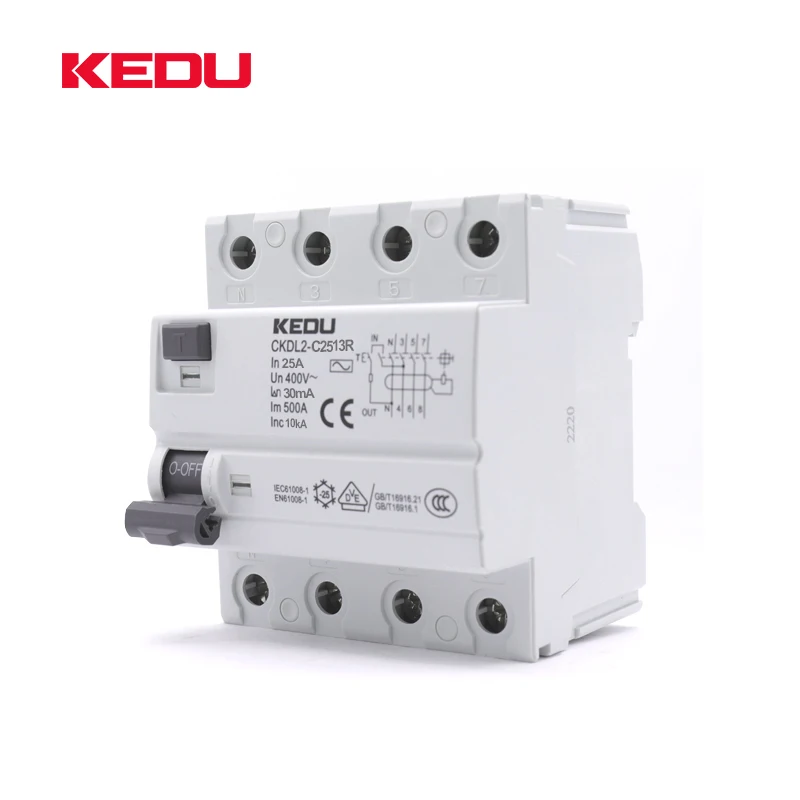

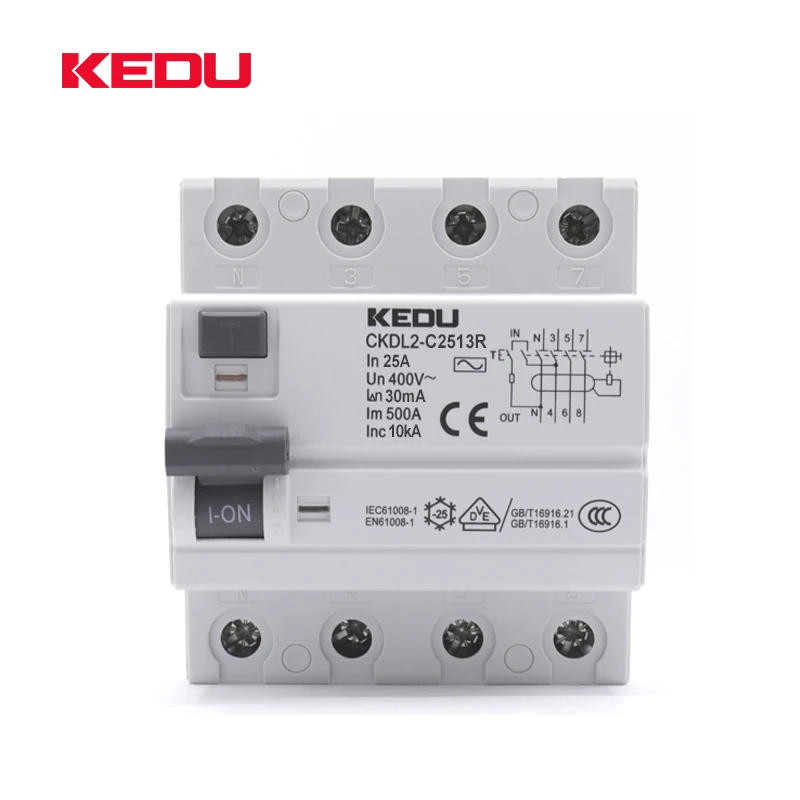

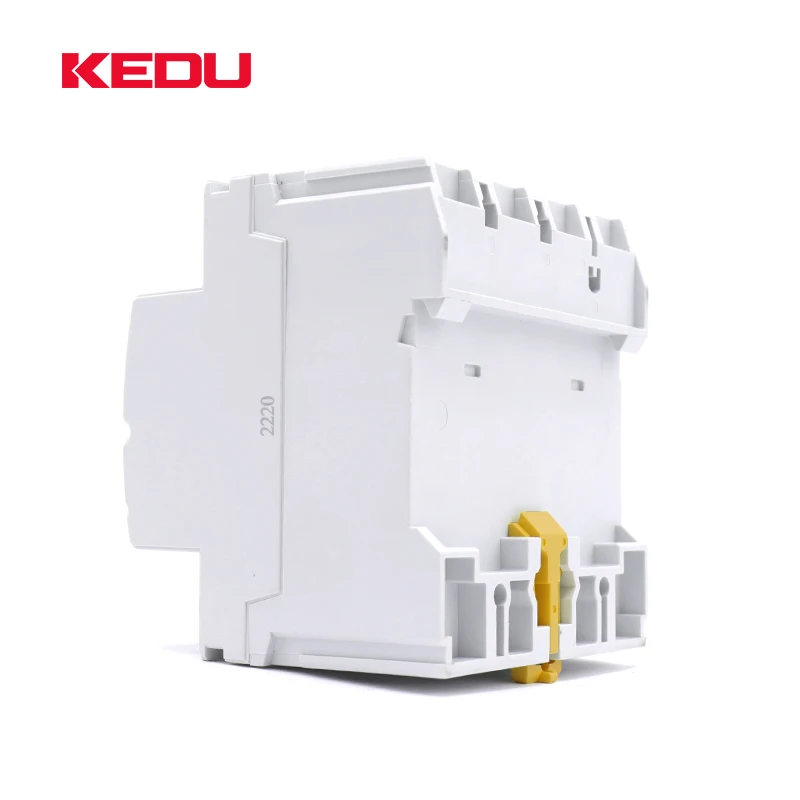

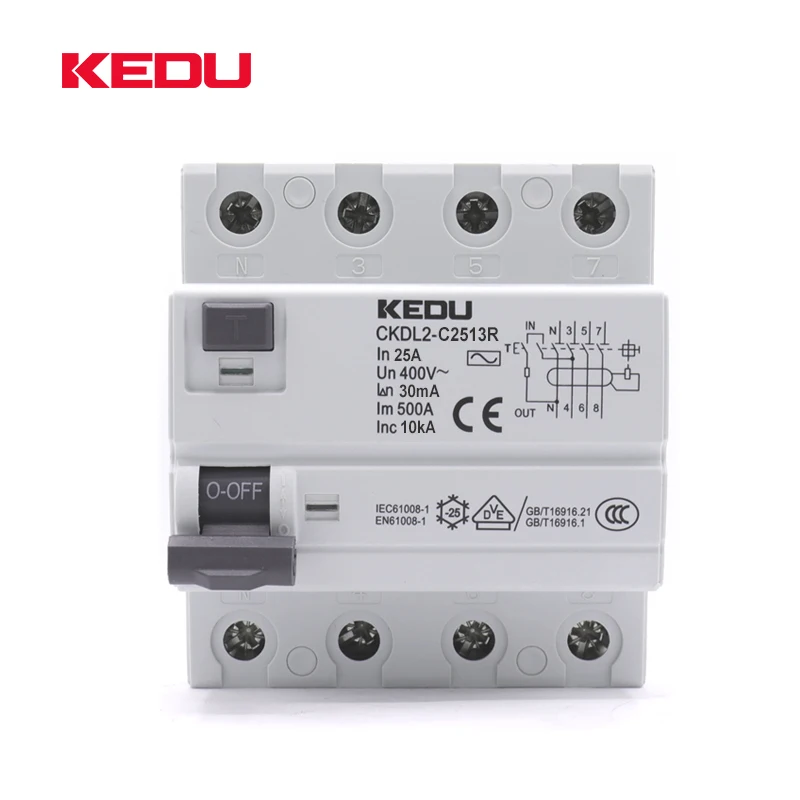

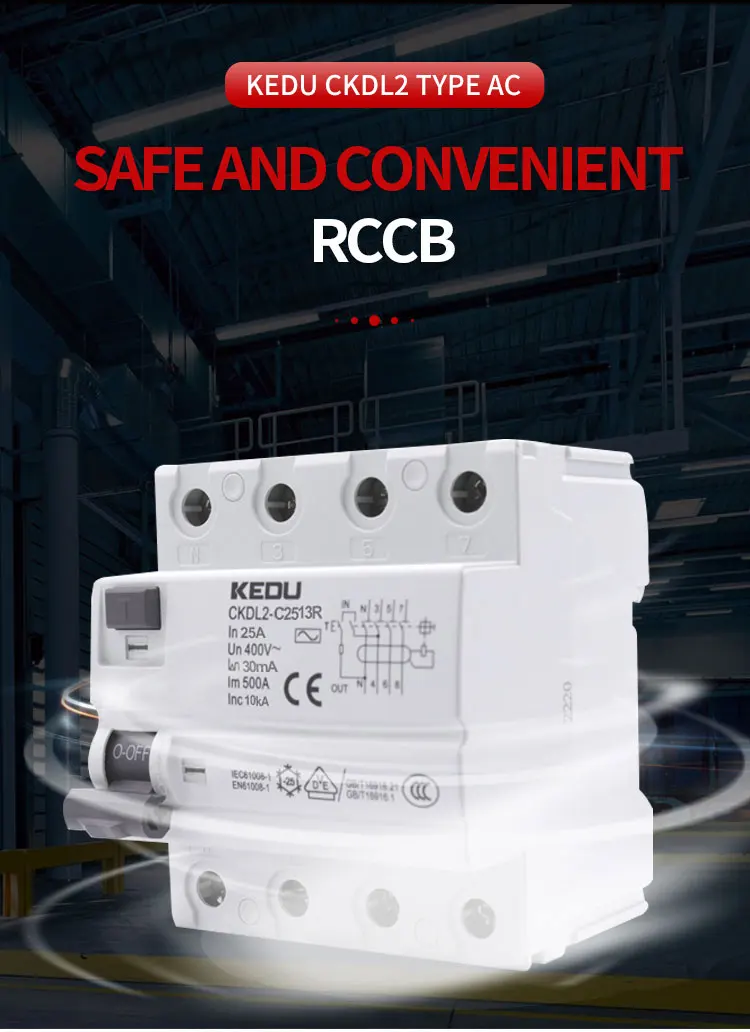

KEDU CKDL2 C2513 4P Residual 25A 30mA RCCB Circuit Breakers With VDE CB CCC CE
- Category: Low Voltage Products >>>
- Supplier: Kedu Electric Co. Ltd.
Share on (1600533776022):
Product Overview
Description

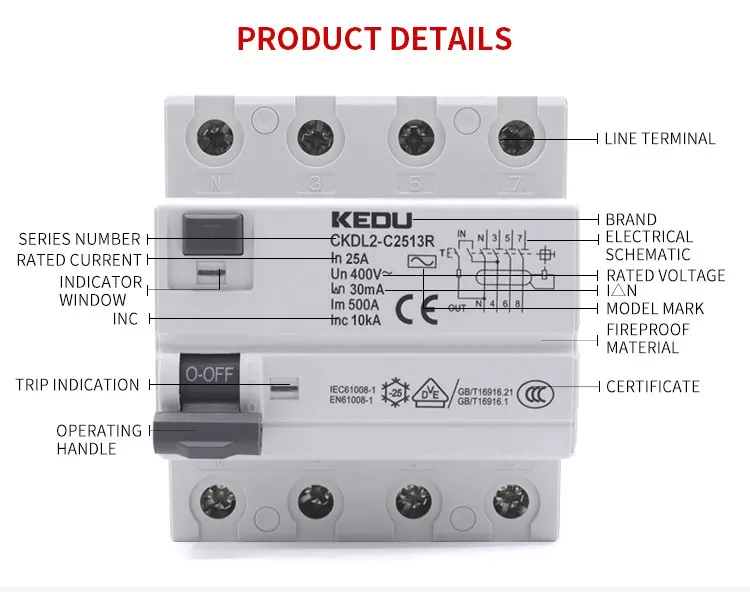

Details Images

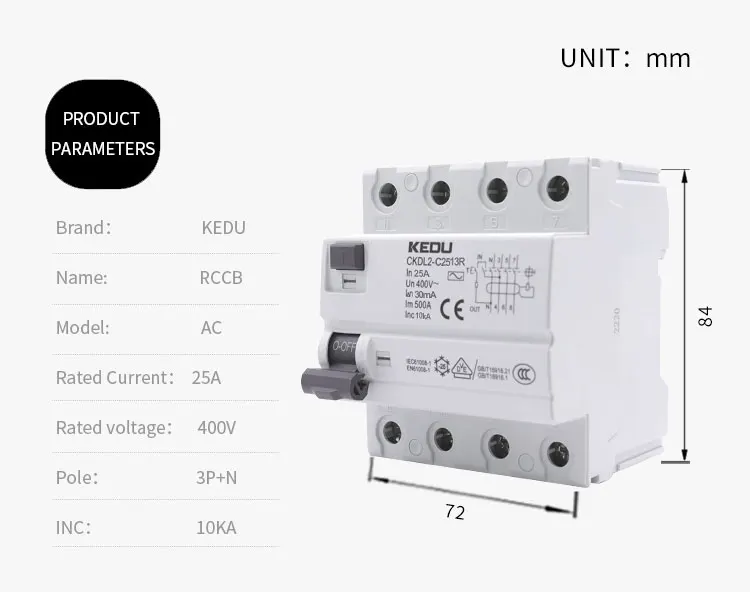

Product Paramenters
Applicable scope:
CKDL series residual current circuit breakers are applied to the lines with AC 50/60Hz,rated voltage of 230V(1P+N) or 400V(3P+N),and rated current of 100A.In case of electric shock or electric leakage current exceeds the specified value,the residual current circuit breaker can switch off the fault circuit in a very short time,protecting the safety of person and electric equipment.
Can be used in the industrial,commercial,high-rise buildings,civil residences and other places.
Number of poles | 1P+N,3P+N | |
Rated current(In) | A | 25,32,40,63,80,100 |
Rated operating voltage(Ue) | V | 230V(1P+N),400V(3P+N) |
Rated frequency | Hz | 50/60 |
Rated insulation voltage(Ui) | V | 500 |
Rated residual current (IΔn) | mA | 10, 30, 100, 300 |
Rated residual switching on and breaking capacity(IΔm) | A | 500(In=25A/32A/40A), 630(In=63A)\t,800(In=80A),1000(In=100A) |
Rated residual short-circuit current limit(IΔc) | A | 6000 10000 |
Rated short-circuit current limit(Inc) | A | 6000 10000 |
Rated switching on and breaking capaity(Im) | A | 500(In=25A/32A/40A),630(In=63A)\t,800(In=80A),1000(In=100A) |
SCPD fuse | A | Matched silver wire |
Maximun breaking time(IΔm) | S | 0.3 |
Rated impulse withstand voltage(Uimp) | kV | 6 |
Dielectric strength of main circuit (1 min power frequency withstand voltage test) | kV | 2.5 |
Pollution degree | 2 | |
Electrical and mechanical life | times | 4000 |
Residual current action indication | √ | |
Standard operation condition Protection degree | IP20 | |
Standard operation condition Ambient temperature | ℃ | -5℃~+40℃ and its average over aperiod of 24h does not exceed +35℃ |
Standard operation condition Storage temperature | ℃ | -25℃to+55℃,for short periods not exceeding 24h,up to +70℃ |
Standard operation condition Altitude | m | ≤2000 |

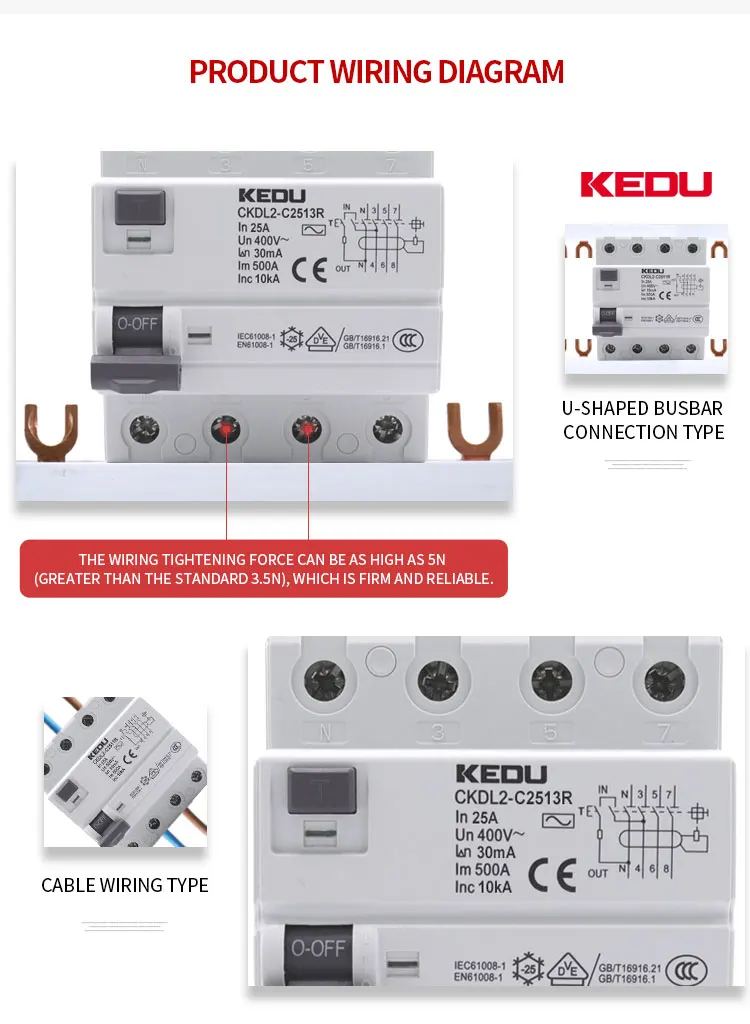

Terminal connection types | type cable,type U bus,type bus | |
Wiring terminal connection conductor | mm² | 1.5～25 |
Wiring terminal copper size | mm² | 25 |
Tightening torque | N*m | 3.5 |
Installation mode | UsingTH35-7.5 profile installation, the title of installation face and vertical face is not greater than5° | |
Wiring incoming mode | upper and lower incoming is possible |
