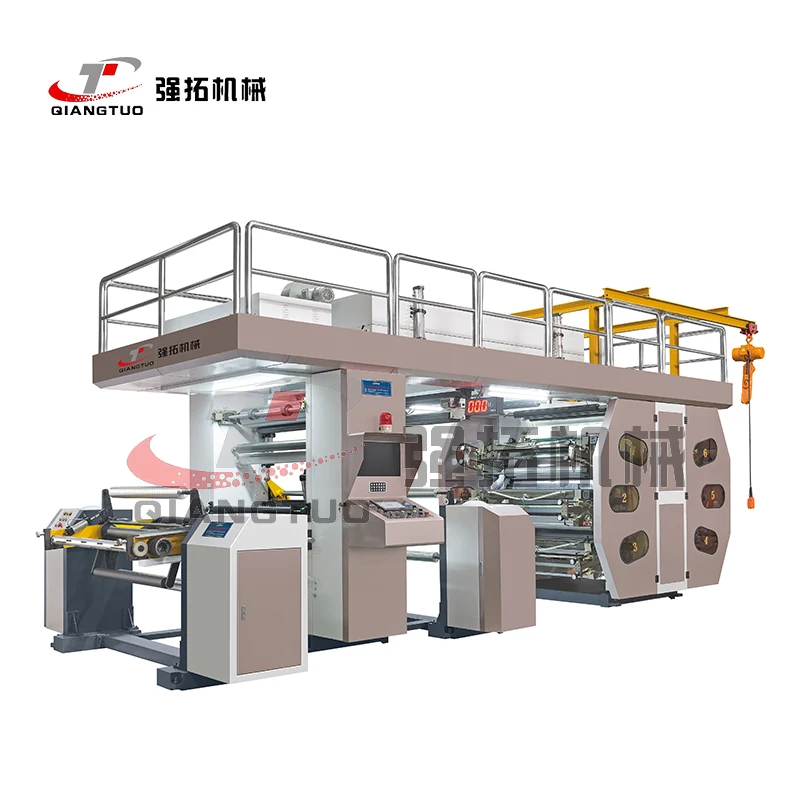

Central roller paper cups packing machines flexo ci printing machines
Central roller paper cups packing machines flexo ci printing machines
Central roller paper cups packing machines flexo ci printing machines
Central roller paper cups packing machines flexo ci printing machines
Central roller paper cups packing machines flexo ci printing machines
Central roller paper cups packing machines flexo ci printing machines
Central roller paper cups packing machines flexo ci printing machines

Central roller paper cups packing machines flexo ci printing machines

Share on (1600533868589):


Price:$85,000.00 - $90,000.00

Quantity:


Product Overview

Description



Products Description












Details Images


Machine model
 QTH-CI-6600         QTH-CI-6800       QTH-CI-61000       QTL-CI-61200
Max.material width
600mm               800mm            1000mm          1200mm
Max printing width
560mm                 760mm                960mm             1160mm
Suitable for material
PAPER：15~300g/m2 NONWOVEN： 15-120G、PVC：10~120μm、OPP：10~100μm、BOPP：10~100μm、PE：15~150μm，NY：10~120μm.PET：10~100um，CPP：10~100μm
Colours
(6 Colours)
Printing length
300-1000mm
Machine speed
(200m/min)
printing speed
150-180m/min
printing precision
±0.1mm
Plate thickness
1.7mm ( if different thickness， please note us)

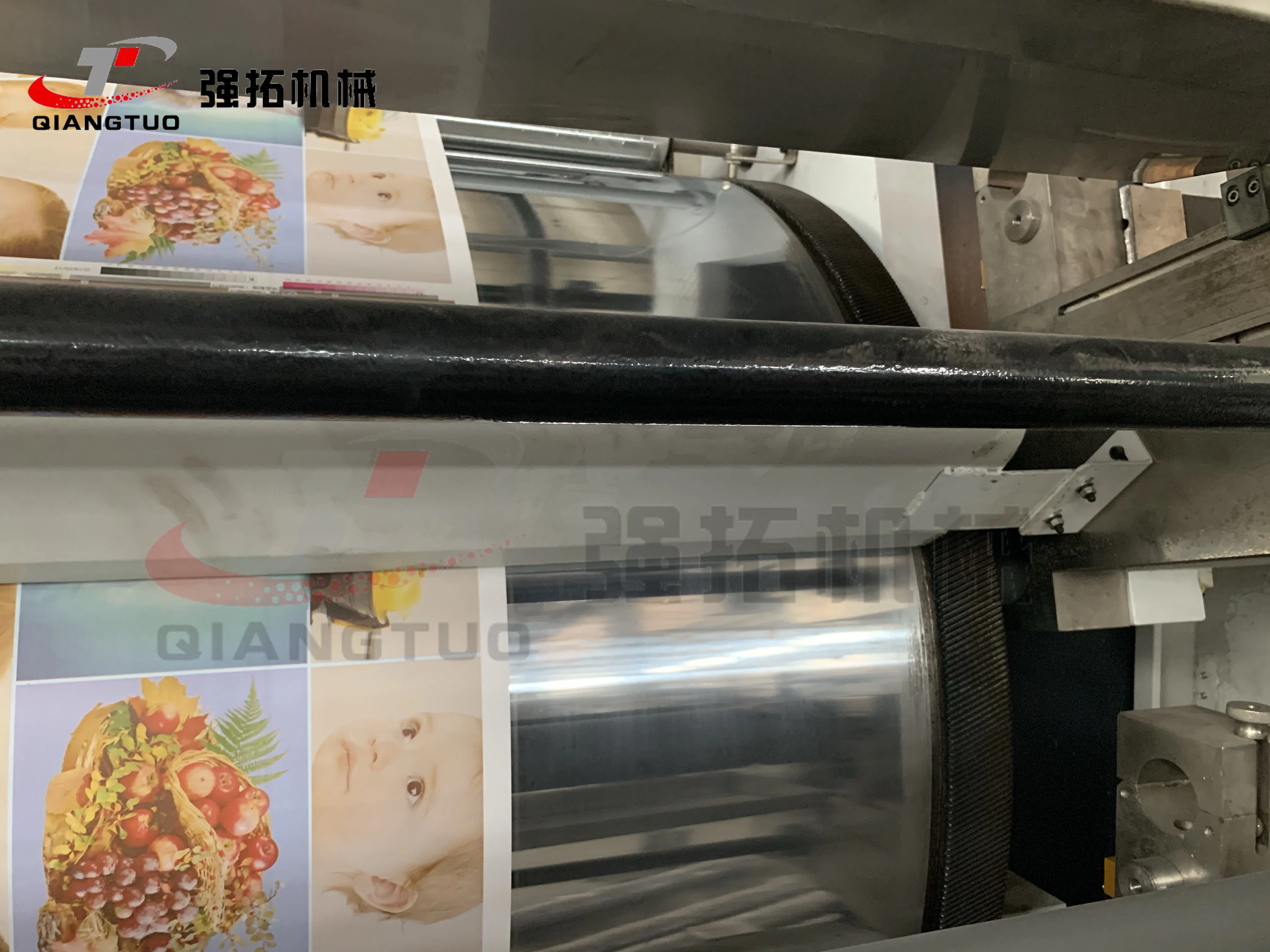

Central drum
Turret un/rewind for non-stop printing
Pneumatic auto loading


Pneumatic auto unloading+Surface roll rewinding +reduce motor
Servo EPC

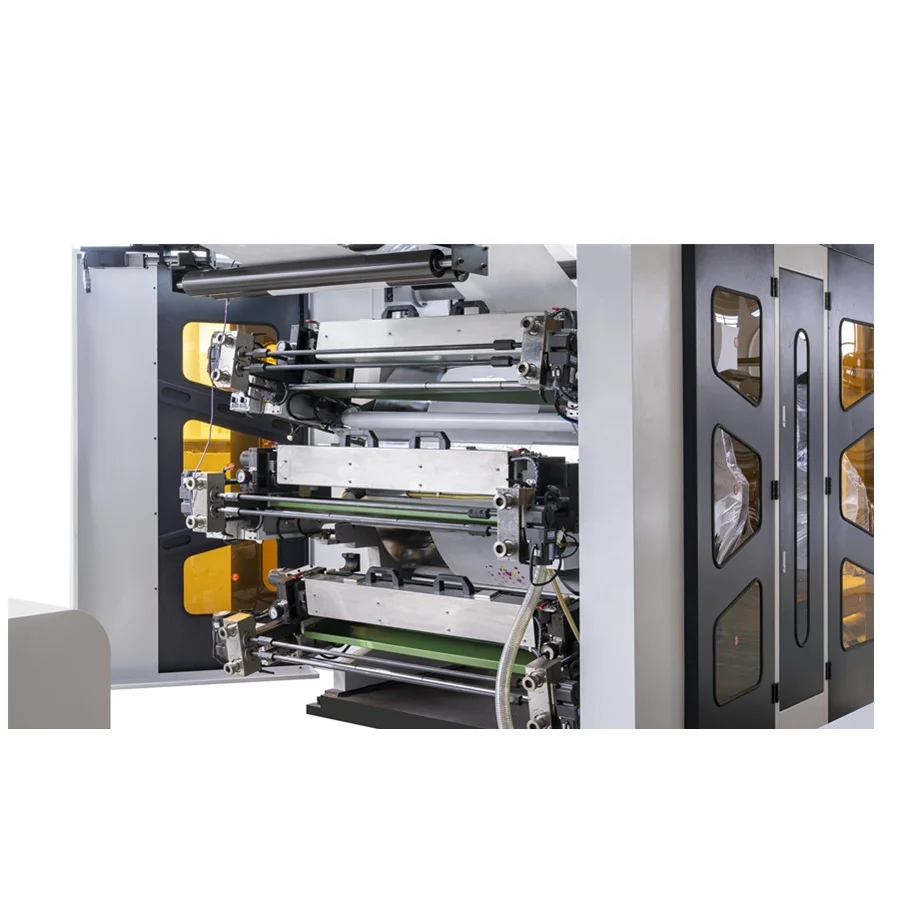

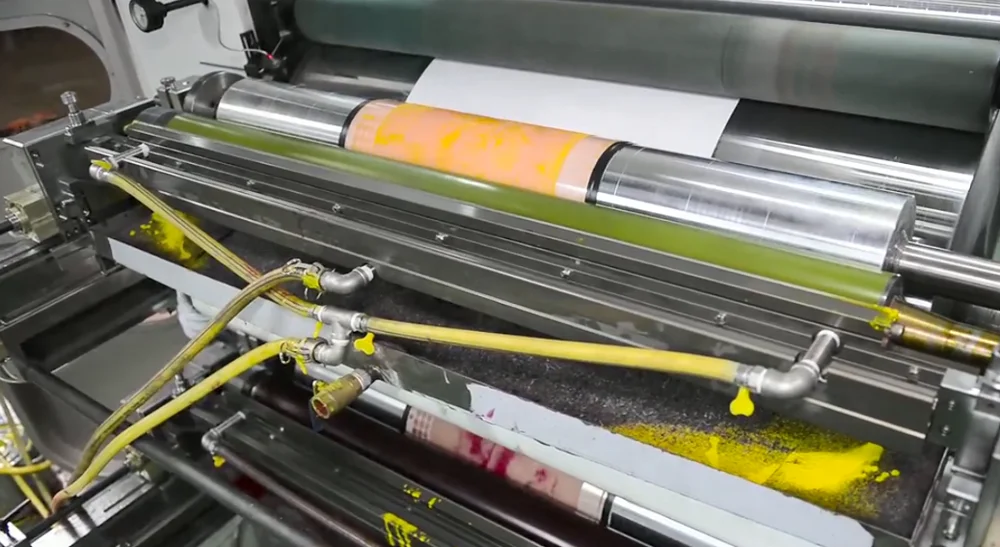

Printing station with chamber doctor blade


Video inspection+operation panel

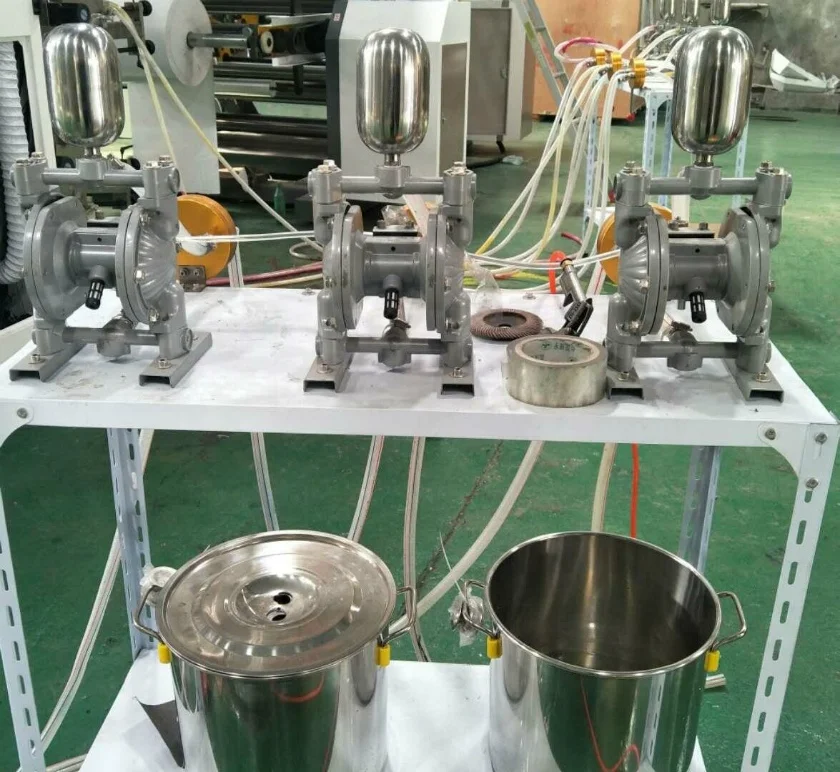

Double diaphragm ink pump+fast ink washing
Hoist for printing cylinder loading and unloading
