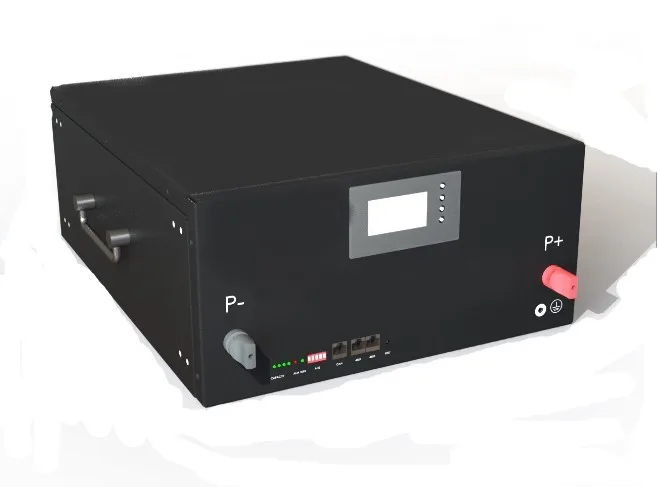

48V 51.2V 200AH 9.6KW 9.6KWh 10KW 10KWh Solar Battery Lithium 48v 200ah for solar inverter
- Category: >>>
- Supplier: Shenzhen Chanlin Electronic Co. Ltd.
Share on (1600533888267):
Product Overview
Description
48V 51.2V 200AH 9.6KW 9.6KWh 10KW 10KWh Solar Battery Lithium 48v 200ah for solar inverter
Product Description
| Electronic Performance | ||
| Internal structure | 16pcs or 15pcs new grade A 3.2v 200ah Lifepo4 batteries and smart communication BMS built-in | |
| Normal voltage | 51.2v | |
| Normal Capacity | 200AH | |
| Energy | 10KW | |
| Communication | RS485/CAN/RS232/DIP switch | |
| Effiency | >96% | |
| Module Parallel | up to16 packs | |
| Charge Performance | ||
| Recommended charge current | 20A | |
| Max. charge current | 150A | can set |
| Recommended charge voltage | 57.6V | |
| BMS charge cut-off voltage | <58.4 V (3.65V/Cell) | |
| Discharge Performance | ||
| Max. continuous discharge current | 150A | can set |
| Discharge cut-off voltage | 40.5v | can set |
| Short circuit protection current | ≥180A | |
| Short circuit protection delay | ≤300µs | |
| Temperature performance | ||
| Discharge working temperature range | -20 ~ 55 ºC | can set |
| Charge temperature range | 0 ~ 45 ºC | can set |
| High temperature cut-off | 65 ºC | can set |
| Accessories | dry contact, LED(indicator, ALM, RUN), ADS switch, power switch, LCD | |
| Dimensions | 482x500x280mm | |
| Weight | Approx. 82kgs | |
Other Model

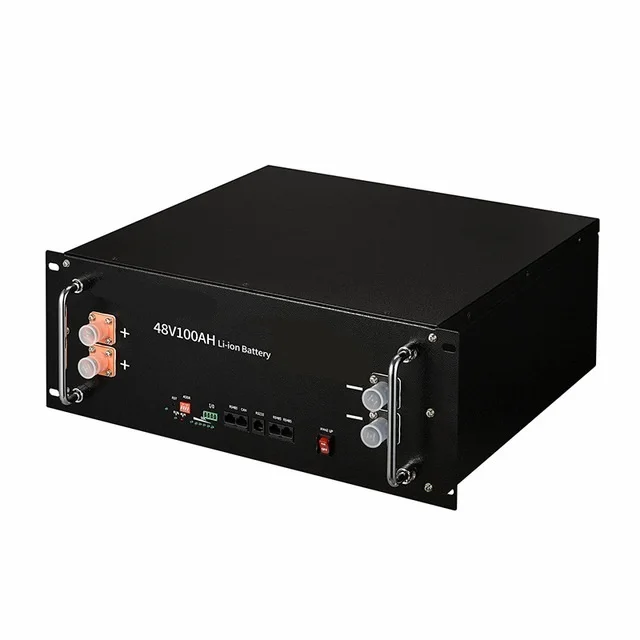

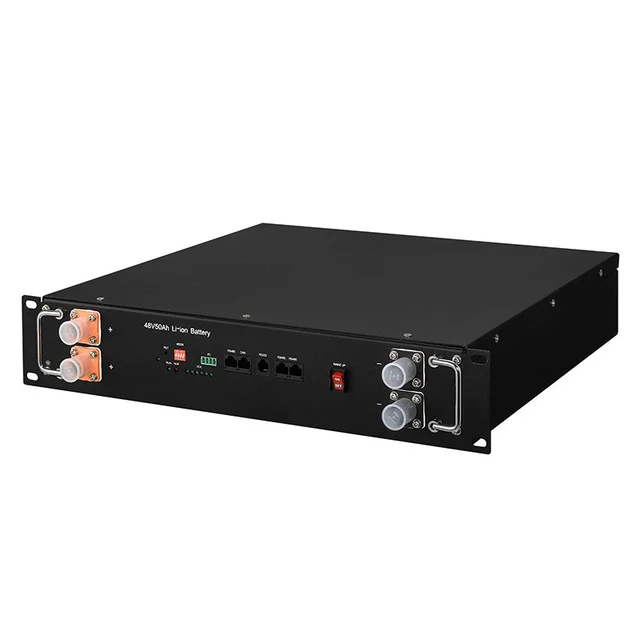

| Voltage | 48V/51.2V | 48v/51.2v | 48V / 51.2V | 48V / 51.2V | 48V / 51.2V | 48V/51.2V |
| Capacity | 50AH | 80AH | 100AH | 150AH | 200AH | 250AH |
| Max continues discharging | 1C | 1C | 1C | 1C | 1C | 1C |
| Recycle life | 4000 times | 4000 times | 4000 times | 4000 times | 4000 times | 4000 times |
| Temperature(charging) | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ |
| Temperature(discharging) | -10~70℃ | -10~70℃ | -10~70℃ | -10~70℃ | -10~70℃ | -10~70℃ |
| Dimensions | 482x410x89mm | 482x350x267mm | 482x400x177mm | 482x430x222mm | 482x500x280mm | 482x500x280mm |
| Weight | 24kg | 41kg | 43kg | 65kg | 82kg | 100kg |

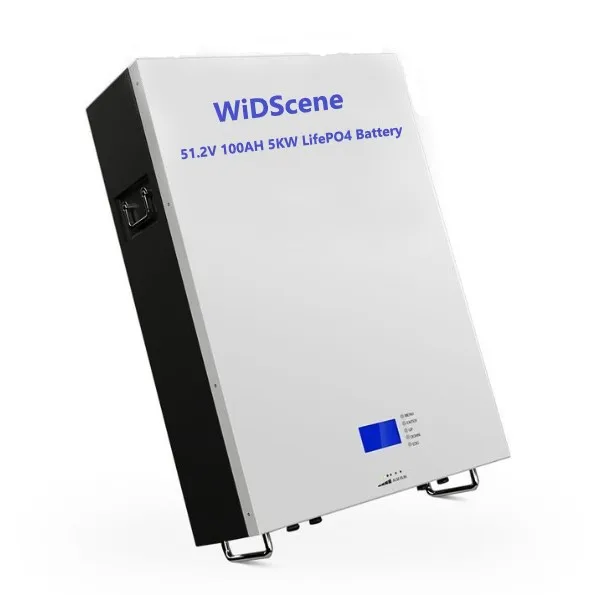

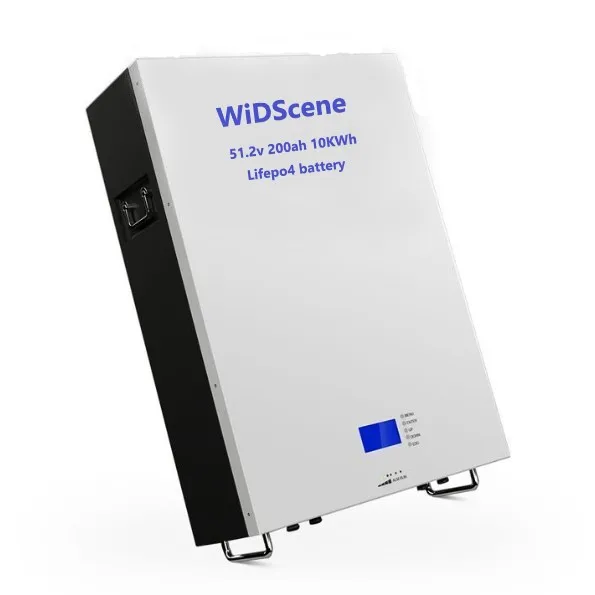

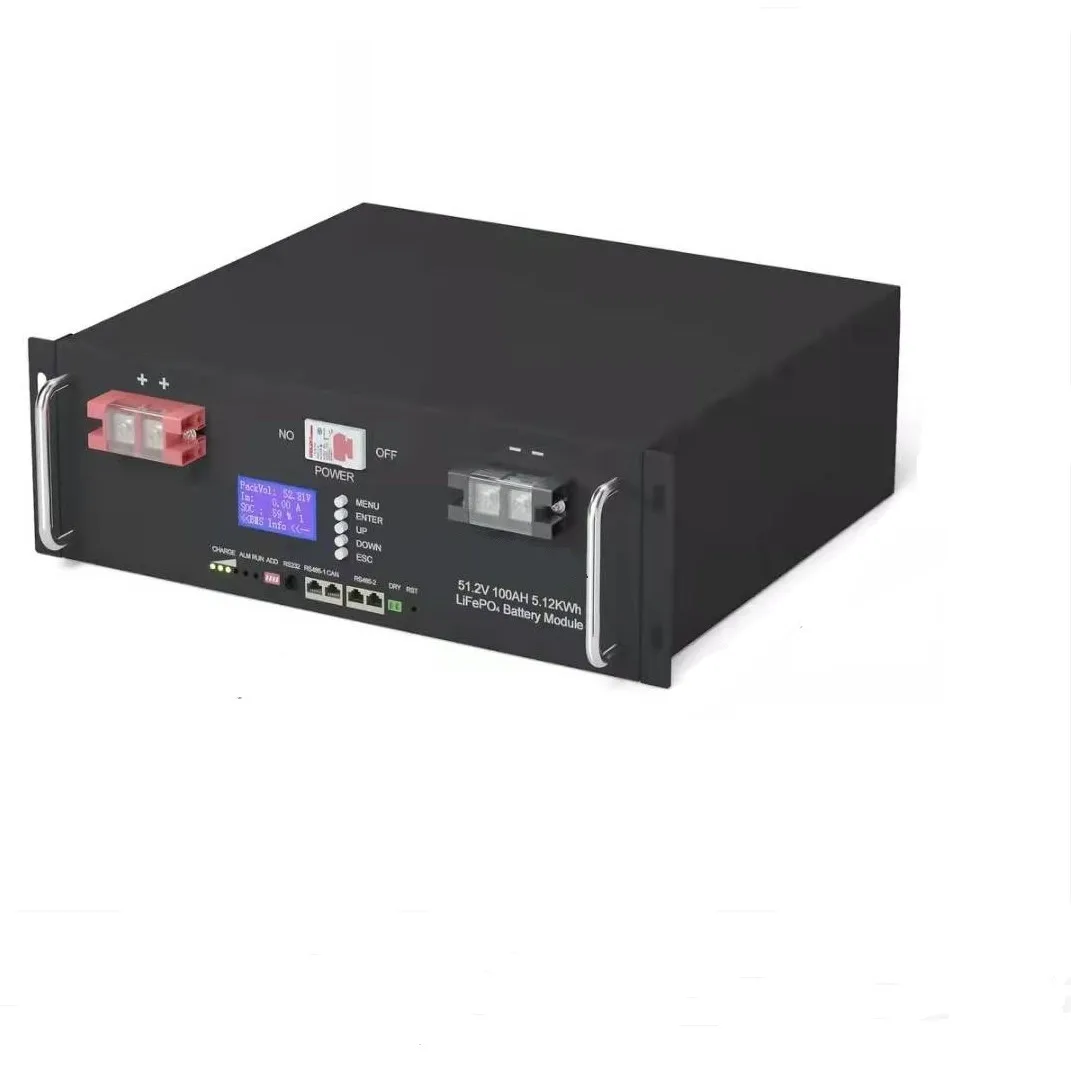

51.2V 100AH 200AH 5KW 10KW power wall
