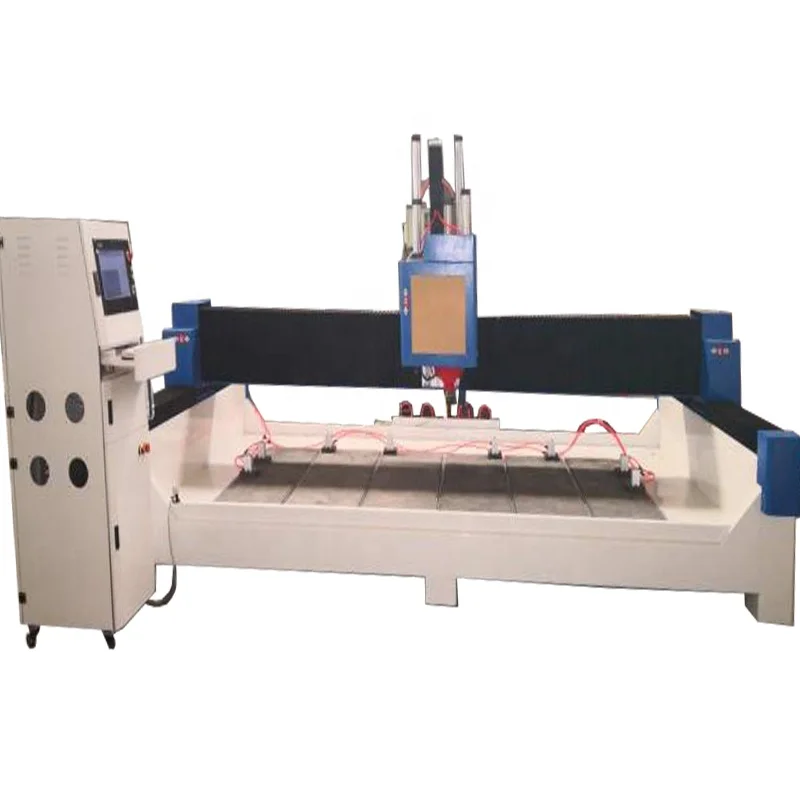

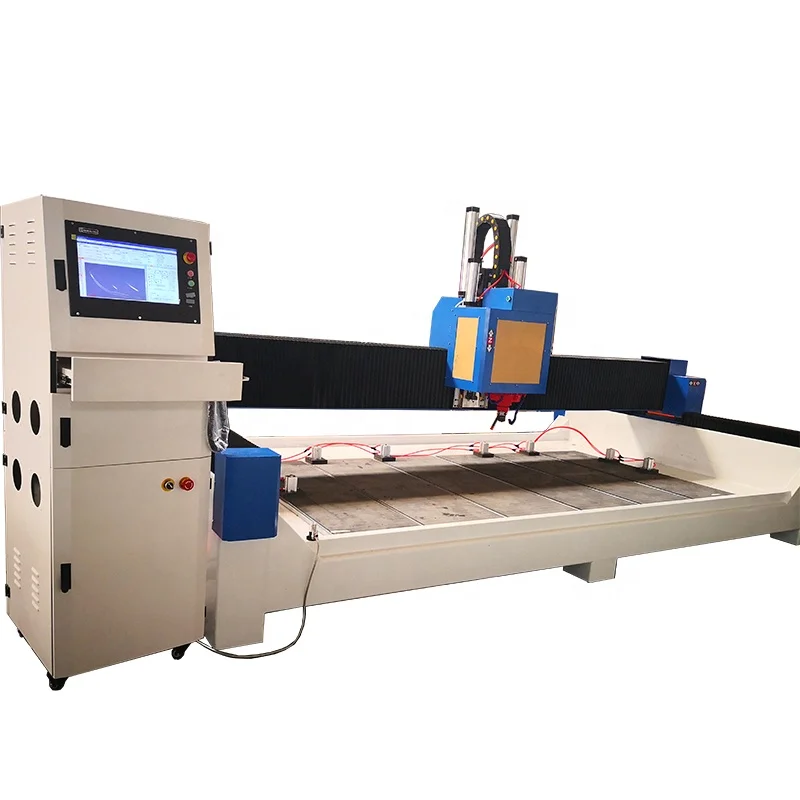

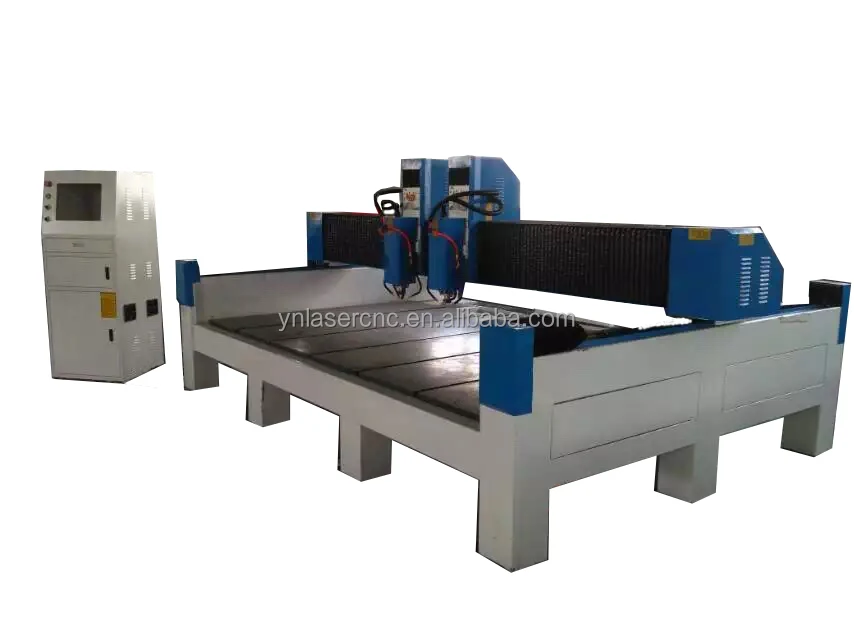

YN3316 2d 3d Stone wash bowl granite milling engraving cutting cnc router machine

Product Overview

Description

                              Sincerely work together with you. Supplying perfect details, perfect quality.



YN3316 2d 3d Stone wash bowl granite milling engraving cutting cnc router machine



Features OF granite stone carving :



a. Strong structure: heavy duty frame with thick steel, high durability, won't be not deformed, keep high stability

b. High stability and precision ensured by excellent configuration: rack and pinion transimission, Taiwan 30 sqaure linear rails.

c. Easy to operate ,software compatible with CAD/CAM software,  with the function of breakpoint memory.

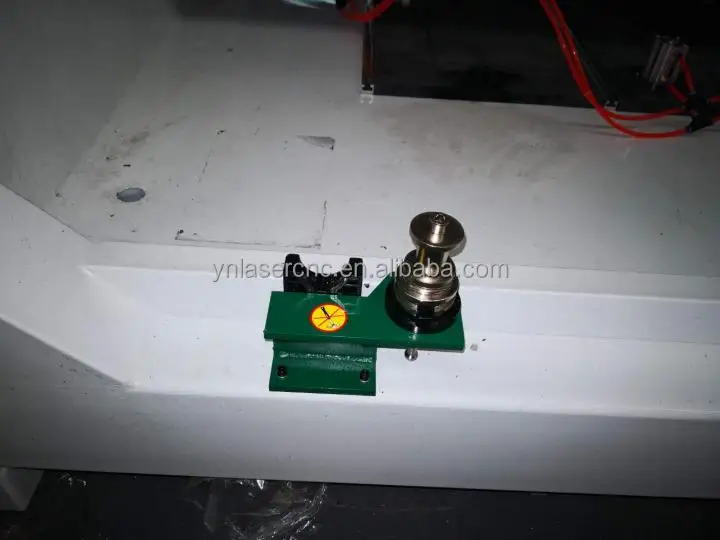

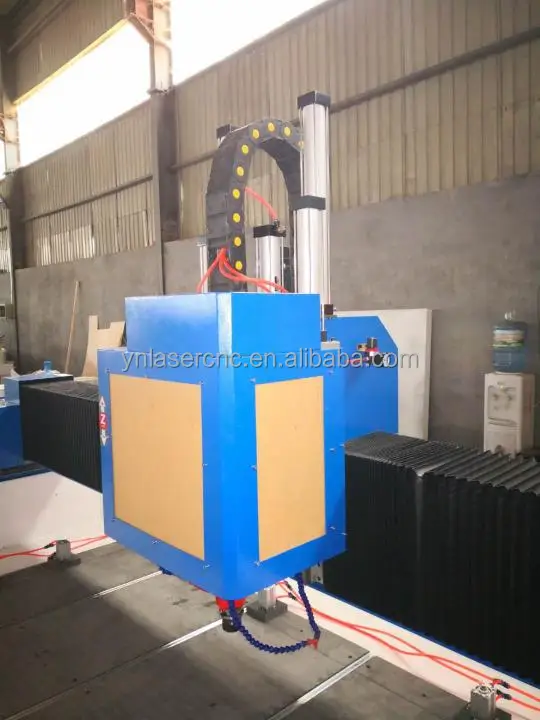

d. Special design for stone: adopt 7.5KW professional ATC stone spindle, BT40, strong energy, but no ATC magazine

 f. Best Chiese constan stone spindle motor, long life time, strong energy.





Application:

a. All kinds of heavy weight of the tile, bluestone, marble, granite, white marble, sandstone, such as a stone sculpture processing, category carved glass-cutting and engraving melting material.
b. Well-suited for processing panel, high-grade basin board and other abnormal products made of insulating materials, plastic, epoxy resin, carbon mixed compound, acrylic, PVC, density board, stone, organic glass, soft metals like aluminum and copper, ceramic, glass and micro-crystal stone etc.



Parameters of YN3316 2d 3d Stone wash bowl granite milling engraving cutting cnc router machine



Model	YN3316
Working Area	3300*1600*700mm

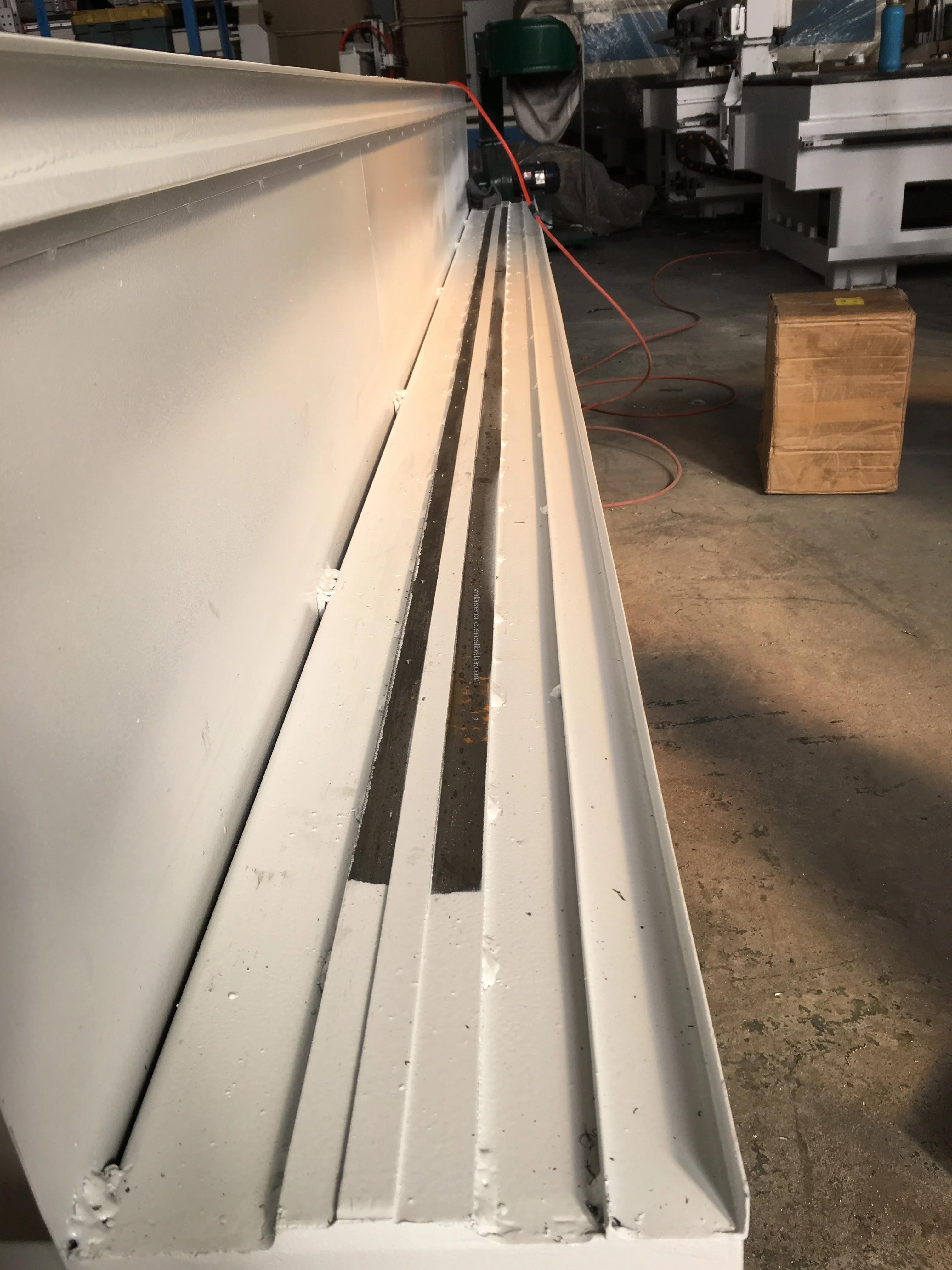

Machine Structure	Thick-walled square tube lathe bed and T-slot table of sectional material
Work Holding	By Clamps
Overall Dimensions	2150*4500*2400mm
Precision	0.05mm
Positioning accuracy	0.02mm
Repeatability	0.02mm
Idling Speed	28m/min
Working Speed	10mm/min
Spindle	7.5 KW ATC water-cooling stone spindle
Available Tools	φ3.175~φ12.7

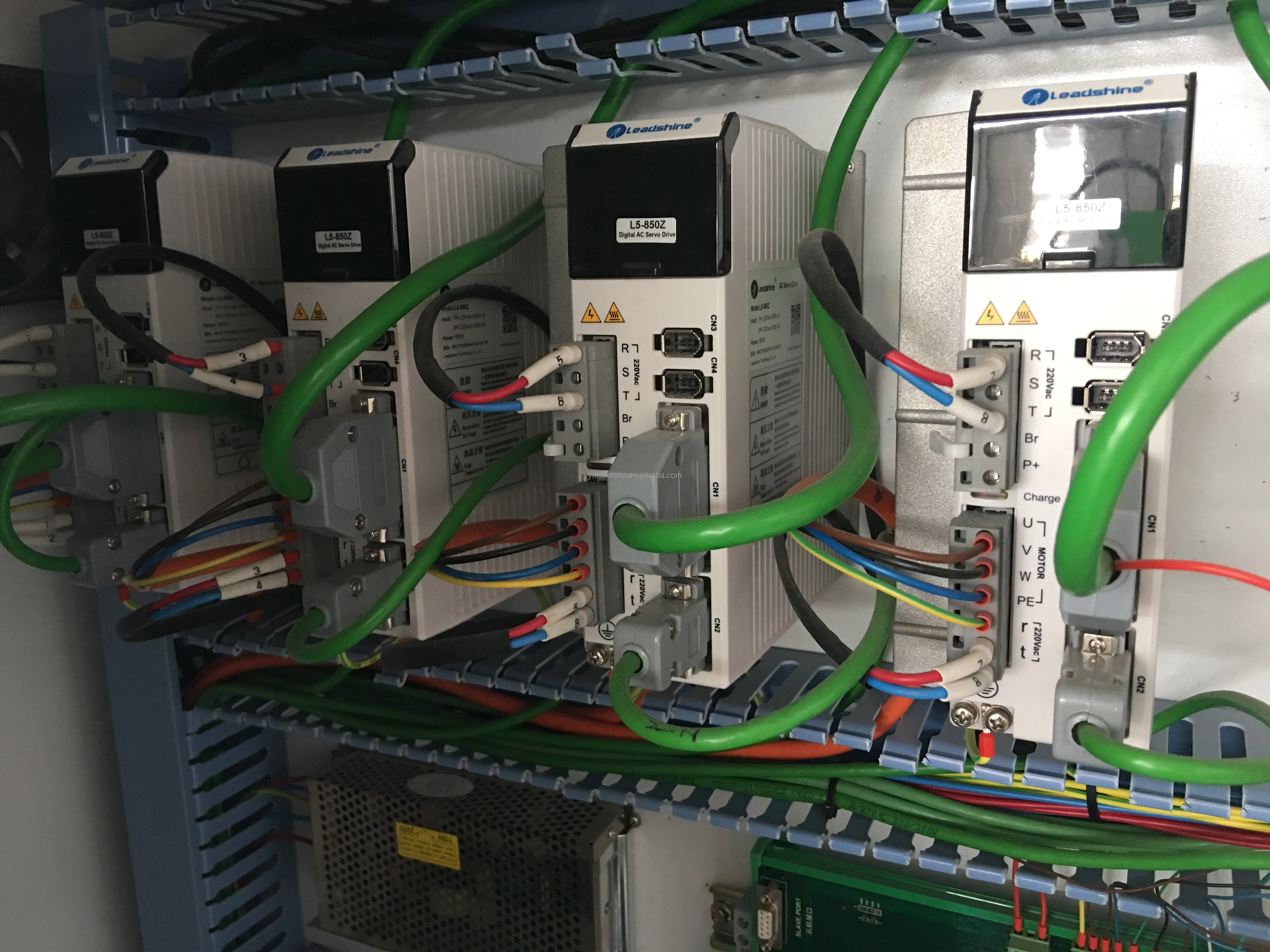

Drive System	1500W servo motor
Working Voltage	AC380V±30V, 50HZ
Command Code	G Code (*.nc, *.mmg, *.u00, etc.), *.eng
Control System	NcStudio
Compatible Software	Compatible with any software generating G code file in Window 98/XP/7

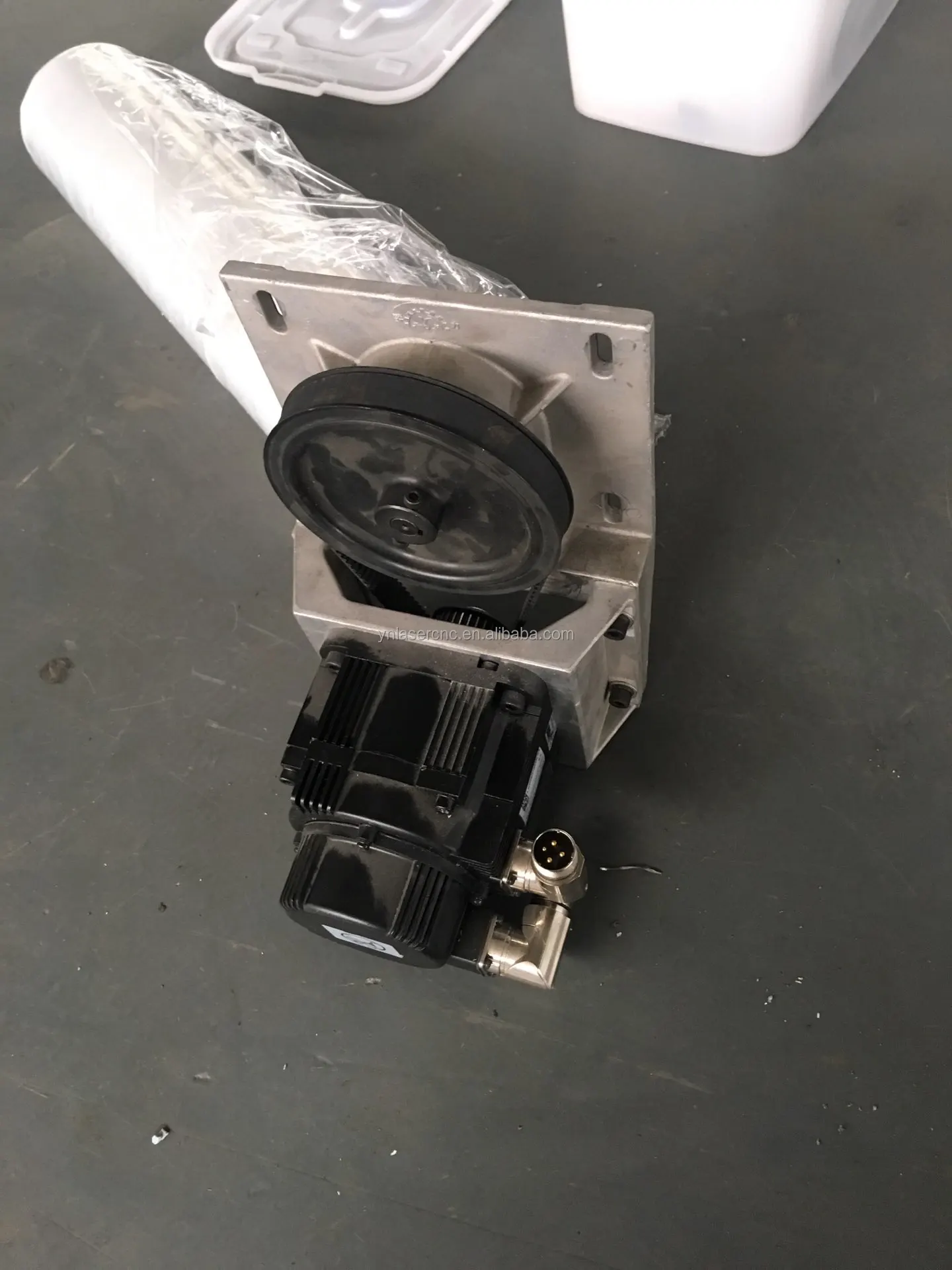

Strong cmponents for YN3316 2d 3d Stone wash bowl granite milling engraving cutting cnc router machine





Samples:
